Desay Series QF · fine pixel outdoor custom LED modules

Series QF

· quote
Desay Series QF · fine pixel outdoor custom LED modules

Series QF

· 3.90 mm

Desay QF. We think 'Quite Fine' sums it up.

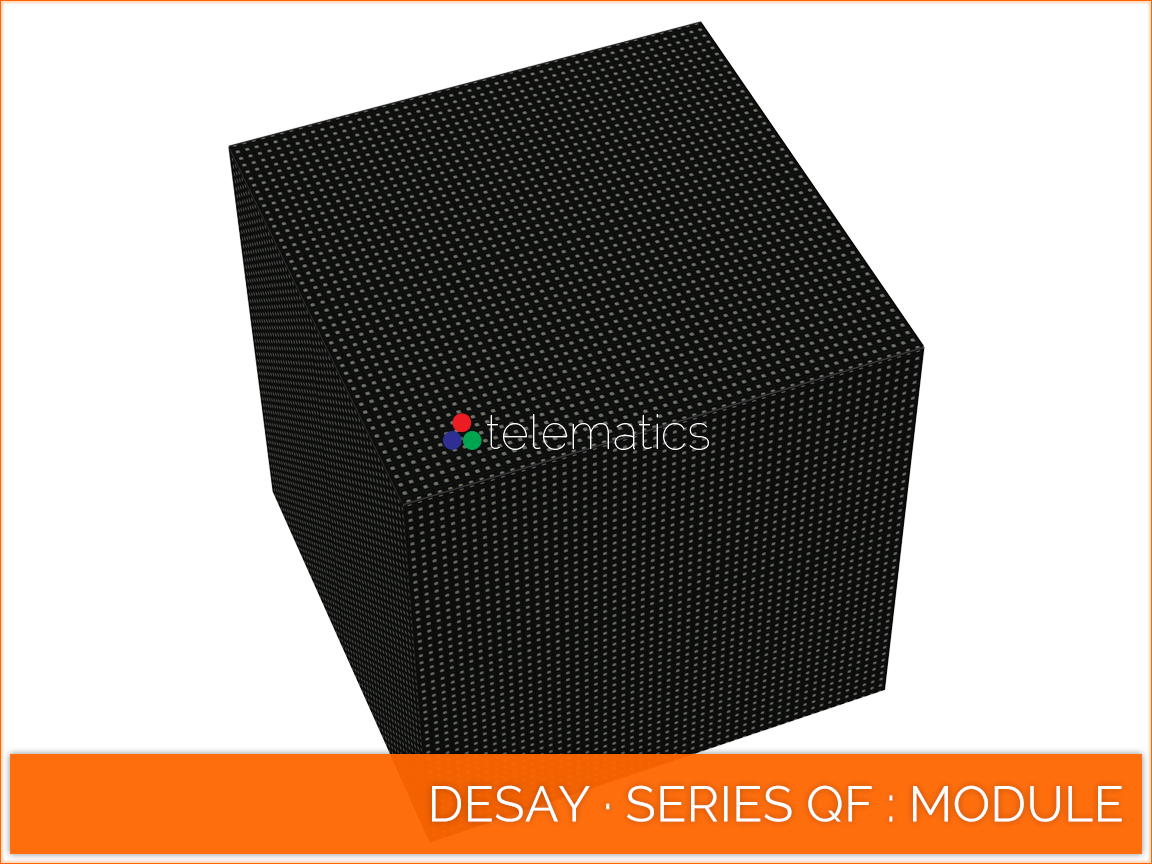

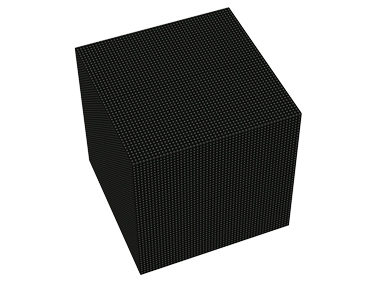

Time to actually think outside the box. On account of there isn't one.

Pixels

Pixel to pixel spacing is an exceptional 3.90 millimeters to create a display resolution of more than 65,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series Q3.90 looks great from under 4 meters away.

Dimensions

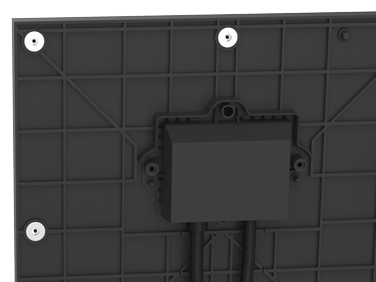

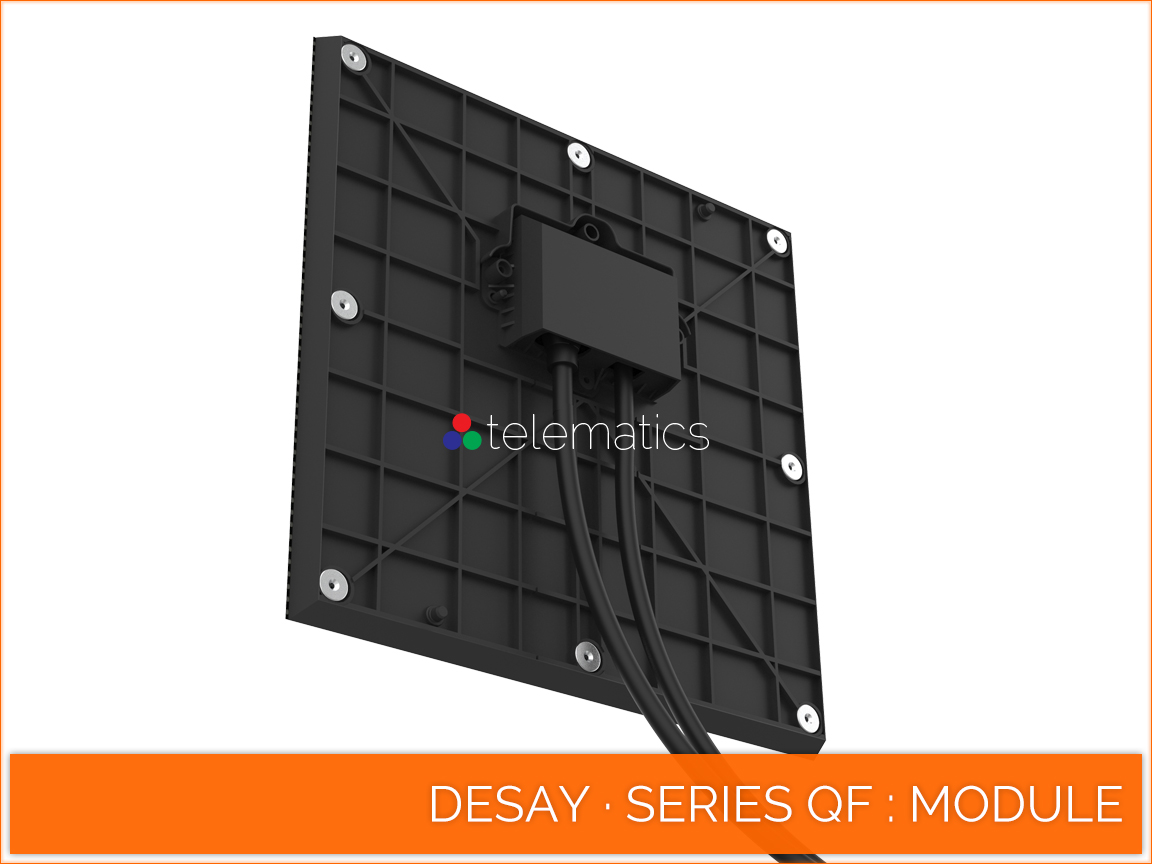

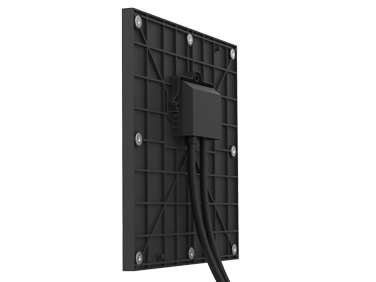

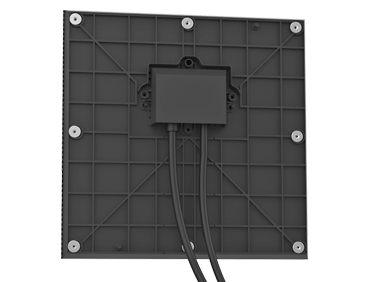

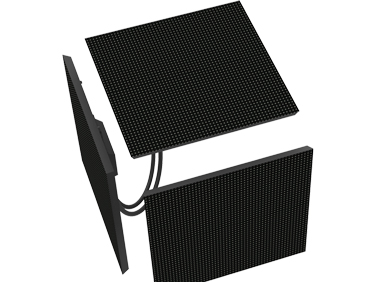

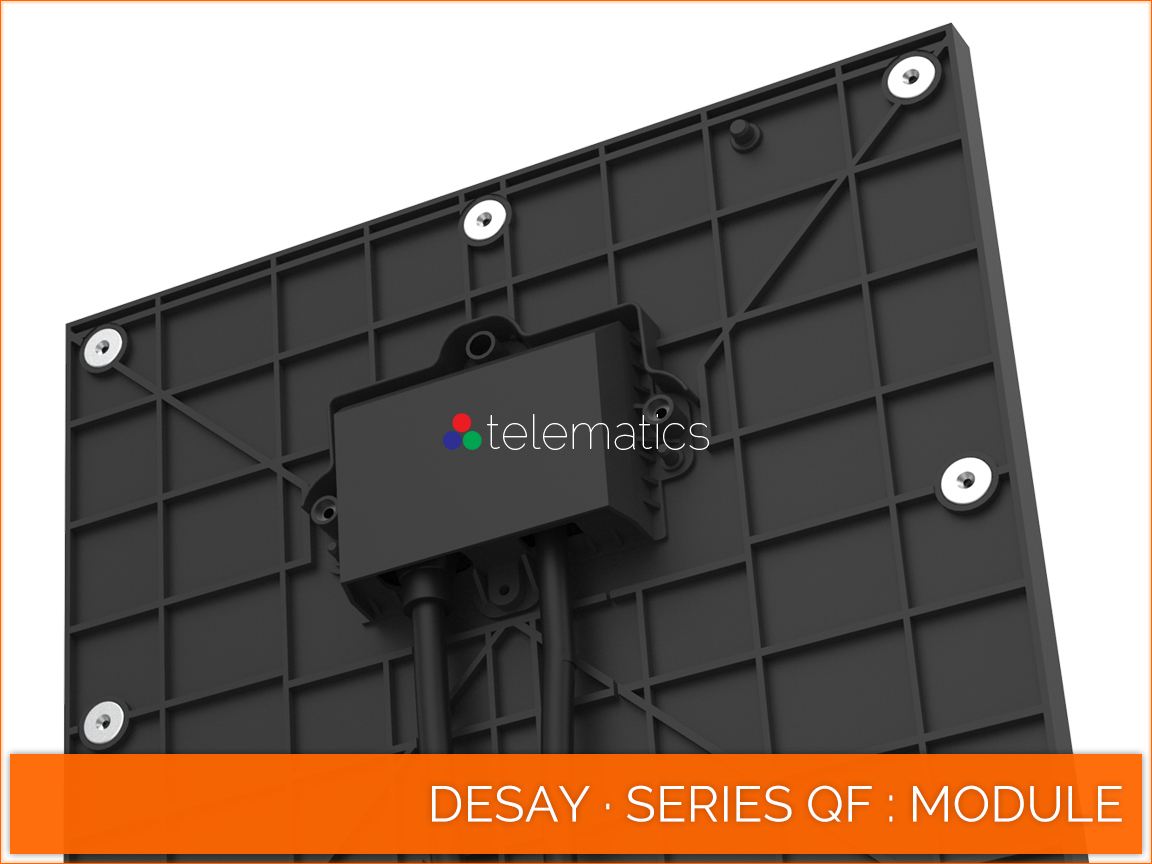

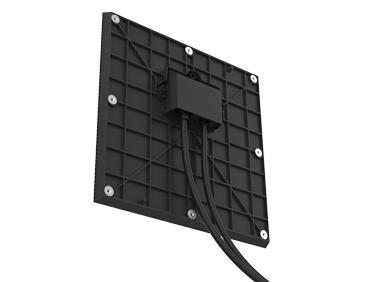

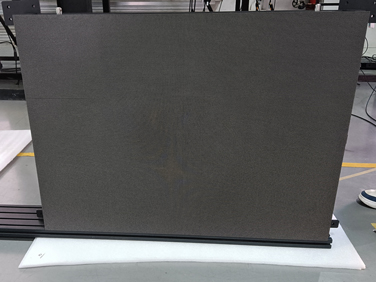

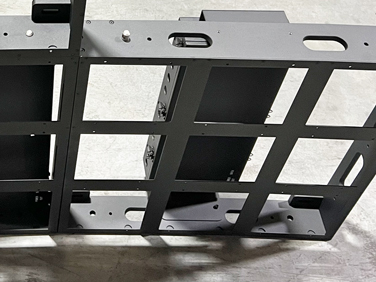

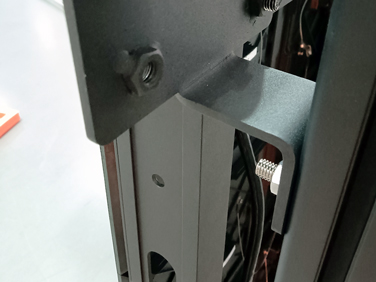

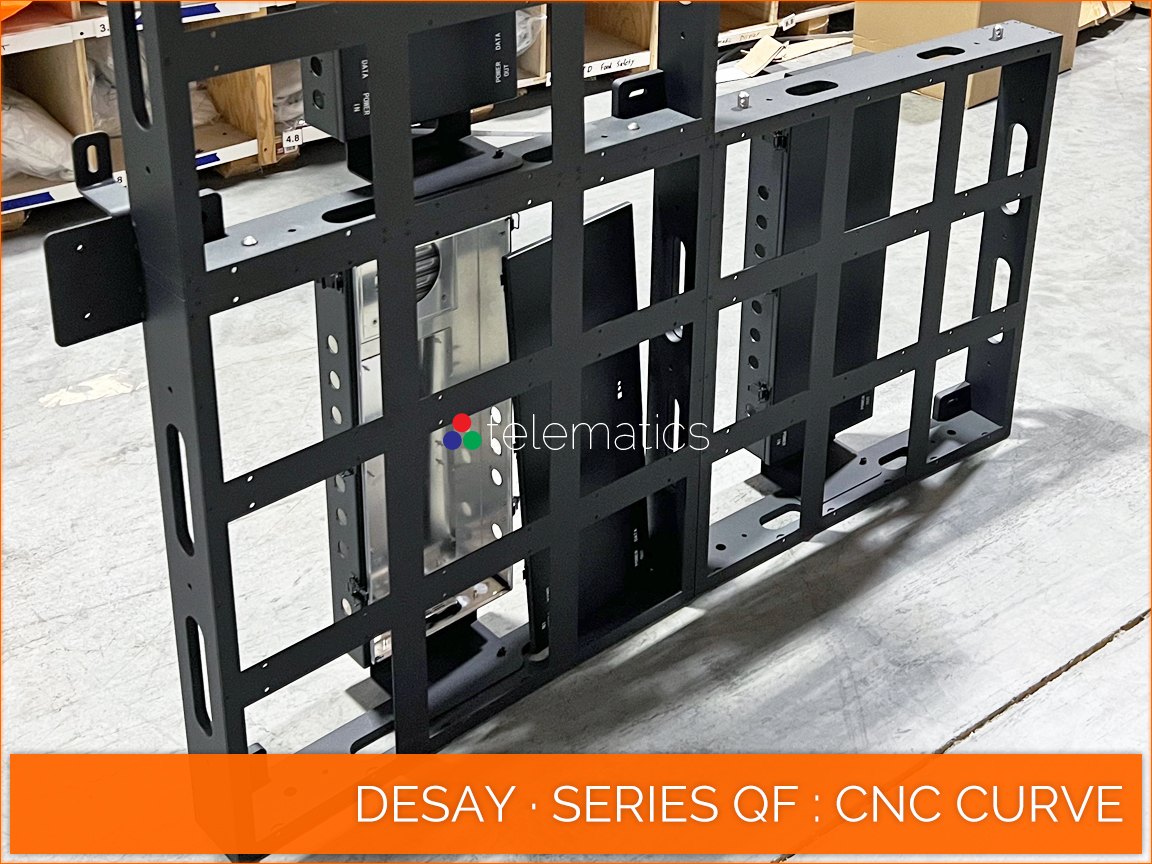

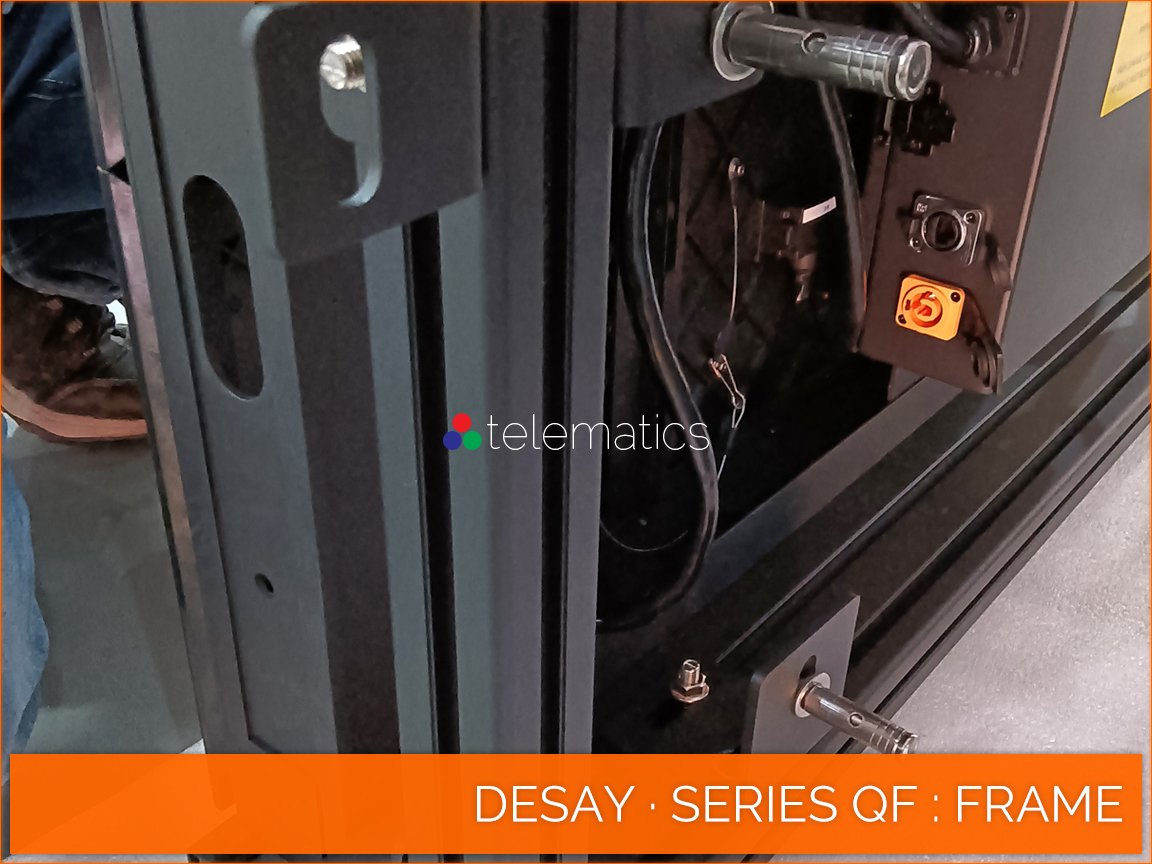

The Series QF is a frame-ready set of modules that weigh less than a kilogram with XYZ dimensions of
250 * 250 * 62 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 10 * 10 * 2.5 inches
and a featherweight 1.5 pounds.

Viewing

The QF is outdoor bright at 5500 cd/m² and can be set to different levels based on ambient light sensors. Screen refresh rates are spec'd at 1920 Hz for smooth video transitions. Off-axis viewing is 50° looking at the display from above or below, and 60° coming or going.

Performance

Colors are amazing with levels of red14 * green14 * blue14 that create a combined 4398 billion colors and a silky smooth 16,384 shades of grey. Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 227 Watts per square meter and up to 650 Watts on full load depending on the content.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

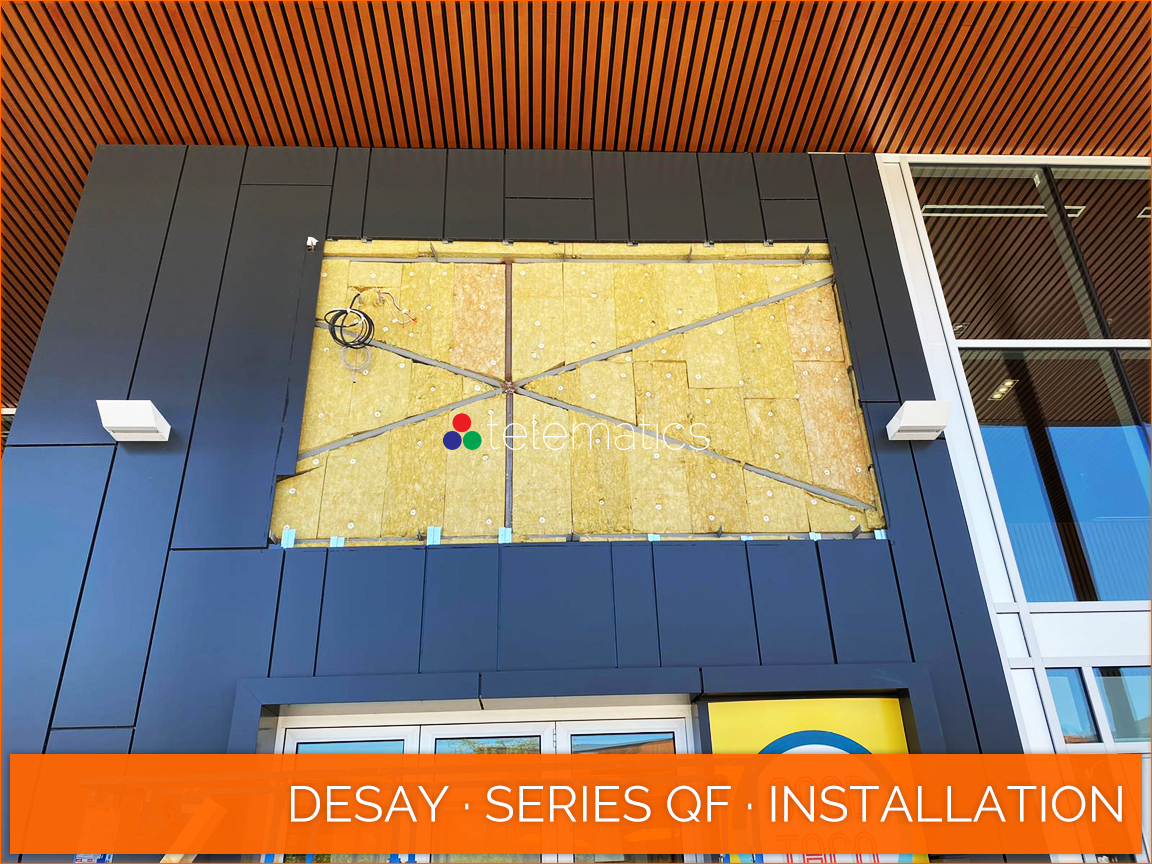

Installation

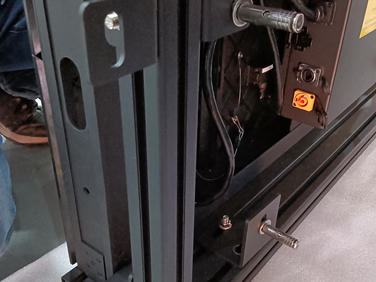

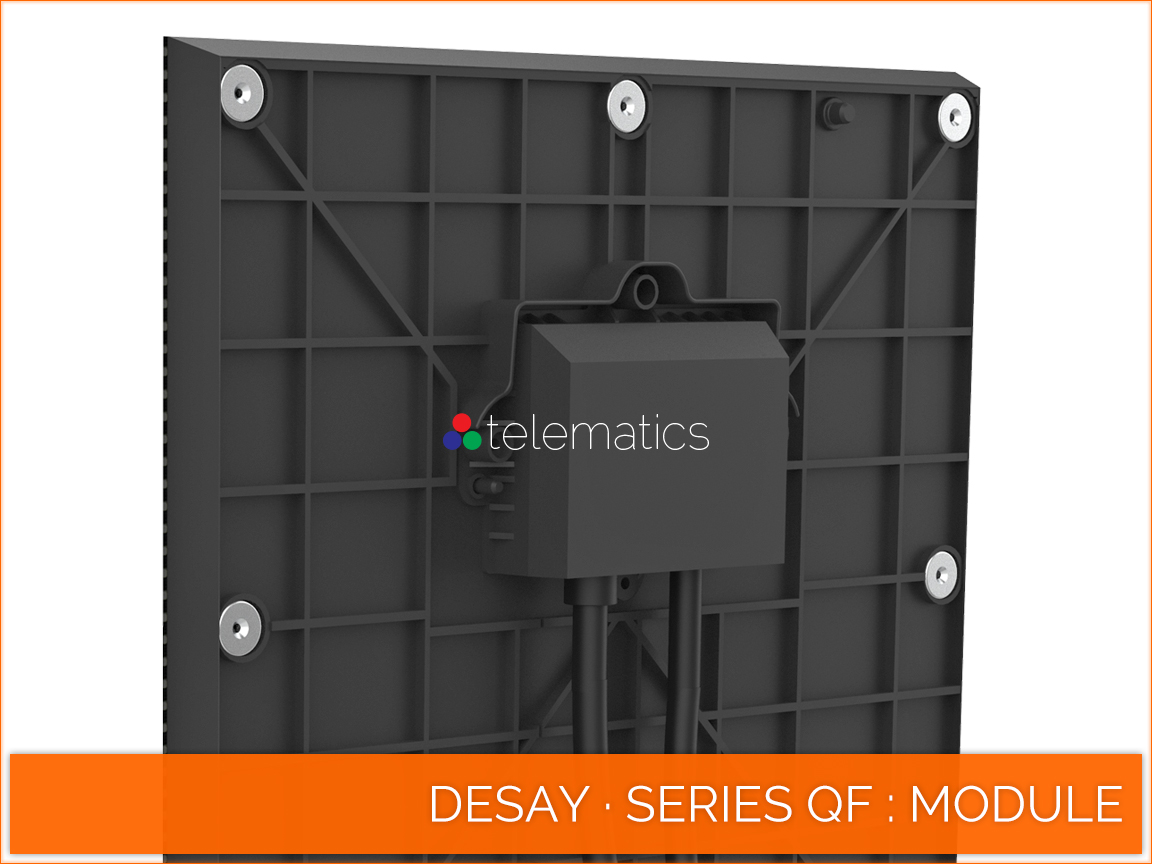

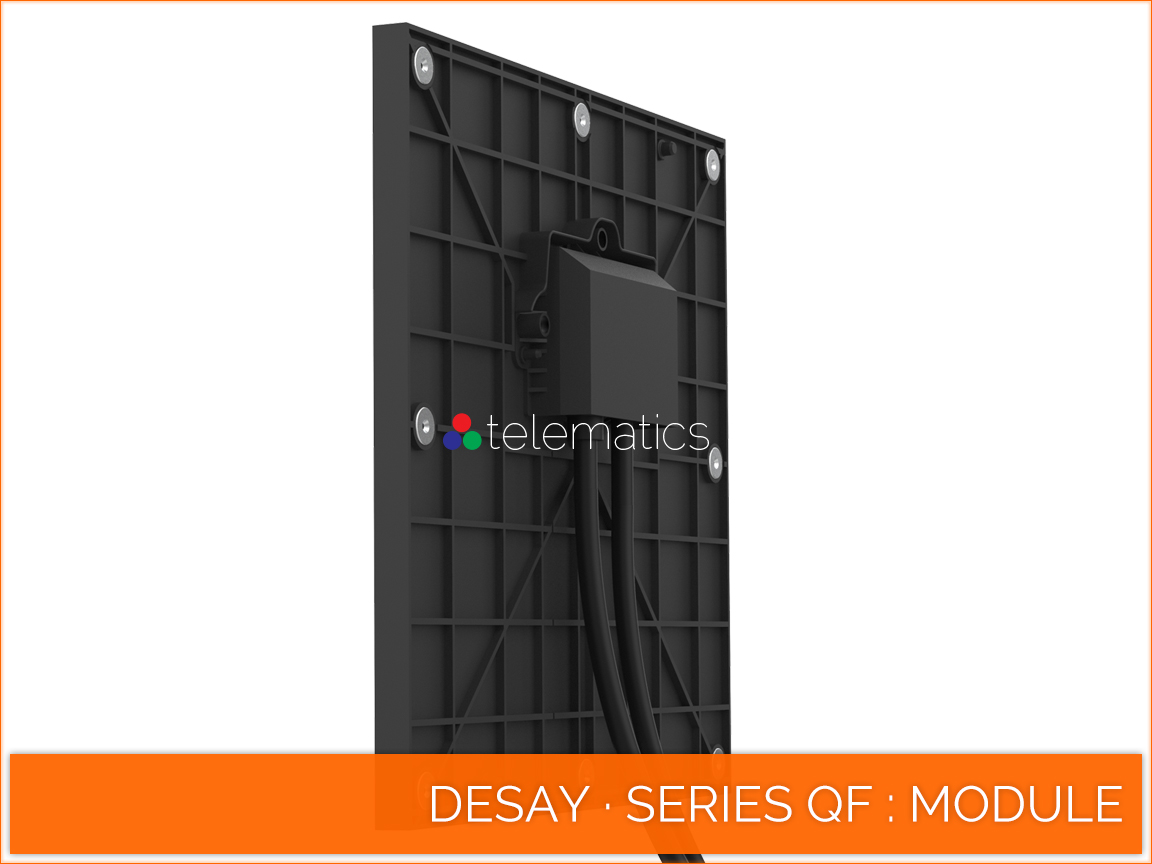

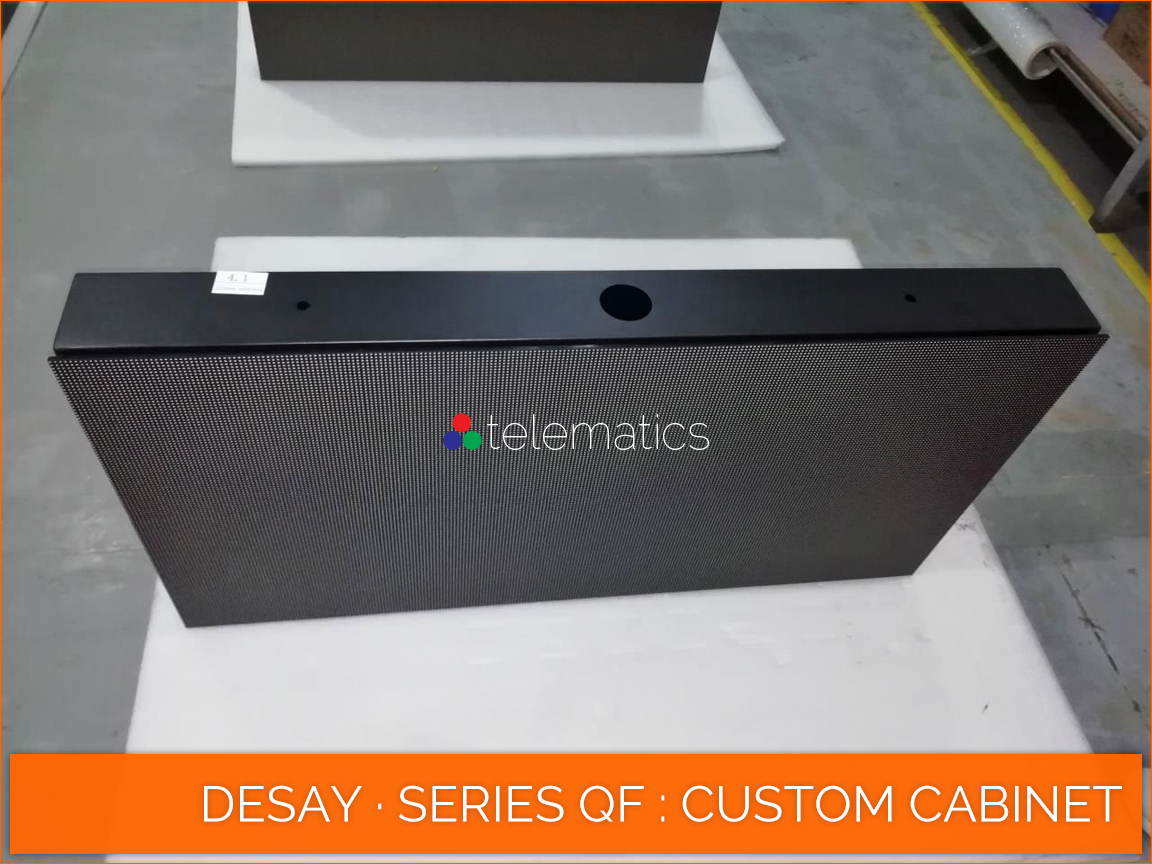

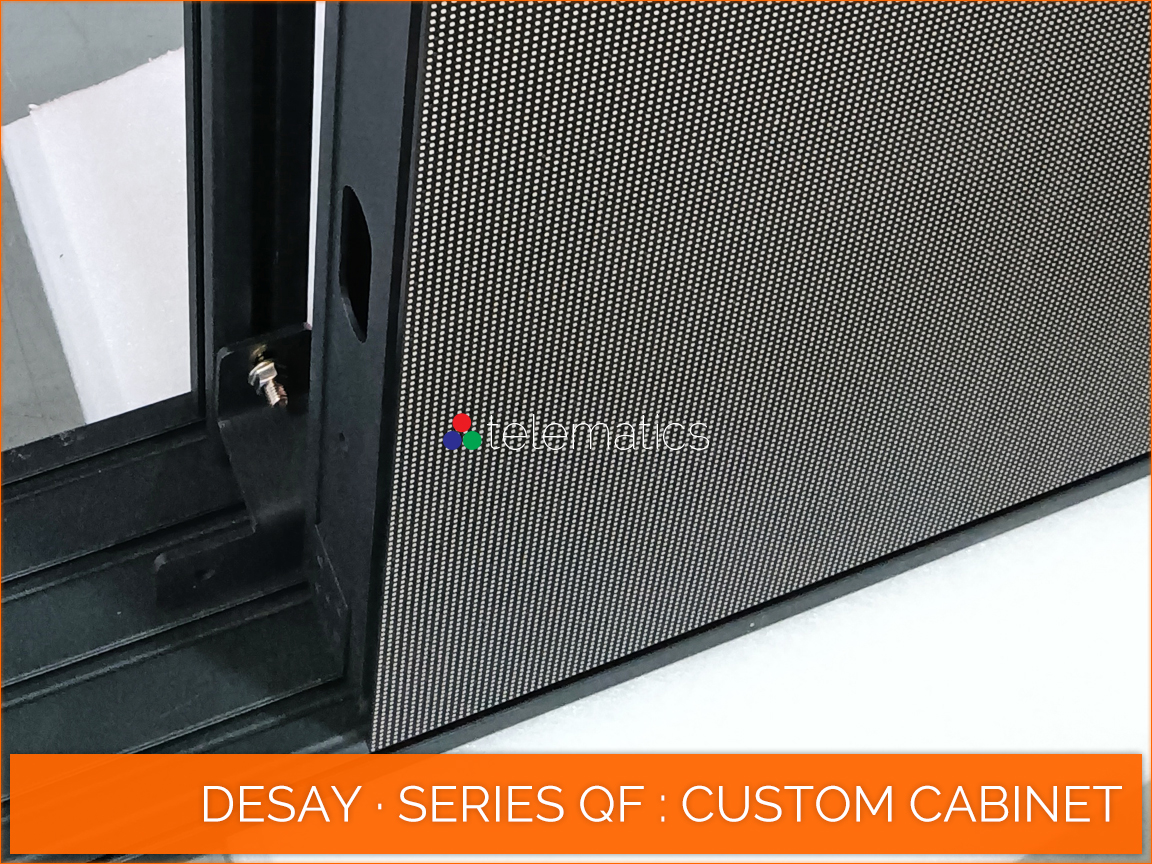

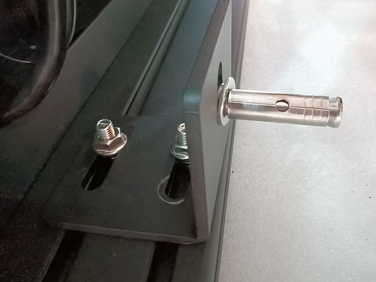

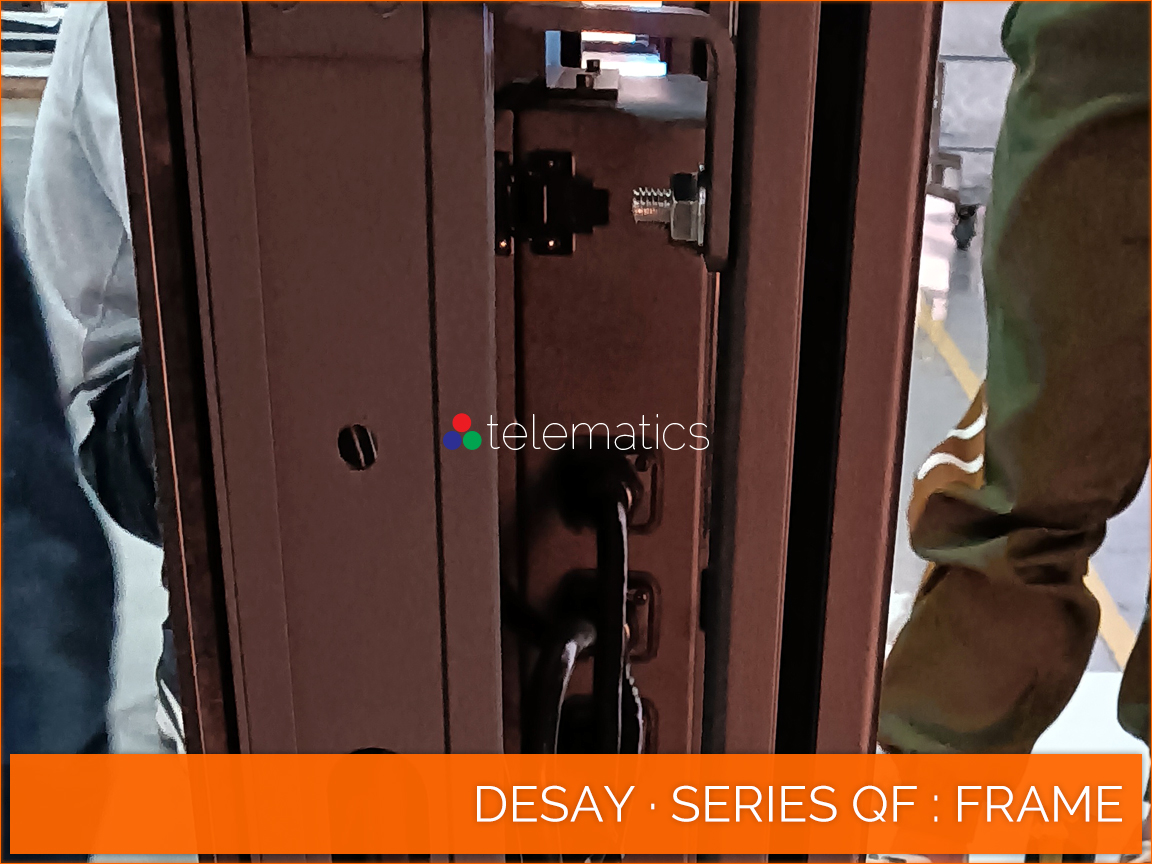

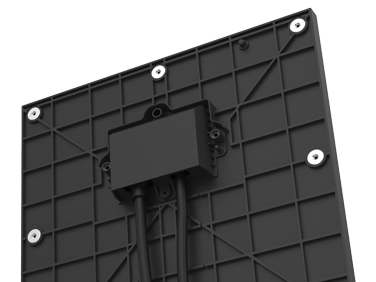

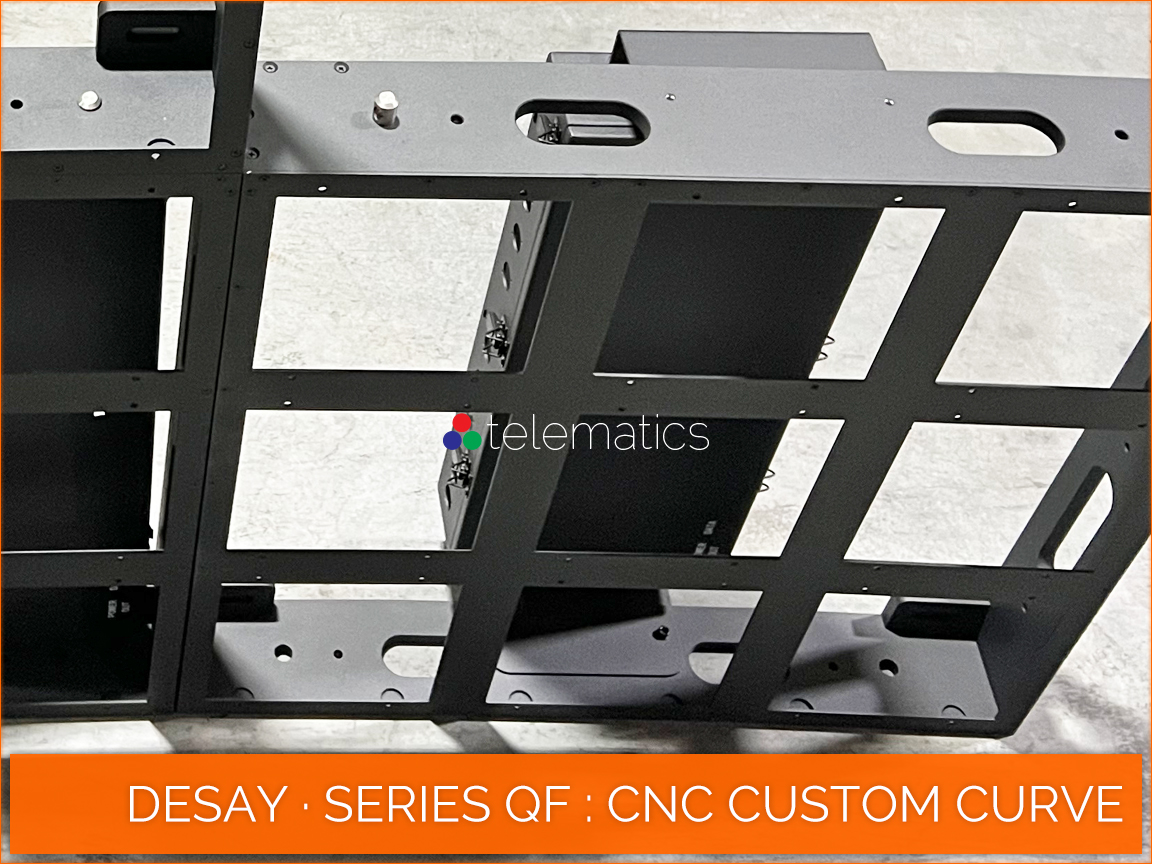

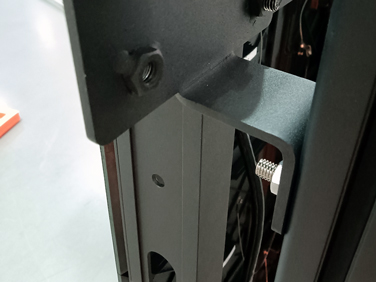

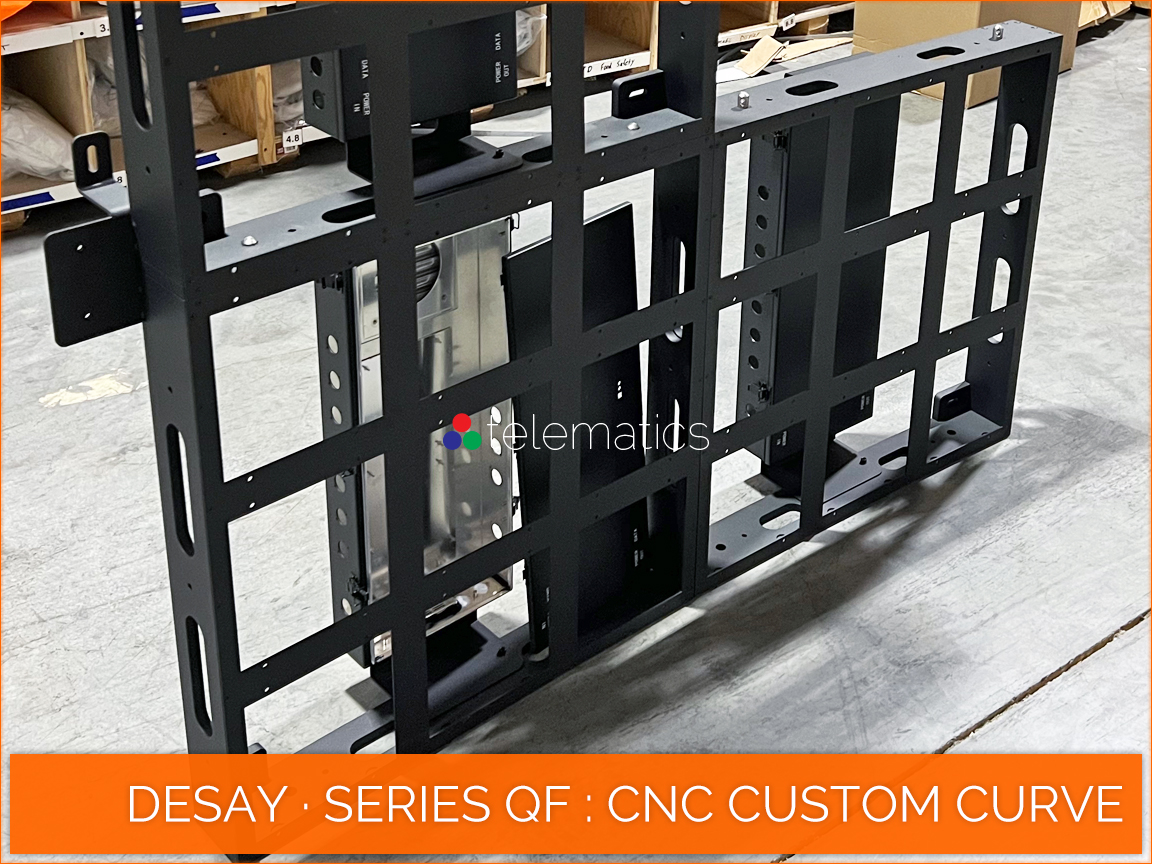

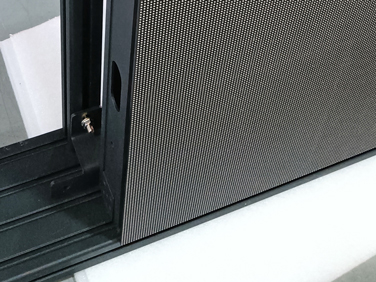

The Series QF is a unique outdoor display. The magnetic modules eliminate the need for screws, which allows for a tighter pixel density. Build your own steel support frame or we can build a custom cabinet for you. The small module size means the QF will fill out any custom space.

Specifications · Desay Series QF

Bring your inner creative side outdoors.
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series QF390
Pixels mm · meters
Resolution · ctc distance · mm 3.90
Resolution · per linear meter 256
Resolution · per square meter 65536
Dimensions mm · (inch)
Width 250 (9.8)

Height 250 (9.8)

Depth · at module edge - (-)

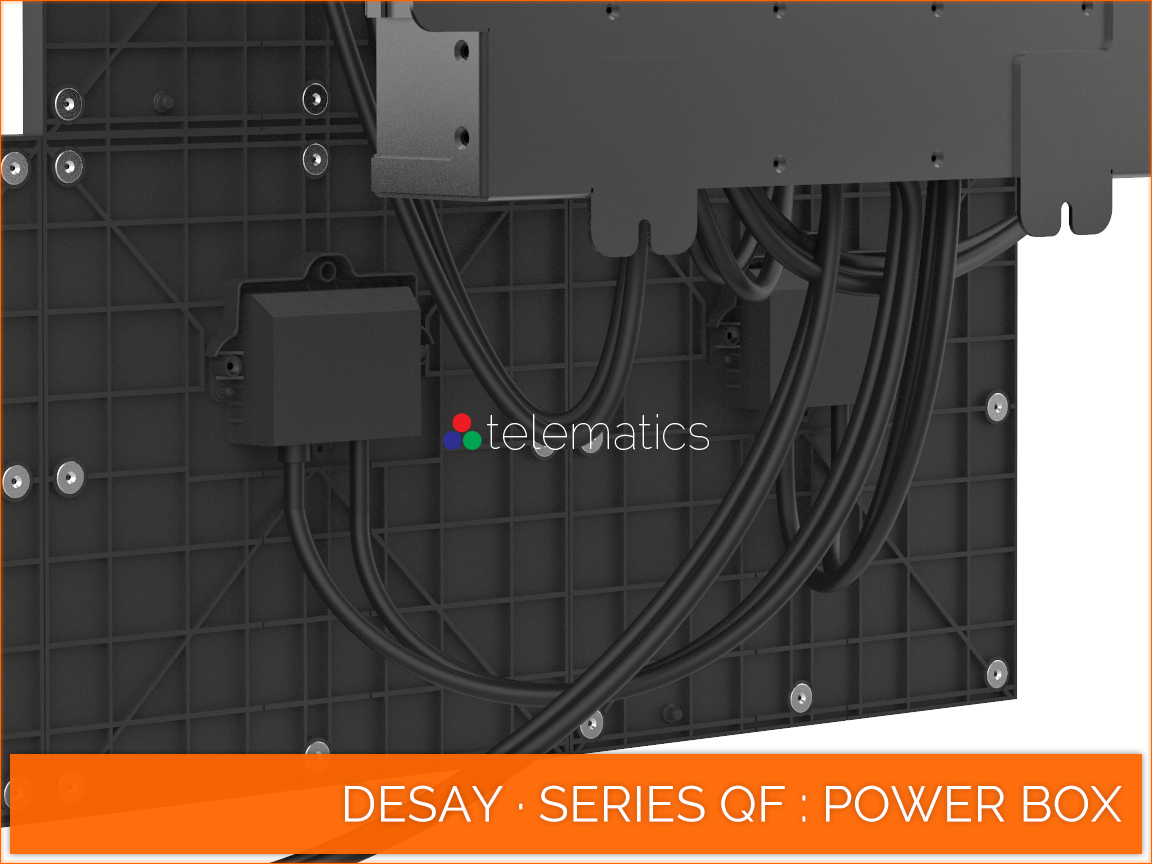

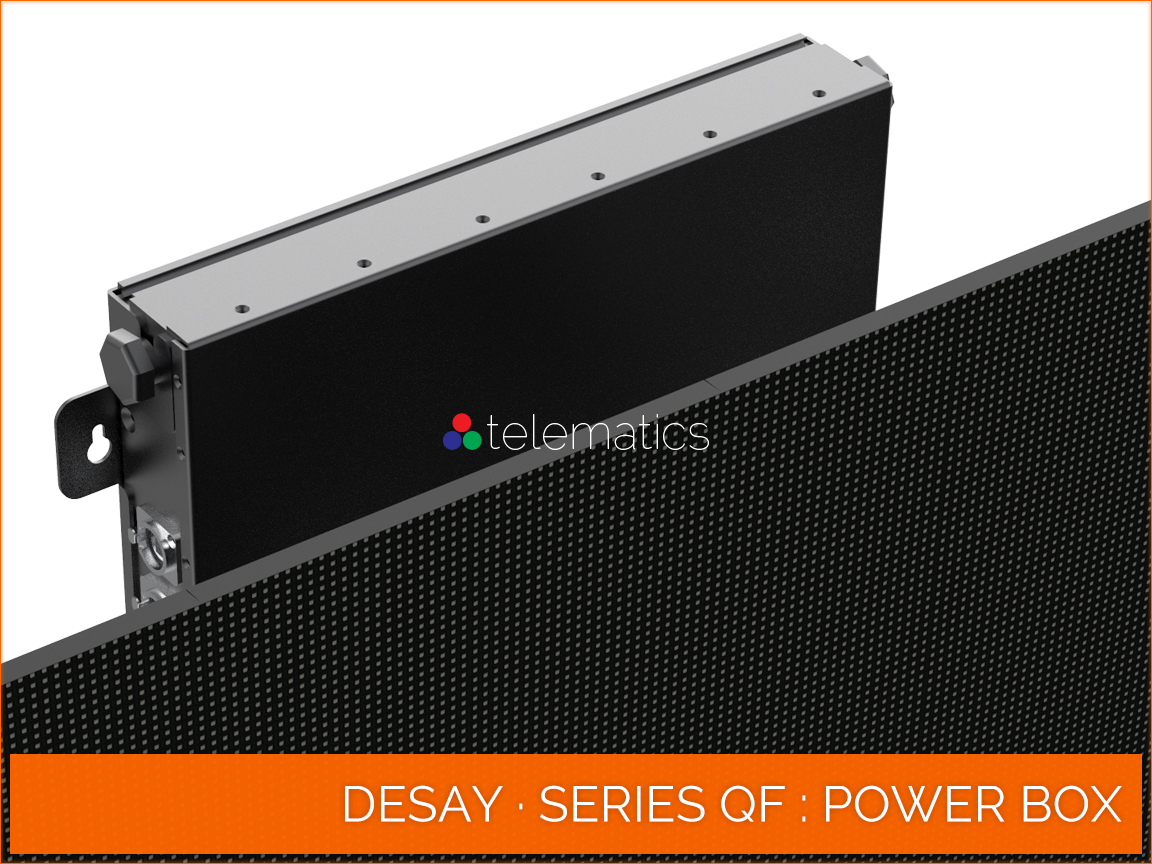

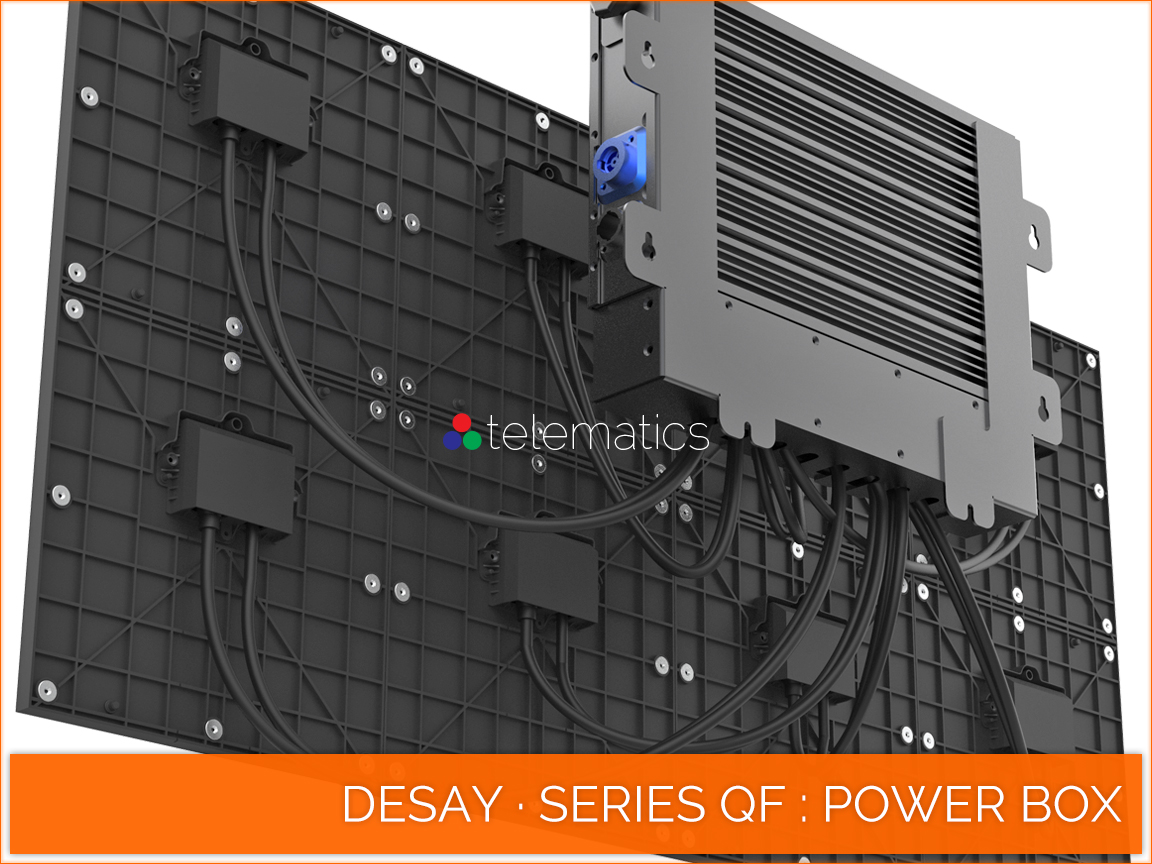

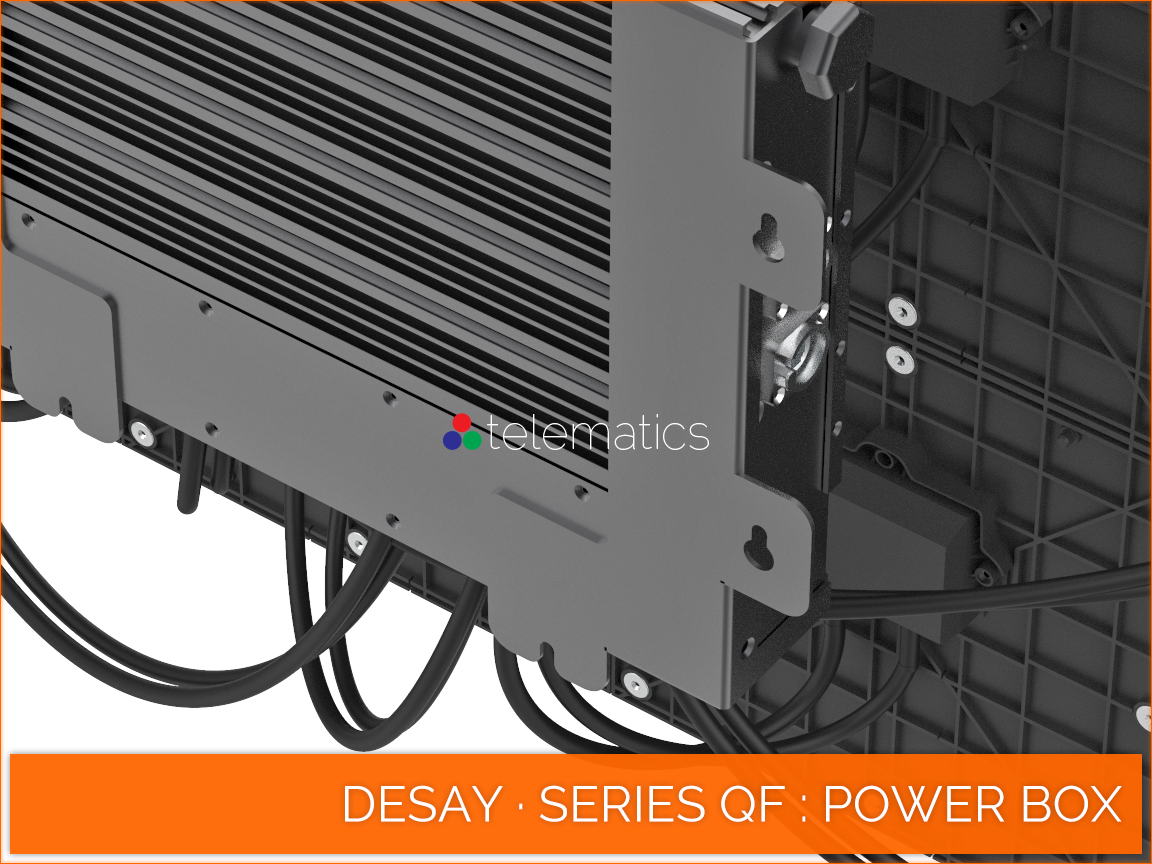

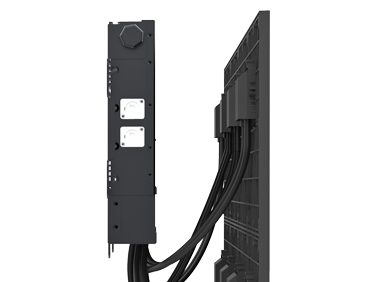

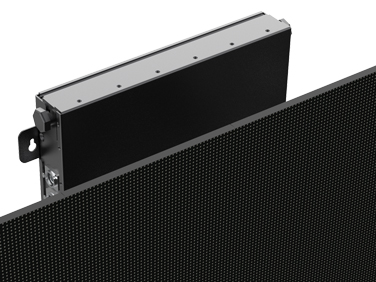

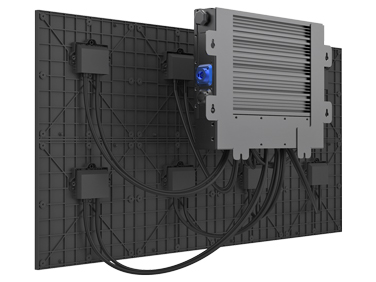

Depth · at power box 62 (2.4)
Weight kilo · (pound)
Module 0.7 (1.5)
Viewing (upgrade)
Brightness · candela/m² 5500

Refresh · hertz 1920

Angle · 50% brightness 60° 60°
Angle · 50% brightness 50° 50°
Performance
Colors · rgb · bit depth 214
Control · brightness levels 255
Lifetime · 50% brightness · years 11.4
Power square meter
Watts · (average draw) 650 (35%)

Voltage · VAC · adaptable 100 ⌁ 240
Certifications
Regional · please inquire ETL · FCC
CE · ROHS · UL
Installation

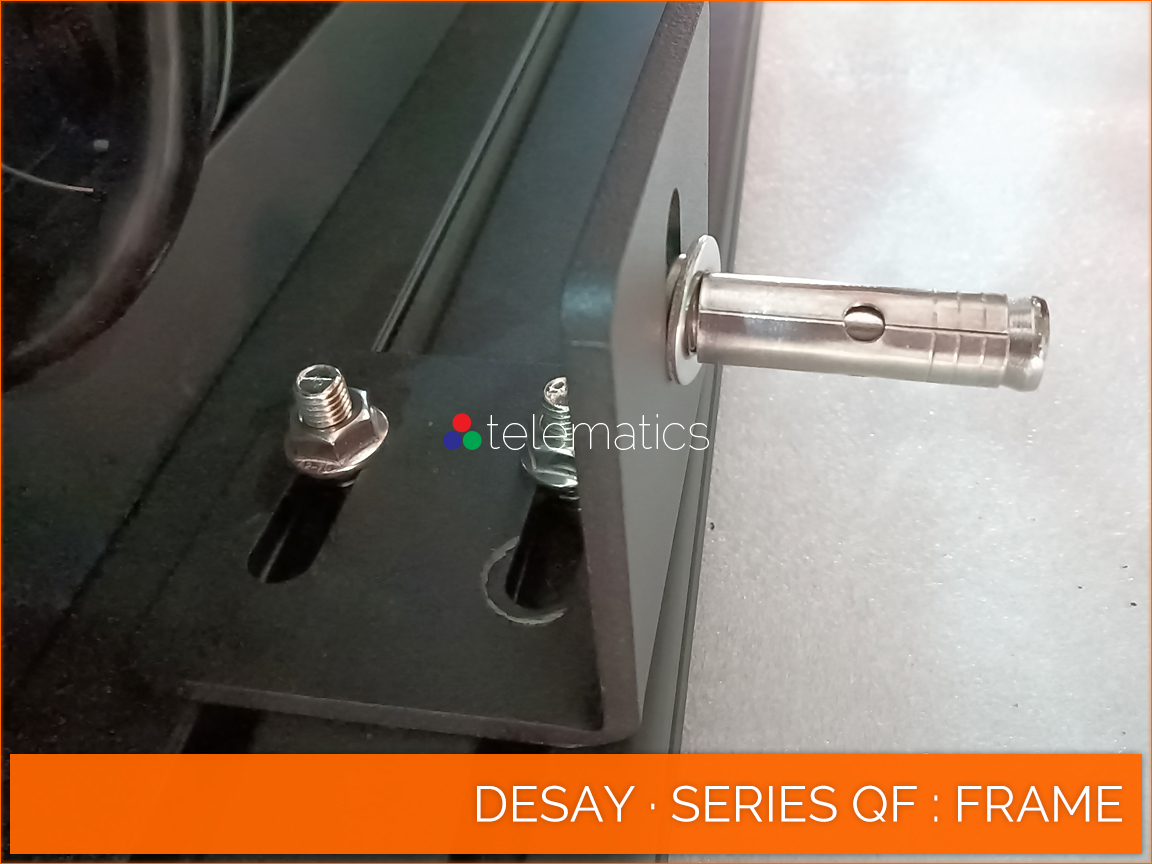

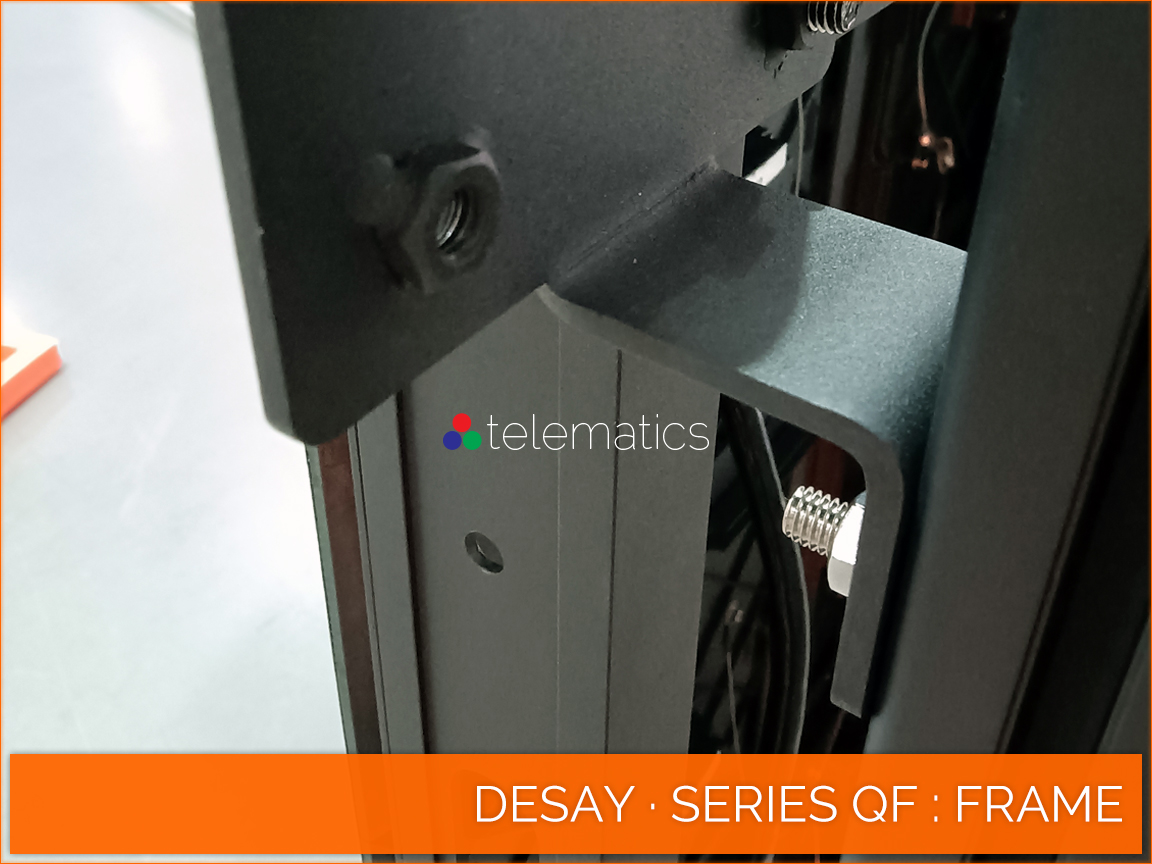

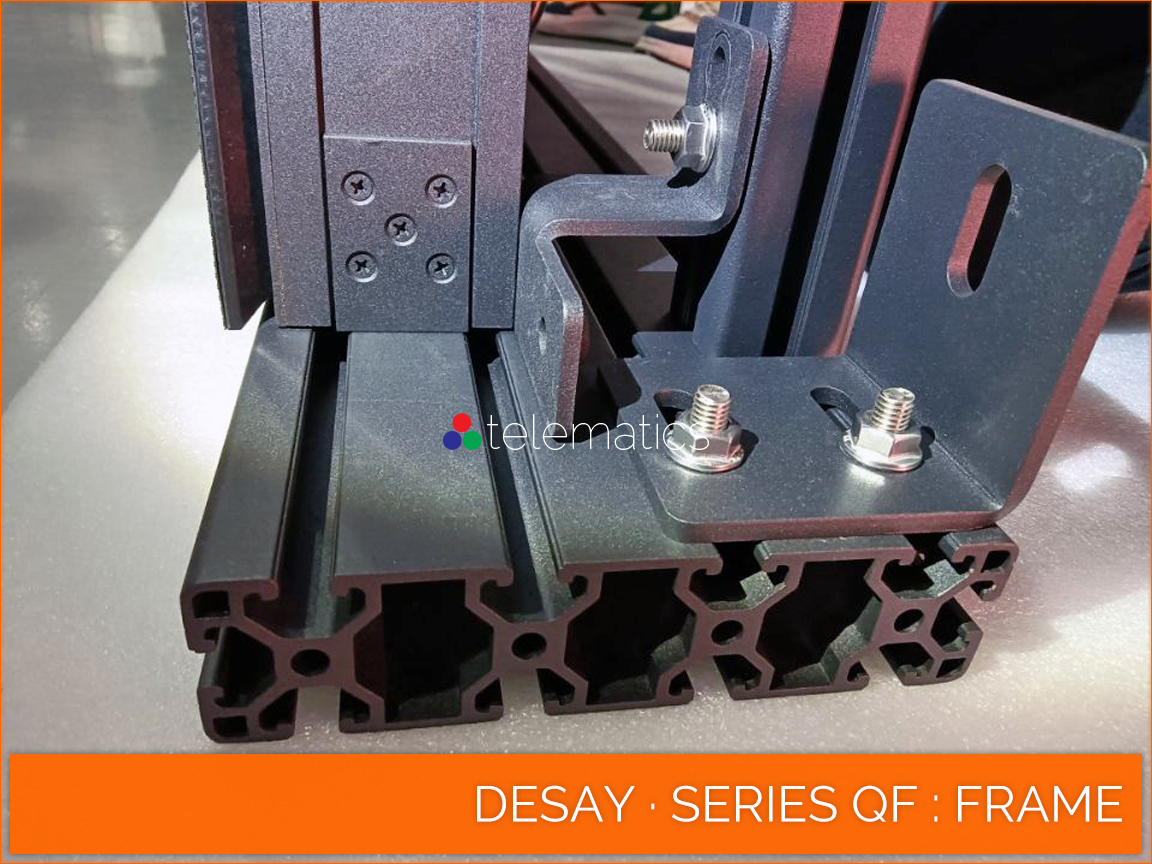

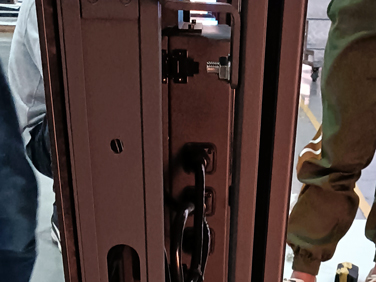

Custom Frame ⬚⬚⬚

IP Code · module · box 66 · 43
Operating · celsius · (fahrenheit) -40 (-40) · 50 (122)

Fine Print

Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series QF

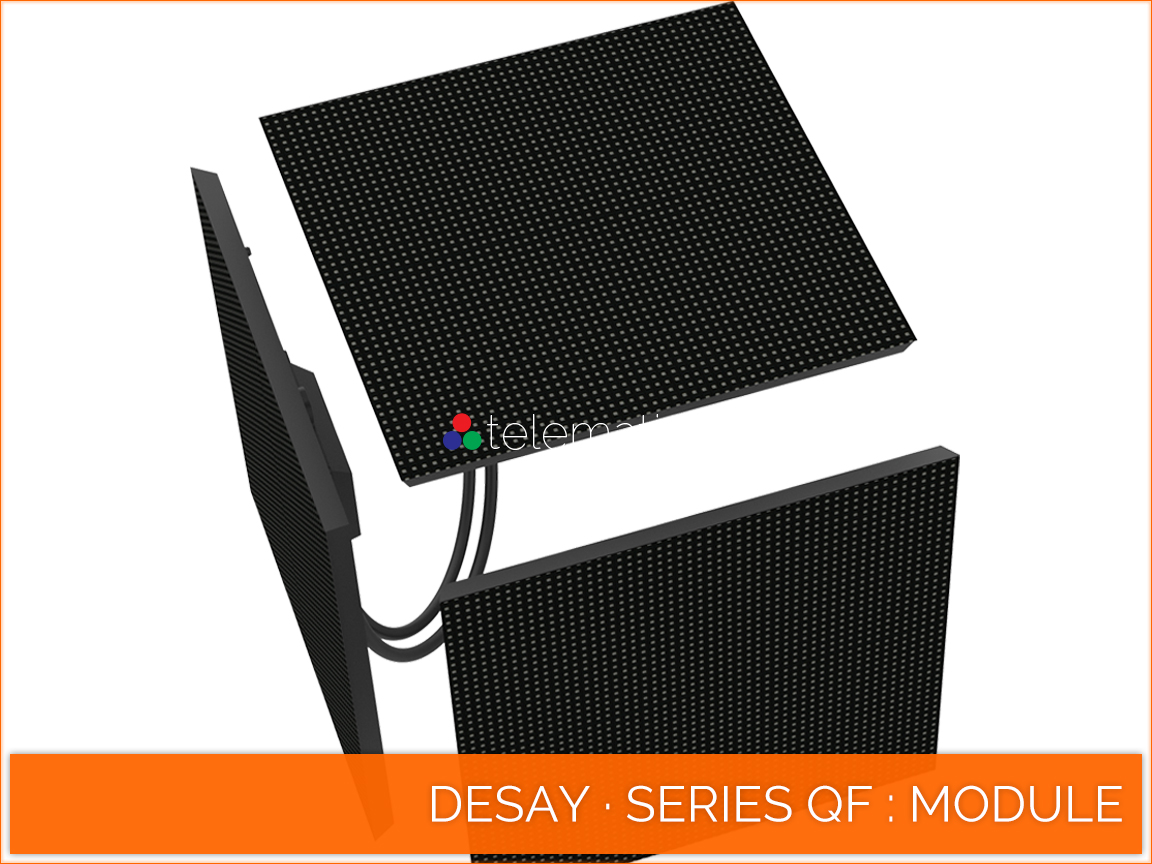

The Series QF has a very small niche to fill which is a 250 * 250 millimetre void in a custom steel frame of your design.

Build out whatever your imagination can imagine and the Desay Series QF will be there to offer its full support to get your point and product across to your audience.

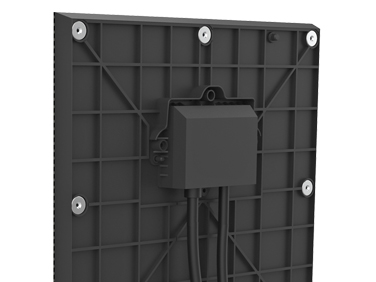

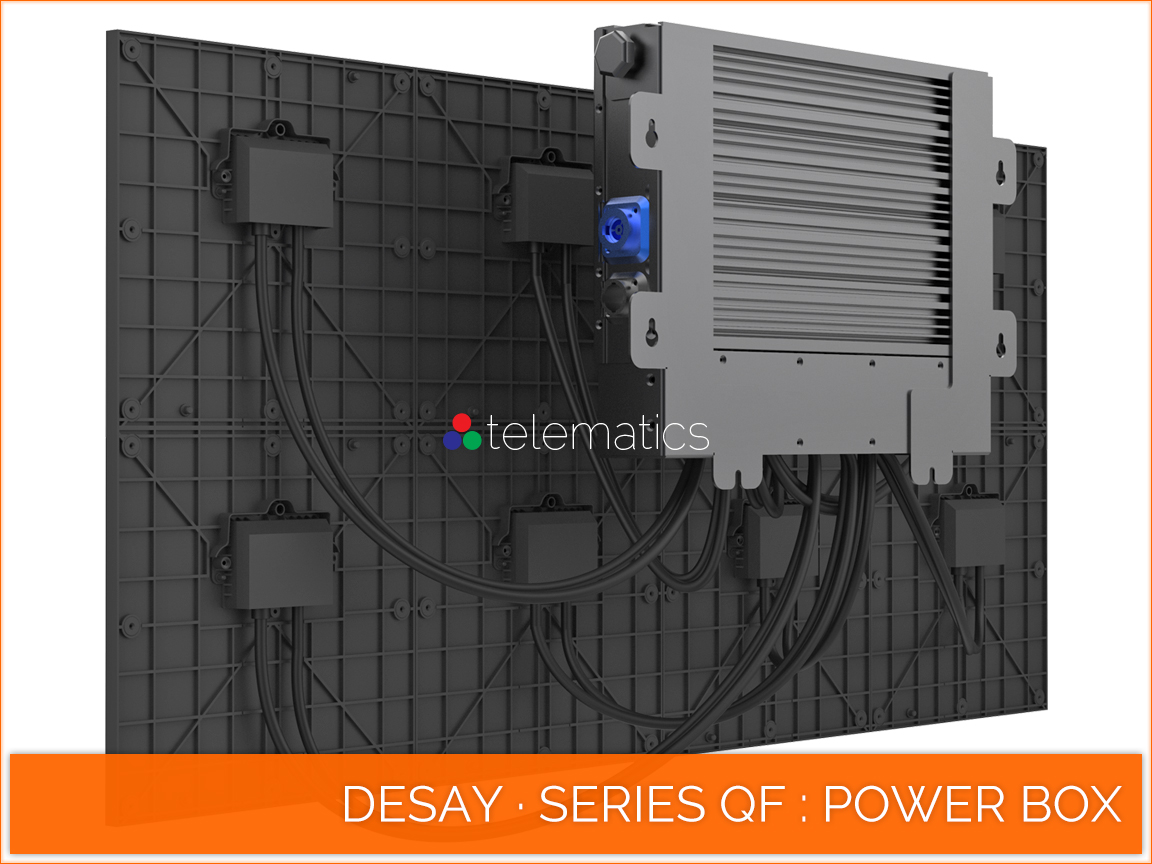

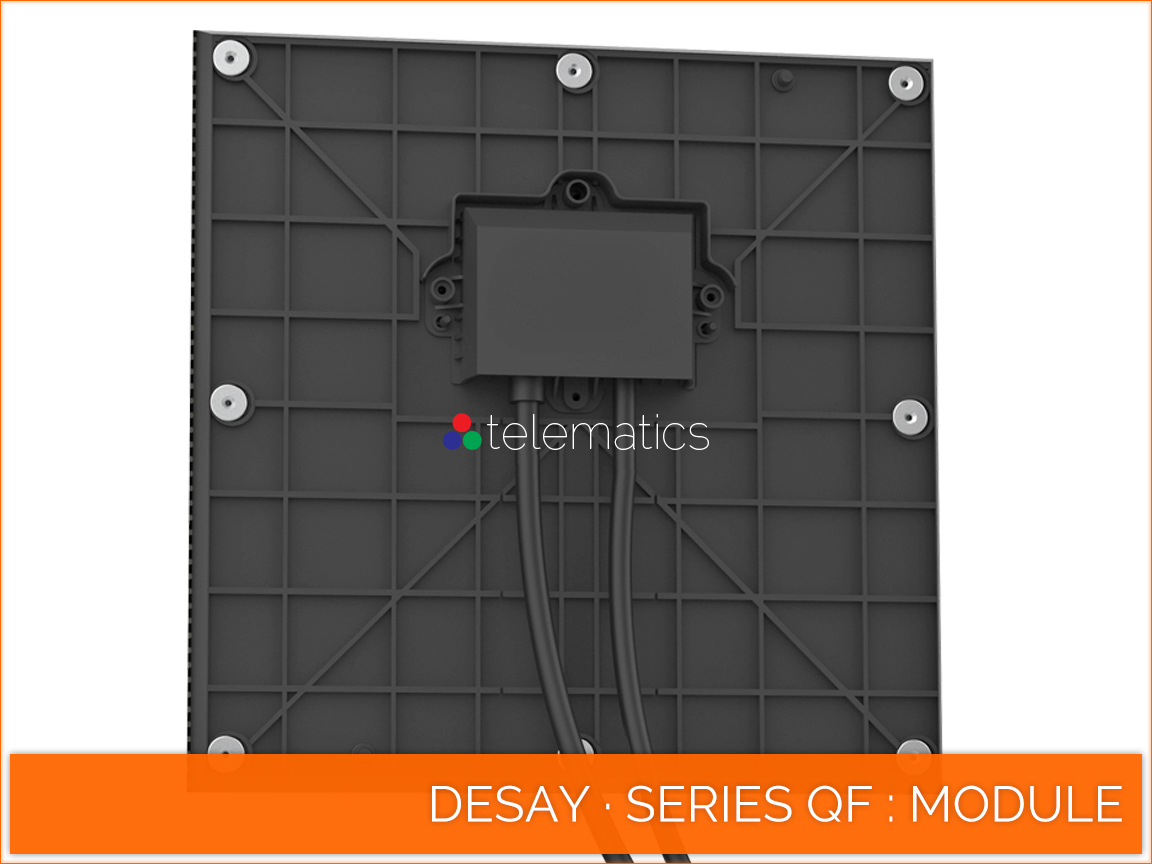

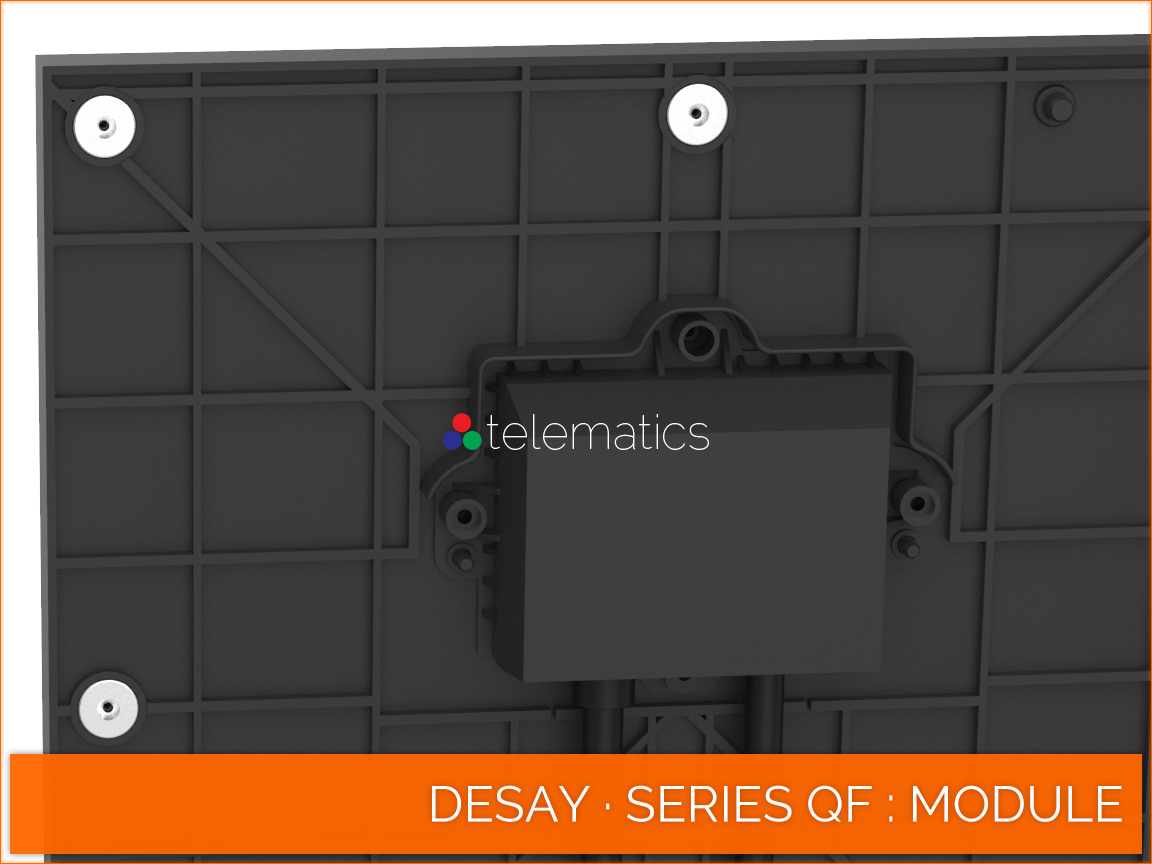

The Series QF is serviced from the front of the display by removing any of the eight LED modules that are connected to a remote power box. This feature allows for quick and easy replacement of a faulty or damaged component in the most challenging of installations. After all, the show must go on.

Pixel density is 3.906 millimetres which was, just a few years ago, as good as it got for an indoor installation. Today, the QF is matching that same resolution in an outdoor installation.

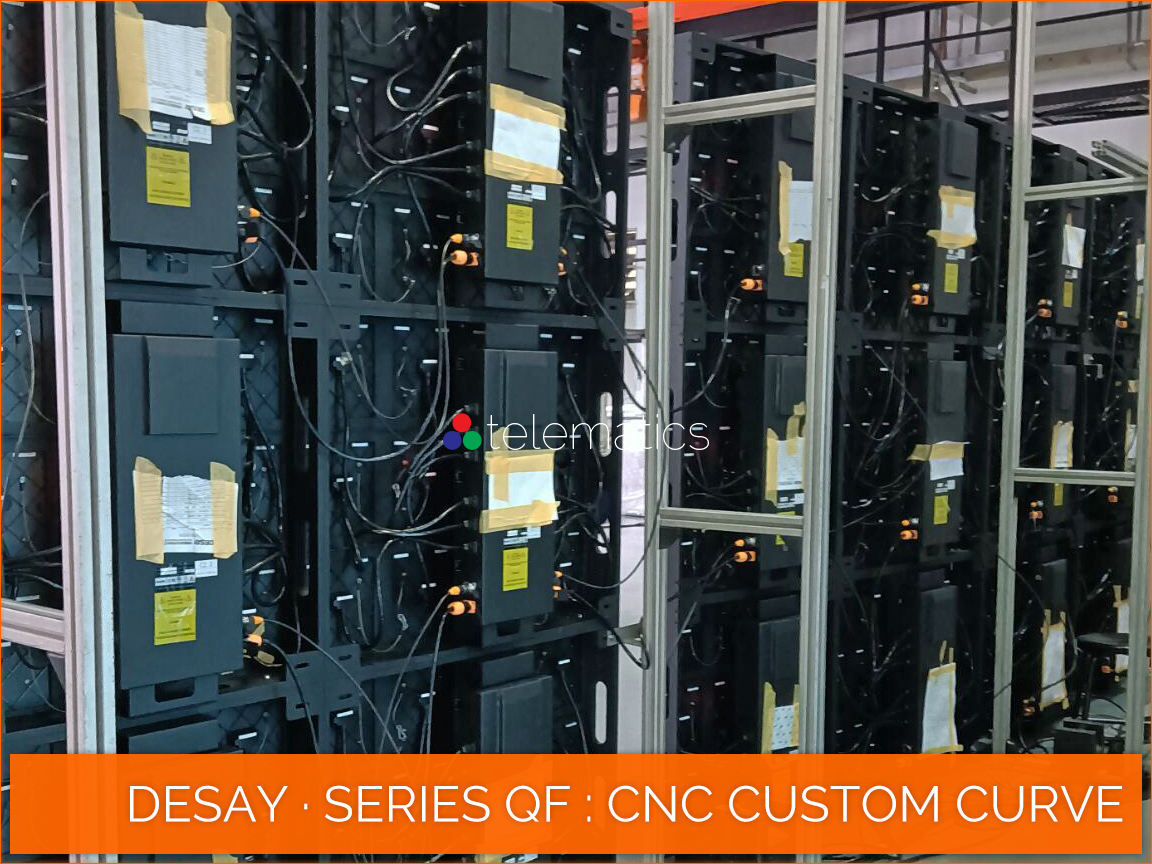

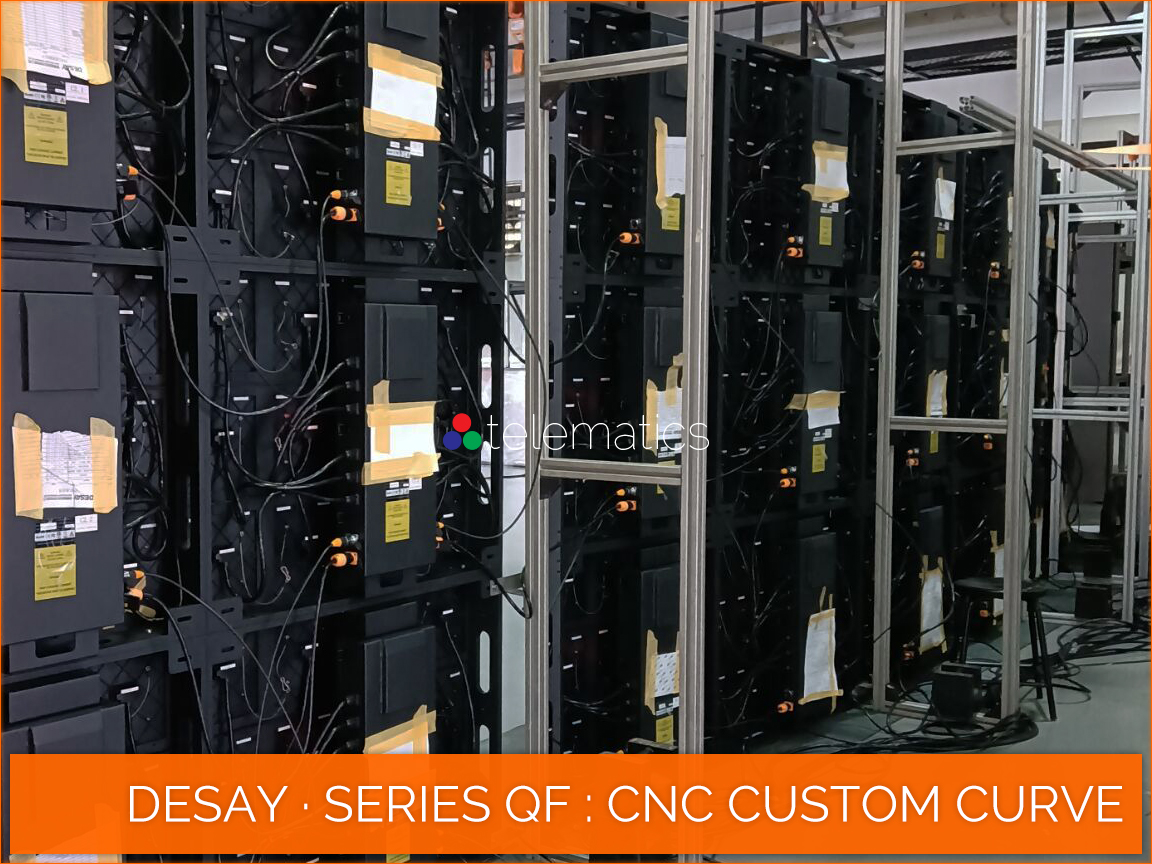

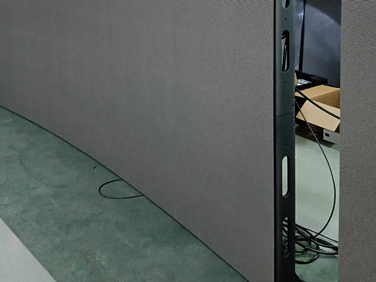

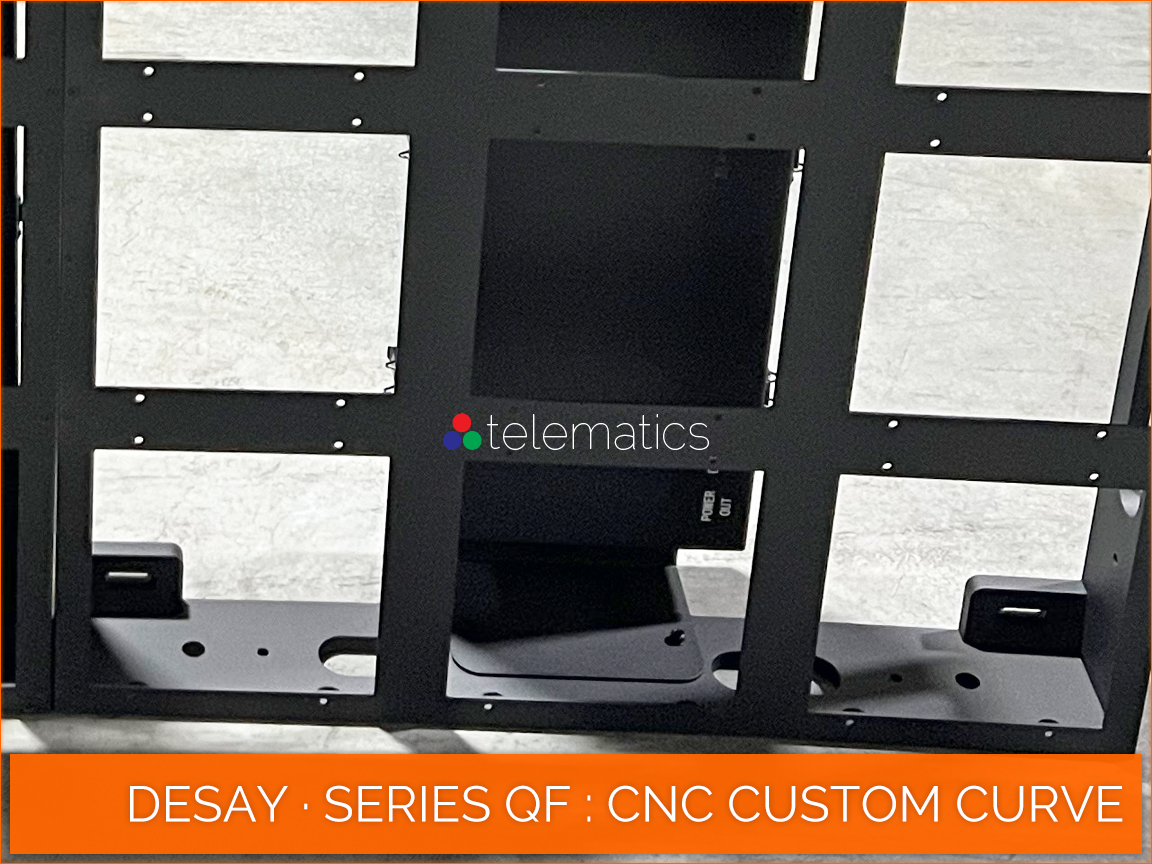

The modular nature of the QF means that you can build out a fragmented wall or create geometric columns and cubes. Or pretty much anything that your creative team has come up with. Nice!

Media is handled by any of our NovaStar controllers including the new wireless Taurus system that can be updated from your smartphone.

The Series QF is new for 2019 and our first deliveries are already underway.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.
There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu




Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu



S5 Box

Pricing · Desay LED Displays

We respect the value of your time. Use these numbers to ballpark the costs for your project. Then call us for a quote.
Now the general who wins a battle makes many calculations in his temple ere the battle is fought. ~ Sun Tzu

Series A
· A1.99i 4313 /unit
· A2.57i 2409 /unit update: 10/2019





1920 Hz Refresh standard

Novastar A4S standard




Service Tool 400 set

Floor Mount 160 set
Wall Mount 30 set
Hanging Bar 50 set

Flight Case 300 2:1
Flight Case 250 1:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series AT
· AT1.99i 11713 /unit
· AT2.50i 8338 /unit
· AT3.90i 6095 /unit

· AT2.50 10235 /unit
· AT3.90 7326 /unit update: 10/2019





1920 Hz Refresh standard

Novastar A4S standard




Service Tool 400 set

Floor Stand 700 set
Wall Mount 250 set

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series B
· B25·25 1098 /sqm
· B31·31 799 /sqm
· B42·42 564 /sqm update: 10/2019




Cree Lamps select
Multi-color Lamps select
Xindeco Lamps standard

5000 Hz Refresh standard



Controller standard

Spare LED Strips quote

Aluminum Frame quote
Steel Cabling standard

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series Flex
· Flex2·5i 4068 /sqm update: 10/2019




Gold Wire Lamps standard


Novastar A4S 40 /panel

Power Supply Unit 40 /panel


Service Tool 400 set

Hanging Bar 100 1:1
Hanging Bar 150 2:1

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series Floor
· Floor3.90i 0000 /sqm

· Floor3.90 0000 /sqm




Gold Wire Lamps standard


Novastar A4S 40 /panel

Power Supply Unit 40 /panel


Service Tool 400 set

Legs quote

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series G
· G2·5i 4401 /sqm
· G5.20i 2559 /sqm
· G3·7i 2237 /sqm
· G7.81i 2226 /sqm
· G10.41i 1898 /sqm update: 10/2019




Gold Wire Lamps standard

1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote



Service Tool 400 set
Power Box quote
Spare LED Module quote
Spare LED Module quote

Hanging Bar 100 1:1
Hanging Bar 150 2:1

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series H
· H2.84i 3036 /sqm
· H3.90i 2443 /sqm

· H3.90 3232 /sqm
· H6.90 2661 /sqm update: 10/2019






Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set
Power Box quote
Spare LED Module quote

Hanging Bar 200 1:1
Ground Support 80 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series HB
· HB2.90i 2060 /sqm
· HB3.90i 1725 /sqm

· HB3.90 2386 /sqm
· HB4.80 2047 /sqm update: 10/2019





3840 Hz Refresh standard

Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set
Power Box quote
Spare LED Module quote

Custom Steel Frame 400 /sqm
Hanging Bar 200 1:1
Ground Support 80 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series HL
· HL2.84i 2421 /sqm
· HL3.90i 2047 /sqm

· HL3.90 2887 /sqm
· HL4.80 2211 /sqm
· HL6.90 2017 /sqm
· HL10.41 1771 /sqm update: 10/2019






Brompton R2 150 /panel
Novastar A8S 60 /panel

Power Supply Unit 40 /panel


Brompton Processors quote

Service Tool 400 set
Power Box quote
Spare LED Module quote

Hanging Bar 150 2:1
Hanging Bar 100 1:1

Stage Dolly 1250  Full 8:1
Stage Dolly 1000 Half 8:1
Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series M
· M4.76 2666 /sqm
· M5.55 2177 /sqm
· M6.25 2082 /sqm
· M8.33 1771 /sqm
· M10.00 1593 /sqm
· M12.50 1351 /sqm
· M16.66 1221 /sqm update: 10/2019




Gold Wire Lamps standard


Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel



Spare LED Module quote

Custom Steel Frame 400 /sqm
Hanging Bar 165 2:1
Hanging Bar 80 1:1
Ground Beam 442 2:1
Ground Support 100 2:1

Flight Case 260 6:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series PF
· PF2.97i 1921 /sqm
· PF3.90i 1449 /sqm
· PF4.80i 1277 /sqm update: 10/2019





1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Spare LED Module quote

Hanging Bar 165 2:1
Hanging Bar 80 1:1

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series QF
· QF3.90 0000 /sqm





1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel



Service Tool 400 set

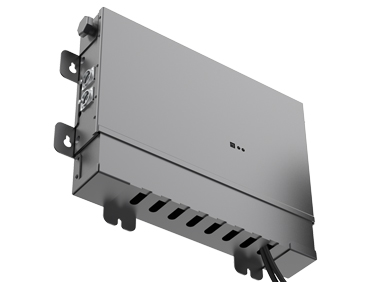

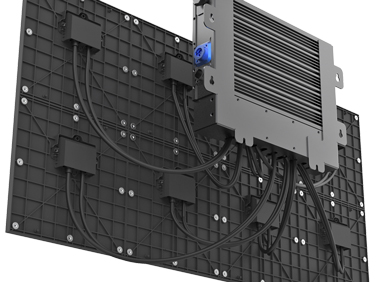

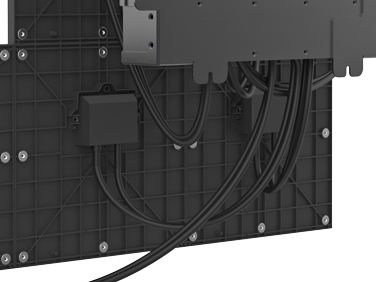

Power Box quote

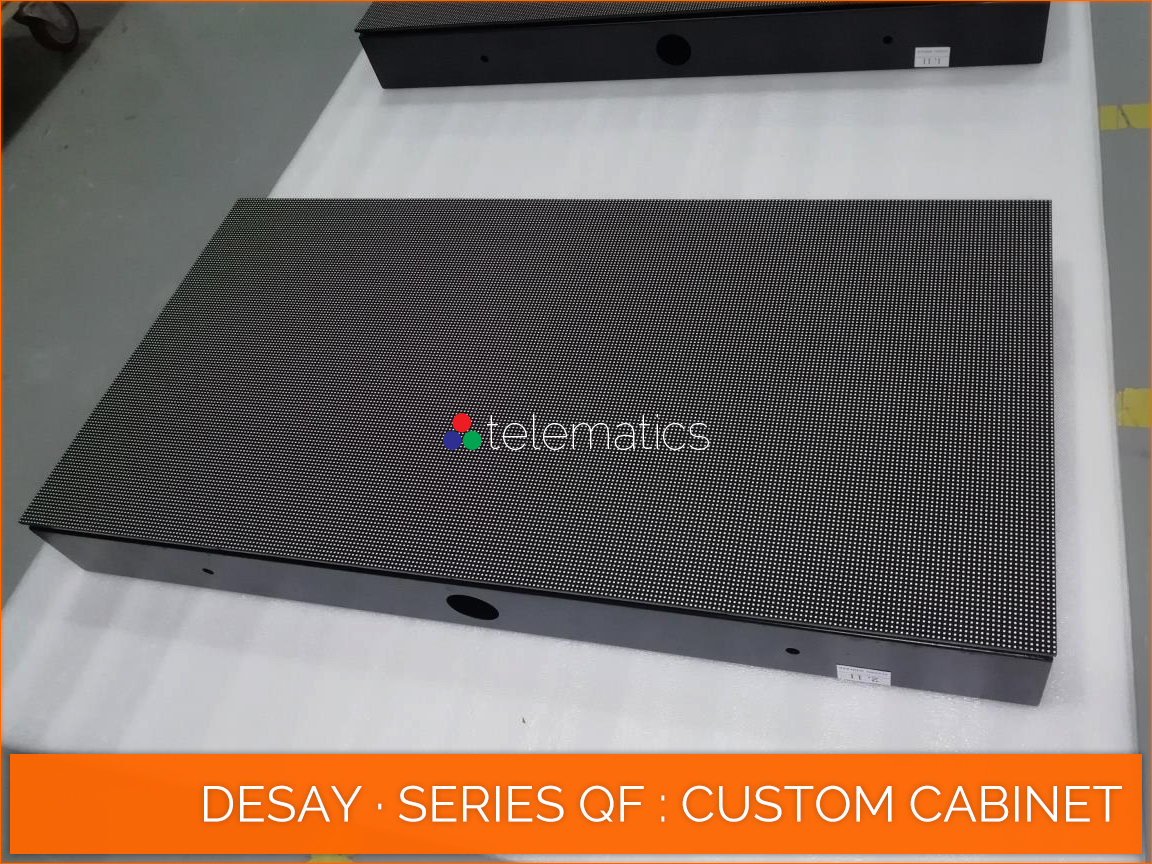

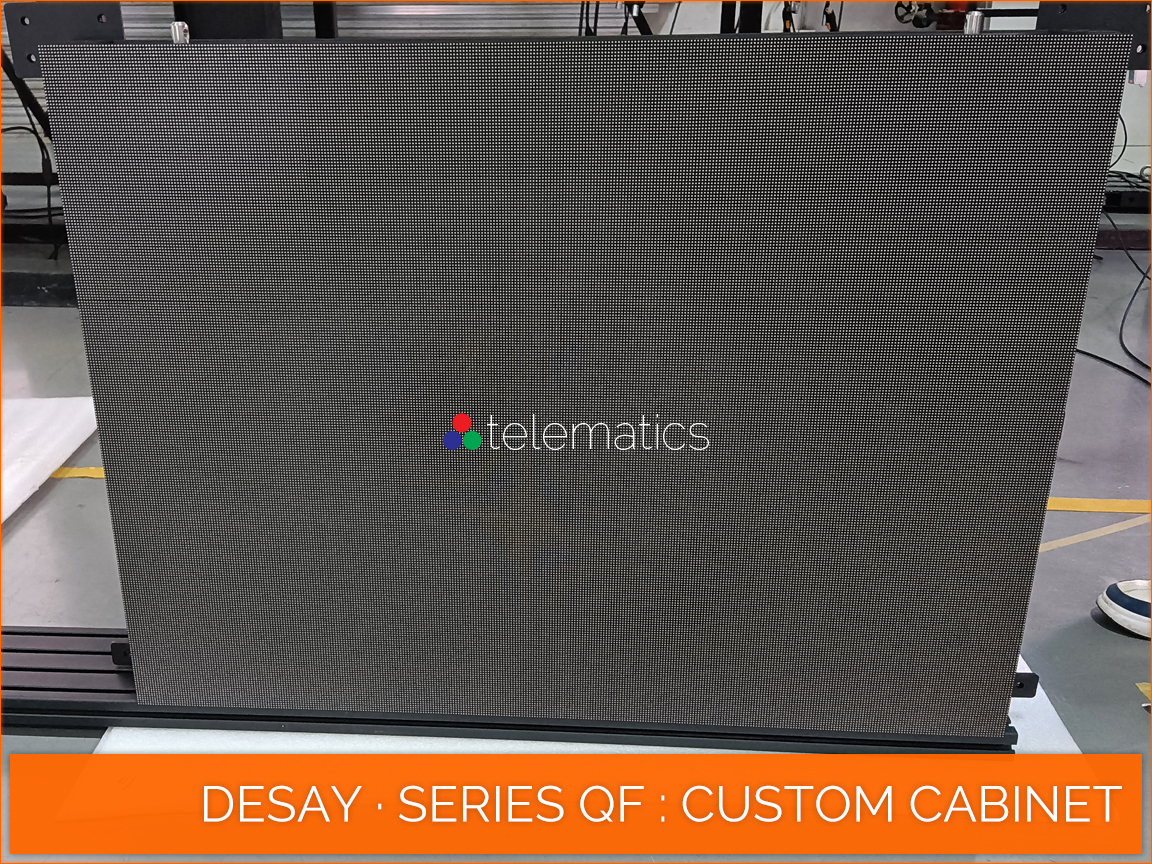

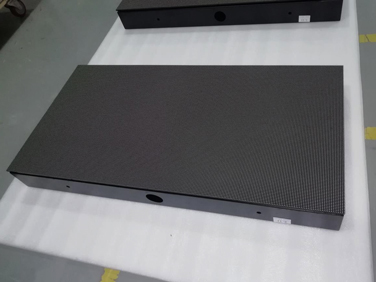

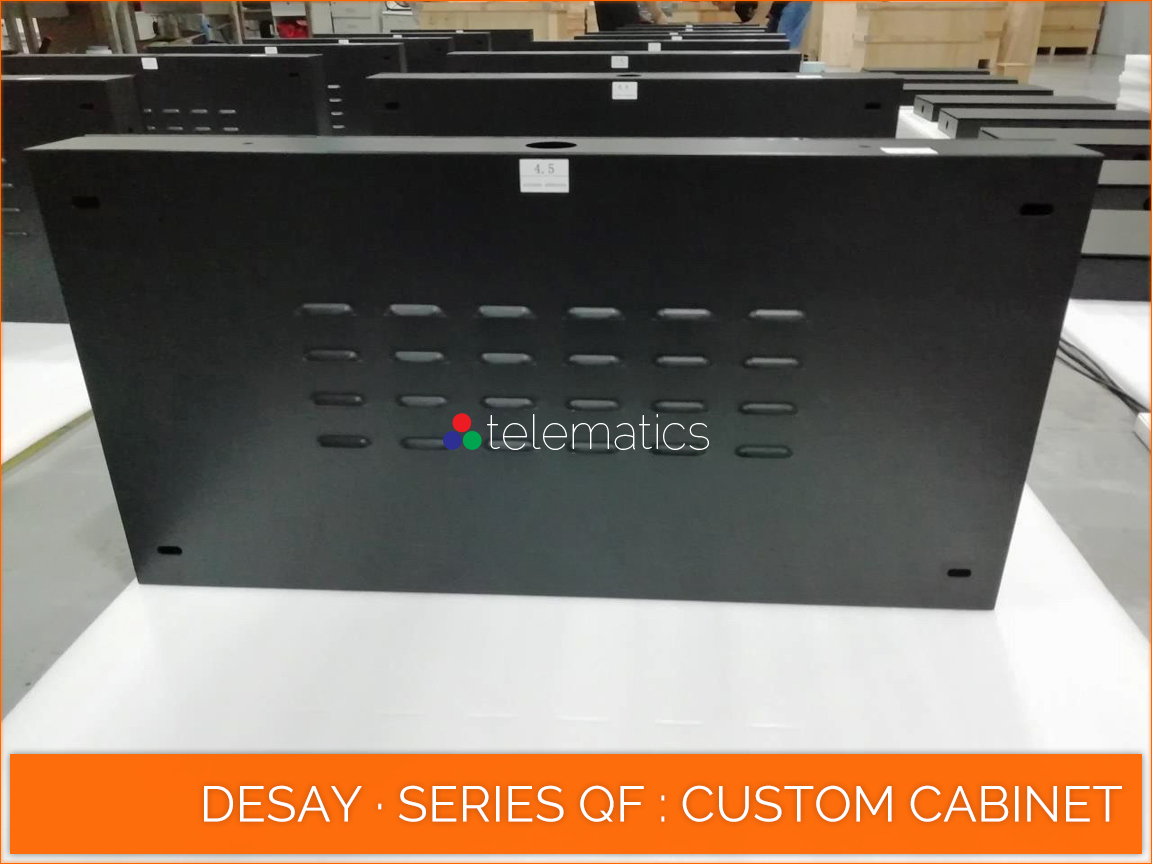

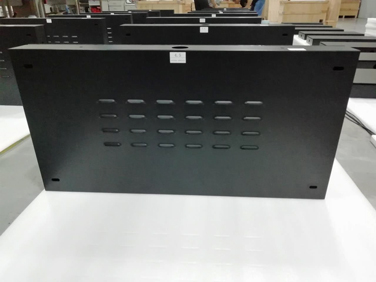

Custom Cabinet quote

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series S
· S4.76 1900 /sqm
· S6.25 1880 /sqm
· S8.33 1555 /sqm
· S10.00 1323 /sqm

· S10.88 1581 /sqm
· S15.24 1357 /sqm update: 10/2019





1920 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel



Spare LED Module quote

Custom Steel Frame 400 /sqm

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series T
· T0.97i 22235 /sqm
· T1.26i 9778 /sqm
· T1.58i 7475 /sqm
· T1.90i 5118 /sqm
· T2.53i 3105 /sqm update: 10/2019






6 Layer PCB select
4 Layer PCB select

Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Custom Steel Frame 400 /sqm

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series TR
· TR2.58i 3059 /sqm
· TR2.95i 2772 /sqm update: 10/2019





3840 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Exhibition System client supplied

Flight Case 260 8:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series TVB
· TVB1.50i 9806 /sqm update: 10/2019





3840 Hz Refresh standard

Novastar A8S 60 /panel

Power Supply Unit 40 /panel



Service Tool 400 set

Hanging Bar 200 1:1
Ground Support 80 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series WB
· WB1.95i 0000 /sqm
· WB2.60i 2920 /sqm
· WB2.90i 2445 /sqm
· WB3.90i 2100 /sqm update: 10/2019




Gold Wire Lamps standard
MacroBlock MBI5353 standard

3840 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Series WP
· WP1.95i 0000 /sqm
· WP2.60i 2852 /sqm
· WP2.90i 2415 /sqm
· WP3.90i 1840 /sqm
· WP4.80i 1622 /sqm update: 10/2019




Gold Wire Lamps standard
MacroBlock MBI5353 standard

3840 Hz Refresh standard

Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set

Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade
Warranty · 5 Years 12% upgrade
Series X
· X1.56i 6310 /sqm
· X1.95i 4855 /sqm
· X2.60i 2751 /sqm
· X2.97i 2752 /sqm
· X3.90i 2199 /sqm

· X3.10 5014 /sqm
· X3.90 3559 /sqm
· X4.46 3232 /sqm
· X5.20 2873 /sqm update: 10/2019




Black Face Lamps select


Novastar A8S 60 /panel
Novastar A4S 40 /panel

Power Supply Unit 40 /panel

Custom Corner quote
Desay GOB Hard Face 400 /sqm



Service Tool 400 set

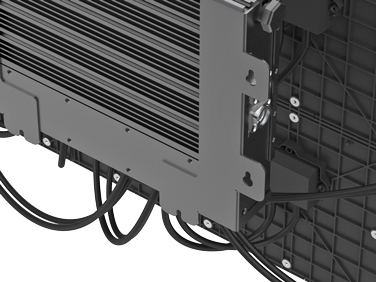

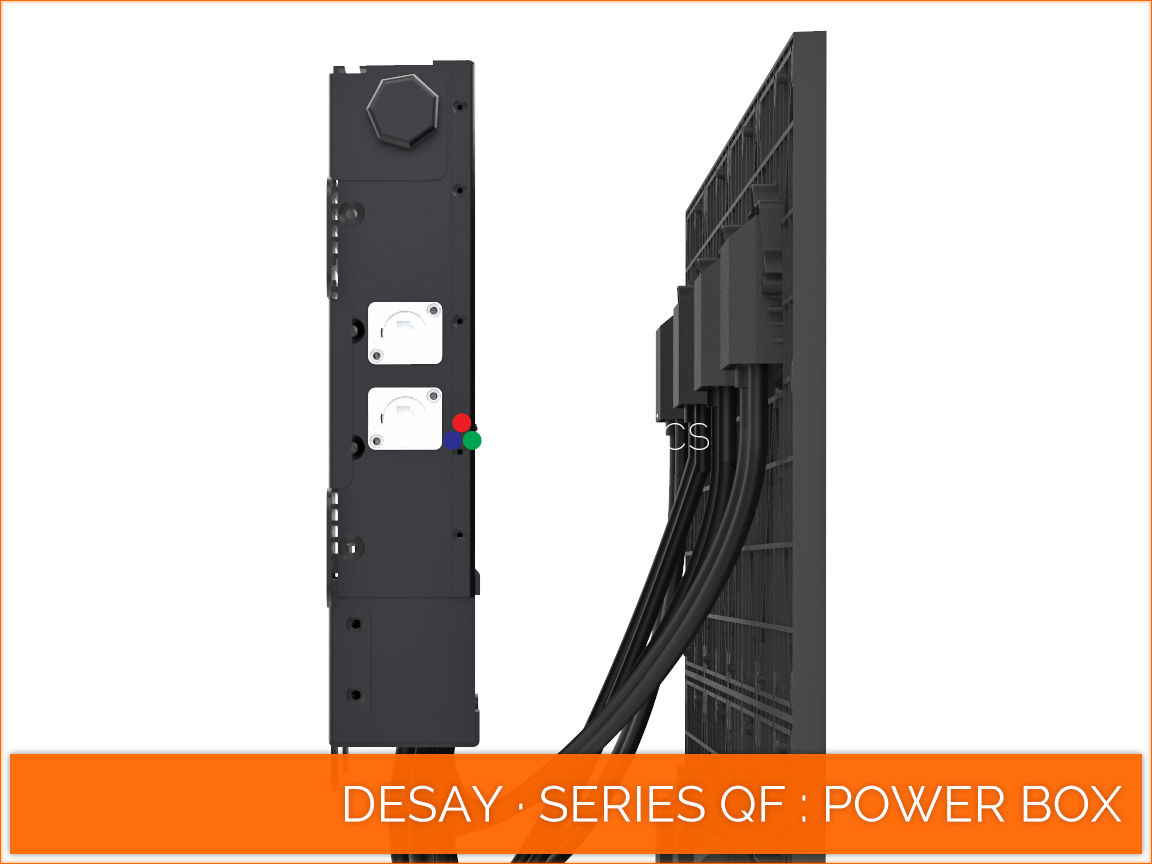

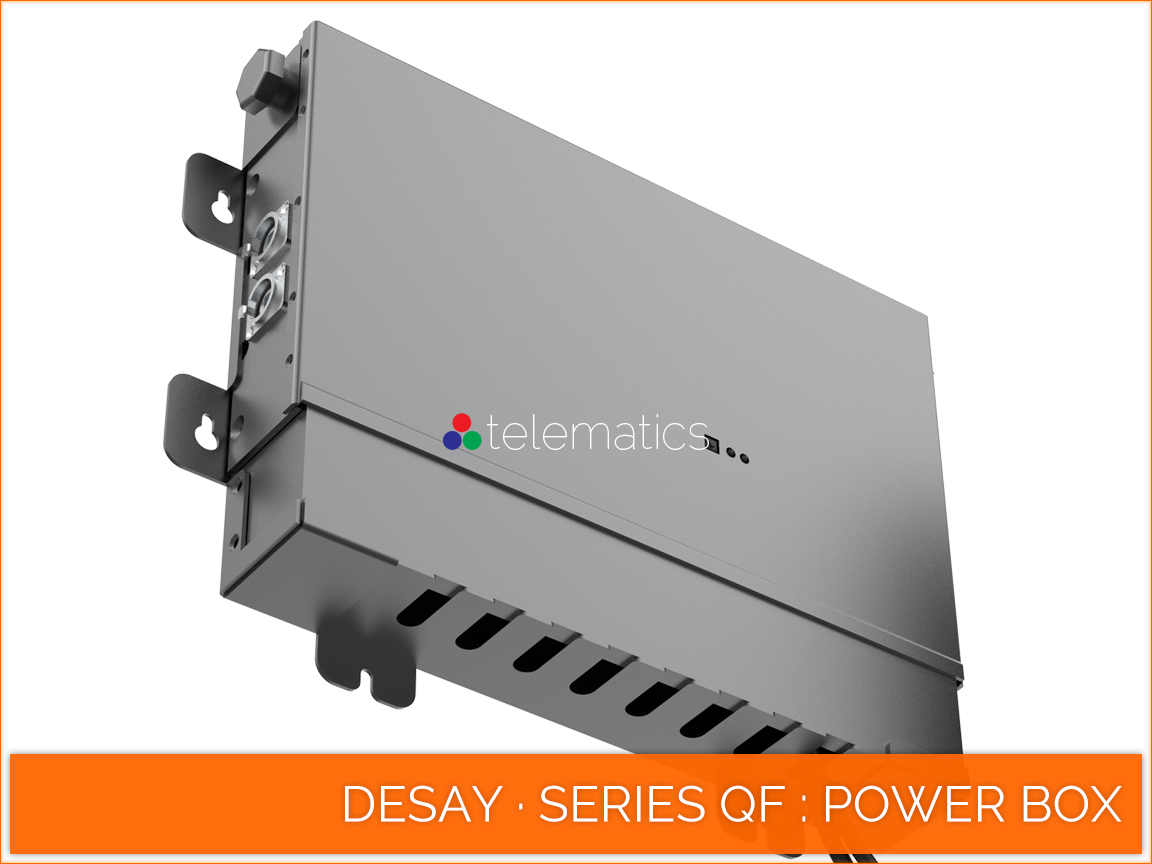

Power Box quote
Spare LED Module quote

Curve Plate 28 /sqm
Hanging Bar 125 2:1
Ground Beam 95 1:1
Ground Rack 75 1:1
Support Bracket 70 2:1

Flight Case 260 4:1
Wood Crate 75 /sqm

Air · Ocean · Ground quote

ETL Certified standard
FCC Certified standard

Warranty · 2 Years standard
Warranty · 5 Years 12% upgrade








Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

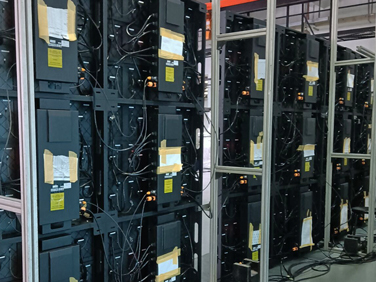

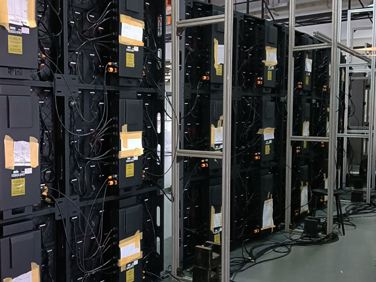

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Contact · Telematics Canada

Politely awaiting your call. It's a Canadian thing...
Sun Tzu said: We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu


Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
