Desay Series TVB
blog ·

The Art Of LED · Desay Series TVB

iF DESIGN AWARD The winners of the iF DESIGN AWARD 2019 are in. From 22 to 24 January, 67 design experts from all over the world selected the best achievements in design from more than 50 different countries.
~ iF Design Award 2018 · Desay Series T


4K = 3840 x 2160 = 8,294,200 = 5.2 m².

Math is hard. Let's go shopping for your first 4K LED Video Wall.

Pixels

Pixel to pixel spacing begins at an incredible 1.26 millimetres to create a display resolution of more than
620,000 LEDs per square meter.
Each millimetre of spacing supports one meter of viewing distance which means that the Series TVB1.26 looks great from about 1 meter away.

Dimensions

The Series TVB is a precision aluminum panel that weighs just
10 kilograms with XYZ dimensions of
600 * 337 * 38 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 23 * 13 * 1.5 inches
and a featherweight 22 pounds.

Viewing

Display brightness levels extend from 500 cd/m² to 1200 cd/m².
Screen refresh are exceptional at 3840 Hz for flicker-free video.
Off-axis viewing is 75° to 80° which means that pretty much everyone in the room can see the Series TVB whether coming or going.

Performance

Colors are amazing with levels of red13 * green13 * blue13 that provide for a combined 549 billion colors and a silky smooth 8,192 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 192 ~ 238 Watts per square meter and up to 830 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

The TVB attaches to surrounding panels using locking fasteners assisted by magnetic guides that align the connection points. Attach to a frame or use hanging bars or ground supports. Power and data cabling use simple and intuitive quick release components

Specifications · Desay Series TVB

Award winner. Edge cutter. Envy creator.
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series TVB126 TVB158 TVB190 TVB253
Pixels mm · meters
Resolution · ctc distance · mm 1.26 1.58 1.90 2.53
Resolution · per linear meter 788 630 525 394
Resolution · per square meter 620979 397552 276136 155245
Dimensions mm · (inch)
Width 600 (23.6) 600 (23.6) 600 (23.6) 600 (23.6)

Height 337 (13.3) 337 (13.3) 337 (13.3) 337 (13.3)

Depth 38 (1.5) 38 (1.5) 38 (1.5) 38 (1.5)
Weight kilo · (pound)
Panel 10.0 (22.0) 10.0 (22.0) 10.0 (22.0) 10.0 (22.0)
Viewing (upgrade)
Brightness · candela/m² 600 600 800 1000

Refresh · hertz 3840 3840 3840 3840

Angle · 50% brightness 80° 80° 80° 80° 80° 80° 80° 80°
Angle · 50% brightness 70° 70° 70° 70° 70° 70° 70° 70°
Performance
Colors · rgb · bit depth 213 213 213 214
Control · brightness levels 255 255 255 255
Lifetime · 50% brightness · years 11.4 11.4 11.4 11.4
Power square meter
Watts · (average draw) 620 (35%) 550 (35%) 830 (35%) 580 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240
Resolution HD · 4K
Panels · (4 x 4) · 2436 * 1370 mm 1920 * 1080
Panels · (5 x 5) · 3045 * 1712 mm 1920 * 1080
Panels · (6 x 6) · 3654 * 2055 mm 1920 * 1080
Panels · (7 x 7) · 4263 * 2398 mm
Panels · (8 x 8) · 4872 * 2740 mm 3840 * 2160 1920 * 1080
Panels · (9 x 9) · 5481 * 3083 mm
Panels · (10 x 10) · 6090 * 3425 mm 3840 * 2160
Certifications
Regional · please inquire ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
Installation
Wall · custom steel frame
Ceiling · fly bar
Floor · floor support

IP Code · front · rear 30 · 30 30 · 30 30 · 30 30 · 30
Operating · celsius · (fahrenheit) -10 (14) · 40 (104) -10 (14) · 40 (104) -10 (14) · 40 (104) -10 (14) · 40 (104)

Fine Print

Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu

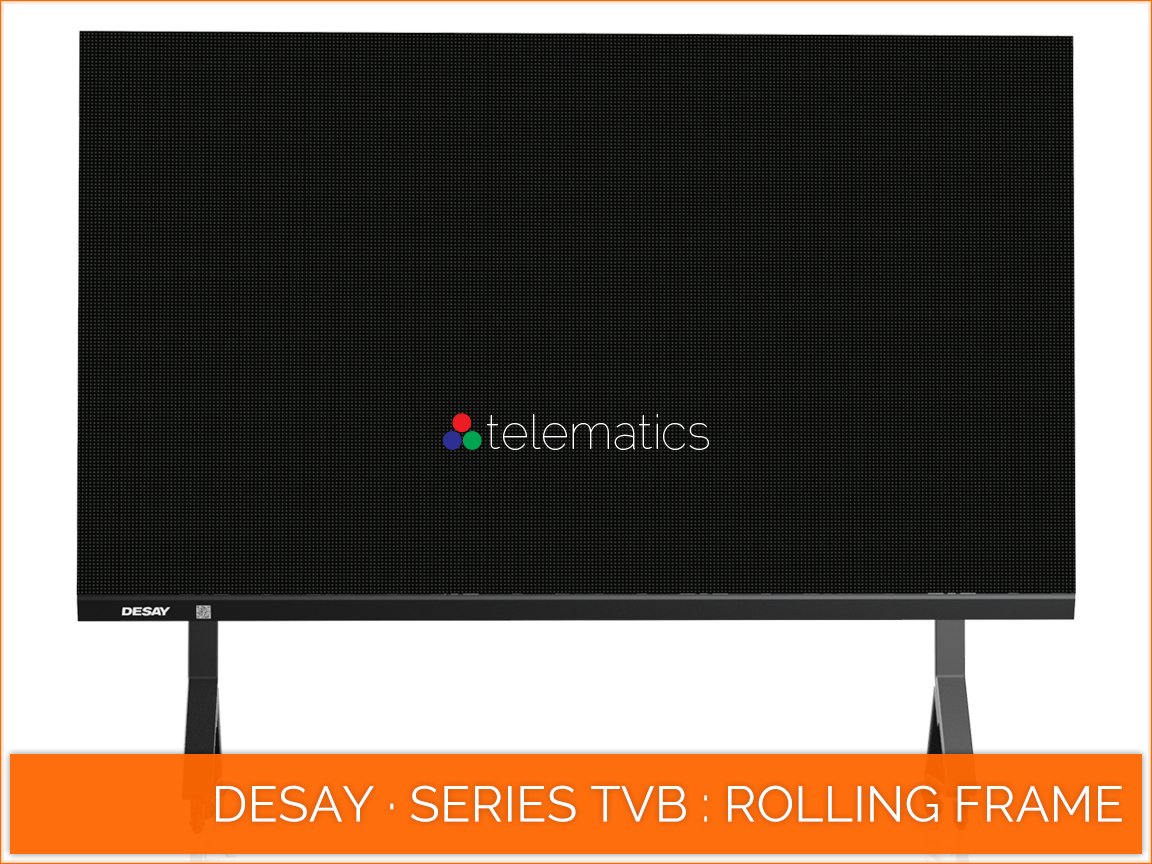

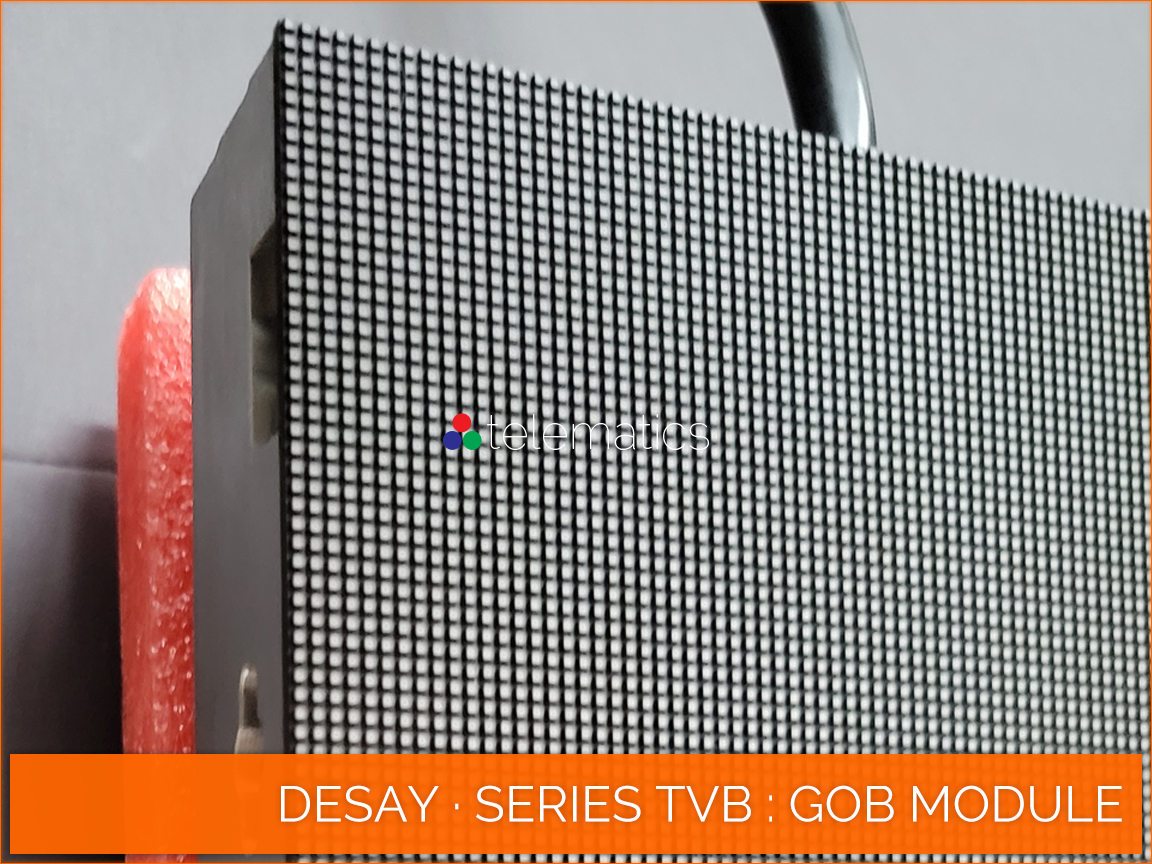

Desay Series TVB

The Series TVB is new for 2019 and builds on our award-winning Series T which offers ultrafine and fine-pixel resolution for permanent installations.

The dimensions of 600 * 337 millimetres create a 16:9 aspect ratio in just a single panel or with four or more panels. At just 38 millimetres or 1.5 inches deep, this is the thinnest panel Desay has created to date.

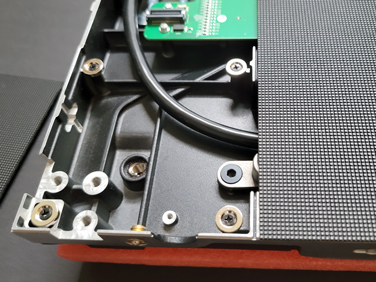

The Series TVB is serviced from the front of the display by removing one or both of the two modules that fill out a single panel. This feature allows for permanent installations to be mounted tightly to walls, requiring extra space only for adequate thermal ventilation instead of technicians.

Pixel density starts at 155,245 and increases incrementally to more than ten times that number at 1,590,207 pixels per square meter across 6 models. Refresh rates are 3840 Hz and Neutrik power cables and data connectors join the panels together.

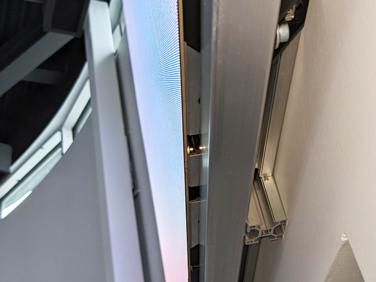

Install the Series TVB to a frame using the 4 corner anchors or assemble the panels using hanging bars or floor supports. Our technicians will provide mechanical drawings to create a steel frame locally or one can be built and shipped with your order.

Media is handled by any of our NovaStar controllers. If a network of displays is being deployed, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

The TVB is expected for production later this quarter. Not a minute too soon!

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.
There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu


Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu



S5 Box

Pricing · Desay LED Displays

We respect the value of your time. Use these numbers to ballpark the costs for your project. Then call us for a quote.
Now the general who wins a battle makes many calculations in his temple ere the battle is fought. ~ Sun Tzu

Series A
· A1.99i 4686 base/per
· A2.57i 2920 base/per
update: 5/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Kinglight Gold / Copper Wire LED quote

DSBJ Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series AT
· AT1.99i 13566 base/per
· AT2.57i 9657 base/per
· AT3.90i 7060 base/per
· AT2.57 11855 base/per
· AT3.90 8285 base/per
update: 5/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series B
· B25·25 1467 base/sqm
· B31·31 1063 base/sqm
· B42·42 745 base/sqm

Cards · Controllers included

1000 Hz Refresh included

Cree / Multi-Color / Xindeco LED quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series G
· G2·5i 5414 base/sqm
· G3·7i 2703 base/sqm
· G5.20i 3624 base/sqm
· G7.81i 2343 base/sqm
· G10.41i 2334 base/sqm
update: 4/2019

Cards · Controllers quote

2880 / 1920 Hz Refresh quote

Ultra / Standard Brightness LED quote

Ceiling quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series H
· H2.84i 3602 base/sqm
· H3.90i 2886 base/sqm
· H3.90 3802 base/sqm
· H6.94 3114 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series HB
· HB2.90i 2386 base/sqm
· HB3.90i 1998 base/sqm
· HB3.90 2764 base/sqm
· HB4.81 2371 base/sqm
update: 7/2019

Cards · Controllers quote

3840 Hz Refresh standard

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series HL
· HL2.84i 2860 base/sqm
· HL3.90i 2409 base/sqm
· HL3.90 3386 base/sqm
· HL4.80 2571 base/sqm
· HL6.90 2337 base/sqm
· HL10.41 2040 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series M
· M4.76 3216 base/sqm
· M5.55 2627 base/sqm
· M6.25 2511 base/sqm
· M8.33 2137 base/sqm
· M10.00 1922 base/sqm
· M12.50 1630 base/sqm
· M16.66 1474 base/sqm
update: 8/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold Wire LED standard

Install / Stage Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series PF
· PF2.97i 0000base/sqm
· PF3.90i 0000 base/sqm
· PF4.80i 0000 base/sqm
· PF6.25i 0000 base/sqm

Cards · Controllers quote

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series QF
· QF3.90 0000 base/sqm
update: 7/2019

1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Ruifeng Gold Wire LED quote

4500 / 5000 / 5500 Nits quote

Custom Steel Frame quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series S
· S4.76 2348 base/sqm
· S6.25 2317 base/sqm
· S8.33 1919 base/sqm
· S10.00 1630 base/sqm
· S10.88 1693 base/sqm
· S15.24 1537 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 / 1000 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

4500 / 5500 / 6000 / 8000 Nits quote

Xindeco High / Standard Brightness LED quote

6500 / 8500 / 9800 Nits quote

Custom Steel Frame quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series T
· T0.97i 26872 base/sqm
· T1.26i 11798 base/sqm
· T1.58i 9019 base/sqm
· T1.90i 6174 base/sqm
· T2.53i 3746 base/sqm
update: 7/2019

Cards · Controllers quote

3840 / 2880 Hz Refresh quote

Everlight Gold Wire LED quote

NationStar Gold / Copper Wire LED quote

Hardened Surface quote

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series TR
· TR2.58i 3961 base/sqm
· TR2.95i 3560 base/sqm
update: 2/2019

Cards · Controllers quote

2880 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Hard Face 400/sqm

Staging Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series TVB
· TVBi 0000 base/sqm
update: 7/2019

Cards · Controllers quote

3840 / 2880 Hz Refresh quote

Everlight Gold Wire LED quote

NationStar Gold / Copper Wire LED quote

Hard Face 400/sqm

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series WB
· WB2.60i 3301 premium/sqm
· WB2.90i 2764 premium/sqm
· WB3.90i 2374 premium/sqm
update: 8/2019

Cards · Controllers quote

NationStar Gold Wire Lamp standard

3840 Hz Refresh standard

Macroblock / Chipone standard/reduce

Hard Face 400/sqm

Direct Wall Installation standard

Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series WP
· WP2.60i 3224 premium/sqm
· WP2.90i 2730 premium/sqm
· WP3.90i 2080 premium/sqm
· WP4.80i 1833 premium/sqm
update: 8/2019

Cards · Controllers quote

NationStar Gold Wire Lamp standard

3840 Hz Refresh standard

Macroblock / Chipone standard/reduce

Hard Face 400/sqm

Rail Frame Installation quote

Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series X
· X1.56i 0000 base/sqm
· X1.95i 6427 base/sqm
· X2.60i 3612 base/sqm
· X2.97i 3509 base/sqm
· X3.90i 2887 base/sqm
· X3.10 6369 base/sqm
· X3.90 4461 base/sqm
· X4.46 4025 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

Jointec / Refond Black Face LED quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Hard Face 400/sqm

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade

Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Contact · Telematics Canada

Politely awaiting your call. It's a Canadian thing...
Sun Tzu said: We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu


Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
