The Art Of LED · Desay Series WB

While heading the profit of my counsel, avail yourself also of any helpful circumstances over and beyond the ordinary rules.~ Sun Tzu


Pixels

Pixel to pixel spacing begins at a tight 2.60 millimeters to create a display resolution of more than
147,000 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series WB2.60 looks great from less than 3 meters away.

Dimensions

The ultra-thin Series WB barely makes a bump in the wall at 40 millimeters. That's a little over an inch and a half. Width is a meter wide and 281.25 millimeters tall
Which means if you stack one above another, the 1000/562.5 dimensions produce a perfect 16:9. Nice.

Viewing

255 levels of brightness levels range from just barely on to 1100 cd/m². Screen refresh defaults to a premium grade 3840 Hz for flicker-free video.
Off-axis viewing is 70° which means that your audience can enjoy the Series WB from anywhere in the room, even the cheap seats.

Performance

Colors are amazing with levels of red13 * green13 * blue13 that provide for a combined 549 billion colors and a silky smooth 8,192 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

Power

Rated power consumption is a modest 122 ~ 200 Watts per square meter and up to 580 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

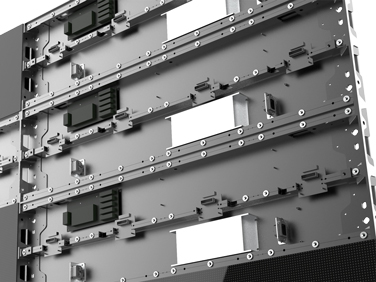

The Series WB is ready for a flat wall and a guy with a power drill and a tape measure. Cabling is cleverly hidden and...or just watch the video.

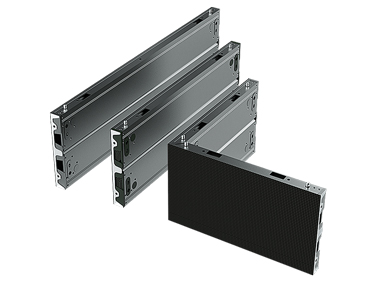

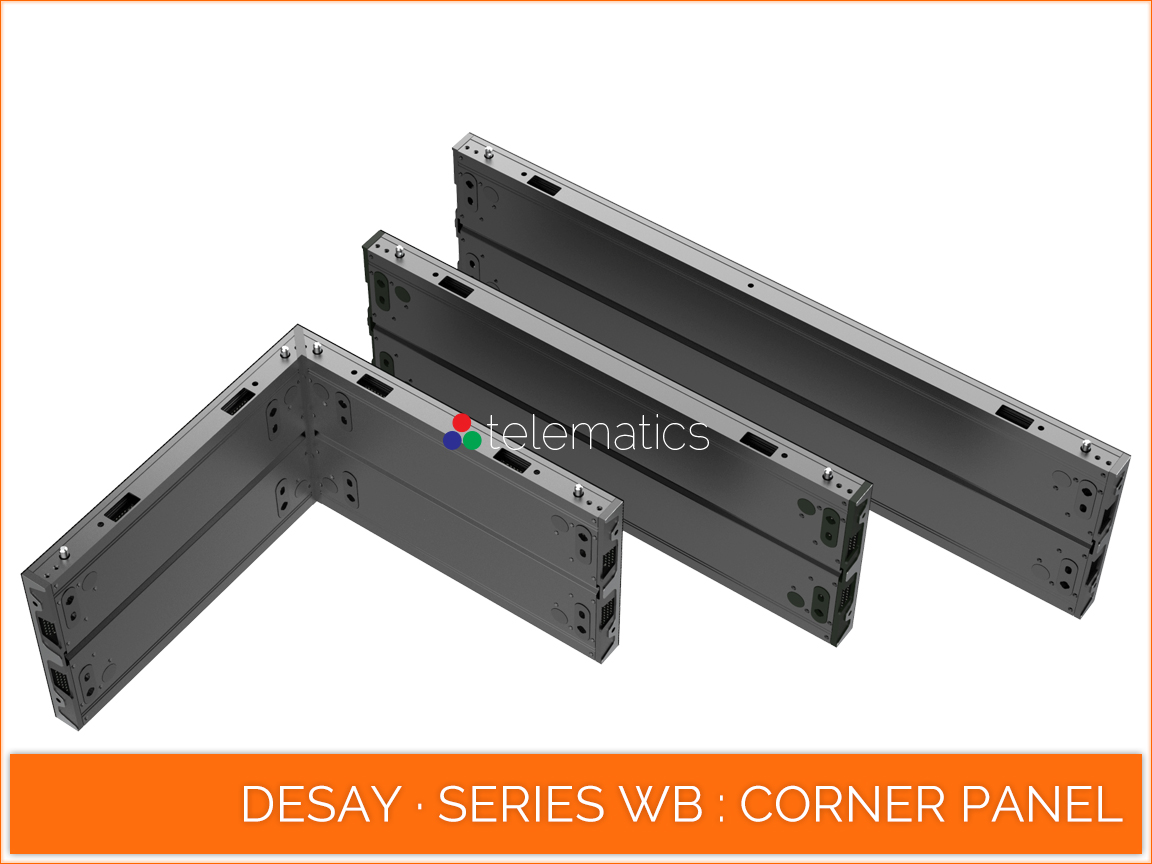

These lightweight panels are offered in 3 different lengths and a new edge-to-edge 90° corner. Your design team is going to love it.

Specifications · Desay Series WB

Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series WB260 WB290 WB390
Pixels mm · meters
Resolution · ctc distance · mm 2.60 2.90 3.90
Resolution · per linear meter 384 344 256
Resolution · per square meter 147456 118336 65536
Dimensions mm · (inch)
Width · landscape 1000 (39.4) 1000 (39.4) 1000 (39.4)
Width · landscape 750 (29.5) 750 (29.5) 750 (29.5)
Width · landscape 500 (19.7) 500 (19.7) 500 (19.7)

Height · landscape 281.25 (11.0) 280 (11.0) 281.25 (11.0)

Depth 42 (1.7) 42 (1.7) 42 (1.7)
Weight kilo · (pound)
Panel 7.5 (16.5) 7.5 (16.5) 7.5 (16.5)
Viewing
Brightness · candela/m² 1000 1000 1000

Refresh · hertz 3840 3840 3840

Angle · 50% brightness 70° 70° 70° 70° 70° 70°
Angle · 50% brightness 70° 70° 70° 70° 70° 70°
Performance
Colors · rgb · bit depth 213 213 213
Control · brightness levels 255 255 255
Lifetime · 50% brightness · years 11.4 11.4 11.4
Power square meter
Watts · (average draw) 450 (35%) 420 (35%) 580 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240
Certifications
Regional · please inquire ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
Installation
Wall · direct wall installation

IP Code · front · rear 30 · 30 30 · 30 30 · 30
Operating · celsius · (fahrenheit) -10 (14) · 40 (104) -10 (14) · 40 (104) -10 (14) · 40 (104)

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


About Telematics

Telematics is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture innovative LED display panels, cabinets, curtains, interactive video floors and the systems that control them. We distribute the world's most advanced touch skins and rear projection films that turn any window into a massive display.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses and individuals who select and install their own systems with the assistance of local tradesmen and engineers.

Desay Series WB

The Series WB has just been introduced by Desay (assuming you are reading this in Q3/2019) and is nicely positioned to be our default, go-to panel for clients looking for a perfectly simple solution to covering a nice flat wall with a nice flat fine-pixel display. Nice.

This is a very short panel measuring just 281.25 millimeters or about 11 inches in height.

The standard panel width is 1000 millimeters with two optional widths of 500 and 750 millimeters so that it is easy to build just about any size of display. And when you come to the edge of the wall and want to keep going, a wrap-around 90° corner is available to continue on without a break in the display surface.

The size is odd until you do the math. Divide the standard panel measuring 1000 millimeters into 281.25 and that gives you a ratio of 32:9 or 3.55. Which makes no sense at all until you stack another panel on top to get a combined height of 562.50 which then gives you an industry-standard ratio of 16:9 or 1.77. All of this will start to matter when you load your content.

The WB is thin. Really, really thin at just 42 millimeters or about 1.65 inches thin. And thin means that the Series WB panels weigh next to nothing.

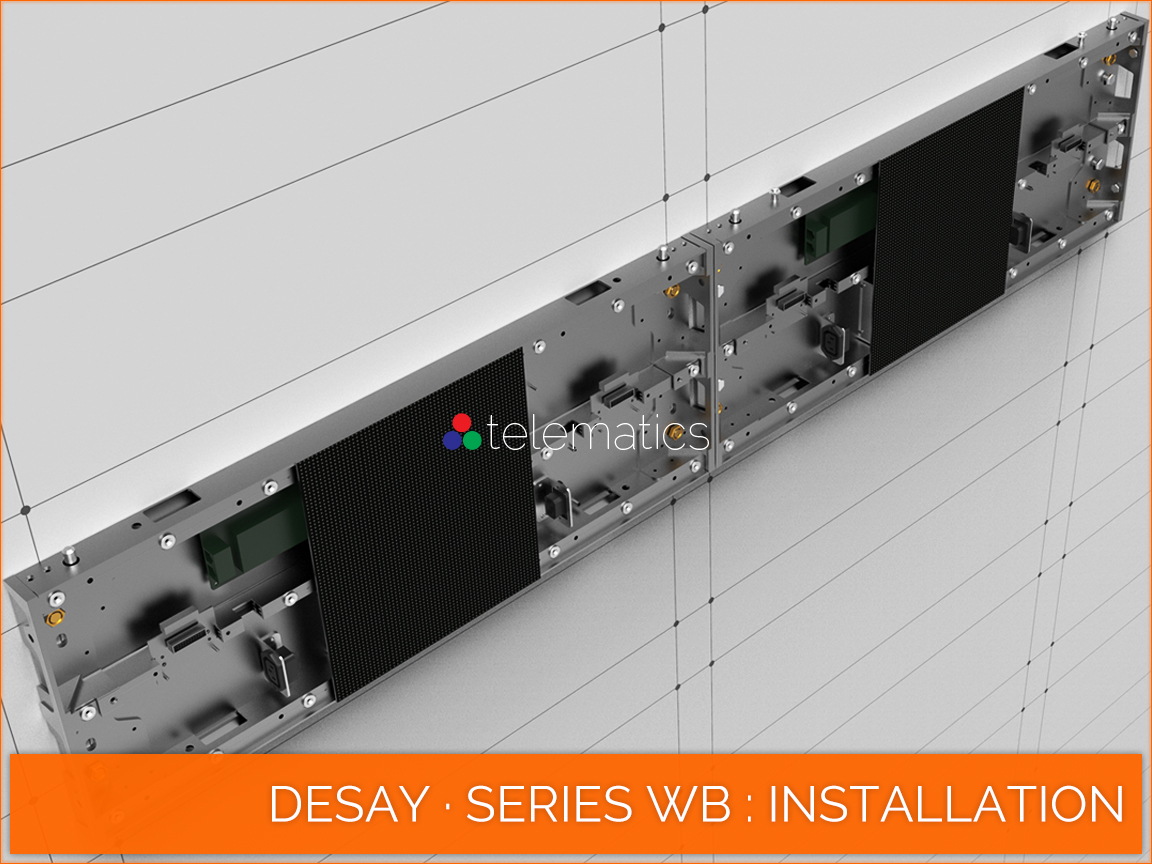

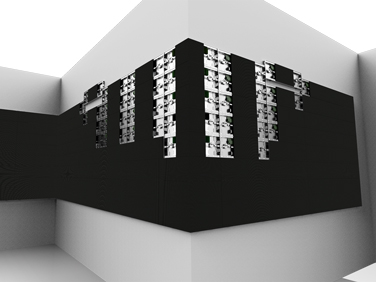

Install the Desay WB to the wall. Directly to the wall. Not a steel frame. Not a support bracket or a ceiling mount.

Map out an XY grid that corresponds to the panel. Mark your mounting holes. Drill out a hole and drop in your expansion bolt. You will need a power drill and a tape measure.

At this point, watch the video.

Pixel density starts at 65,536 and increases incrementally to 147,456 pixels per square meter across 3 models. Refresh rates are upgraded to video-friendly 3840 Hz.

Media is handled by any of our NovaStar controllers. If a network of displays is being deployed, content can be centrally-administered through an annual NovaStar VNNOX cloud publishing account.

The Series WB rounds out Desay's product selection not so much by filling in the blanks, but by creating a new category.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Photos

A picture is worth a thousand clicks.
There are not more than five primary colors, yet in combination they produce more hues than can ever been seen.~ Sun Tzu


Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu

·
