The Art Of LED · Desay Series HB

While heading the profit of my counsel, avail yourself also of any helpful circumstances over and beyond the ordinary rules.~ Sun Tzu


Meet the newest member of the Series H family.

This might be your solution to pretty much everything. Including your budget.

Pixels

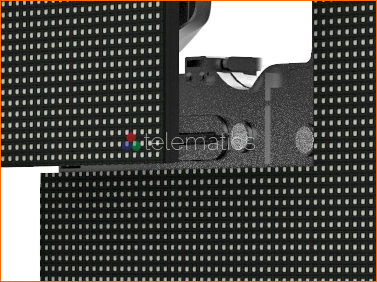

Pixel to pixel spacing begins at an impressive 2.90 millimeters to create a display resolution of more than
118,336 LEDs per square meter.
Each millimeter of spacing supports one meter of viewing distance which means that the Series HB2.9 looks great from just 3 meters away.

Dimensions

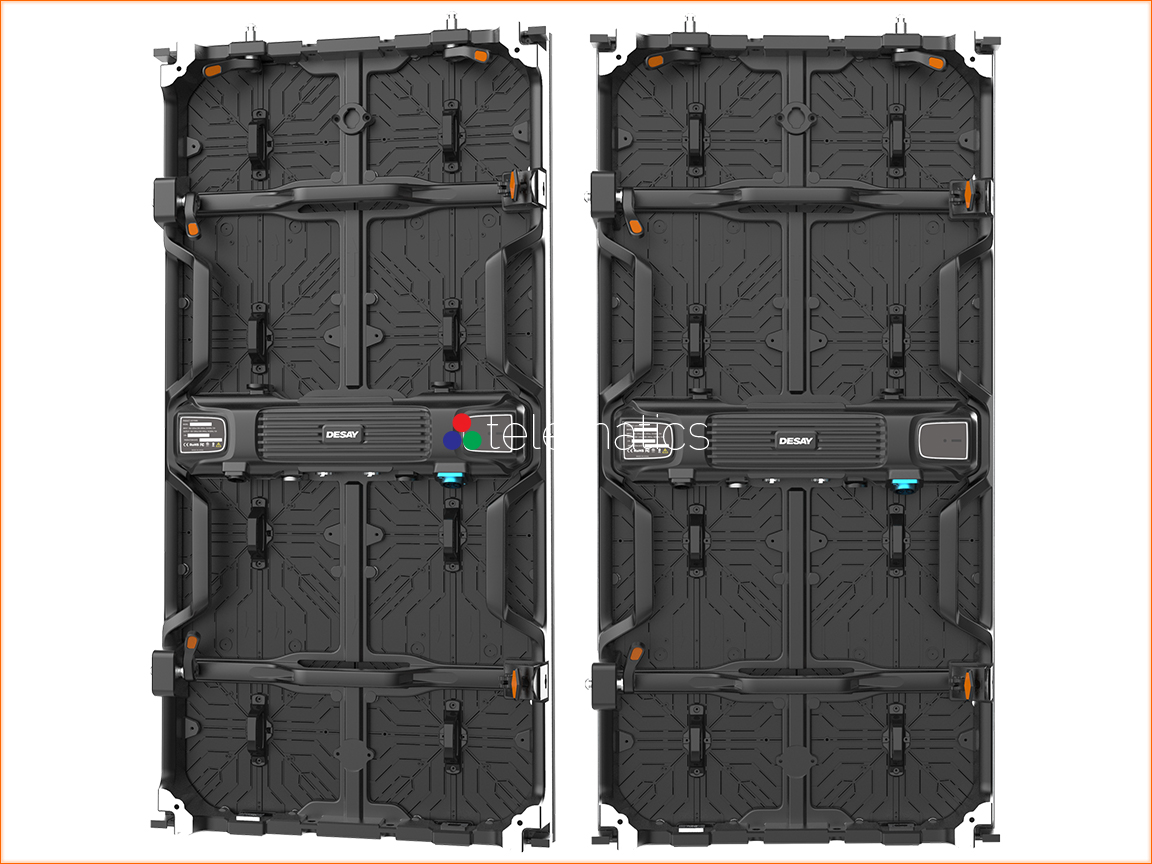

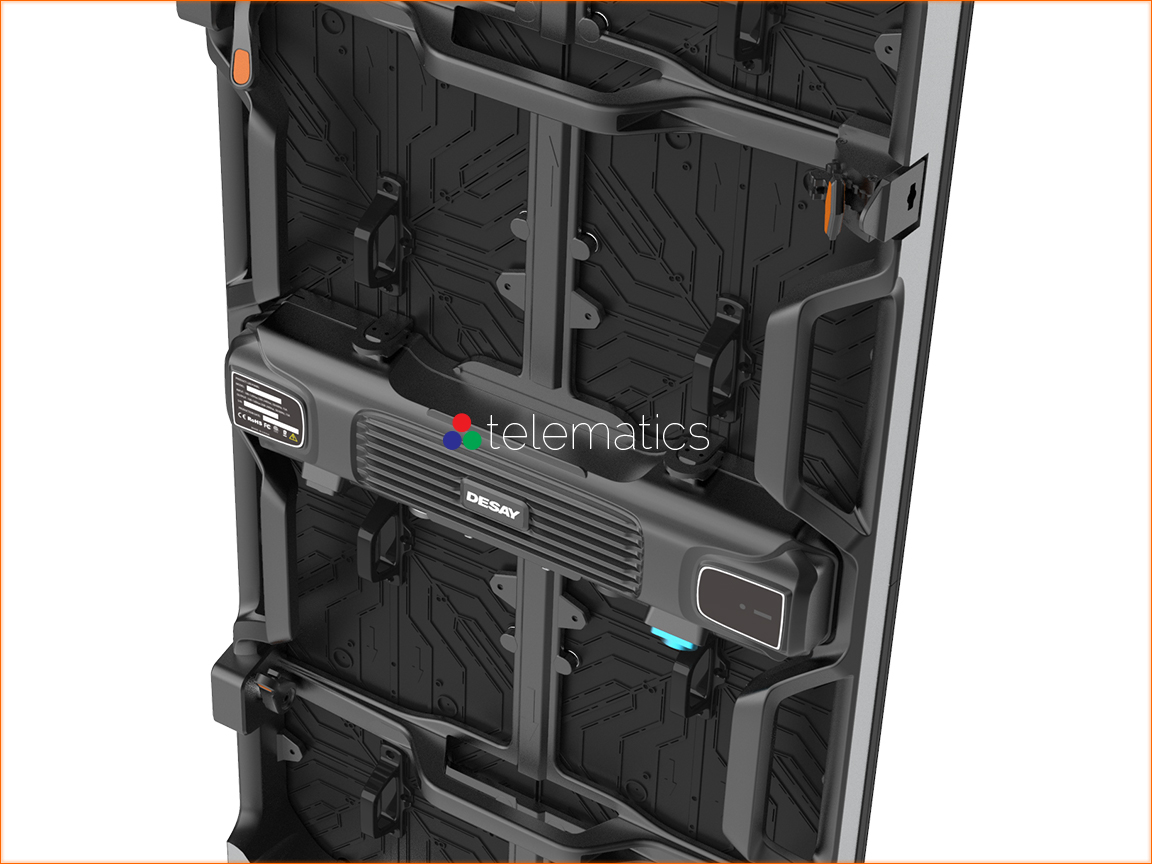

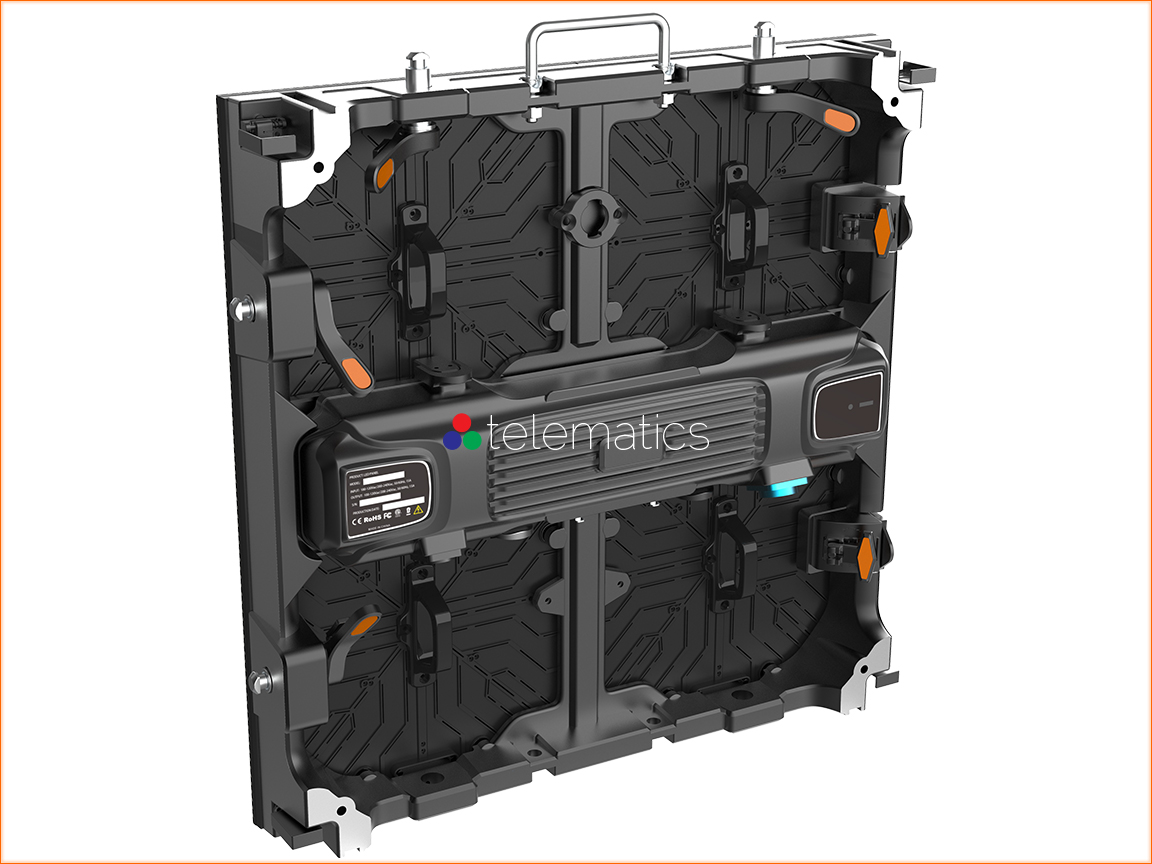

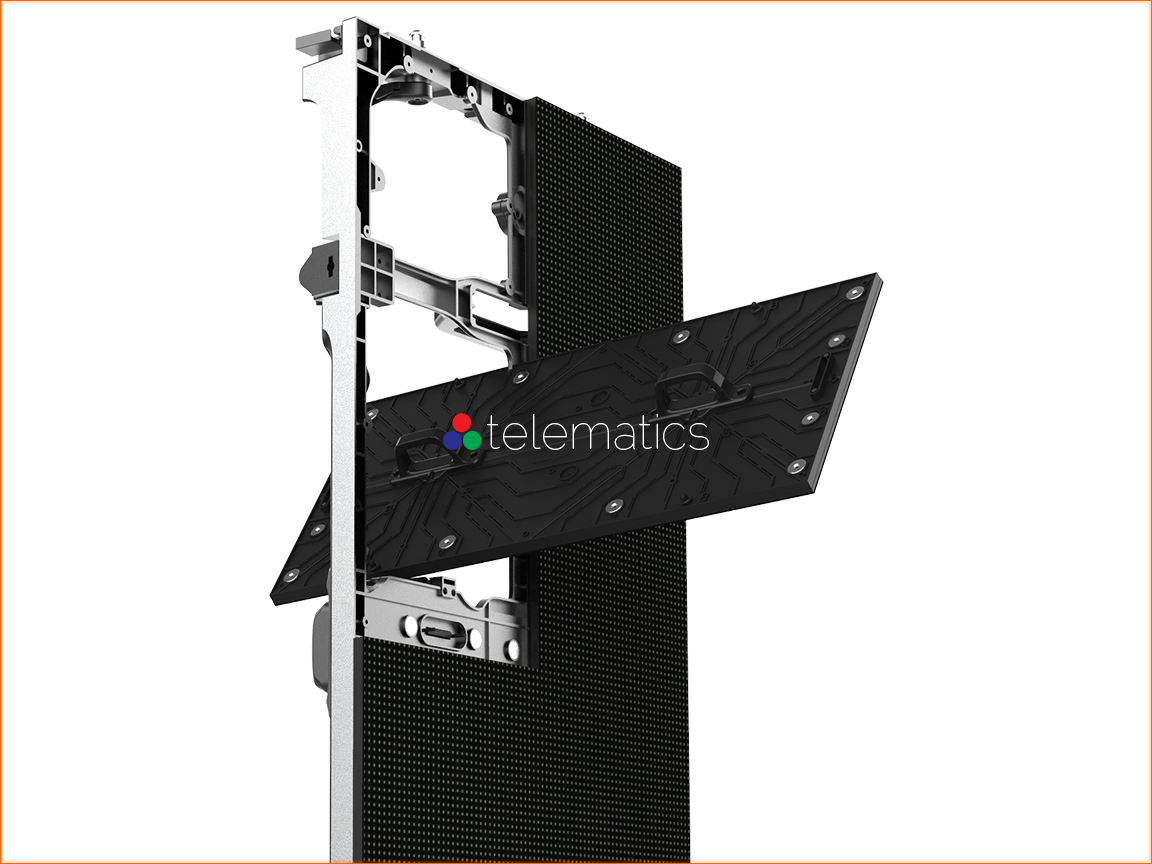

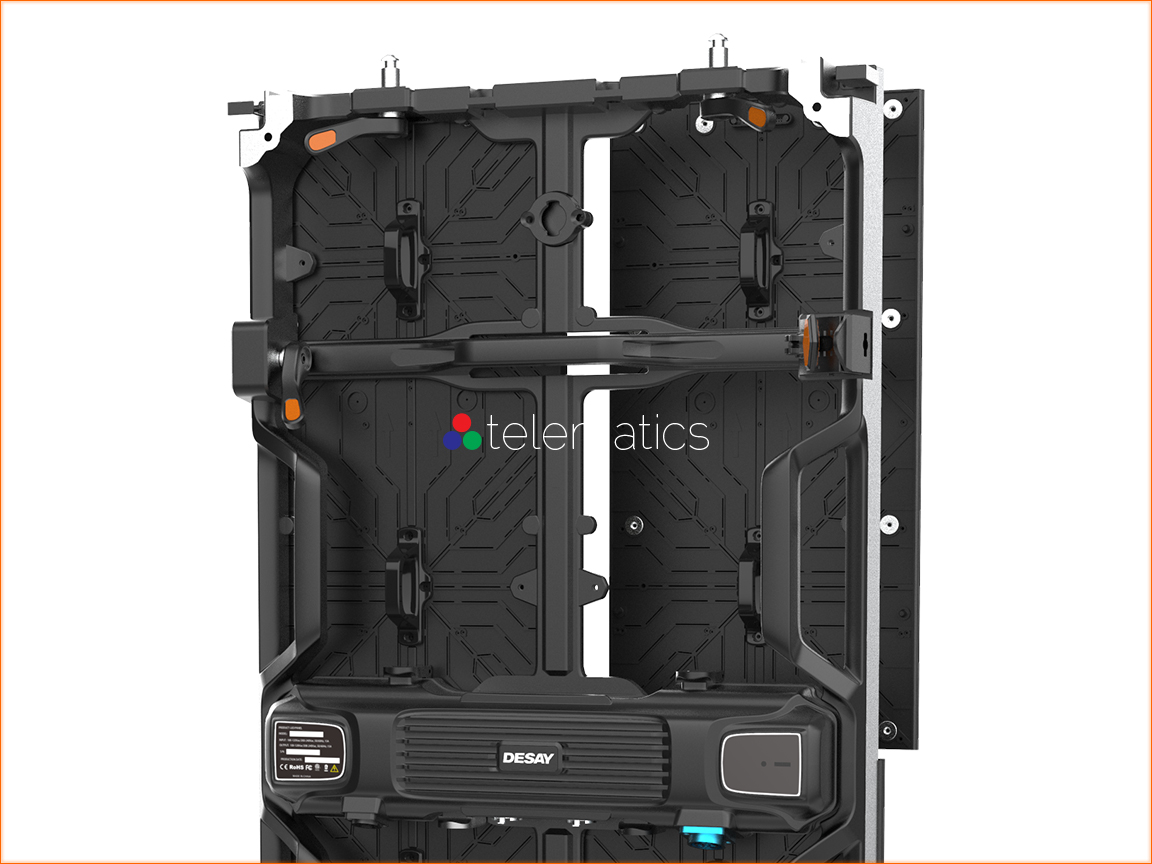

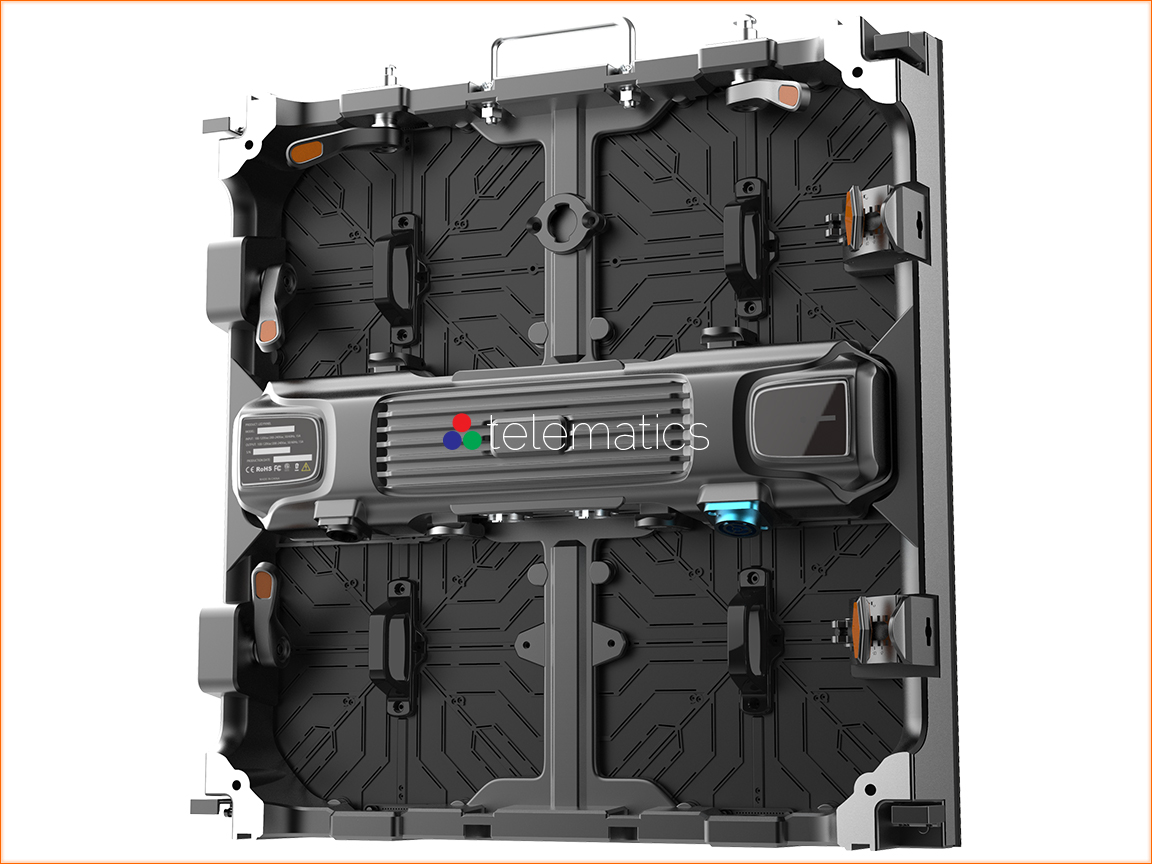

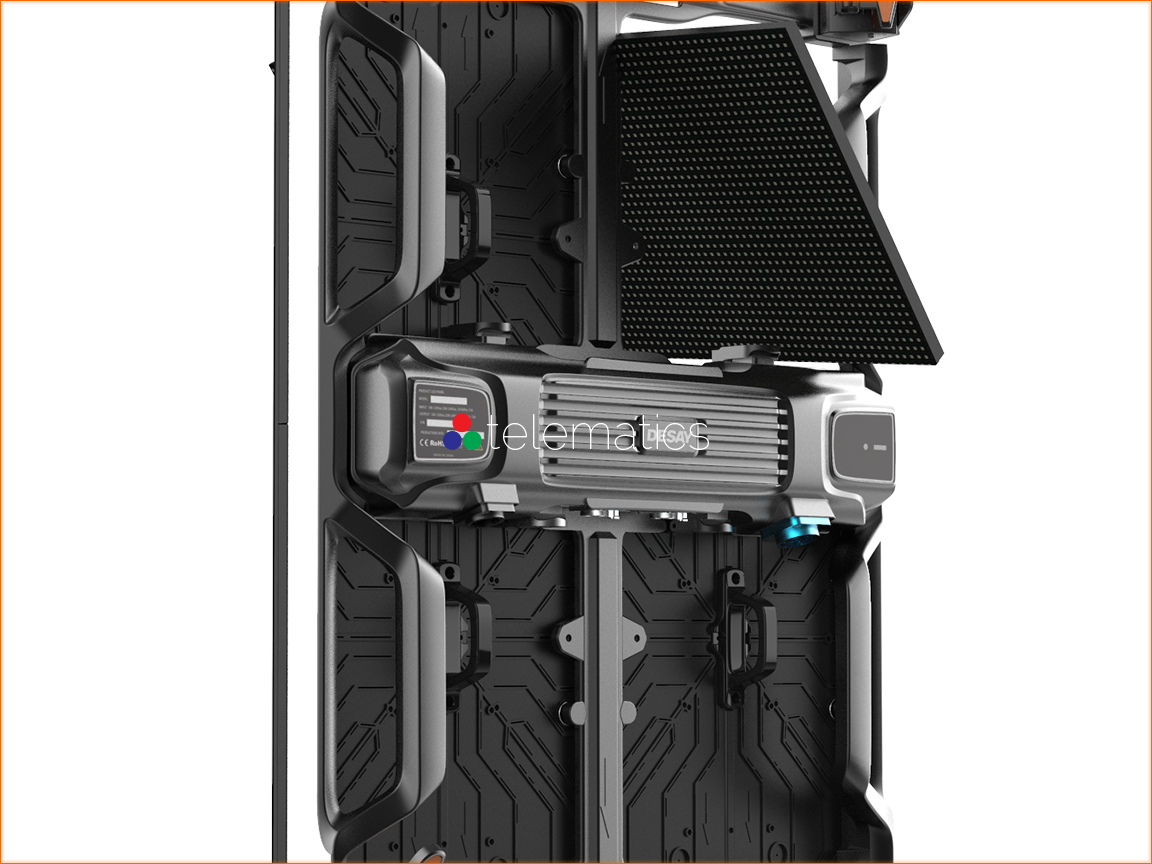

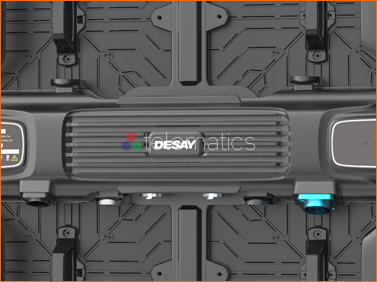

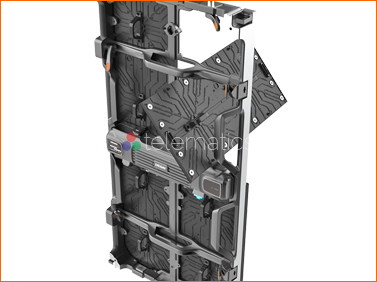

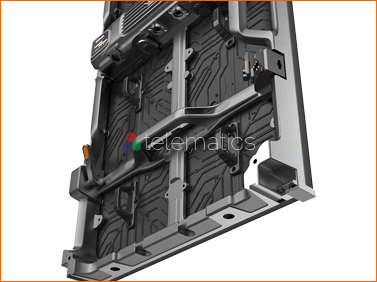

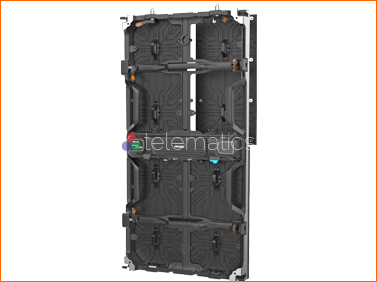

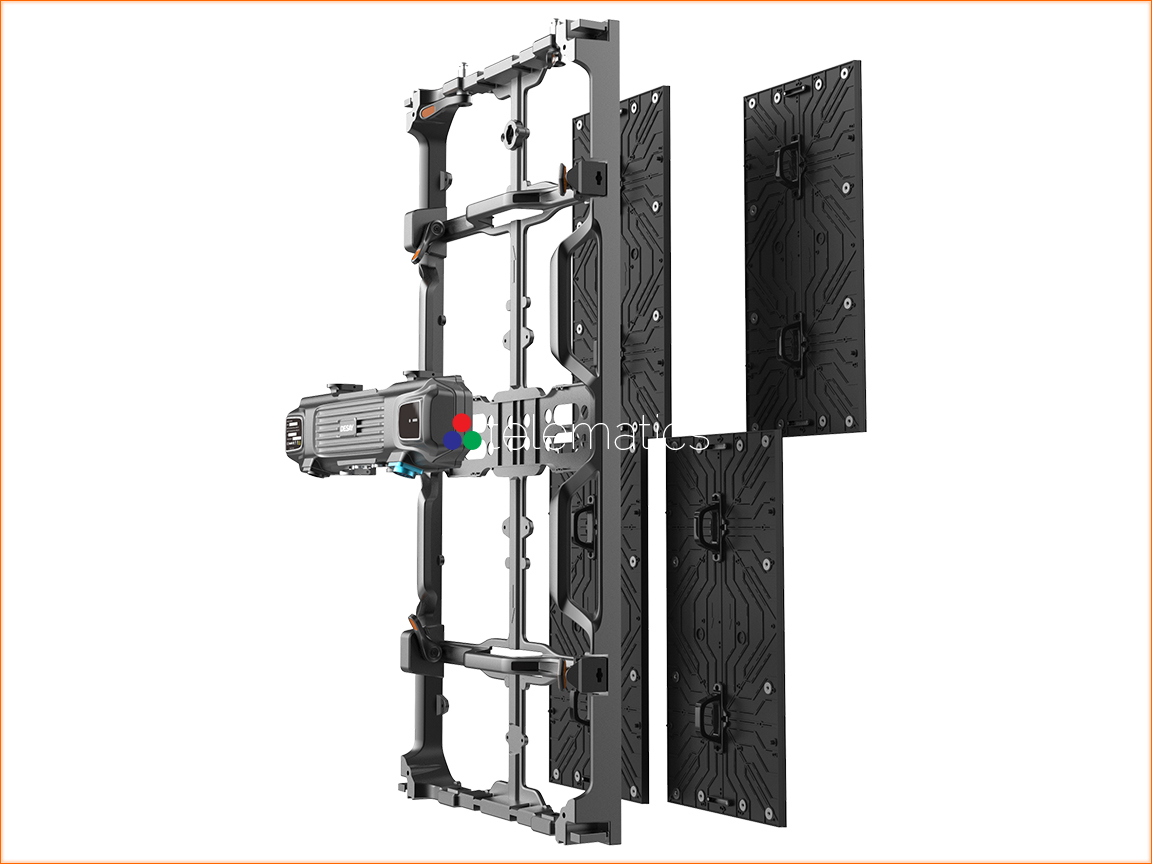

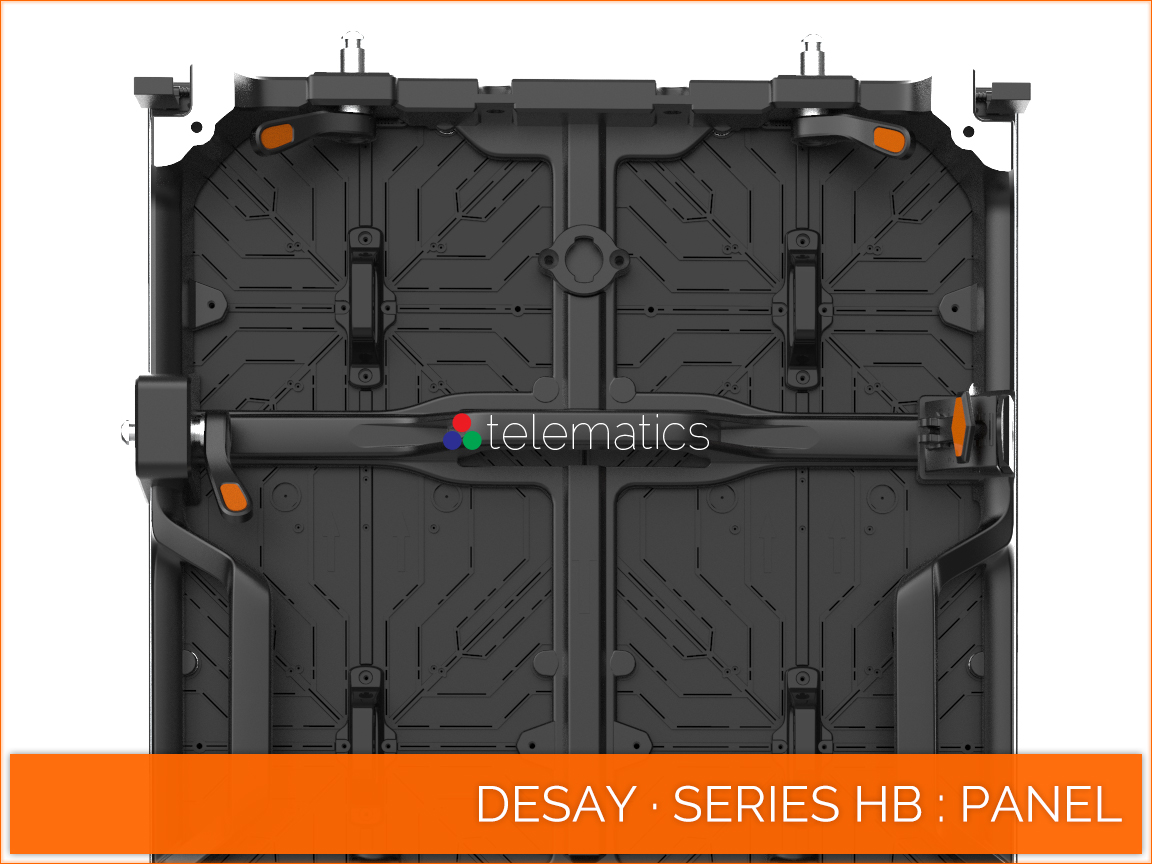

The Series HB is a robust aluminum panel that weighs approximately
13 kilograms with XYZ dimensions of
1000 * 500 * 80 millimeters.
When we convert those numbers to the Exchequer Standards of 1825 that works out to 39 * 20 * 3 inches
and a featherweight 29 pounds.

Viewing

Display brightness levels extend from 1100 cd/m² to 5000 cd/m².
Screen refresh are exceptional at 3840 Hz for flicker-free video.
Off-axis viewing is an extraordinary 80° which means that pretty much everyone in the room can see the Series HB whether coming or going.

Performance

Colors are amazing with levels of red14 * green14 * blue14 that provide for a combined 4,400 billion colors and a silky 16,384 shades of grey.
Life expectancy is projected to be 100,000 hours which works out to just over 11 years. We look forward to seeing you again sometime in 2030.

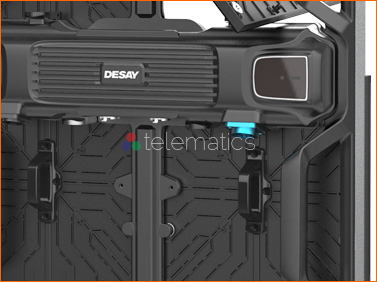

Power

Rated power consumption is a modest 182 ~ 245 Watts per square meter and up to 700 Watts on full load depending on the model.
Variable voltage power supplies accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

Installation

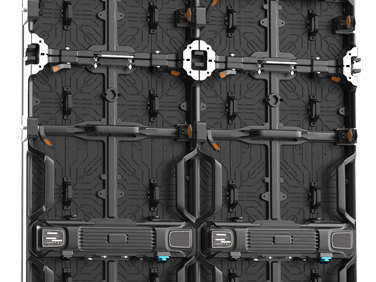

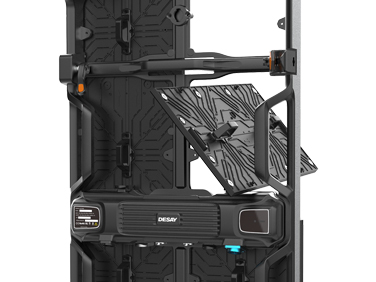

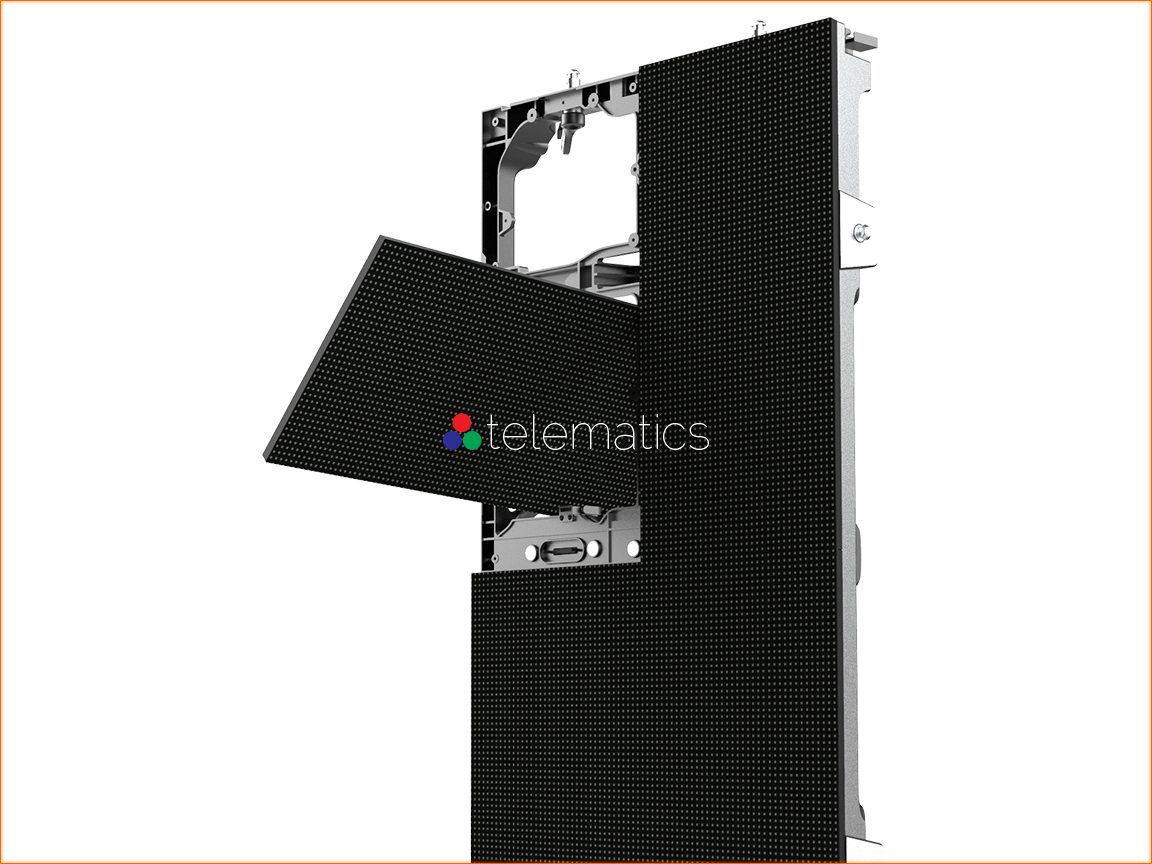

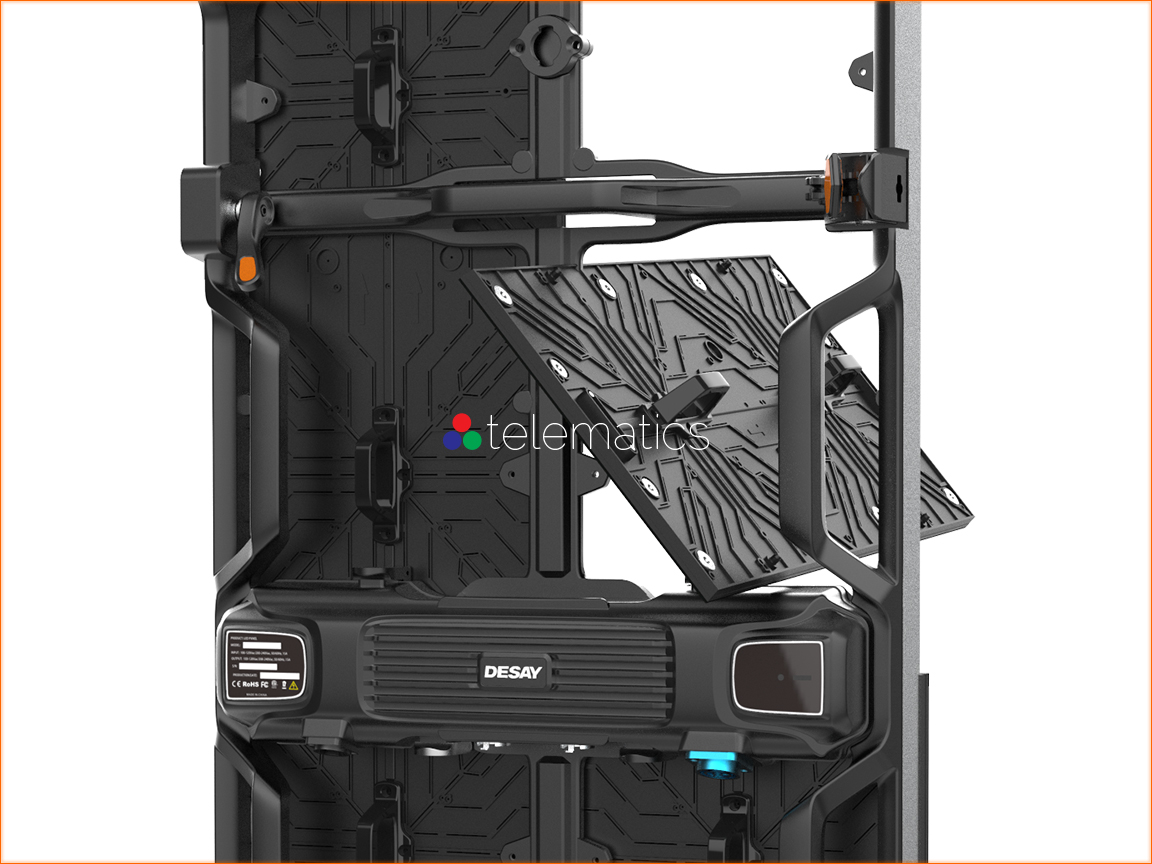

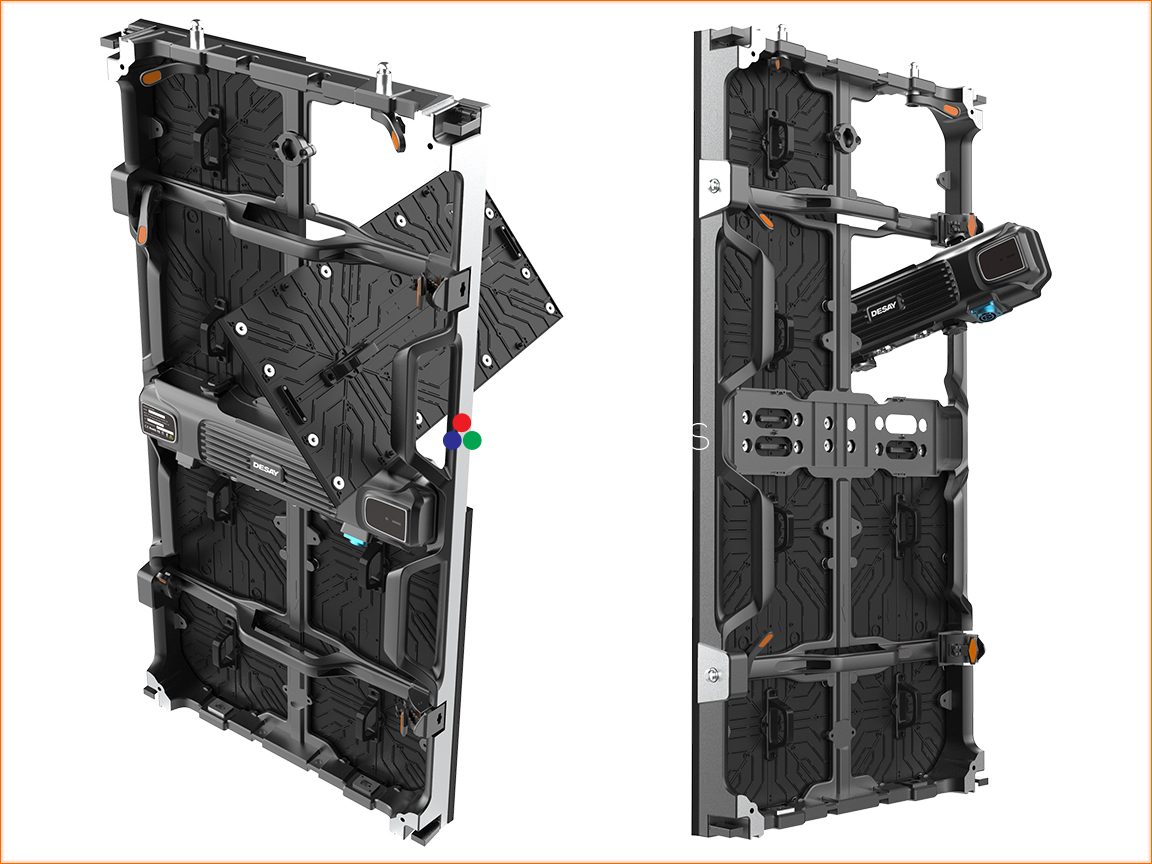

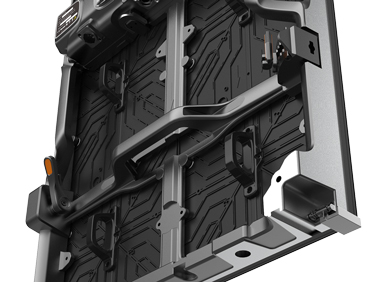

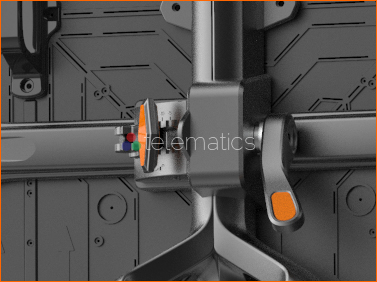

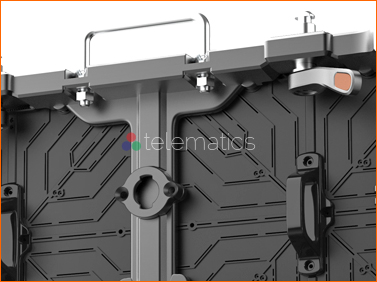

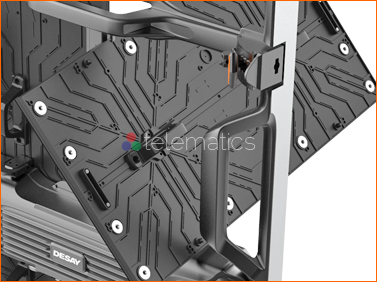

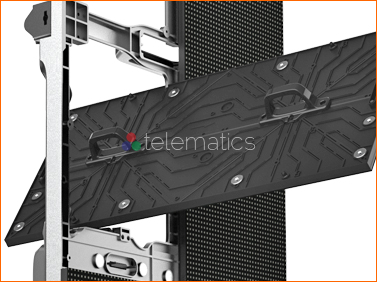

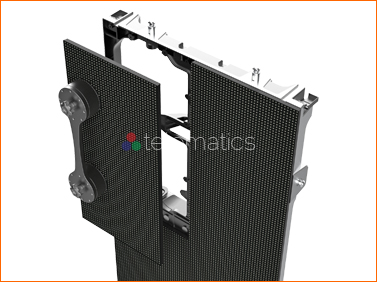

The Series HB features bump protection and an integral flexible design that allows up to 10 degrees of concave and convex settings. Attach to a frame or use hanging bars or ground supports. Power and data cabling is simple and intuitive with quick-release components.

Specifications · Desay Series HB

Robust + Desay = Rental.
Therefore, in your deliberations, when seeking to determine the military conditions, let them be made the basis of a comparison. ~ Sun Tzu

Series HB290i HB390i HB390 HB481
Pixels mm · meters
Resolution · ctc distance · mm 2.90 3.90 3.90 4.81
Resolution · per linear meter 344 256 256 208
Resolution · per square meter 118336 65536 65536 43264

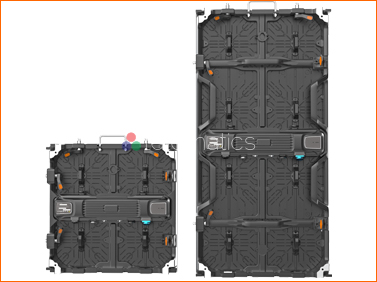

Dimensions mm · (inch)

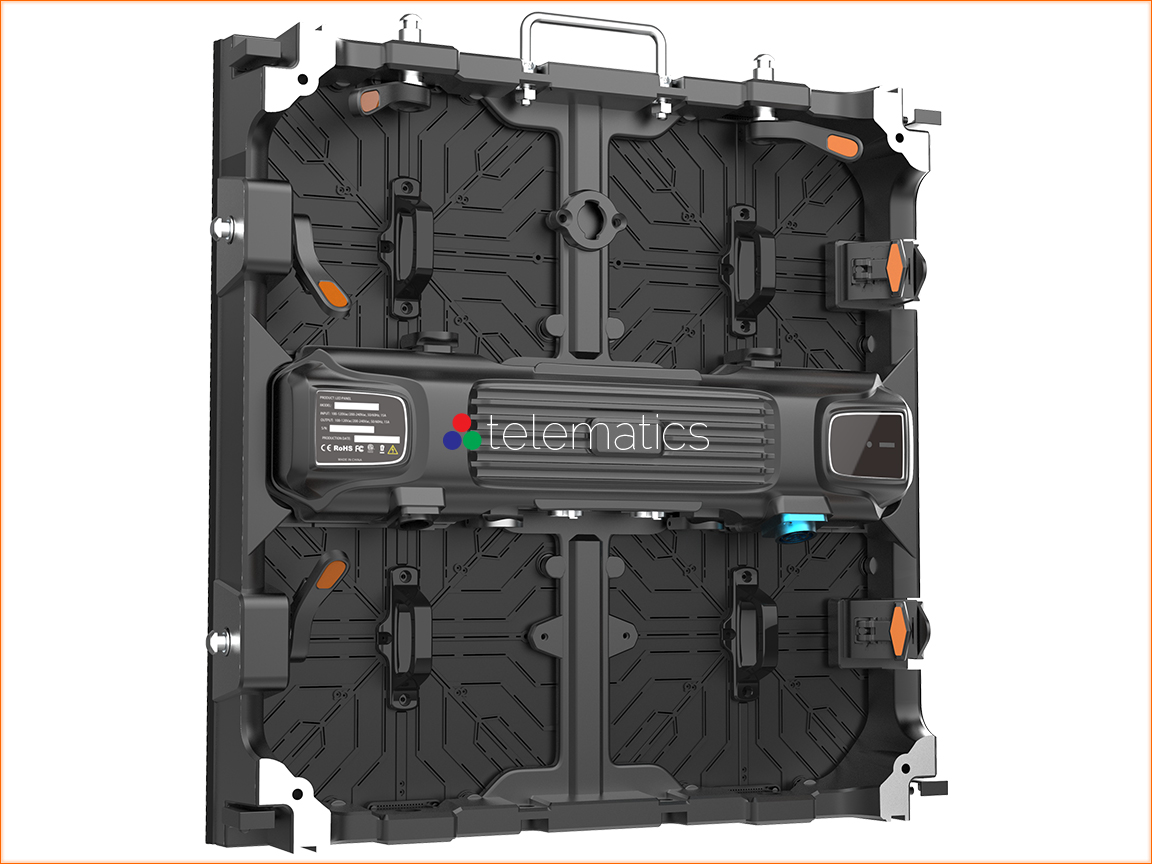

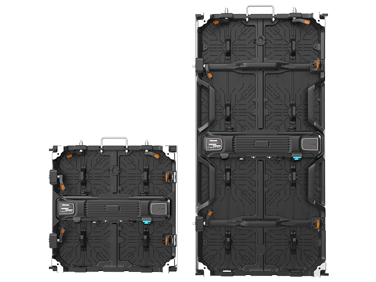

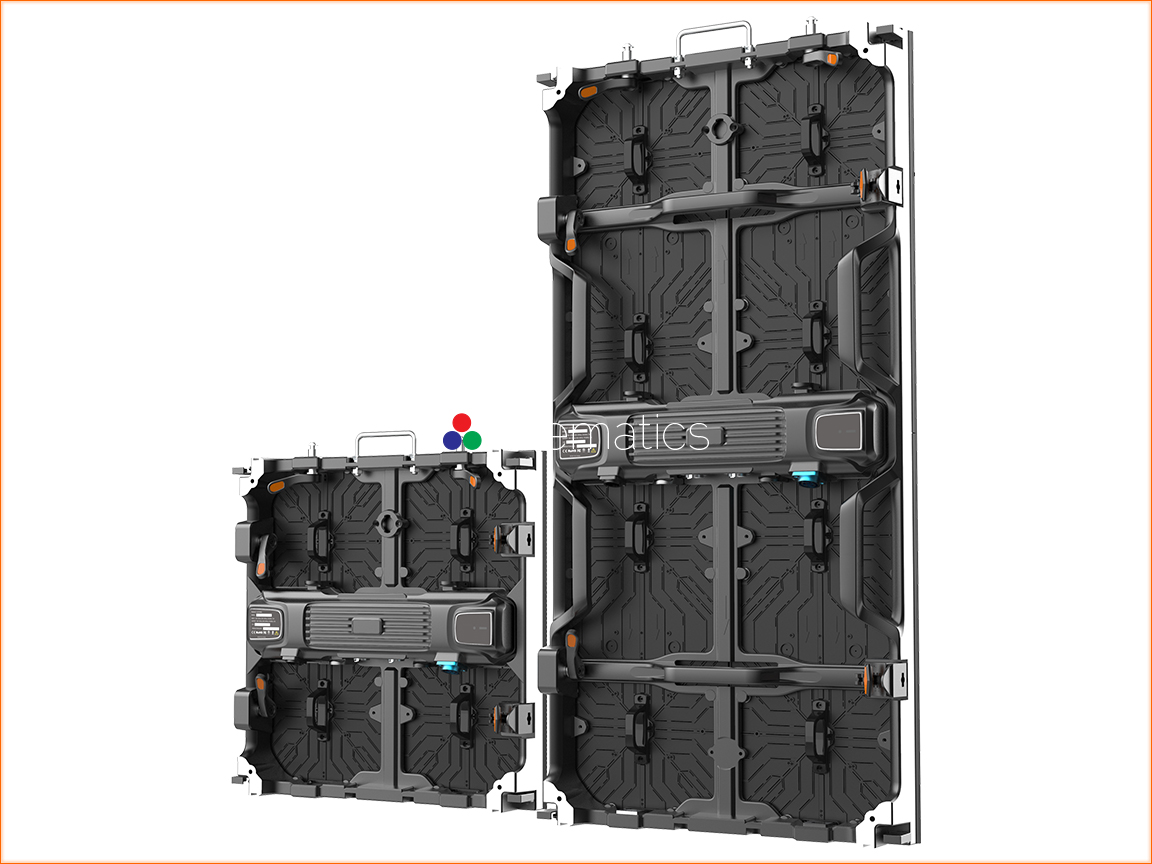

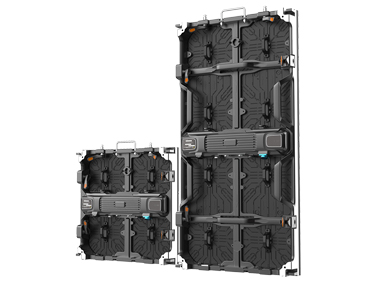

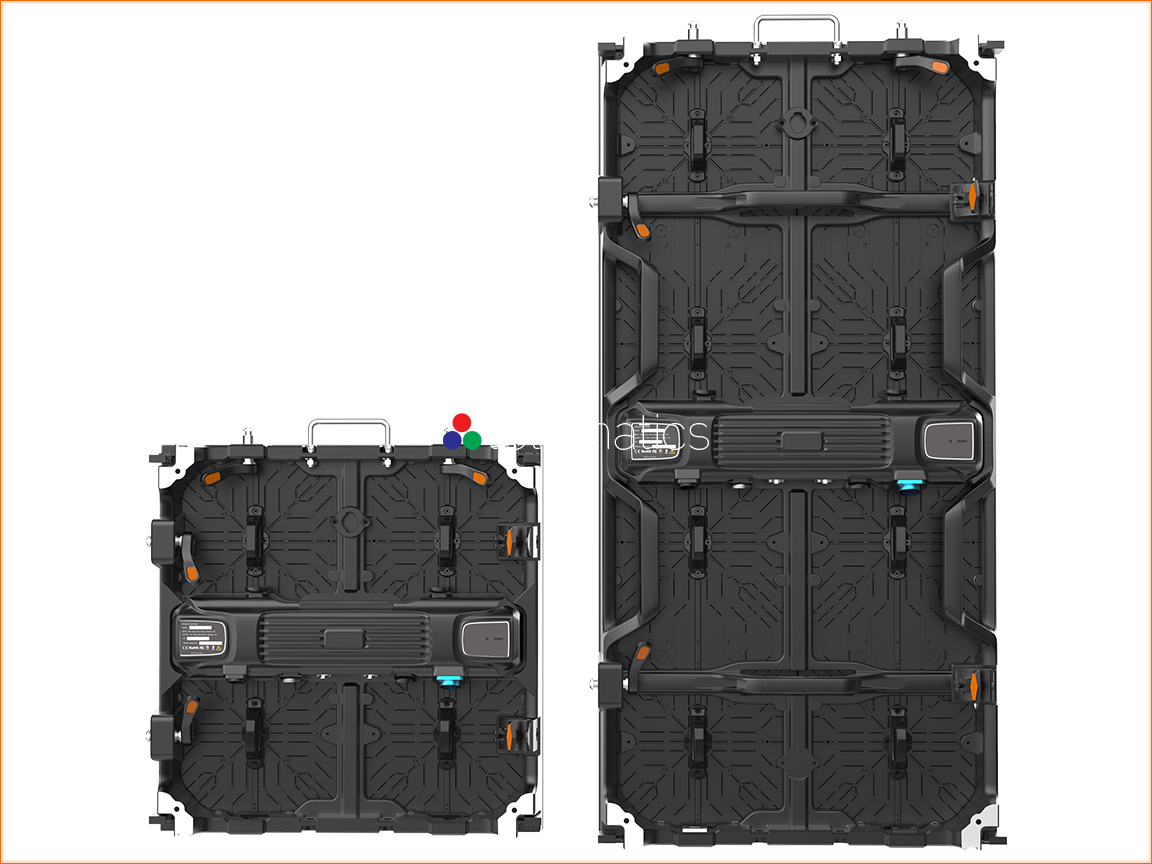

Width · half or full panel 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7)

Height · half panel 500 (19.7) 500 (19.7) 500 (19.7) 500 (19.7)
Height · full panel 1000 (39.4) 1000 (39.4) 1000 (39.4) 1000 (39.4)

Depth · at panel edge 33 (1.3) 33 (1.3) 33 (1.3) 33 (1.3)
Depth · at power box 80 (3.1) 80 (3.1) 80 (3.1) 80 (3.1)
Weight kilo · (pound)
Panel · half panel 5.5 (12.1) 5.5 (12.1) 5.7 (12.7) 5.7 (12.7)
Panel · full panel 12.5 (27.5) 12.5 (27.5) 13.0 (28.6) 13.0 (28.6)
Viewing (upgrade)
Brightness · candela/m² 1100 1100 5000 5000

Refresh · hertz 3840 3840 3840 3840

Angle · 50% brightness 80° 80° 80° 80° 80° 80° 80° 80°
Angle · 50% brightness 70° 70° 70° 70° 70° 70° 70° 70°
Performance
Colors · rgb · bit depth 214 214 214 214
Control · brightness levels 255 255 255 255
Lifetime · 50% brightness · years 11.4 11.4 11.4 11.4
Power square meter
Watts · 1 PSU · (average draw) 520 (35%) 580 (35%) 700 (35%) 700 (35%)

Voltage · VAC · adaptable 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240 100 ⌁ 240
Certifications
Regional · please inquire ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
ETL · FCC
CE · ROHS · UL
Installation
Wall · custom steel frame
Ceiling · fly bar
Floor · floor support

IP Code · front · rear 30 · 40 30 · 40 65 · 65 65 · 65
Operating · celsius · (fahrenheit) -10 (14) · 40 (104) -10 (14) · 40 (104) -20 (-4) · 45 (113) -20 (-4) · 45 (113)

Fine Print

Specifications Desay and Telematics reserves the right to change any specifications without prior notice.

Factory Warranty Faulty components to be repaired or exchanged for 2 years from the date of shipping.

Extended Factory Warranty The Desay factory warranty may be extended to 5 years at a modest premium.

The Sales Pitch

So here's the deal...
Energy may be likened to the bending of a crossbow; decision, to the releasing of a trigger. ~ Sun Tzu


Desay Series HB

The Series HB is the newest member of the Series H family, an award-winning design from Desay that has received a Red Dot Award and an iF World Design Award for 2019.

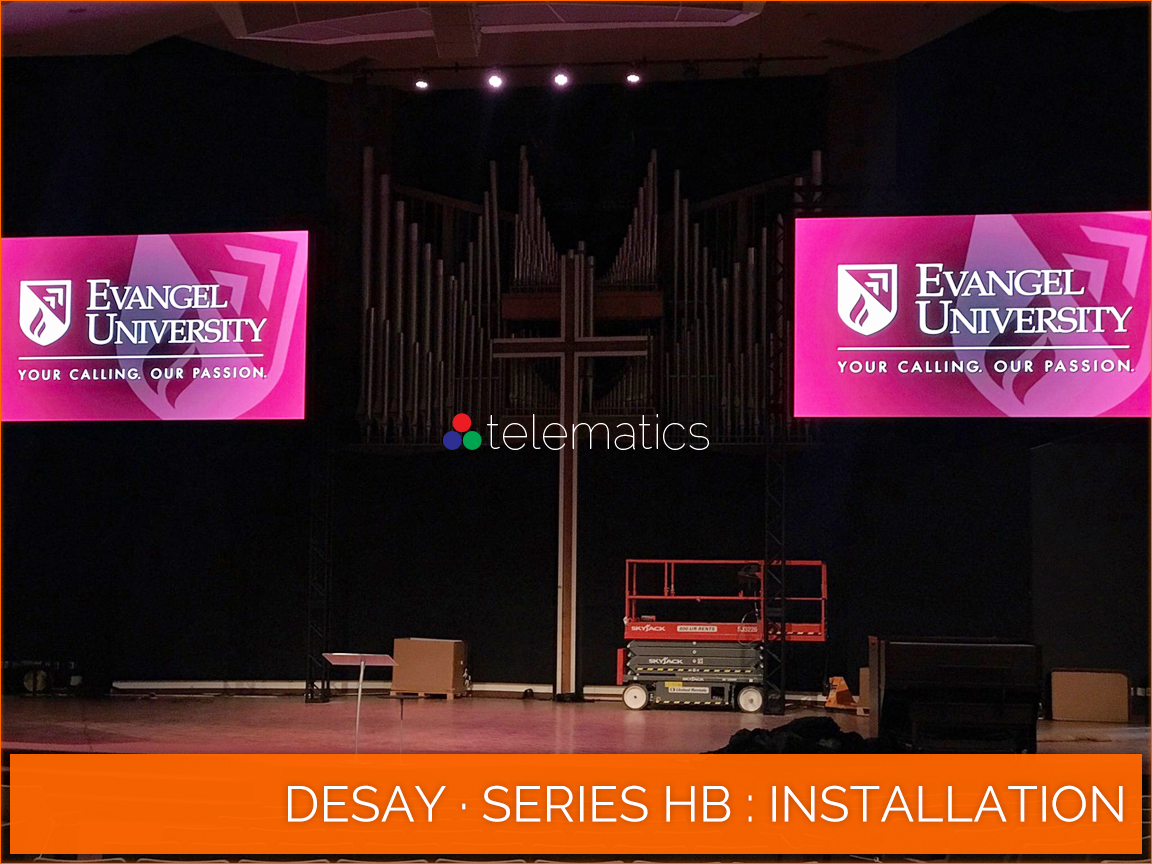

This panel is ideal for short-term rentals or permanent installations. It is designed for indoor use or outdoor use. It does not cut corners but instead provides 14-bit colour and 3840 Hz refresh rates. And it is priced at a level that you would not expect from a world-class manufacturer.

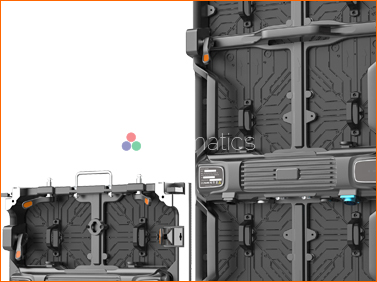

The extra-large dimensions of 500 * 1000 millimeters clearly save time on setup and tear-down, but weigh a little more with aluminum compared to the carbon fiber used in our touring panels. But at just 13 kilograms each, no one will be complaining. Unless that's just their nature.

With the Series HB, your rental pool will be awash in compliments. Choose a fine-pixel indoor panel in either a 2.9 or 3.9 millimeter pixel density or a fine-pixel outdoor panel in 3.9 or 4.8 millimeters.

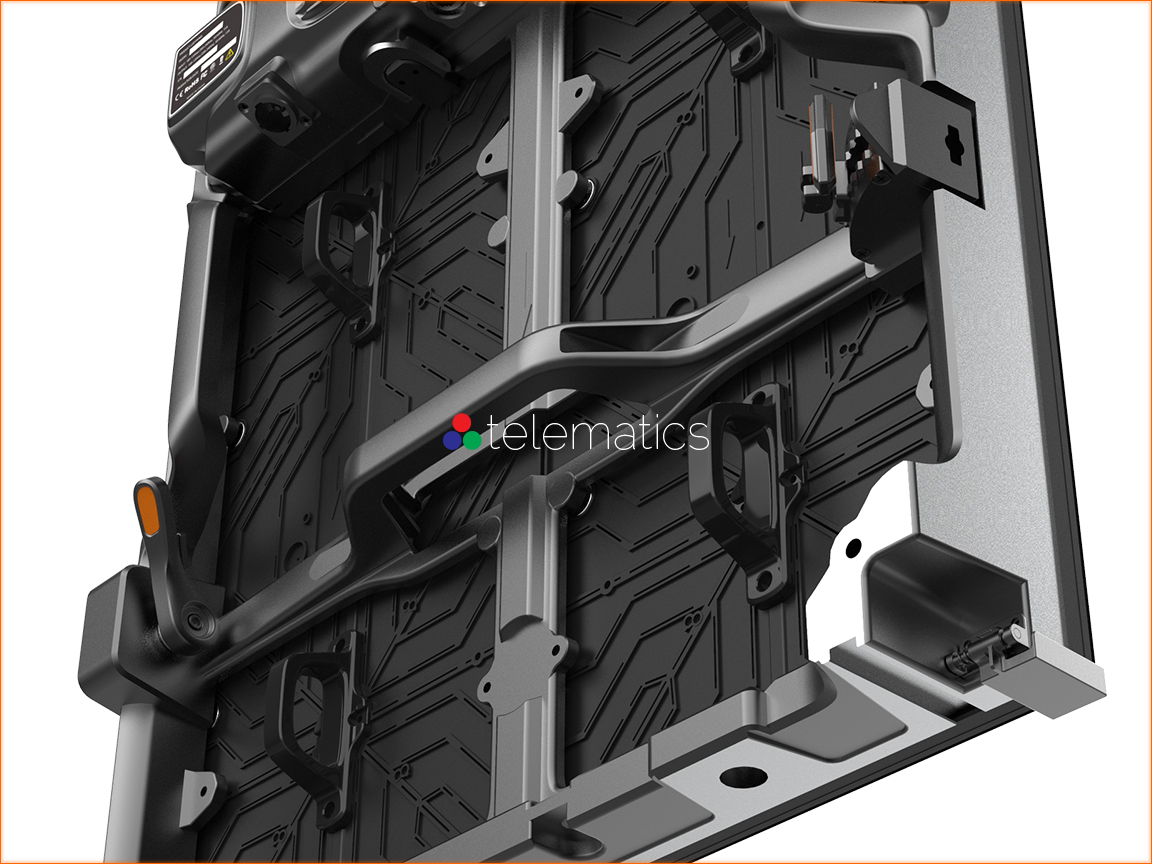

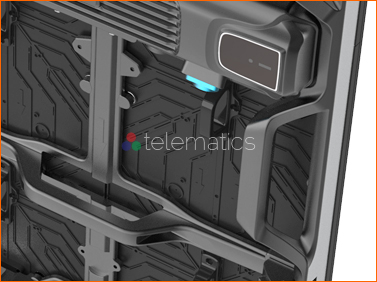

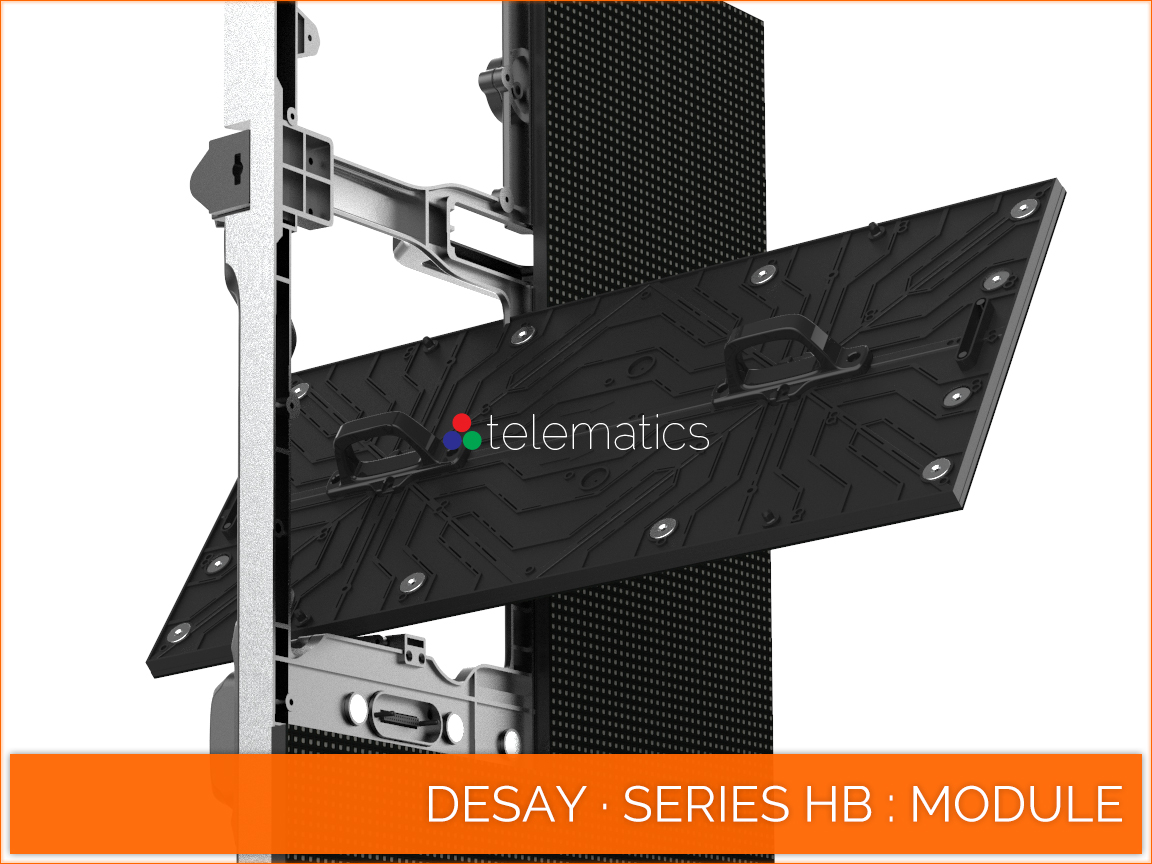

If the HB is out on the job, anti-bump edges should help protect the corners from careless handling. But if not, spare modules can be swapped in and out in a matter of minutes. Seconds if you are in a hurry.

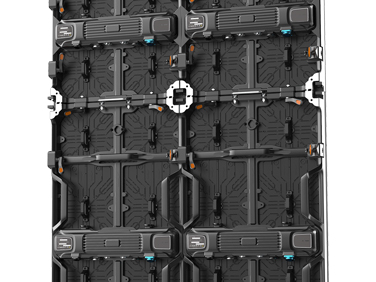

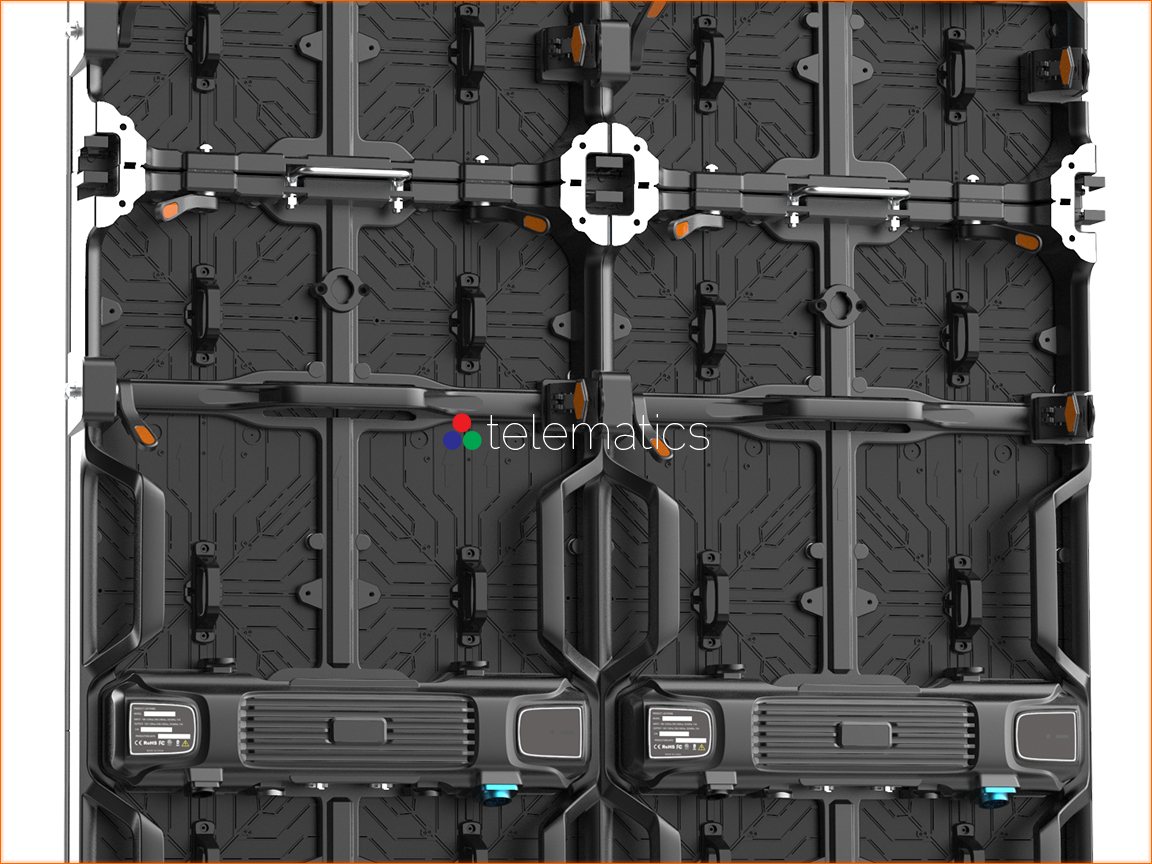

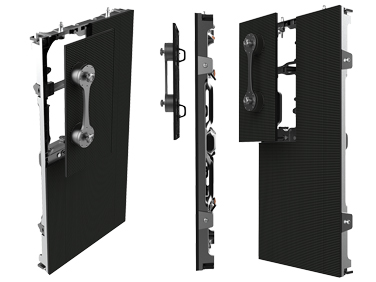

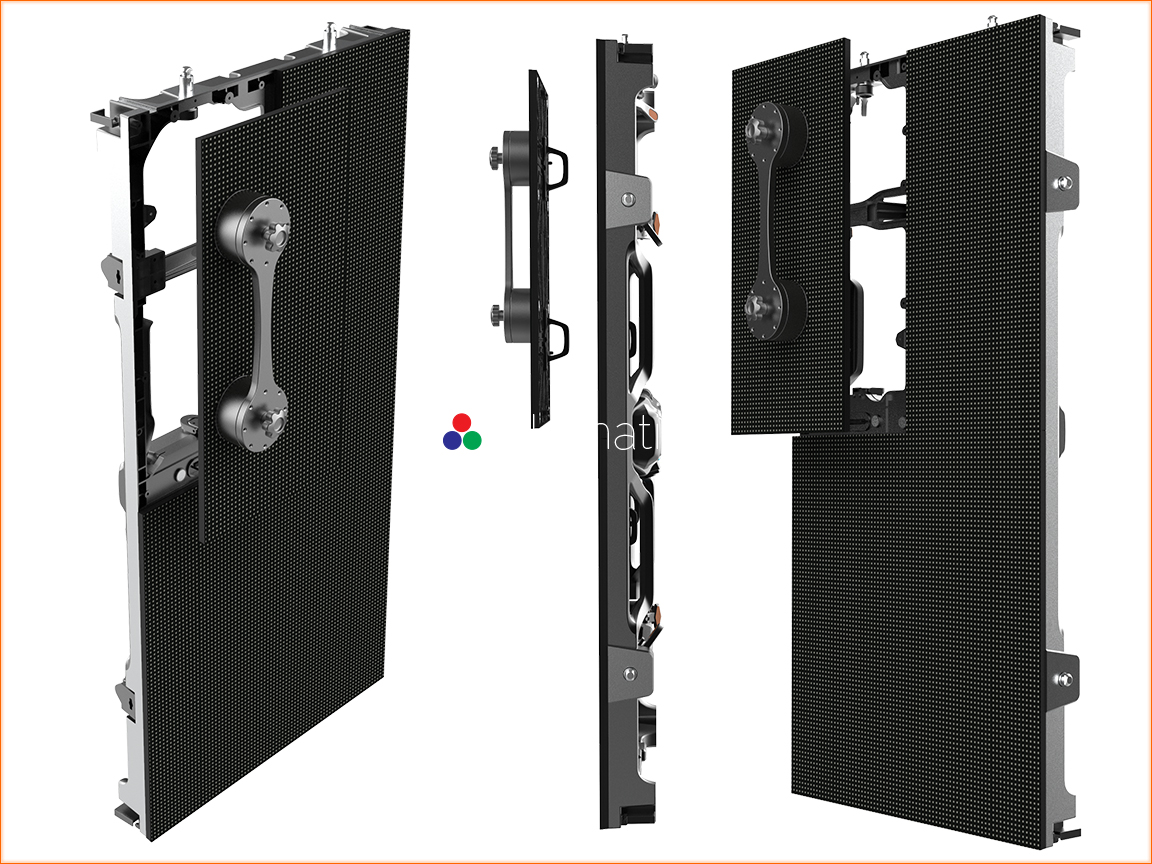

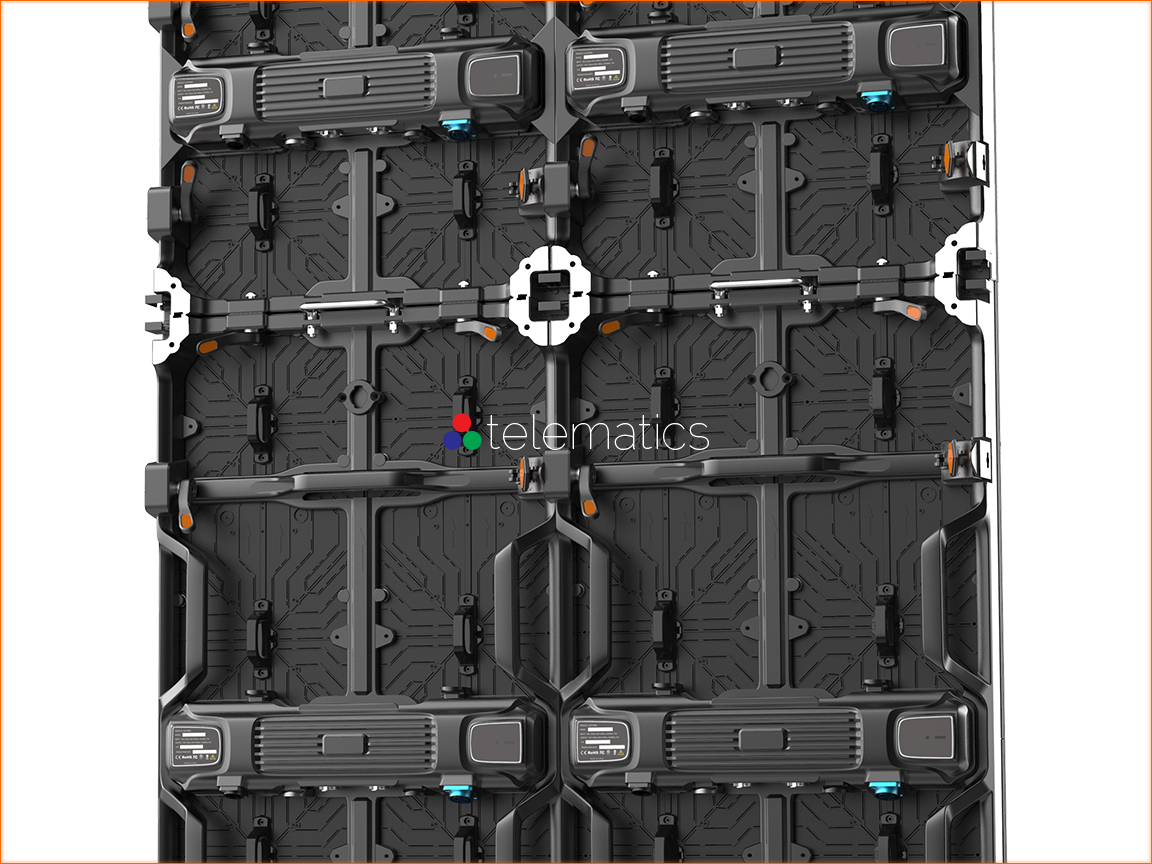

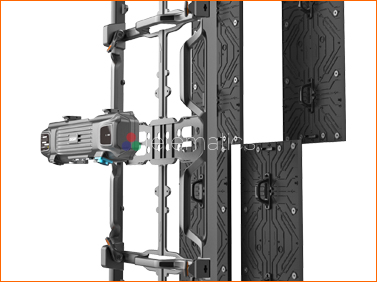

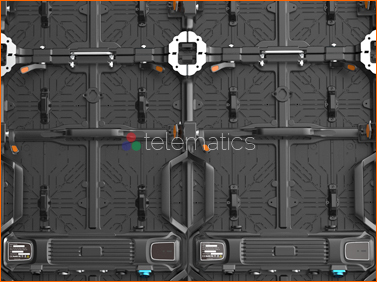

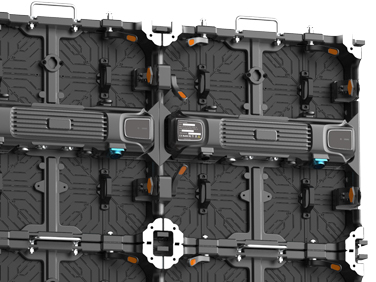

Connect the Series HB together for a flat surface or get creative with something curvy, right up to 10° concave and convex. Good to have options!

Content is handled by any of our NovaStar controllers, but we would suggest one of our VX4S controllers or the new Taurus Series.

The Series HB might just be our new default choice, whether the application is for rental or installation, indoors or outdoors.

Our Manufacturers

Desay is a public corporation (002920) established in 1983 and diversified in the fields of automotive electronics, advanced batteries, industrial automation, microelectronics and since 2001, a leader in optoelectronic LED production.

Desay's optoelectronic division has quietly emerged as an industry leader ranked #1 in Asia and #3 worldwide for the past decade with annual sales measured in tens of thousands of panels and cabinets.

The company owns 3 industrial zones with a total area over one and half million square meters. Huizhou is home to the Desay factory and offices with additional offices in Shenzhen.

Desay enjoys a well-earned reputation defined by developing and producing some of the highest-quality LED displays in the world.

Our Customers

For 19 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavor to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Cool Videos

A video is worth a thousand likes.
The onrush of a conquering force is like the bursting of pent-up waters into a chasm a thousand fathoms deep.~ Sun Tzu

·


S5 Box

Pricing · Desay LED Displays

We respect the value of your time. Use these numbers to ballpark the costs for your project. Then call us for a quote.
Now the general who wins a battle makes many calculations in his temple ere the battle is fought. ~ Sun Tzu

Series A
· A1.99i 4686 base/per
· A2.57i 2920 base/per
update: 5/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Kinglight Gold / Copper Wire LED quote

DSBJ Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series AT
· AT1.99i 13566 base/per
· AT2.57i 9657 base/per
· AT3.90i 7060 base/per
· AT2.57 11855 base/per
· AT3.90 8285 base/per
update: 5/2019

Taurus T3 · Taurus T6 quote

2880 Hz Refresh included

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series B
· B25·25 1467 base/sqm
· B31·31 1063 base/sqm
· B42·42 745 base/sqm

Cards · Controllers included

1000 Hz Refresh included

Cree / Multi-Color / Xindeco LED quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series G
· G2·5i 5414 base/sqm
· G3·7i 2703 base/sqm
· G5.20i 3624 base/sqm
· G7.81i 2343 base/sqm
· G10.41i 2334 base/sqm
update: 4/2019

Cards · Controllers quote

2880 / 1920 Hz Refresh quote

Ultra / Standard Brightness LED quote

Ceiling quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series H
· H2.84i 3602 base/sqm
· H3.90i 2886 base/sqm
· H3.90 3802 base/sqm
· H6.94 3114 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series HB
· HB2.90i 2386 base/sqm
· HB3.90i 1998 base/sqm
· HB3.90 2764 base/sqm
· HB4.81 2371 base/sqm
update: 7/2019

Cards · Controllers quote

3840 Hz Refresh standard

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series HL
· HL2.84i 2860 base/sqm
· HL3.90i 2409 base/sqm
· HL3.90 3386 base/sqm
· HL4.80 2571 base/sqm
· HL6.90 2337 base/sqm
· HL10.41 2040 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Neutrik / Linko Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series M
· M4.76 3216 base/sqm
· M5.55 2627 base/sqm
· M6.25 2511 base/sqm
· M8.33 2137 base/sqm
· M10.00 1922 base/sqm
· M12.50 1630 base/sqm
· M16.66 1474 base/sqm
update: 8/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

NationStar Gold Wire LED standard

Install / Stage Connectors quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series PF
· PF2.97i 0000base/sqm
· PF3.90i 0000 base/sqm
· PF4.80i 0000 base/sqm
· PF6.25i 0000 base/sqm

Cards · Controllers quote

NationStar Gold / Copper Wire LED quote

Wall · Ceiling · Floor Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series QF
· QF3.90 0000 base/sqm
update: 7/2019

1920 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Ruifeng Gold Wire LED quote

4500 / 5000 / 5500 Nits quote

Custom Steel Frame quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series S
· S4.76 2348 base/sqm
· S6.25 2317 base/sqm
· S8.33 1919 base/sqm
· S10.00 1630 base/sqm
· S10.88 1693 base/sqm
· S15.24 1537 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 / 1000 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

4500 / 5500 / 6000 / 8000 Nits quote

Xindeco High / Standard Brightness LED quote

6500 / 8500 / 9800 Nits quote

Custom Steel Frame quote

Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series T
· T0.97i 26872 base/sqm
· T1.26i 11798 base/sqm
· T1.58i 9019 base/sqm
· T1.90i 6174 base/sqm
· T2.53i 3746 base/sqm
update: 7/2019

Cards · Controllers quote

3840 / 2880 Hz Refresh quote

Everlight Gold Wire LED quote

NationStar Gold / Copper Wire LED quote

Hardened Surface quote

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · Two Years
Series TR
· TR2.58i 3961 base/sqm
· TR2.95i 3560 base/sqm
update: 2/2019

Cards · Controllers quote

2880 Hz Refresh quote

NationStar Gold / Copper Wire LED quote

Hard Face 400/sqm

Staging Bracket quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series TVB
· TVBi 0000 base/sqm
update: 7/2019

Cards · Controllers quote

3840 / 2880 Hz Refresh quote

Everlight Gold Wire LED quote

NationStar Gold / Copper Wire LED quote

Hard Face 400/sqm

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Air · Ocean Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series WB
· WB2.60i 3301 premium/sqm
· WB2.90i 2764 premium/sqm
· WB3.90i 2374 premium/sqm
update: 8/2019

Cards · Controllers quote

NationStar Gold Wire Lamp standard

3840 Hz Refresh standard

Macroblock / Chipone standard/reduce

Hard Face 400/sqm

Direct Wall Installation standard

Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series WP
· WP2.60i 3224 premium/sqm
· WP2.90i 2730 premium/sqm
· WP3.90i 2080 premium/sqm
· WP4.80i 1833 premium/sqm
update: 8/2019

Cards · Controllers quote

NationStar Gold Wire Lamp standard

3840 Hz Refresh standard

Macroblock / Chipone standard/reduce

Hard Face 400/sqm

Rail Frame Installation quote

Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade
Series X
· X1.56i 0000 base/sqm
· X1.95i 6427 base/sqm
· X2.60i 3612 base/sqm
· X2.97i 3509 base/sqm
· X3.90i 2887 base/sqm
· X3.10 6369 base/sqm
· X3.90 4461 base/sqm
· X4.46 4025 base/sqm
update: 5/2019

Cards · Controllers quote

3840 / 1920 Hz Refresh quote

Jointec / Refond Black Face LED quote

NationStar Gold / Copper Wire LED quote

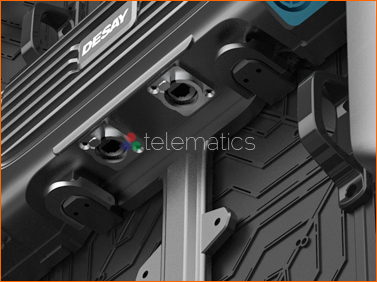

Neutrik / Linko Connectors quote

Hard Face 400/sqm

Wall · Ceiling · Floor Bracket quote

Custom Steel Frame quote

Flight Case · Wood Crate quote

Ocean · Air Freight quote

Factory Warranty · 2 / 5 Years standard/upgrade

Checklist

Don't drive yourself crazy trying to figure out the right series and the correct specifications and dimensions for your project. Just contact our offices and in ten minutes we can review everything and find out what works best for the space and the budget.

Order

Everyone leaves ordering to the last possible moment. Telematics will share in your stress and jump through every hoop to meet your ever-evolving schedule. But first we need a fifty-percent deposit to get your order into production, tested, packaged and ready to ship.

Ship

Your order can be shipped by air or ocean, to the port or to your door. Shipping schedules and Customs clearance are outside of our control. Allow plenty of time for unexpected delays. Also, you would not believe how many National Holidays are observed in China. Seriously.

Install

Telematics will provide schematics for the individual panels and the full display as well as electrical drawings and plans for custom frames. Your order will be factory-tested while fully-assembled, photographed and then disassembled and crated for shipping. No unpleasant surprises.

Service

Desay and NovaStar provide full technical support to assist with any issues that come up. Most problems are diagnosed and resolved using TeamViewer remote access software, Skype and a webcam or often just a simple exchange of polite emails and courteous phone calls.

Warranty

Desay supports their products with a comprehensive two-year factory warranty that provides for free replacement or repair or of any failed components and may be extended to 5 years for a modest surcharge. No law firms were engaged to obfuscate this warranty.

Contact · Telematics Canada

Politely awaiting your call. It's a Canadian thing...
Sun Tzu said: We shall be unable to turn natural advantage to account unless we make use of local guides. ~ Sun Tzu


Telematics Canada

375 Water Street, Suite 200
Vancouver, BC V6B 0M9
Canada


8:00 am to 8:00 pm

(1) 604.331.8795
This email address is being protected from spambots. You need JavaScript enabled to view it.
telematics.canada

https://www.telematics.ca
Telematics Canada (2000)

Michael Wolf

Canada · USA · International
(1) 604.331.8795
(1) 604.209.3955 (text me!)

Director

This email address is being protected from spambots. You need JavaScript enabled to view it.

Alicia Mottus

Administration
(1) 604.331.8795


Director

This email address is being protected from spambots. You need JavaScript enabled to view it.
