It's a familiar story. Same old meets brand new and shiny. Same old plunges into self-loathing and doubt and chooses an early retirement, making way for the new kid on the block.
Only a handful of years have passed since the industry's only offerings for outdoor displays were massive cabinets that weighed a ton and were populated with individual pixels that could be counted from across the room. Images may have been bright, but were otherwise best described as coarse.
The new Desay Series WT packs 112,896 pixels into just 4 panels measuring a total of a square meter. While few applications call for a 4K installation, it is comforting to know that if you have the appetite and room for a 73 square meter display, we have your solution.
But more likely, the Series WT will be going on a creative journey. Many will be small-format billboards or signage that stretches in a slender row from one end of a storefront to the other. Or maybe just a collection of individual panels measuring a foot square and lighting up a building in a fantastic checkerboard.

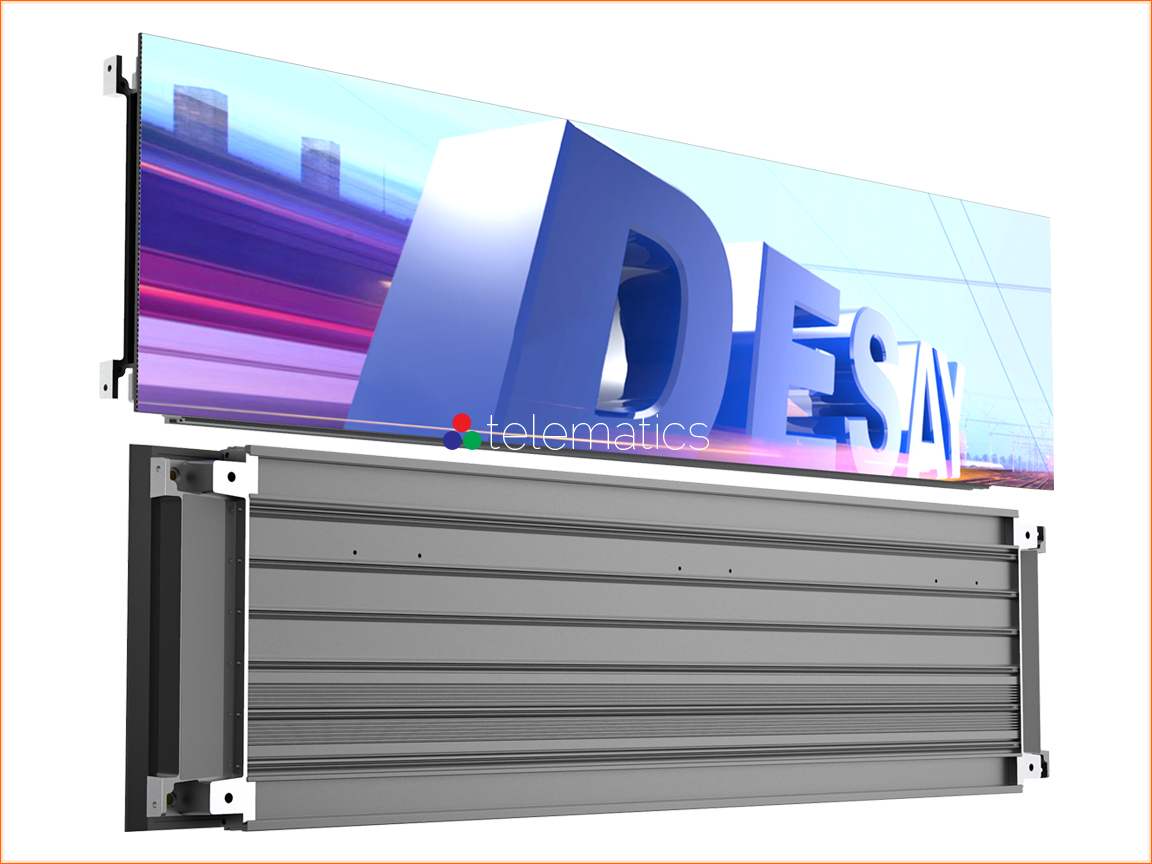

The new for 2022 Desay Series WT is an advanced aluminum panel that weighs under 10 kilograms with XY dimensions that start at 250 × 250 and range up to 1333 × 250 millimeters and just 58 millimeters deep.
These panels can be configured in portrait or landscape mode to allow for creative applications such as building a border around a window frame for example.
We can equip the Desay Series WT with upgraded NovaStar A10s Pro receiver cards which provides for equipping the WT with the new NovaStar VMP or Vision Management Platform control software and a NovaStar MX40 LED display controller.
Or for less demanding displays, we can offer the very affordable NovaStar Taurus media player.
PixelsPixel-to-pixel spacing begins at an impressive 2.976 millimeters to create fine-pixel display resolutions of over 112,896 LED lamps/m².
Each millimeter of spacing supports one meter of viewing distance which means that the Series WT will look great from less than 3 steps away.
DimensionsThe Series WT is an advanced aluminum panel that weighs under 10 kilograms with XYZ dimensions of 1000 × 250 × 58 millimeters. Boomers can convert those numbers to the 1825 Exchequer Standards for dimensions of 39 × 10 × 2.3 inches and a featherweight 21 pounds.
ViewingDisplay panel brightness is sunshine-ready at a sizzling 5000 cd/m². Screen refresh rates are set at up to 3840 Hz for camera-ready video. An outstanding 160° off-axis viewing means that pretty much everyone in the audience can see the Series WT whether coming or going.
PerformanceRed14 × Green14 × Blue14 generate 4398 billion colors and a silky smooth 16384 greys. Display life expectancy is projected to be 100,000 hours, which works out to about 11 years of full-time use. Which means we look forward to hearing from you again in 2033.
PowerRated power consumption is a low 217 W/m² to 227 W/m² and up to 930 W/m² on full load depending on the specifications of the model. Variable voltage power units accept 100V ~ 240V. Our technicians will provide an electrical schematic specific to your project on request.

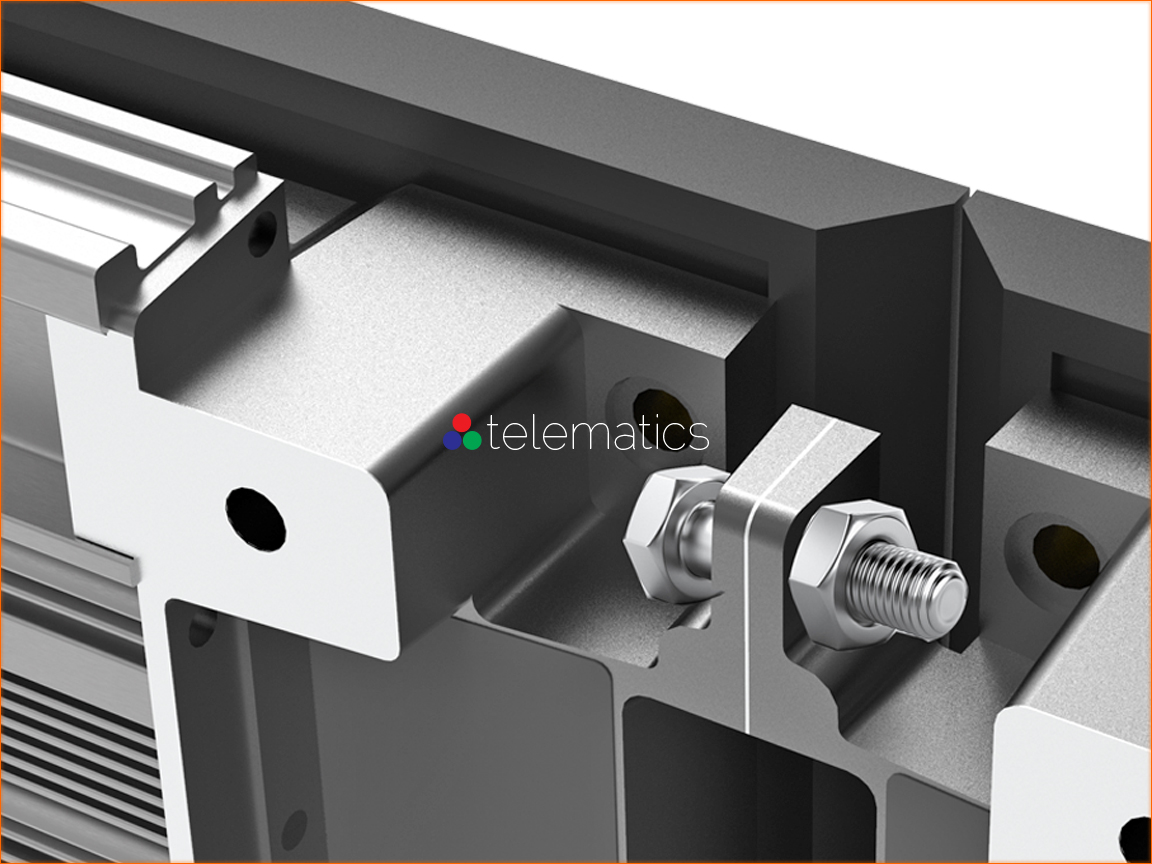

InstallationThe Series WT is good to go as a single panel or a massive billboard. The WT will follow a gentle curve or form a 90° corner and wrap a column. These innovative panels can be set out in a horizontal or vertical configuration, or mixed and matched as your project demands.
For 22 years we have developed business relationships with thousands of people from every corner of the world.
Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.
In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.
And we always keep their secrets to ourselves.
Picking out a fantastic new controller usually ranks a very distant second to selecting a fantastic new direct view LED display.
It is something that is needed to finish the job, but more often than not, is chosen on the basis of simply being capable. Which is a shame, given the amount of energy that NovaStar puts into developing some of the very best systems in the world.
The new NovaStar Series MX40 has set out to change all that, but to fully understand all its features, we need to do so alongside the software that it runs: NovaStar Vision Management Platform.
Let's dive right into a 90-second video for an overview, and if you have 20 minutes to spare, watch the second video which should answer pretty much every question you'll have:
VMP is an all-new display control software that integrates design, management, and monitoring into one single platform. When paired with the flagship MX Series controller and A10s Pro receiving card, an incredibly professional LED solution is realized, providing stunning image quality, precise color adjustment, and an intuitive software experience.
This represents a totally new solution for managing high-end applications such as fine-pitch LED installation, studio broadcasting, touring, corporate events, virtual production and E-sports.
BoostersUtilizing both Image Booster 2.0 and Dynamic Booster, grayscale performance, color performance and contrast ratio are dramatically improved.
Grayscale22bit+, 64 times grayscale improvement, 0.002nits precise control, ultra-precise image for stunning realism.
ColorFully automated color standardization, calibration and verification, self-adapts to color gamut, △E<2.
Curve adjustment and importing of 3D LUT files let you manage color in creative and artistic ways.
ContrastBy enhancing bright and dark content details to the idea level, an SDR source can deliver HDR-like effect, ensuring no overexposure in bright areas and no loss of detail in shadows.
Allows independent adjustment of highlights and shadows by contrast and black level, avoiding overexposure in bright content but delivering rich details in dark content.
Dynamic AlgorithmWith real-time analysis, brightness is adjusted dynamically frame by frame, saving 20%-40% power, extending the lifespan of an LED display.
HDR10 4:4:4The only comprehensive 4K@60Hz 10bit 4:4:4 solution in the industry presents an ideal environment for virtual production that puts you in the scene, representing a new evolution in HDR applications.
Frame RatesSupports 240Hz high frame rate, frame multiplication, frame multiplexing and adaptive frame rate, providing a super smooth filming.
Color ReplacementSupports unrestricted color replacement, with minimal impact on other colors.
14CH Color CorrectionPrecise adjustment of hue, saturation, and brightness of primary, secondary and tertiary colors, with basic adjustment of black and white, ensuring perfect colors that retain their intended beauty.
For 22 years we have developed business relationships with thousands of people from every corner of the world.
Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.
In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.
And we always keep their secrets to ourselves.
It is not often we get to be excited about a new software platform. But this is one of those times.
Let's dive right into a 90-second video for an overview, and if you have 20 minutes to spare, watch the second video which should answer pretty much every question you'll have:
VMP is an all-new display control software that integrates design, management, and monitoring into one single platform. When paired with the flagship MX Series controller and A10s Pro receiving card, an incredibly professional LED solution is realized, providing stunning image quality, precise color adjustment, and an intuitive software experience.
This represents a totally new solution for managing high-end applications such as fine-pitch LED installation, studio broadcasting, touring, corporate events, virtual production and E-sports.
Boosters
Utilizing both Image Booster 2.0 and Dynamic Booster, grayscale performance, color performance and contrast ratio are dramatically improved.
Grayscale
22bit+, 64 times grayscale improvement, 0.002nits precise control, ultra-precise image for stunning realism.
Color
Fully automated color standardization, calibration and verification, self-adapts to color gamut, △E<2.
Curve adjustment and importing of 3D LUT files let you manage color in creative and artistic ways.
Contrast
By enhancing bright and dark content details to the idea level, an SDR source can deliver HDR-like effect, ensuring no overexposure in bright areas and no loss of detail in shadows.
Allows independent adjustment of highlights and shadows by contrast and black level, avoiding overexposure in bright content but delivering rich details in dark content.
Dynamic Algorithm
With real-time analysis, brightness is adjusted dynamically frame by frame, saving 20%-40% power, extending the lifespan of an LED display.
HDR10 4:4:4
The only comprehensive 4K@60Hz 10bit 4:4:4 solution in the industry presents an ideal environment for virtual production that puts you in the scene, representing a new evolution in HDR applications.
Frame Rates
Supports 240Hz high frame rate, frame multiplication, frame multiplexing and adaptive frame rate, providing a super smooth filming.
Color Replacement
Supports unrestricted color replacement, with minimal impact on other colors.
14CH Color Correction
Precise adjustment of hue, saturation, and brightness of primary, secondary and tertiary colors, with basic adjustment of black and white, ensuring perfect colors that retain their intended beauty.
