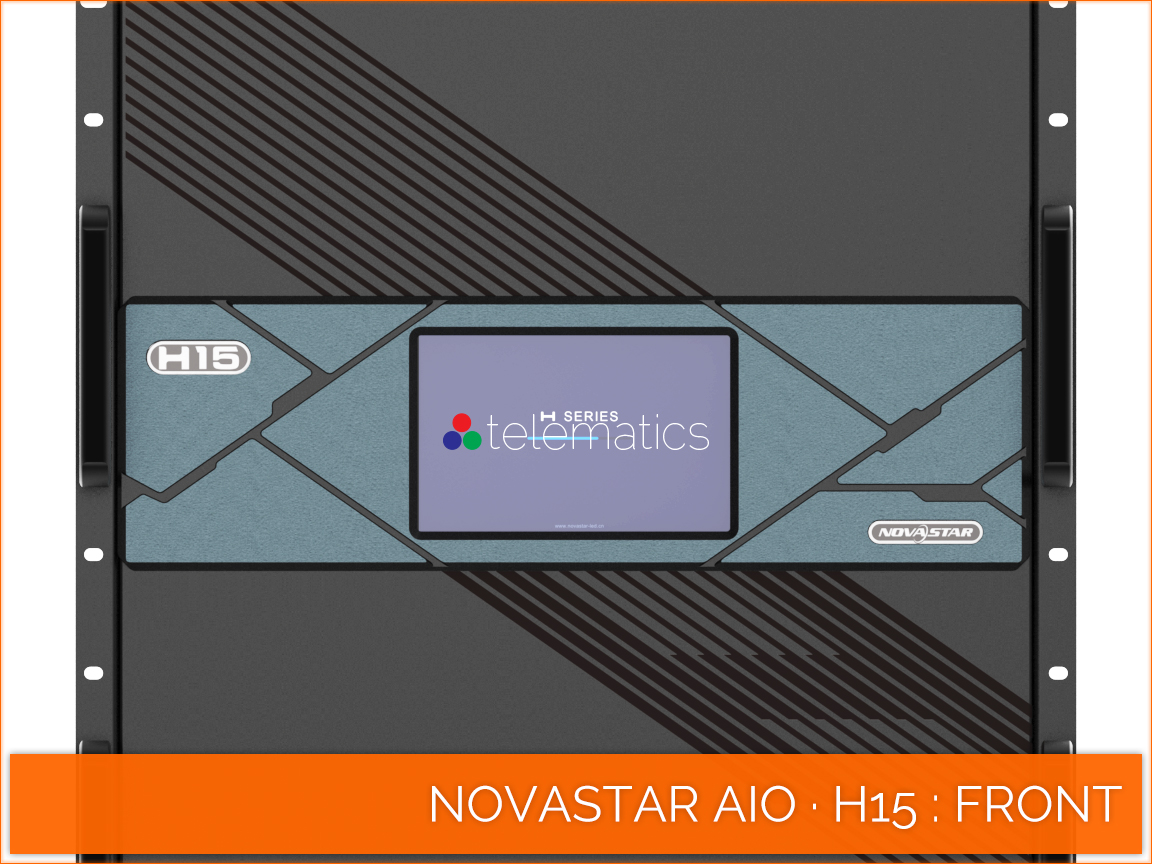

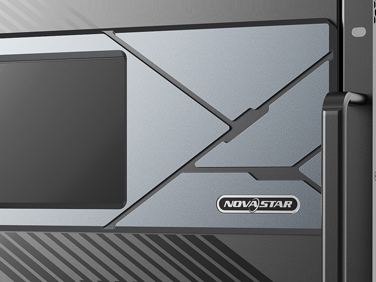

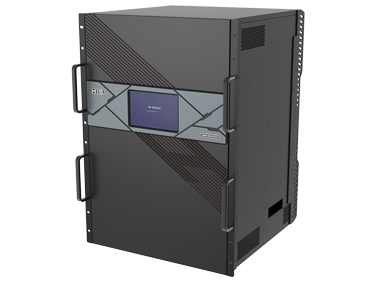

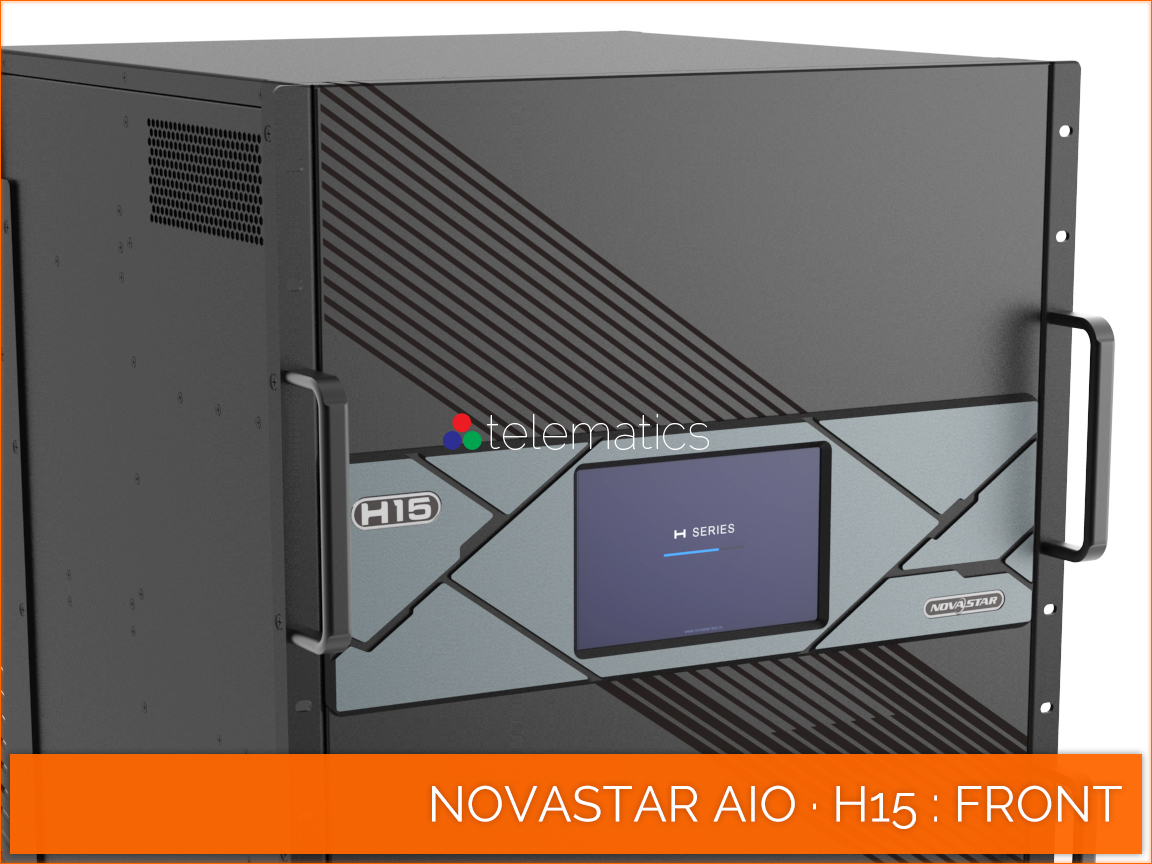

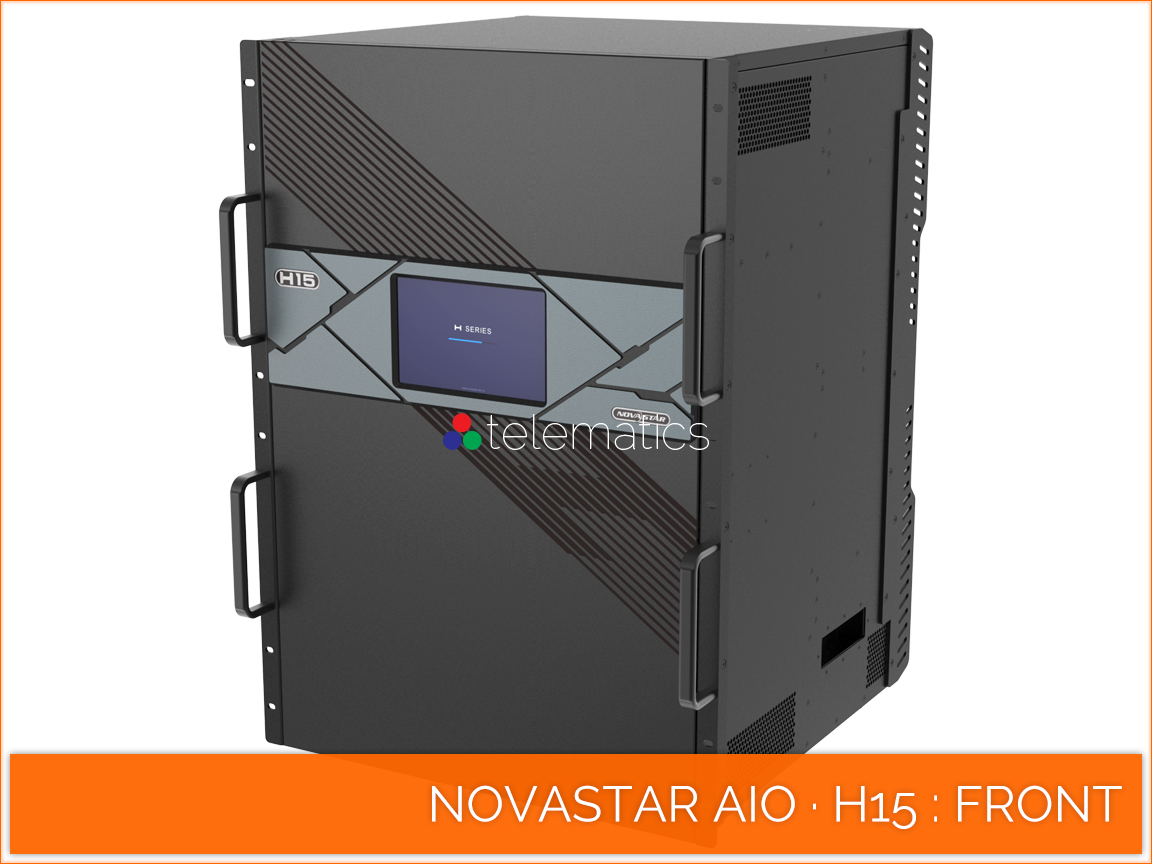

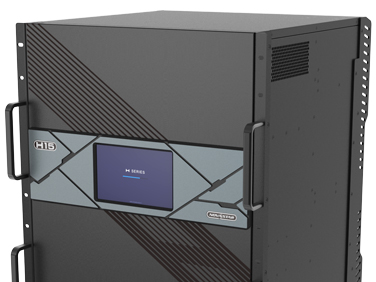

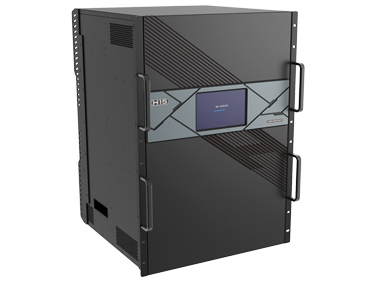

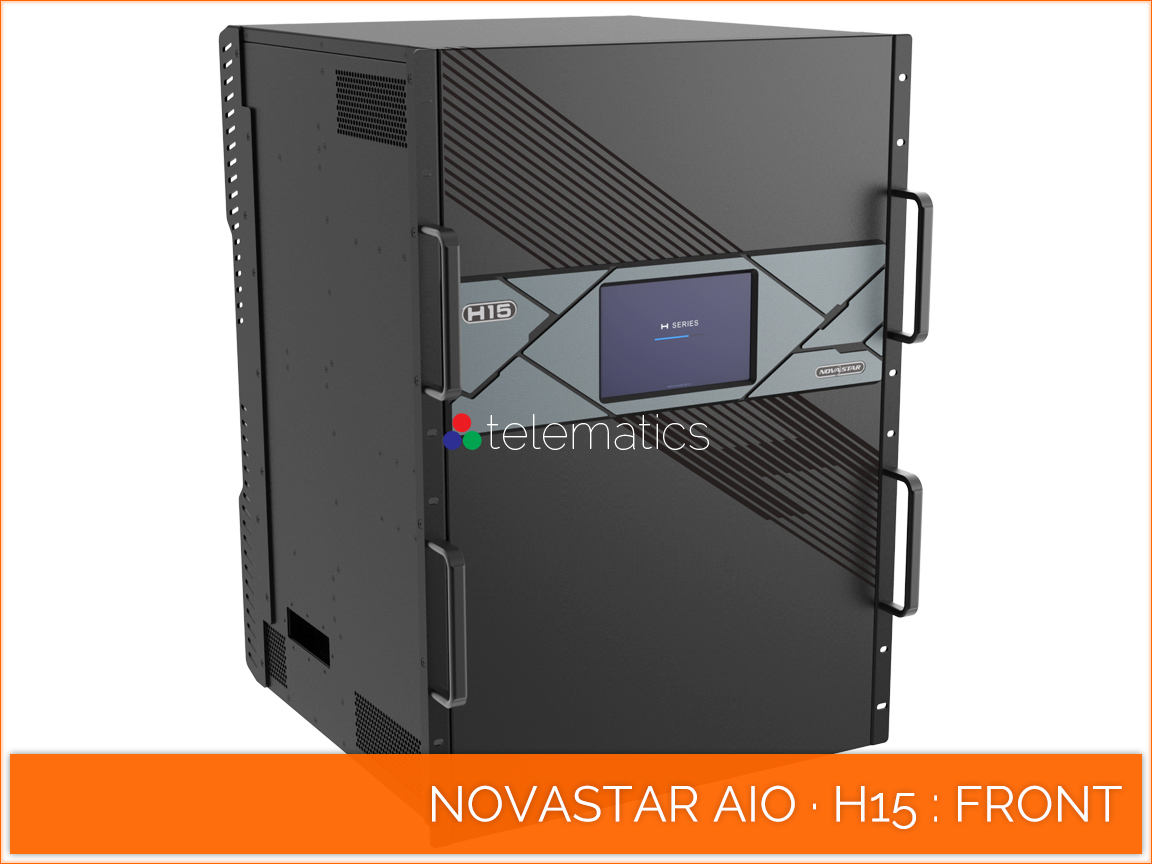

NovaStar AIO · H15 · direct view LED display · all in one sending controller · novalct · viplex · review · price · cost — NovaStar AIO · H15

all in one sending controller

video wall splicer · scaler

calibration · brightness · chroma

novalct · viplex

3 year NovaStar factory warranty · support

only when purchased from authorized distributors

priced from $ 6,146/unit

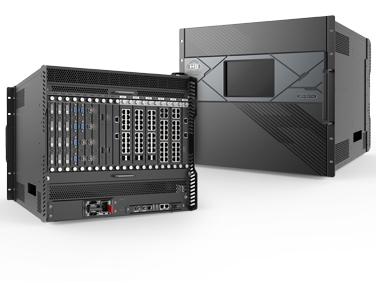

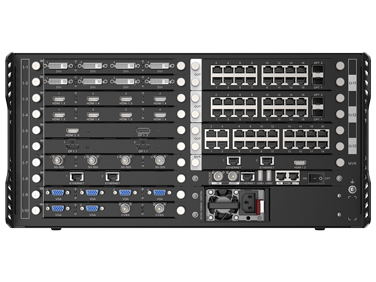

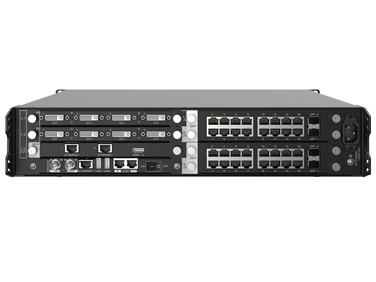

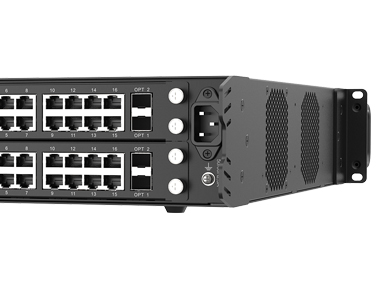

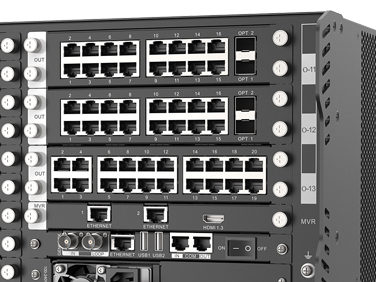

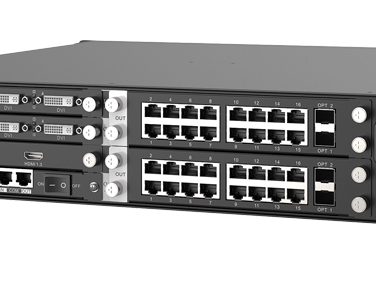

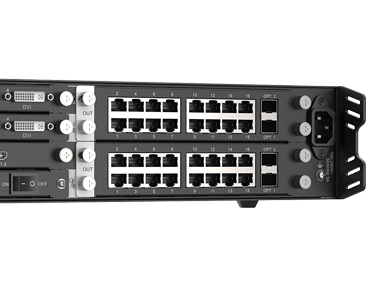

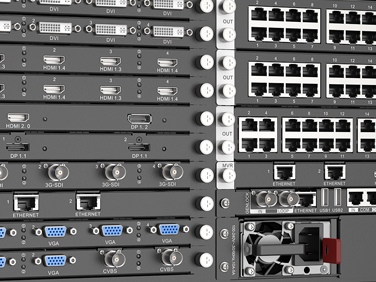

H15 Rear

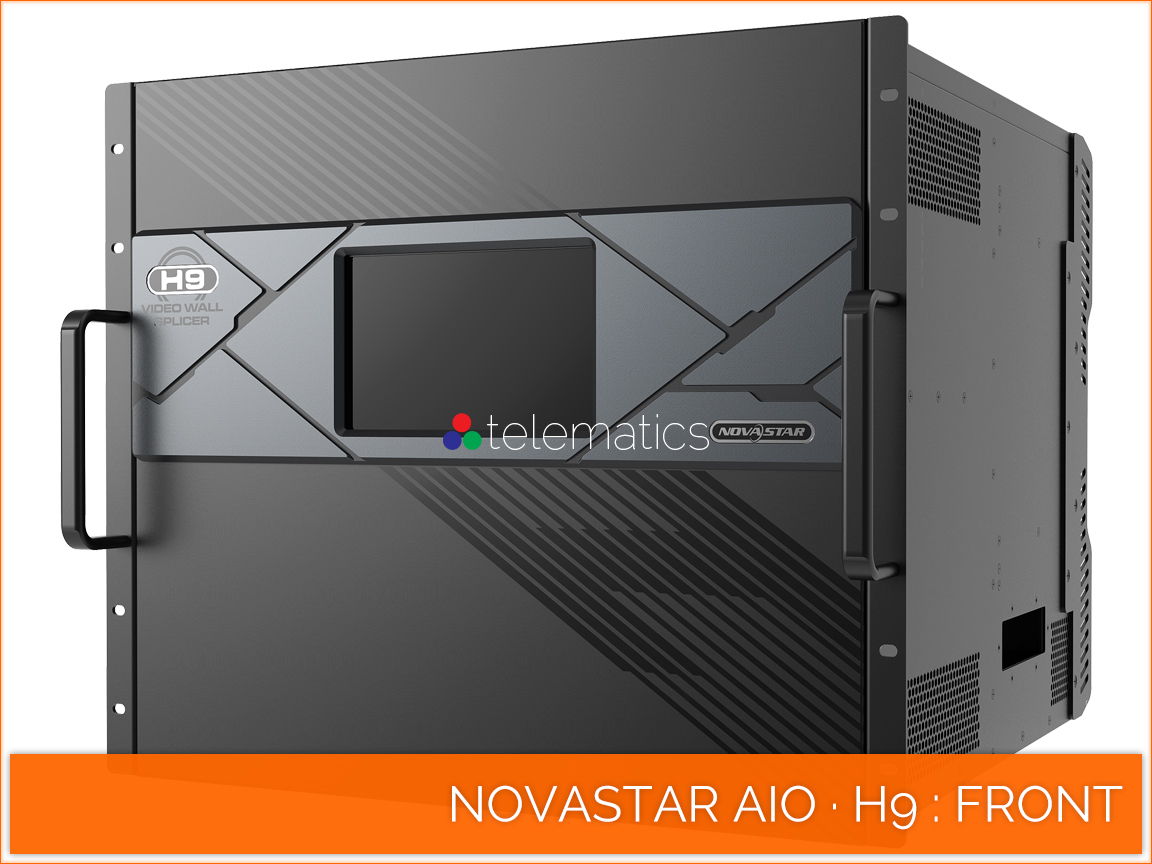

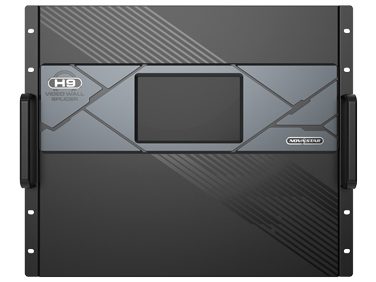

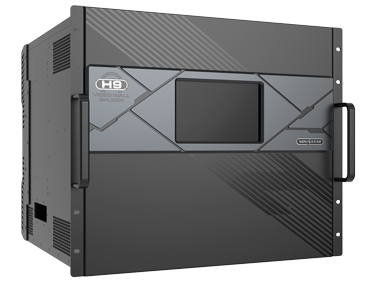

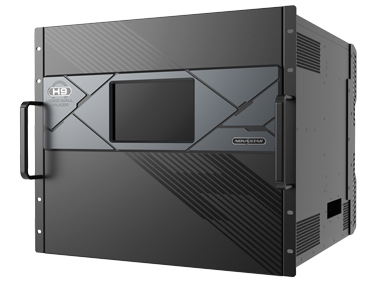

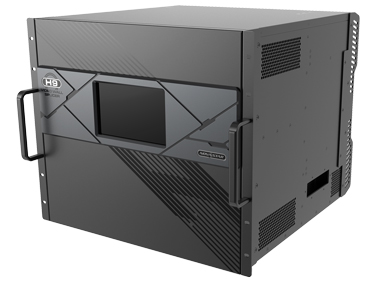

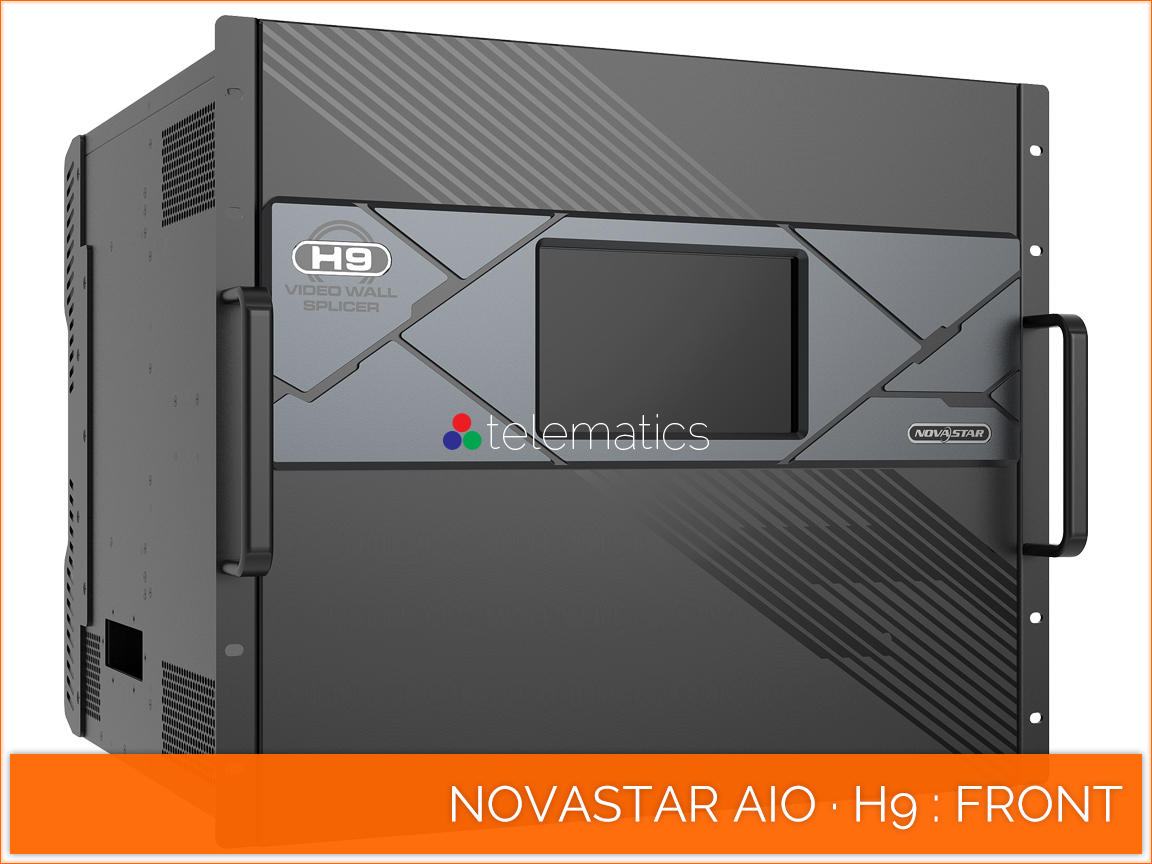

NovaStar AIO · H9 · direct view LED display · all in one sending controller · novalct · viplex · review · price · cost — NovaStar AIO · H9

all in one sending controller

video wall splicer · scaler

calibration · brightness · chroma

novalct · viplex

3 year NovaStar factory warranty · support

only when purchased from authorized distributors

priced from $ 2,089/unit

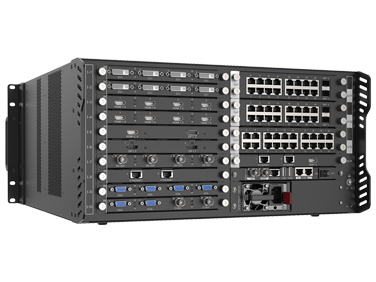

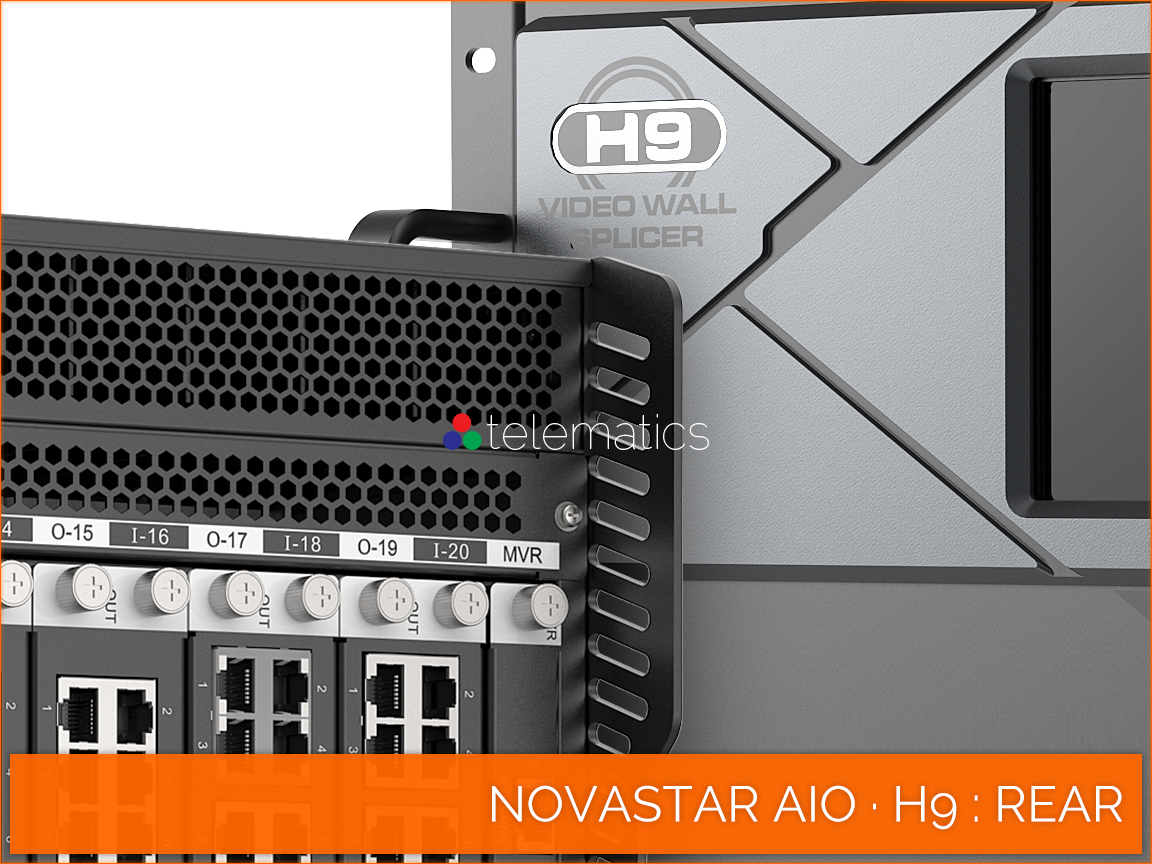

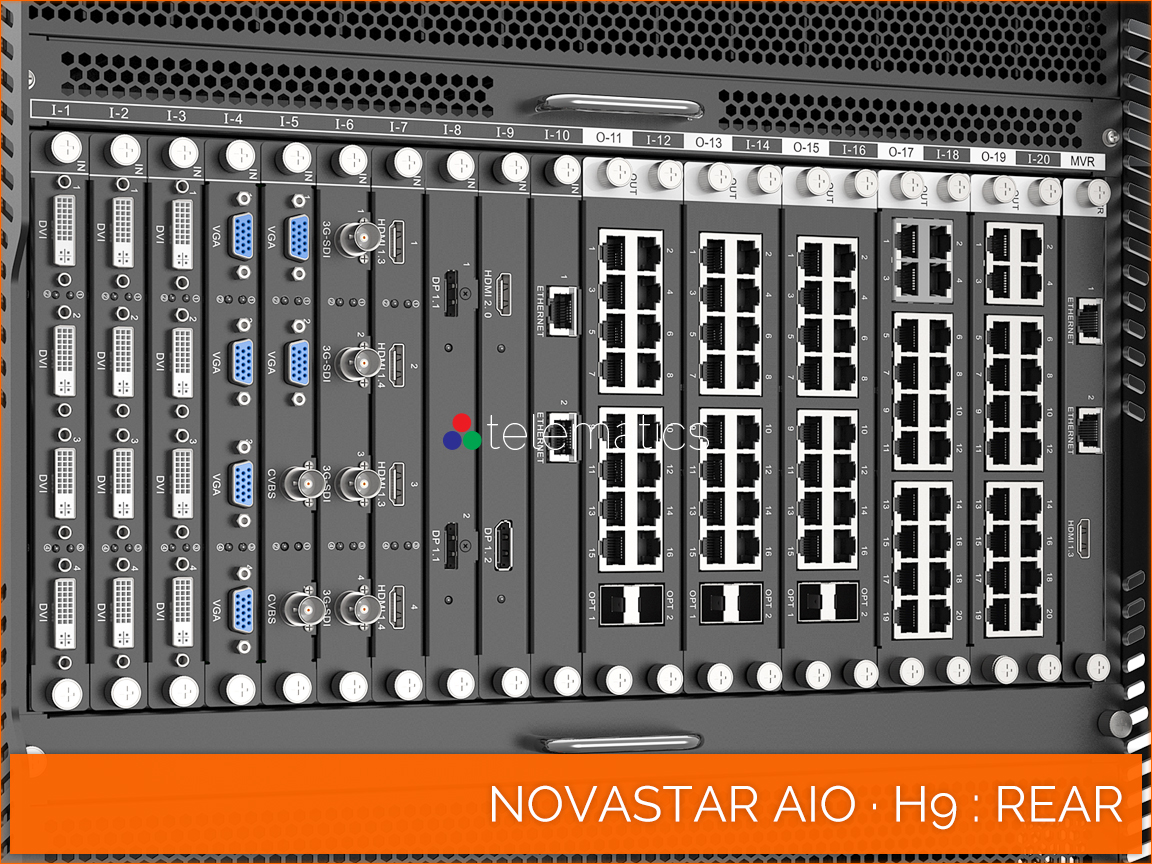

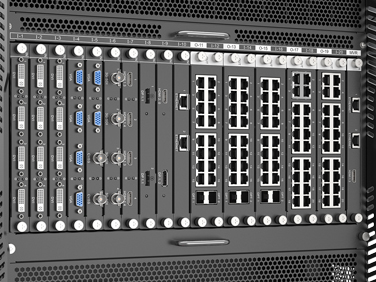

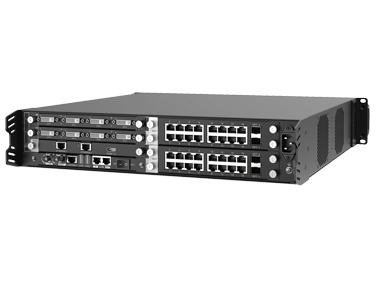

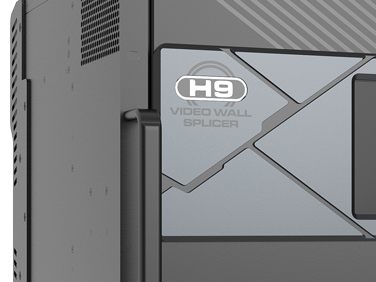

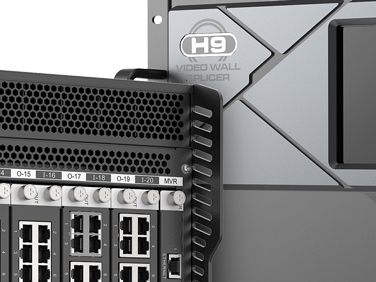

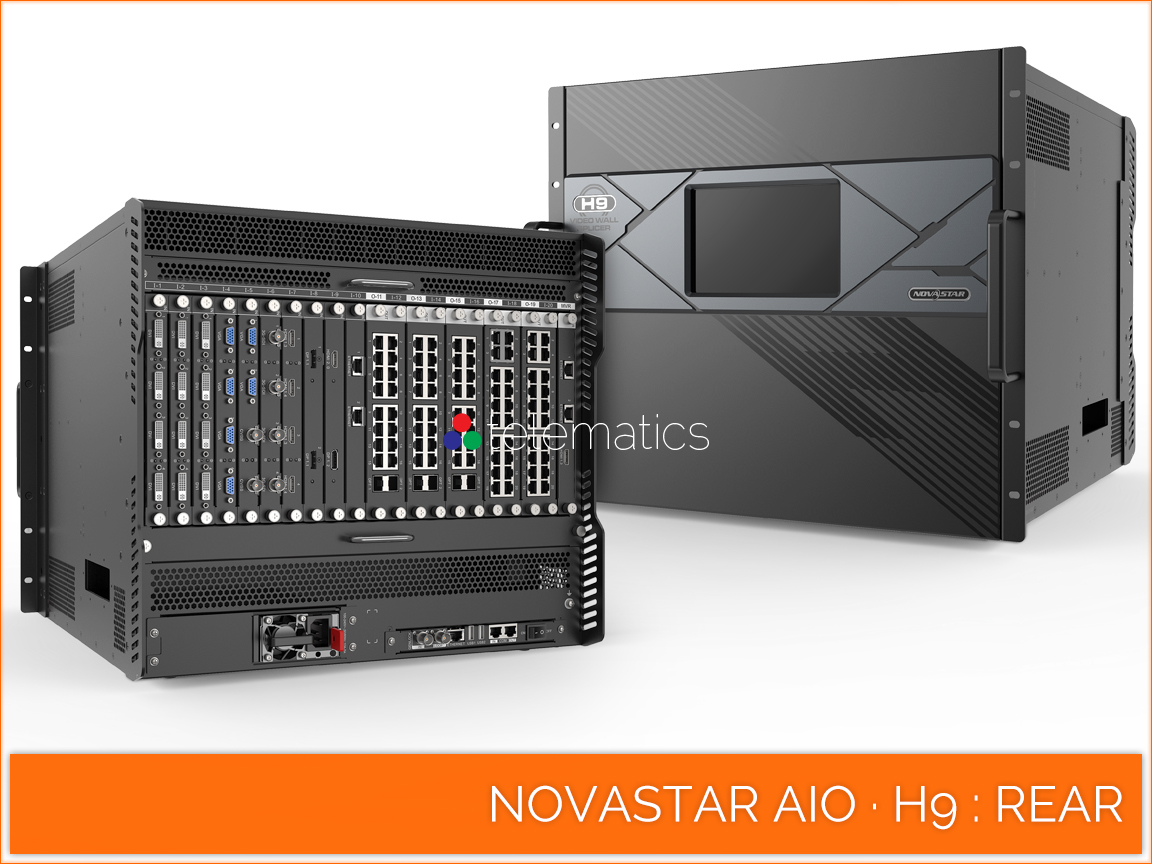

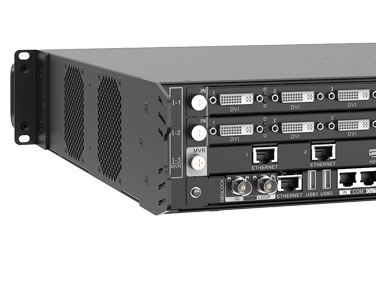

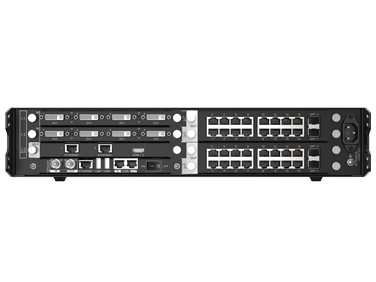

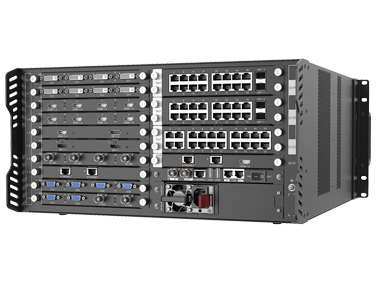

H9 Rear

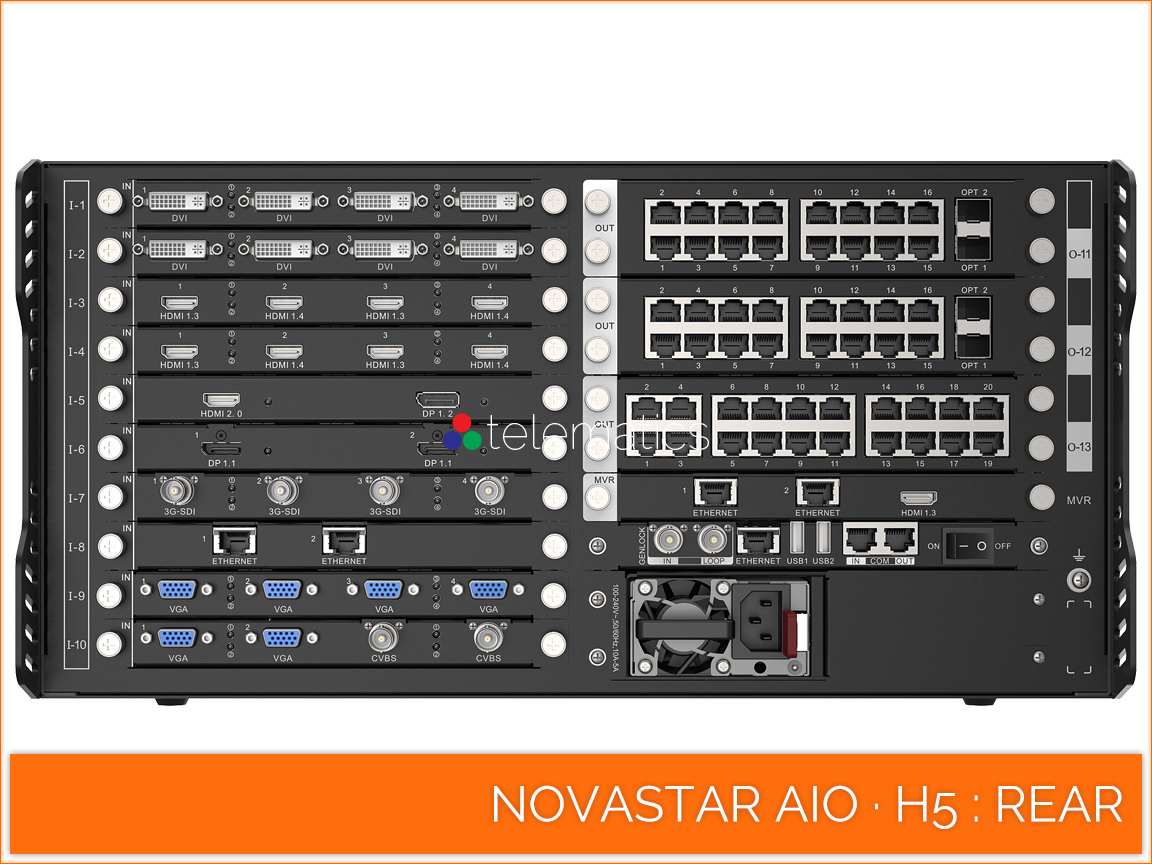

NovaStar AIO · H5 · direct view LED display · all in one sending controller · novalct · viplex · review · price · cost — NovaStar AIO · H5

all in one sending controller

video wall splicer · scaler

calibration · brightness · chroma

novalct · viplex

3 year NovaStar factory warranty · support

only when purchased from authorized distributors

priced from $ 1,424/unit

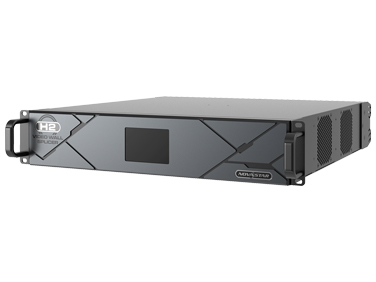

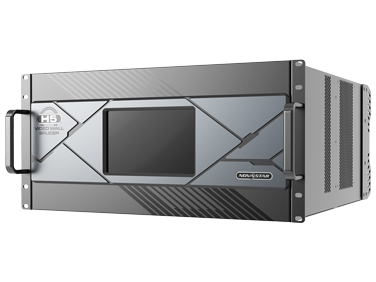

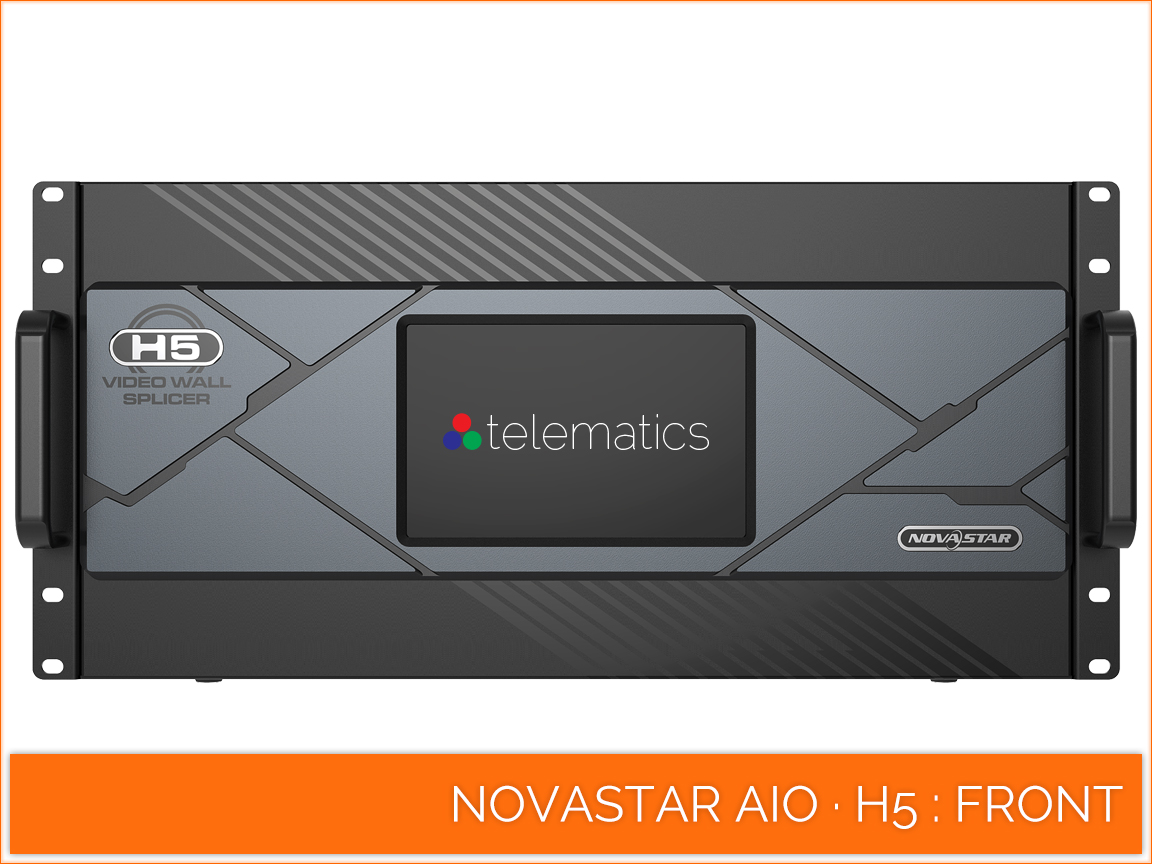

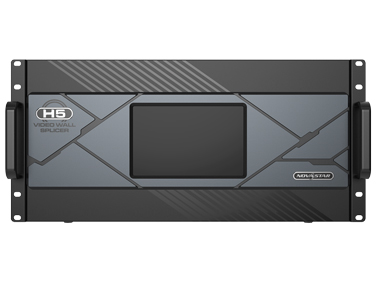

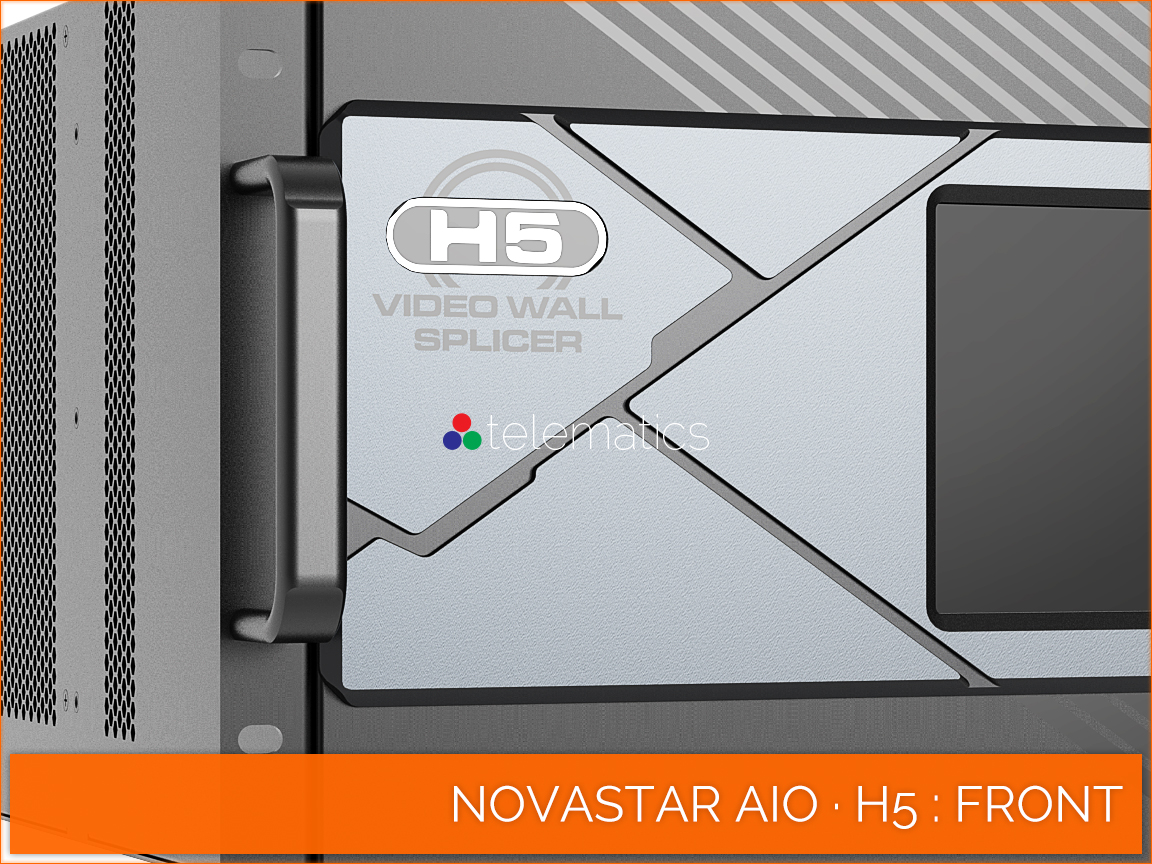

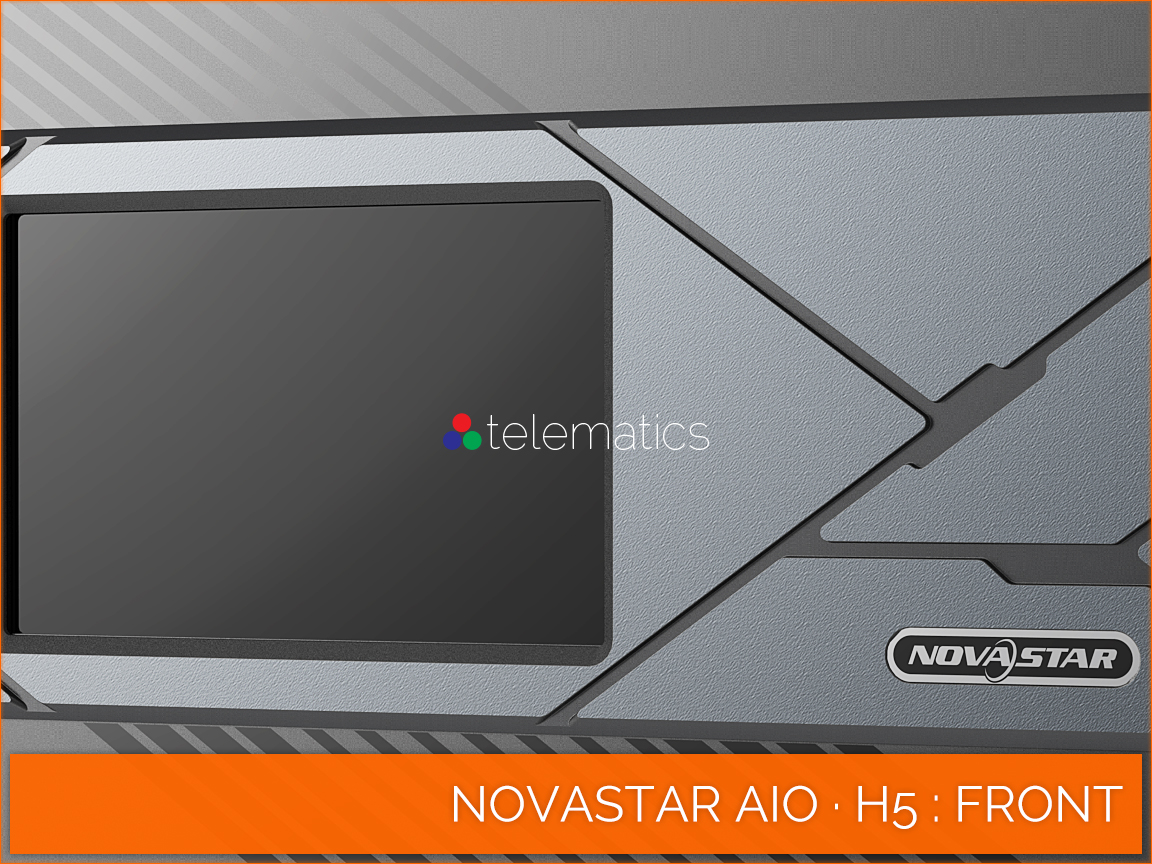

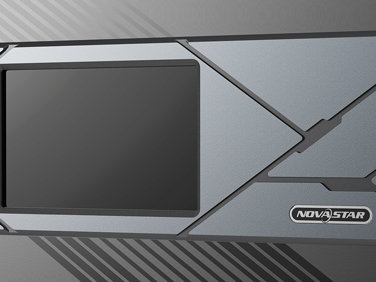

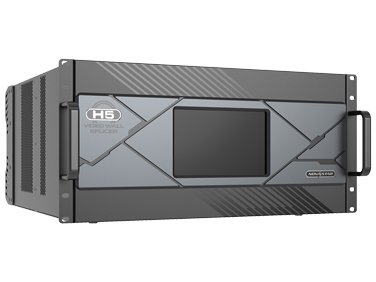

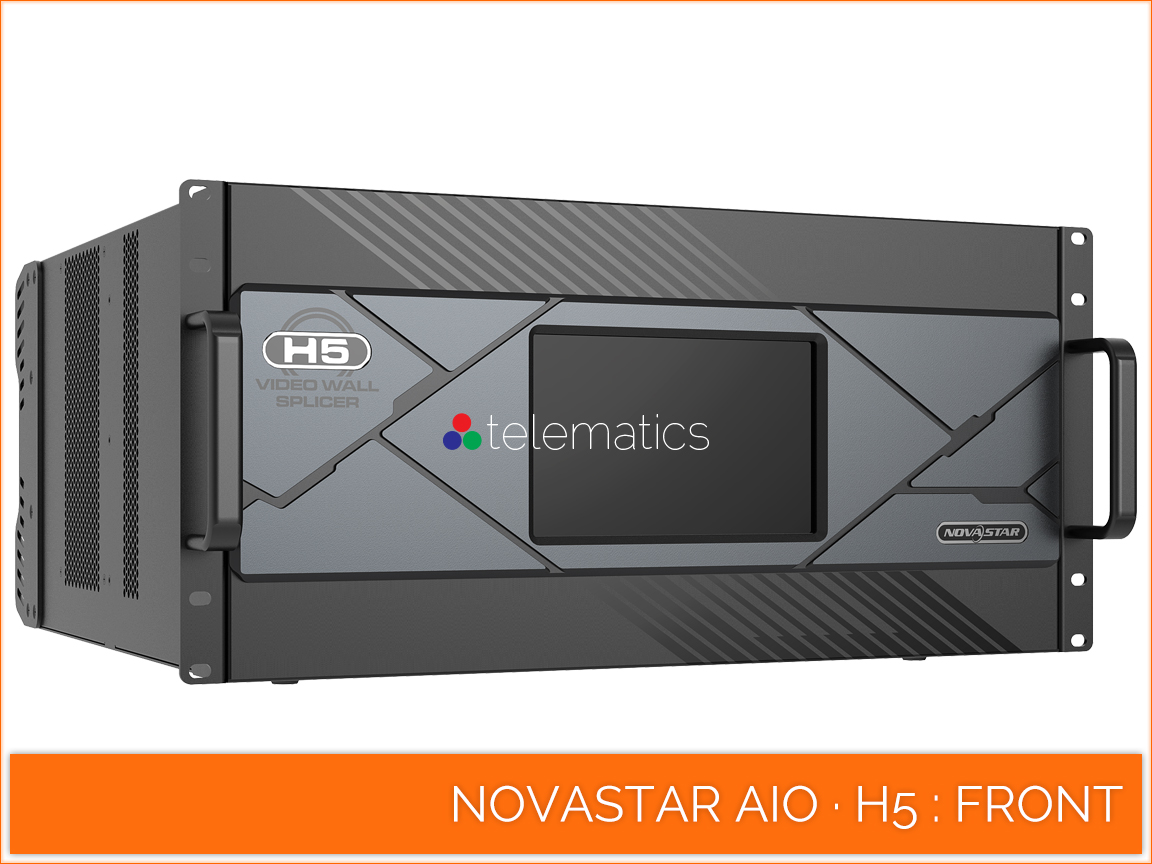

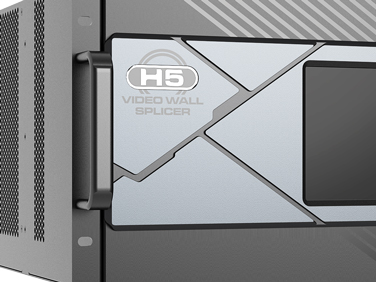

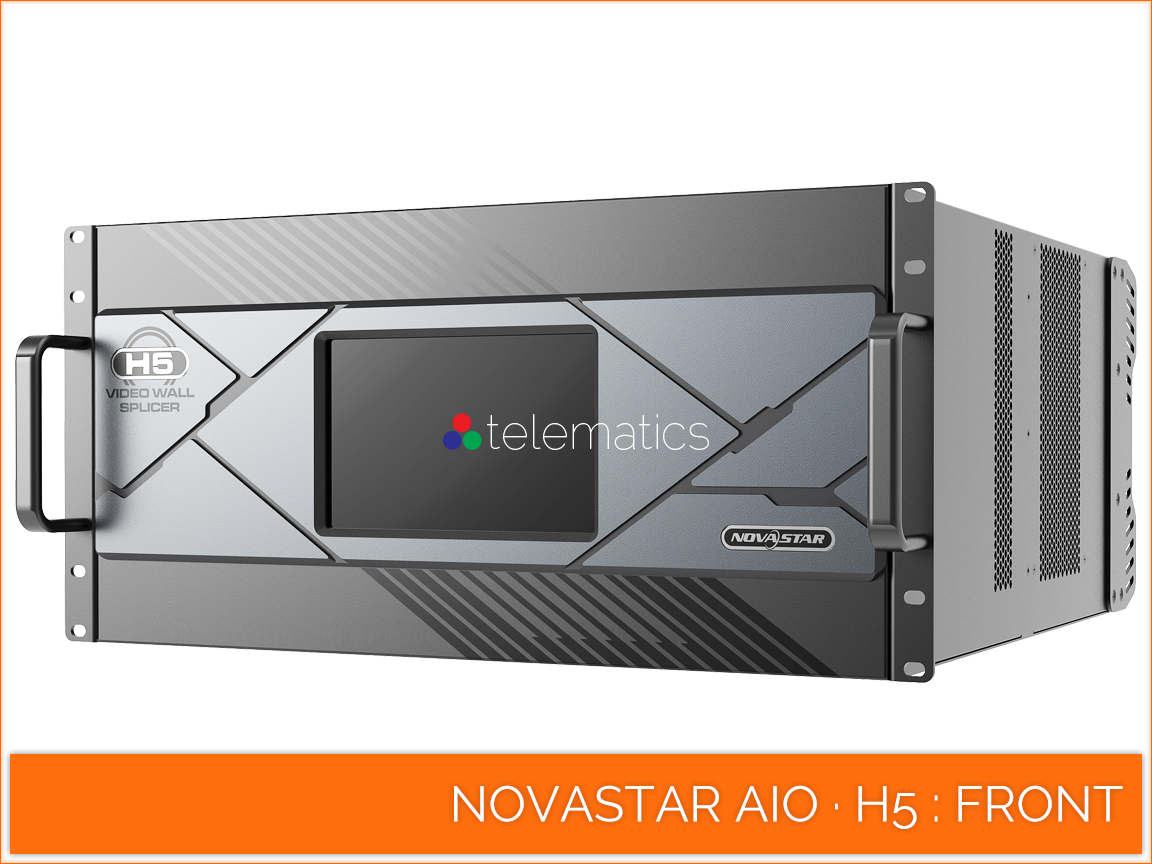

H5 Front

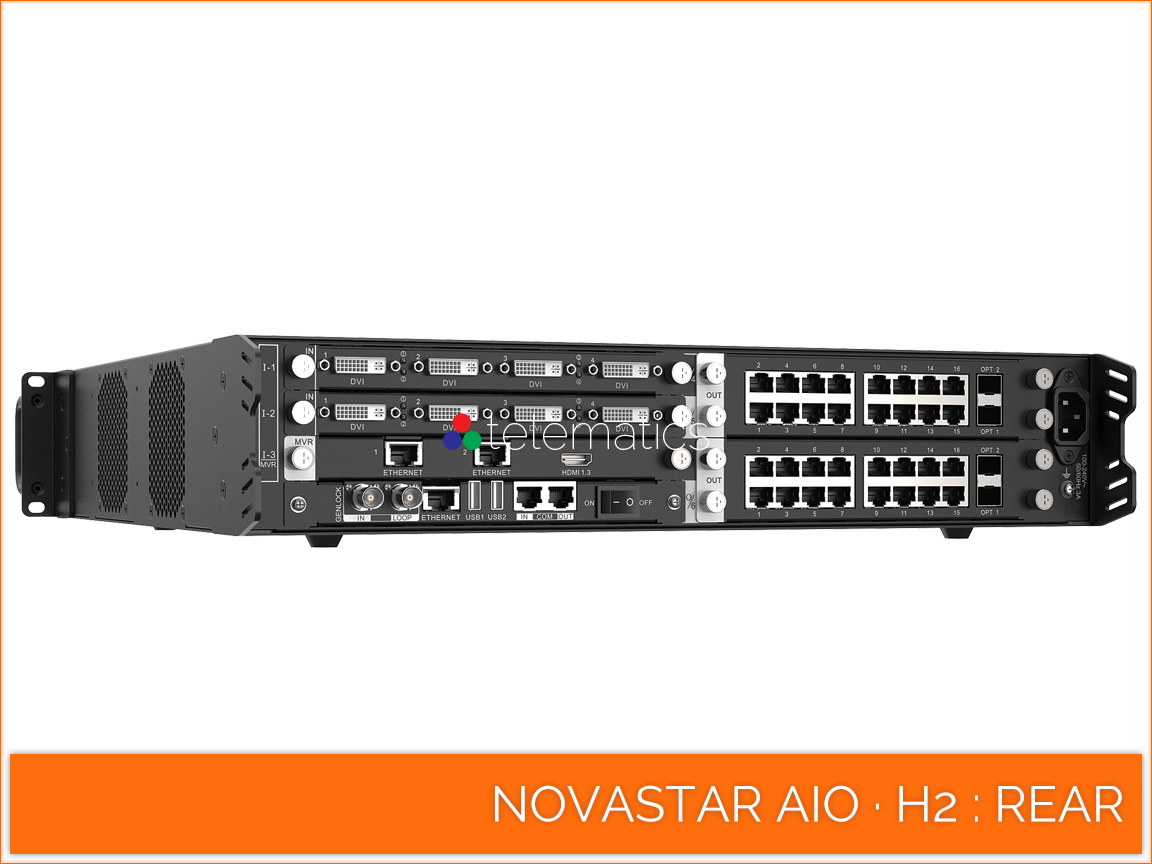

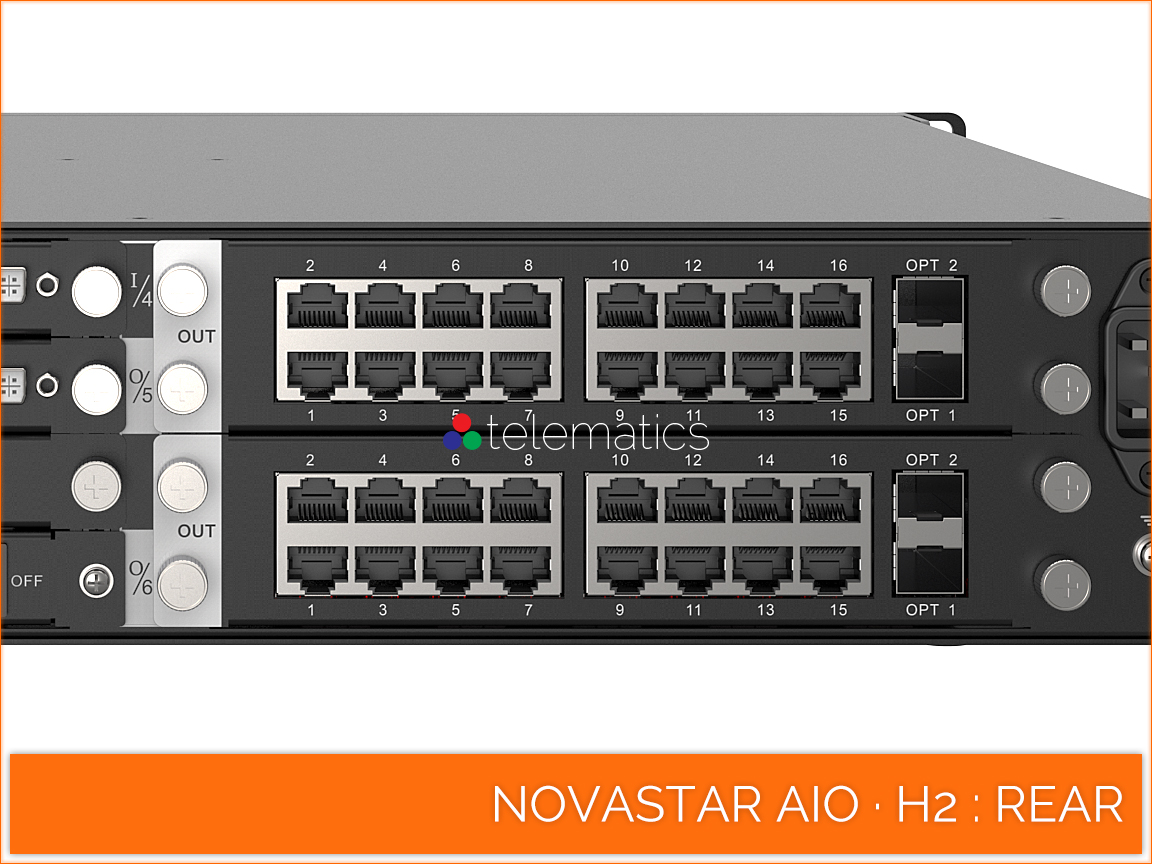

NovaStar AIO · H2 · direct view LED display · all in one sending controller · novalct · viplex · review · price · cost — NovaStar AIO · H2

all in one sending controller

video wall splicer · scaler

calibration · brightness · chroma

novalct · viplex

3 year NovaStar factory warranty · support

only when purchased from authorized distributors

priced from $ 664/unit

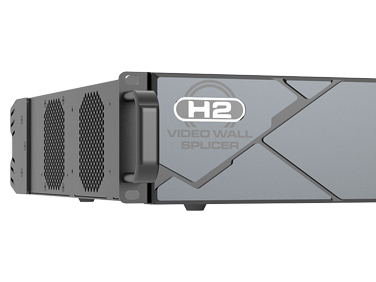

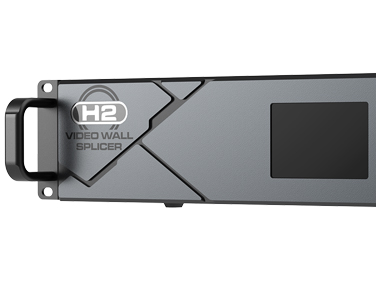

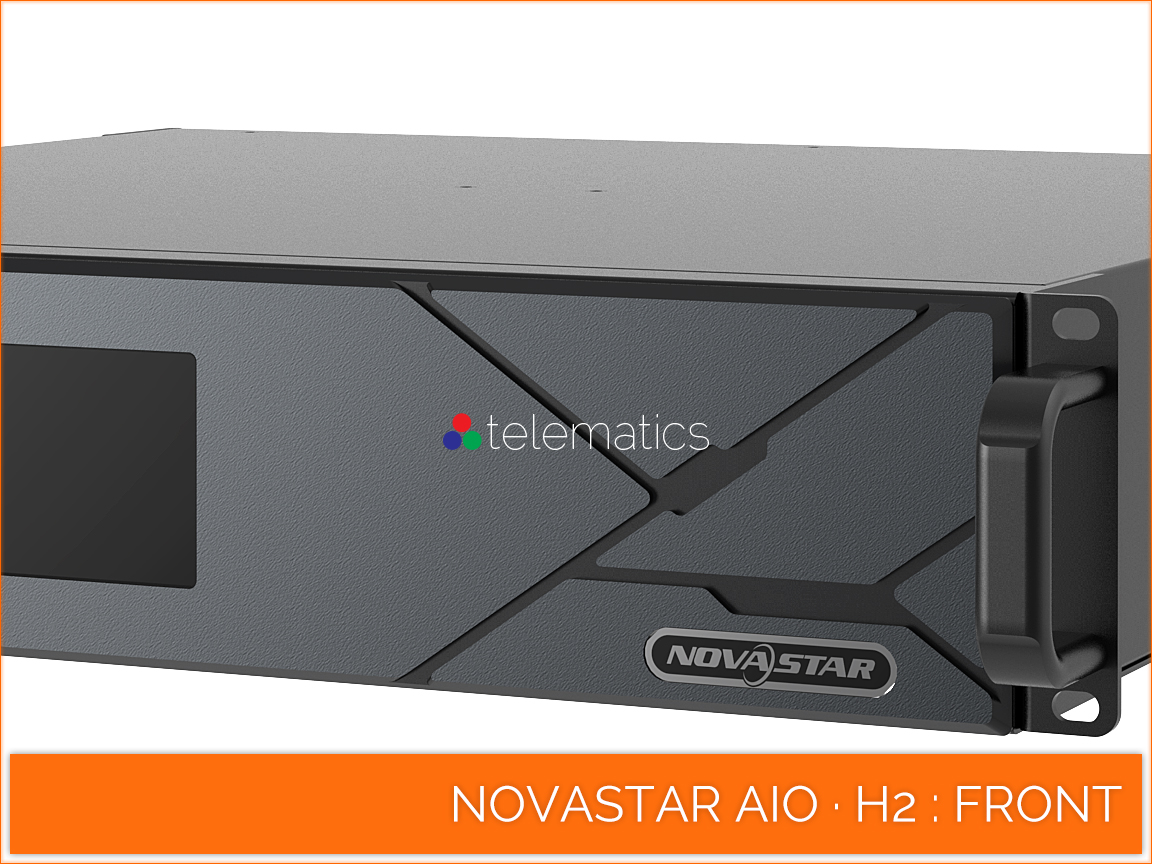

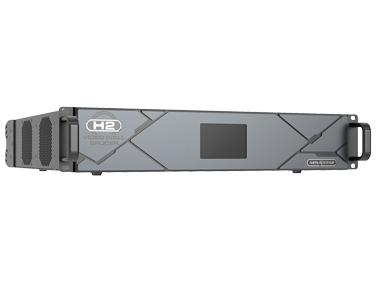

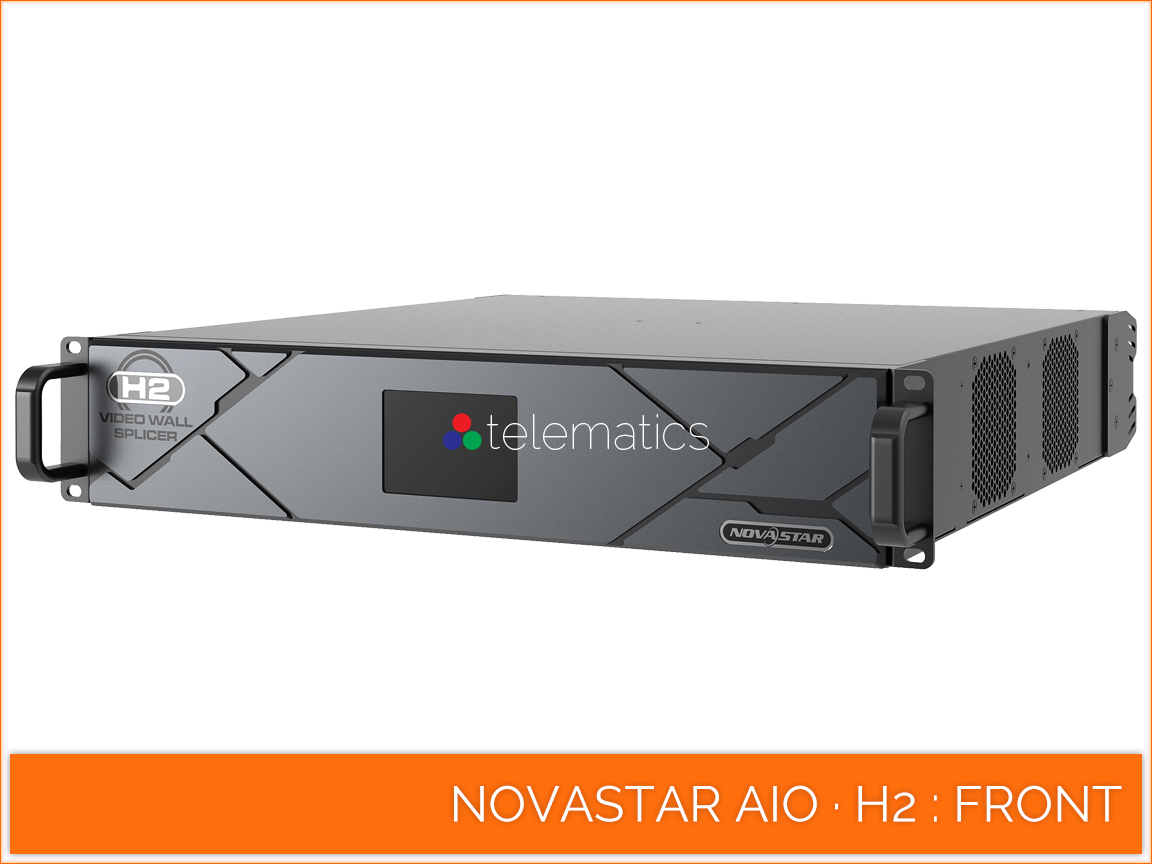

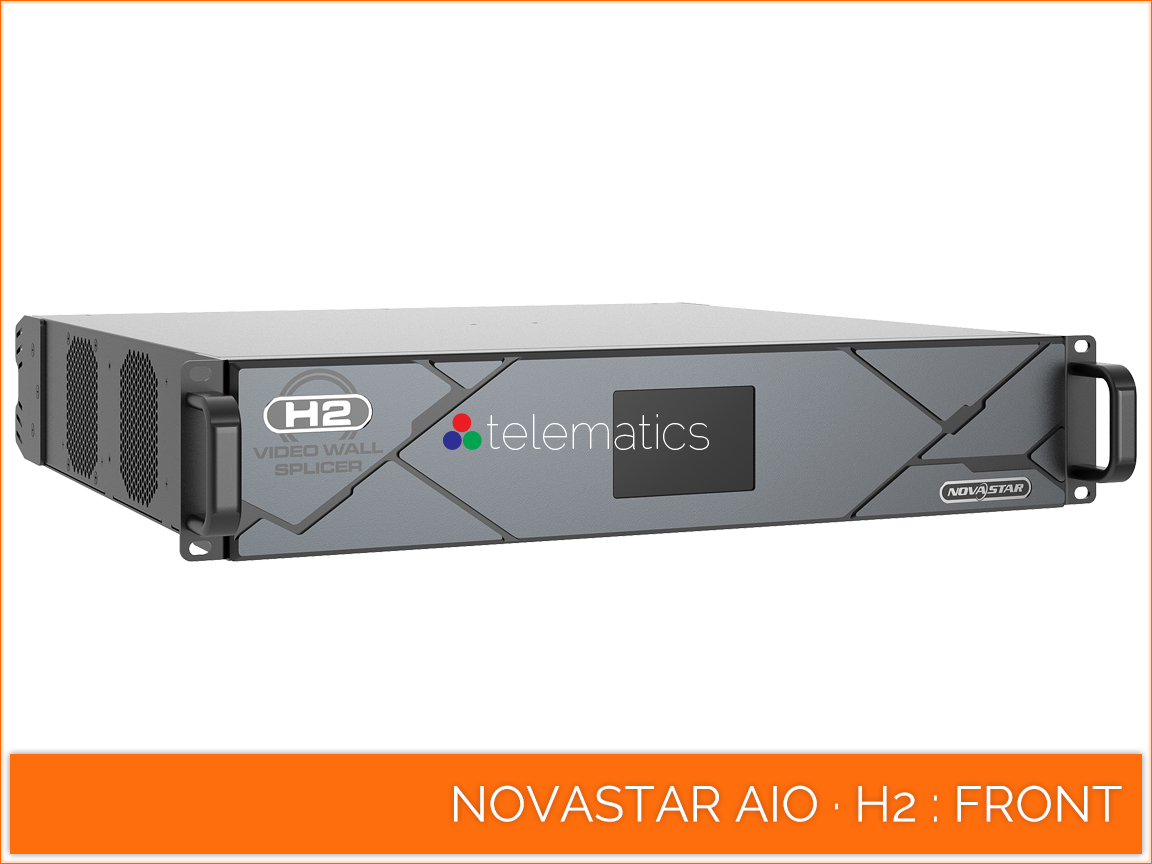

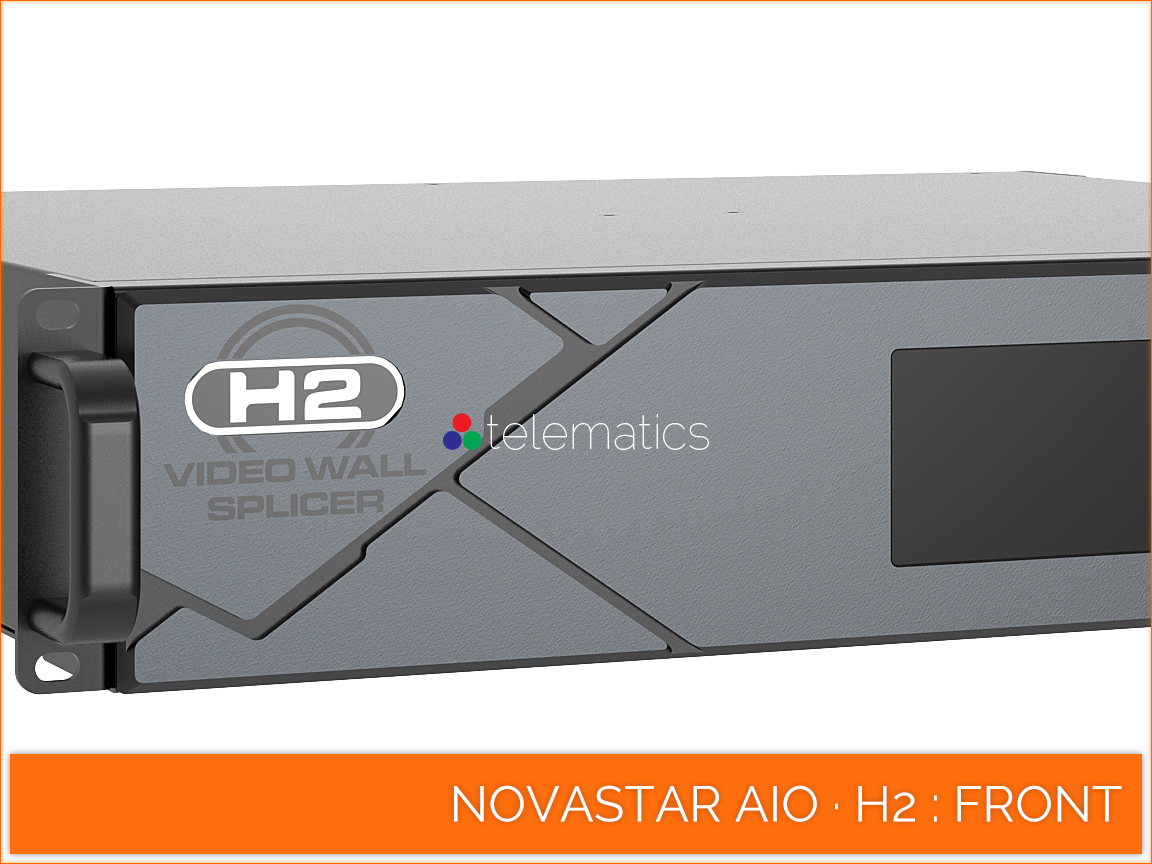

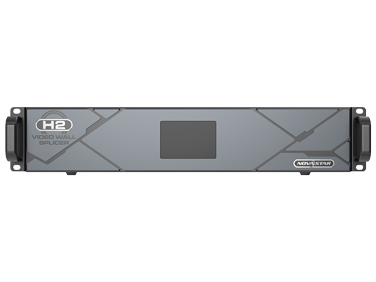

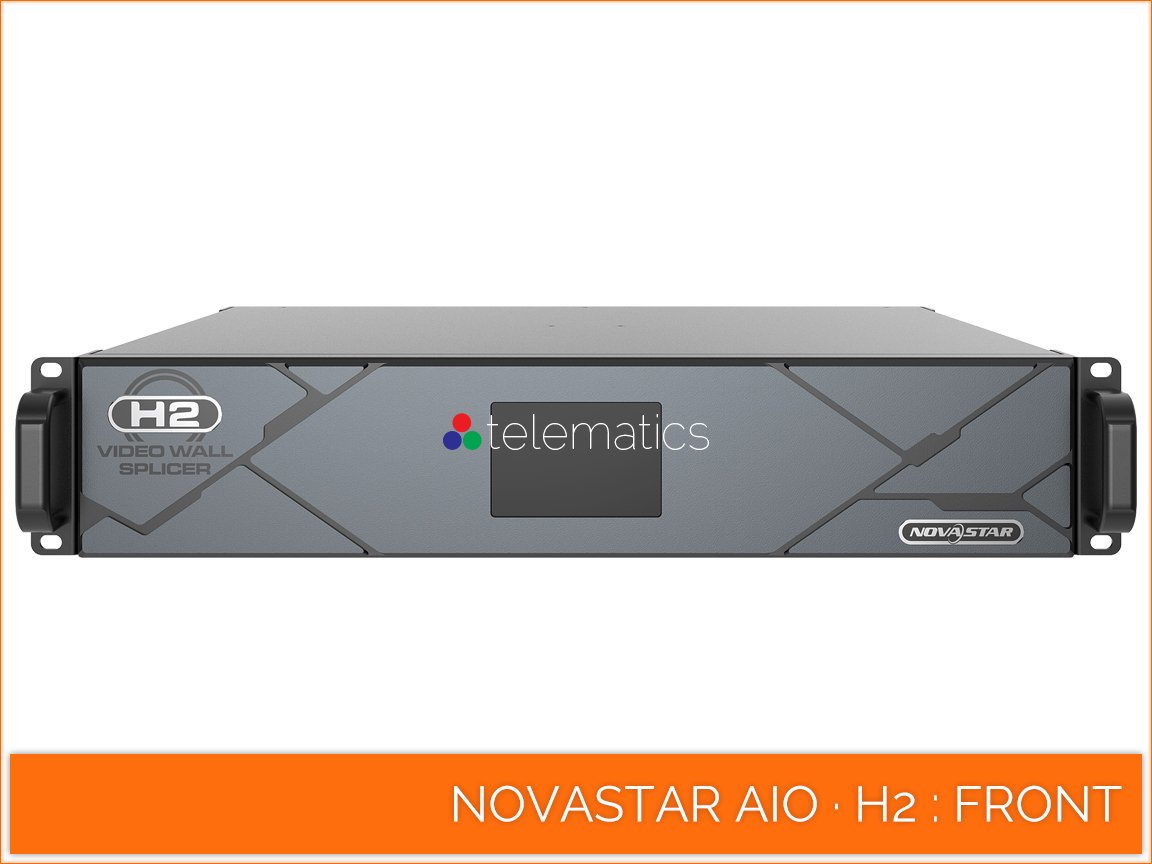

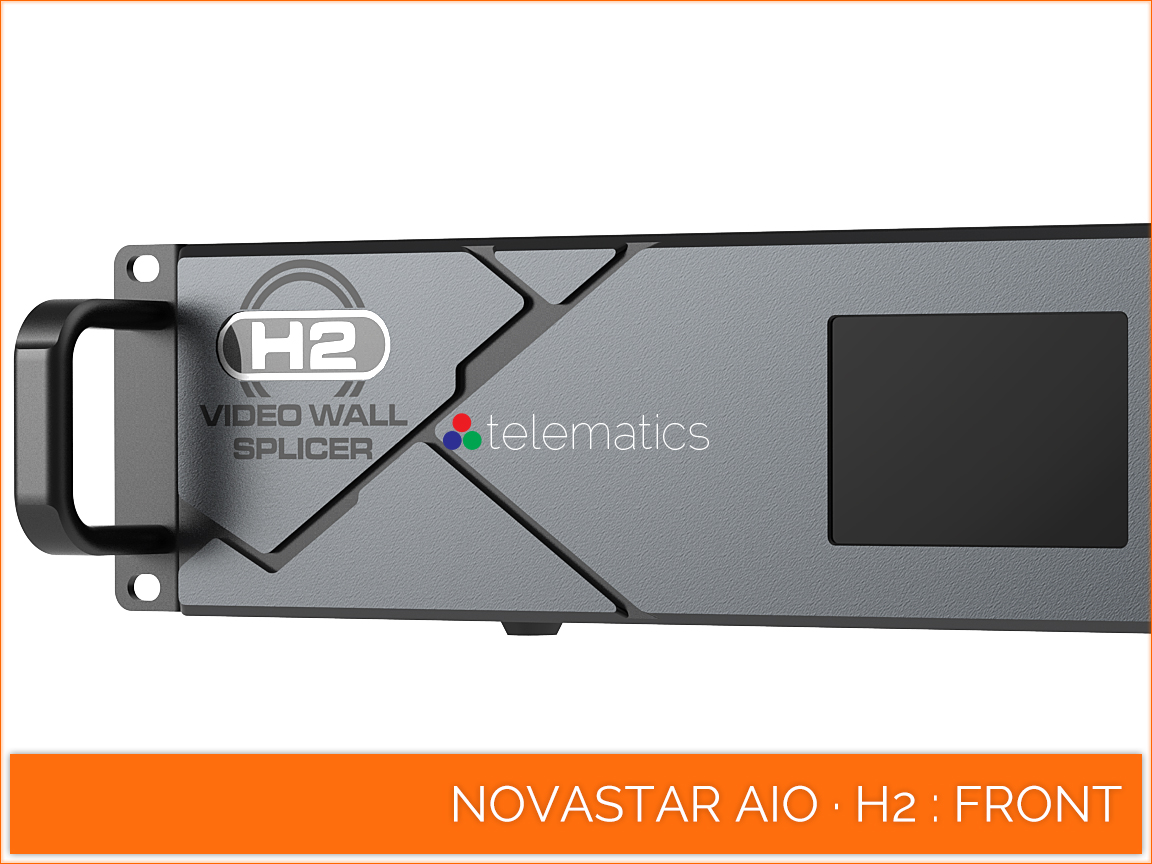

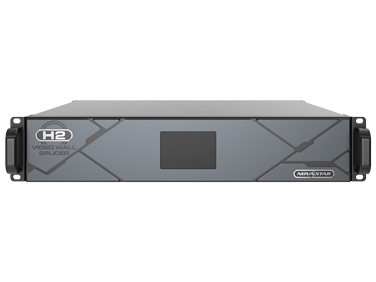

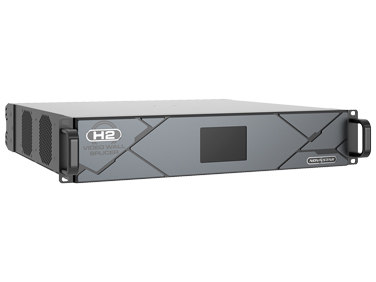

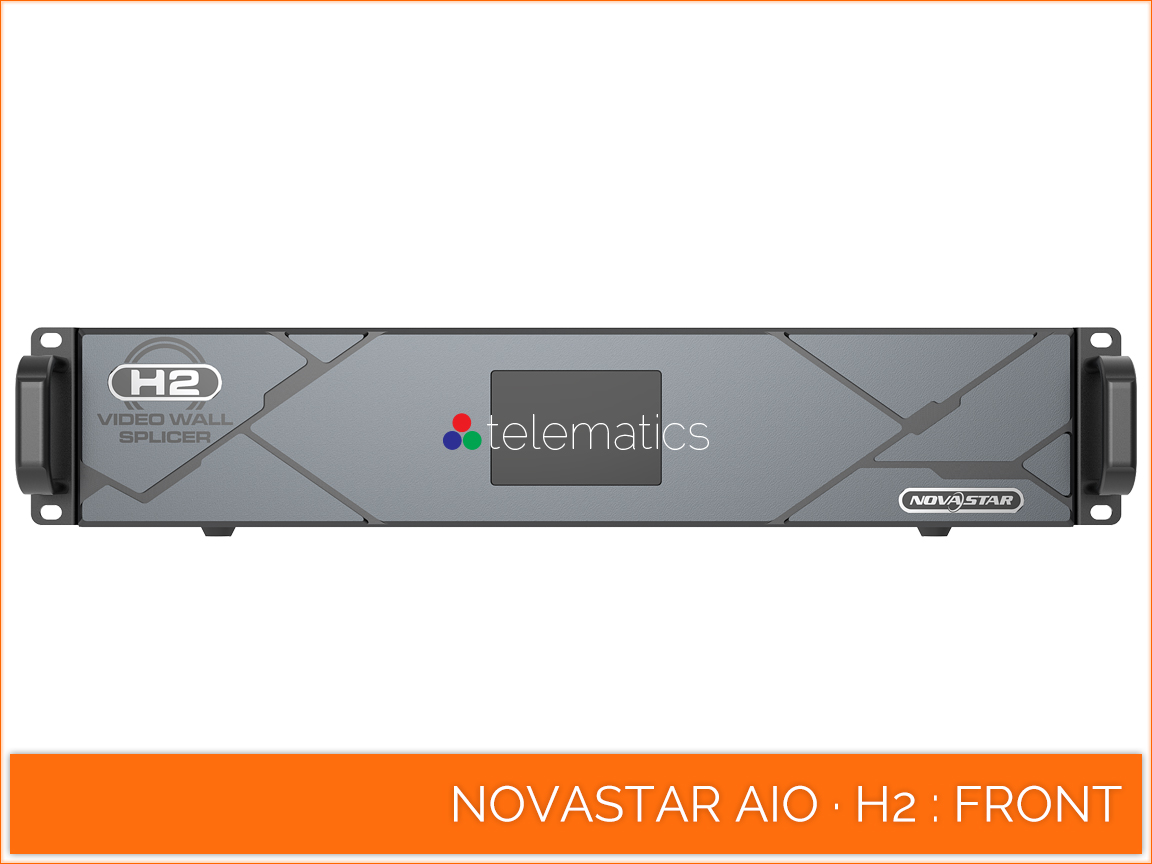

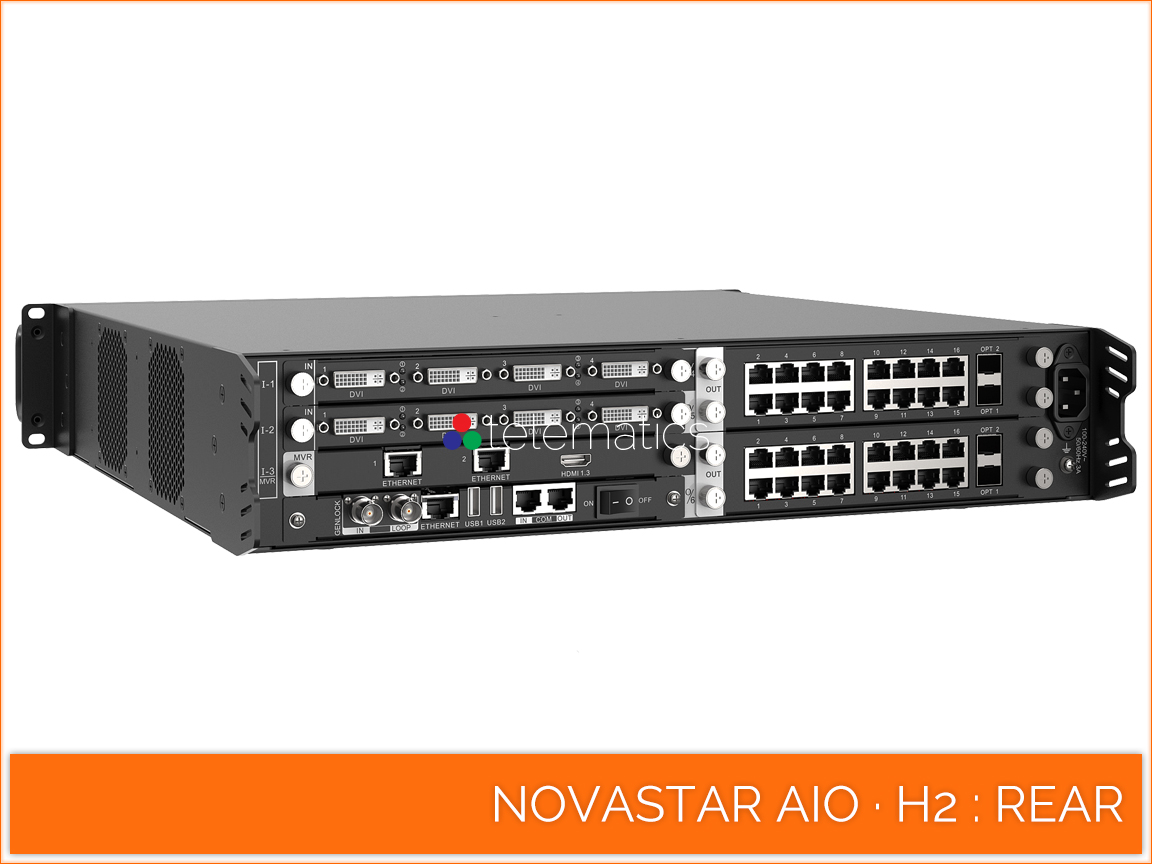

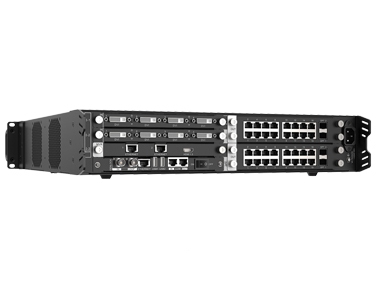

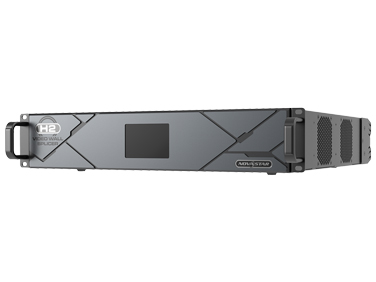

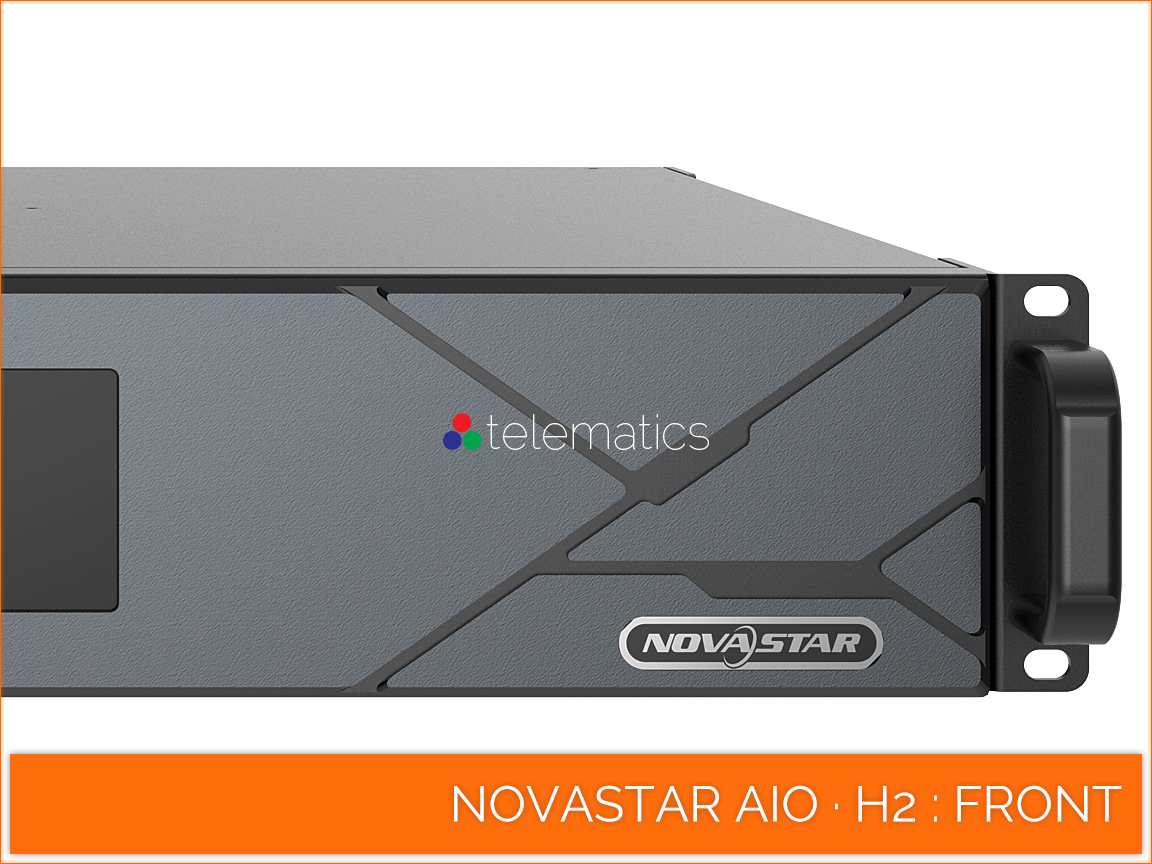

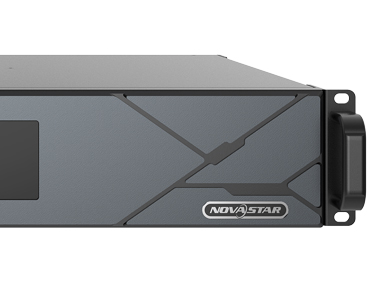

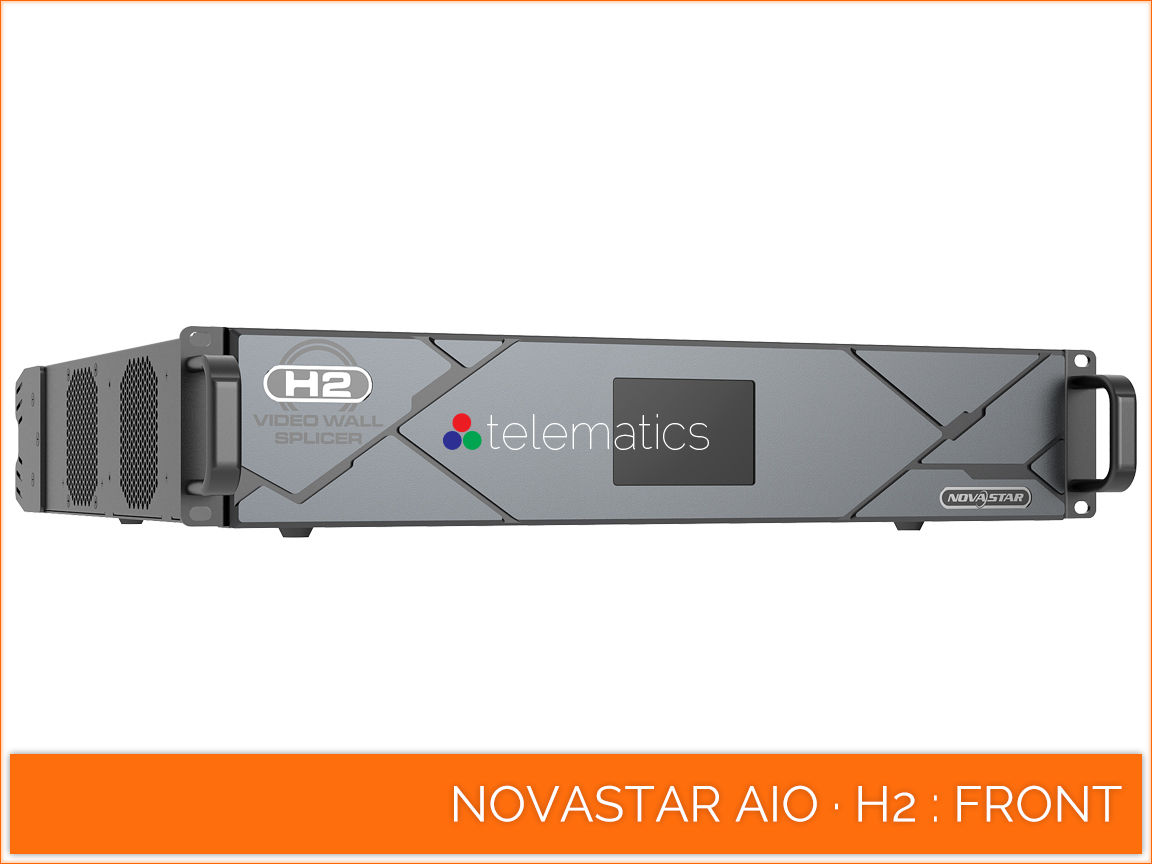

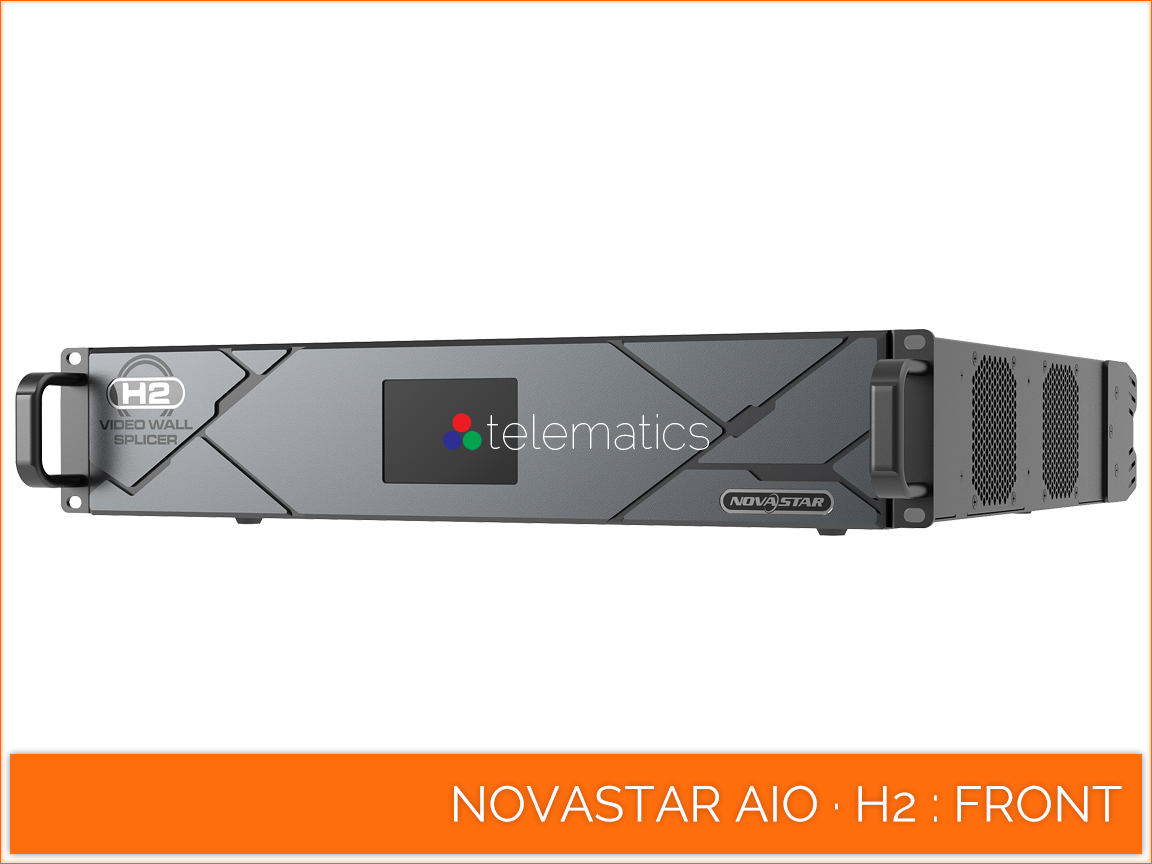

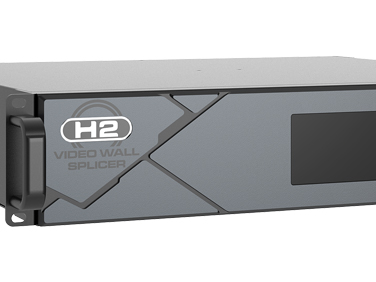

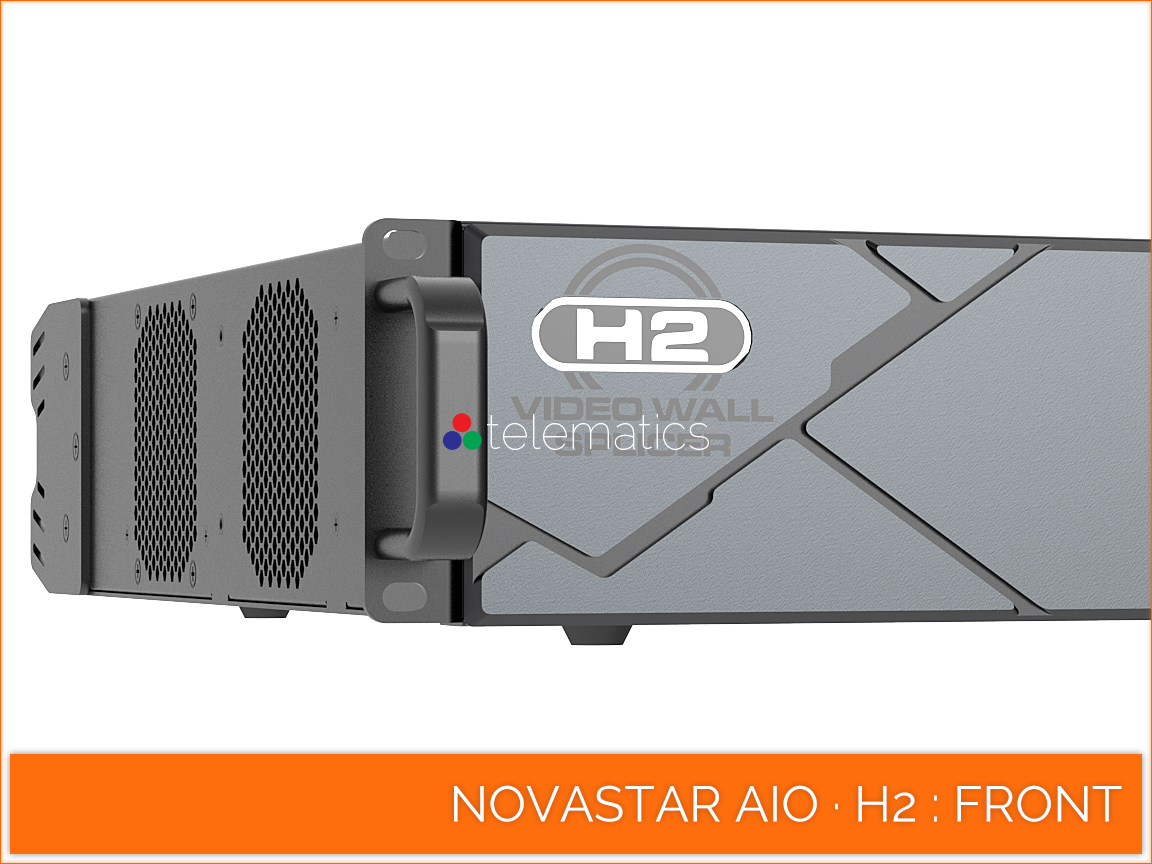

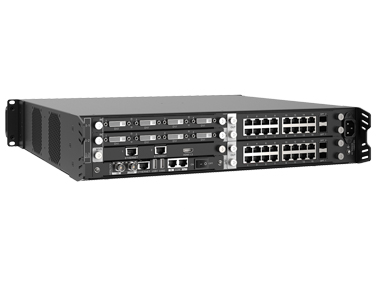

H2 Front

NovaStar AIO · H Series

All In One Video Splicing Processor.

Pixels

H Series load 10,752 horizontal or 10,752 vertical pixels, for a total of up to 332,800,000 red, green and blue lamps. Vision Management Platform hands you control using the LCD interface to set input sources, resolution and frame rates, and adjust colors, latency, and bit depth.

Dimensions

Each of our H Series measure 482.6 millimeters wide and 533.0 or less deep, which means they fit nicely into a standard 19" rack. The height on the H2 is a very elegant 88.2 millimeters, while the rather imposing H15 towers in at 683.0 and tips the scales at 41.1 kilograms.

Viewing

Enable less than one millisecond of latency. Generate unique calibration coefficients for each grayscale for unprecedented uniformity and image quality. Calibrate the brightness and chroma of each pixel. Support for standard frame rates or adjust for custom settings to just 0.01 Hz.

Performance

Support for 8 or 10 or 12-bits of color depth and up to 240 Hz frame rates. After that, pretty much everything you might imagine is offered as a modular plug-in input or output card that will check off every box you've ever had and none of the ones you never wanted in the first place.

Power

Rated power consumption maxes out at 900 watts and 10.0 amps and the variable voltage is 100V ~ 240V and the input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables to get set up include Cat5e and HDMI. Quietly running at less than 45 decibels.

Installation

NovaStar's H Series connects to your LED display through multiple output cards with either 16 to 20 Gigabit Ethernet ports. Or through HDMI 1.4 or HDMI 2.0. Or through 10G optical ports. NovaStar's next generation control system Vision Management Platform runs on Windows or OSX.

Specifications · NovaStar AIO · H Series

Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead

Series ^{· usd per unit}		H15	H9	H5	H2	·	·

H Series · 208,000,000 pixels · 16 ethernet ports · 1 × 8k layer · 12/10/8-bit · novalct · viplex cost : unit · all in one controller	$ 6,146	$ 2,089	$ 1,424	$ 664

Options · upgrade cost : unit · enhanced	$ 504	$ 570

NovaLCT · legacy software · windows · intuitive · efficient cost : zero · led configuration tool	download windows	download windows	download windows	download windows

VNNOX Media · edit · schedule · remote publishing · detailed logs cost : zero · content	apply for account zero cost	apply for account zero cost	apply for account zero cost	apply for account zero cost
VNNOX Care · condition monitoring · operation history · cloud backup cost : zero · monitoring	apply for account zero cost	apply for account zero cost	apply for account zero cost	apply for account zero cost

Pixels
Loading · 12/10/8-bit · capacity	maximum208,000,000	maximum65,000,000	maximum39,000,000	maximum26,000,000

Resolution · maximum resolution · 60Hz	width × height4 × 3,840 × 2,160	width × height3,840 × 2,160	width × height3,840 × 2,160	width × height3,840 × 2,160
Resolution · maximum input width · maximum input height · input	width · height8,192 · 4,095	width · height8,192 · 4,095	width · height8,192 · 4,095	width · height8,192 · 4,095
Resolution · maximum output width · maximum output height · output	width · height16,384 · 16,384	width · height16,384 · 16,384	width · height16,384 · 16,384	width · height16,384 · 16,384

Bit Depth · 68,719,476,736 colors · 4096³ · 1,073,741,824 colors · 1024³ · 16,777,216 colors · 256³ · rgb · 2¹² · 2¹⁰ · 2⁸	4096 levels of grey 1024 levels of grey 256 levels of grey12 · 10 · 8	>4096 levels of grey 1024 levels of grey 256 levels of grey12 · 10 · 8	>4096 levels of grey 1024 levels of grey 256 levels of grey12 · 10 · 8	>4096 levels of grey 1024 levels of grey 256 levels of grey12 · 10 · 8

Port Output Load · frame rate · number of ports · pixel capacity · bit depth · 8-bit	1g · port · 60hz659,722	1g · port · 60hz659,722	1g · port · 60hz659,722	1g · port · 60hz659,722

Interface
Inputs · hd multimedia interface · 1.4 · 1.3 · hdmi	hdmi 1.4 × 1 · hdmi 1.4 in · loop ✓
Inputs · serial digital interface · 3g-sdi · sdi	3g-sdi × 1 in · loop ✓
Inputs · digital visual interface · hdcp 1.4 compliant · dvi	dvi✓

Outputs · ethernet ports · 1 gigabit per second · ethernet	1 gbps ethernet ports × 10✓
Outputs · hd multimedia interface · 1.3 · monitor output · hdmi	hdmi 1.3 × 1✓
Outputs · optical ports · 10 gigabits per second · optical	10 gbps optical ports × 2✓

Control · gigabit ethernet control · ethernet	ethernet port × 1✓
Control · genlock ports · bi-level · tri-level · accept sync signal · loop sync signal · genlock	genlock in · loop✓
Control · type b · control pc · type a · output cascade · usb	usb type a · b✓


Cards

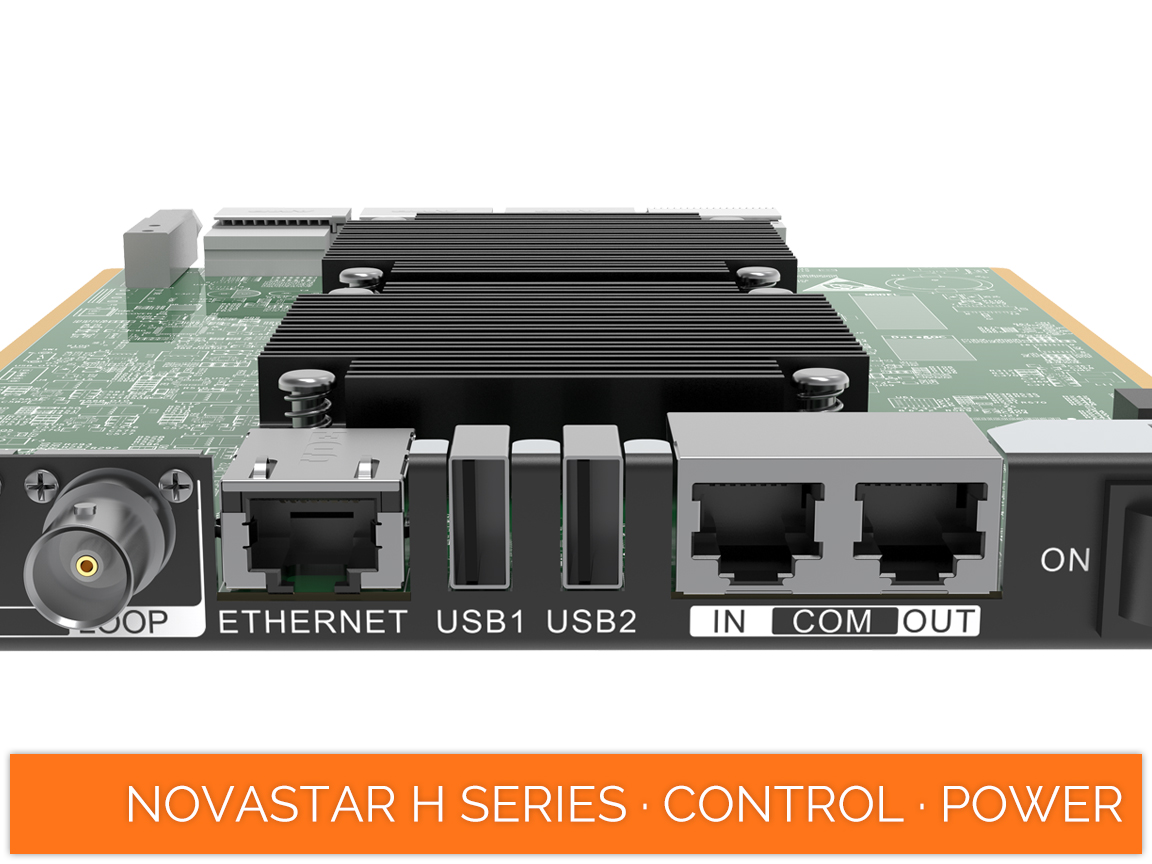

Control · press · on/off · genlock · input · loop · ethernet · connect to cpu · usb 2.0 · import parameters · rs232 · input · loop · power		power · genlock ethernet · usb · rs232🔲	power · genlock ethernet · usb · rs232🔲	power · genlock ethernet · usb · rs232🔲	power · genlock ethernet · usb · rs232🔲

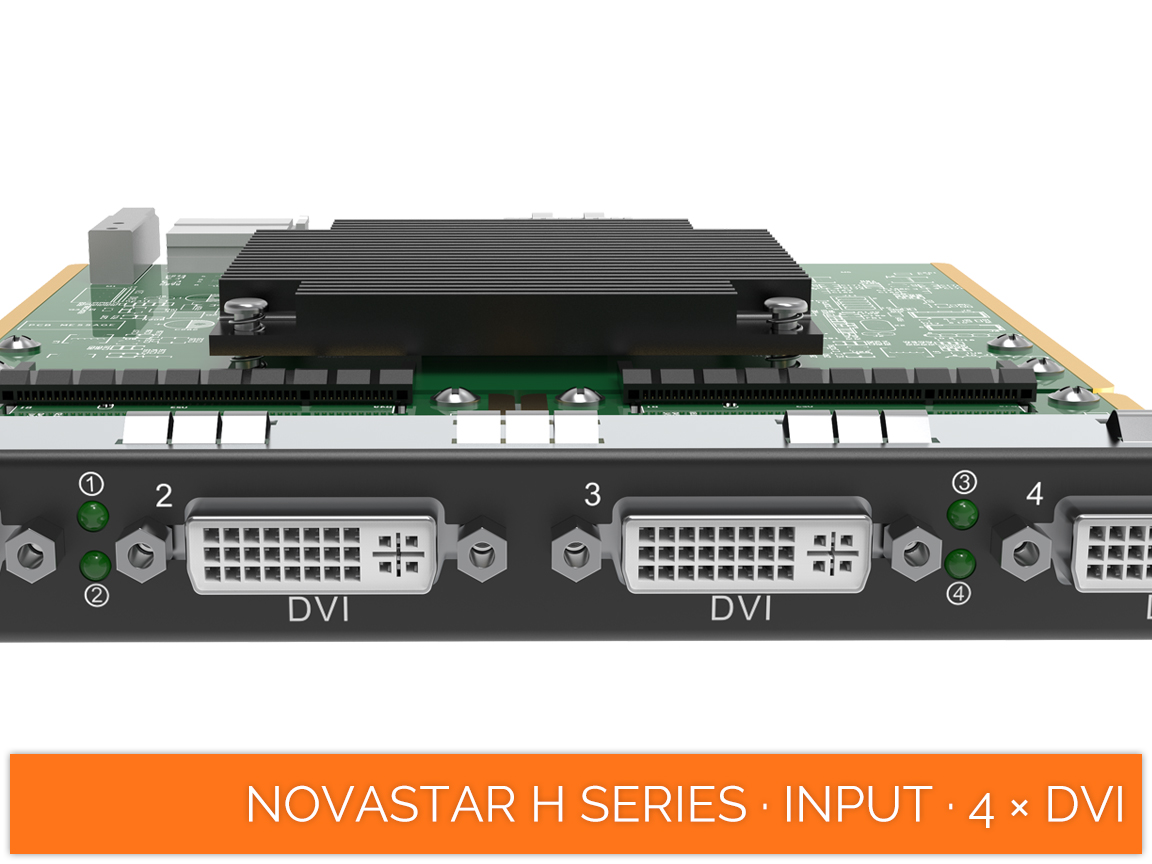

Input · (4) dvi inputs · single link · dual link · maximum width · 3840 pixels · maximum height · 4095 pixels · hdcp 1.4 compliant · dvi		maximum · 30 cards $854 ⭗⁽⁴⁾	maximum · 15 cards $854 ⭗⁽⁴⁾	maximum · 10 cards $854 ⭗⁽⁴⁾	maximum · 4 cards $854 ⭗⁽⁴⁾

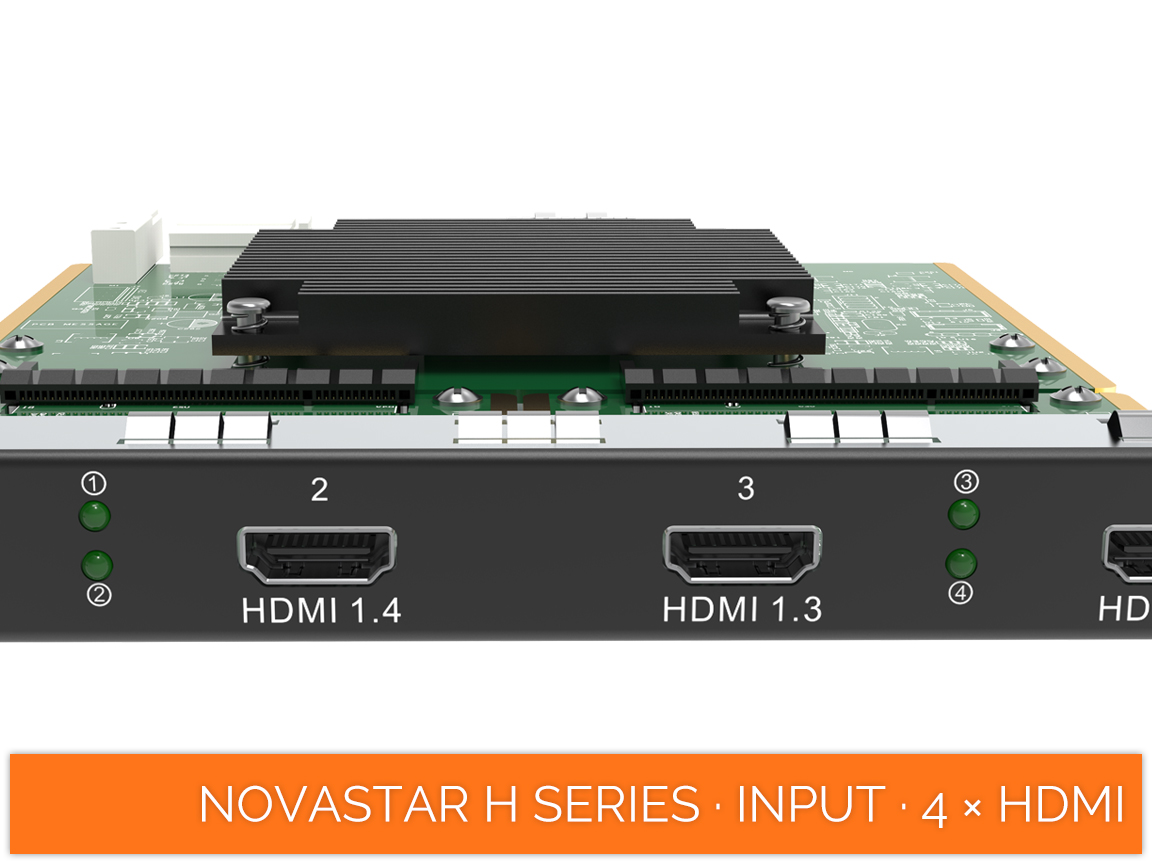

Input · (4) hdmi inputs · hdmi 1.3 · hdmi 1.4 · maximum width · 3840 pixels · maximum height · 4095 pixels · hdcp 1.4 compliant · hdmi 1.3 · hdmi 1.4		maximum · 30 cards $854 ⭗⁽⁴⁾	maximum · 15 cards $854 ⭗⁽⁴⁾	maximum · 10 cards $854 ⭗⁽⁴⁾	maximum · 4 cards $854 ⭗⁽⁴⁾

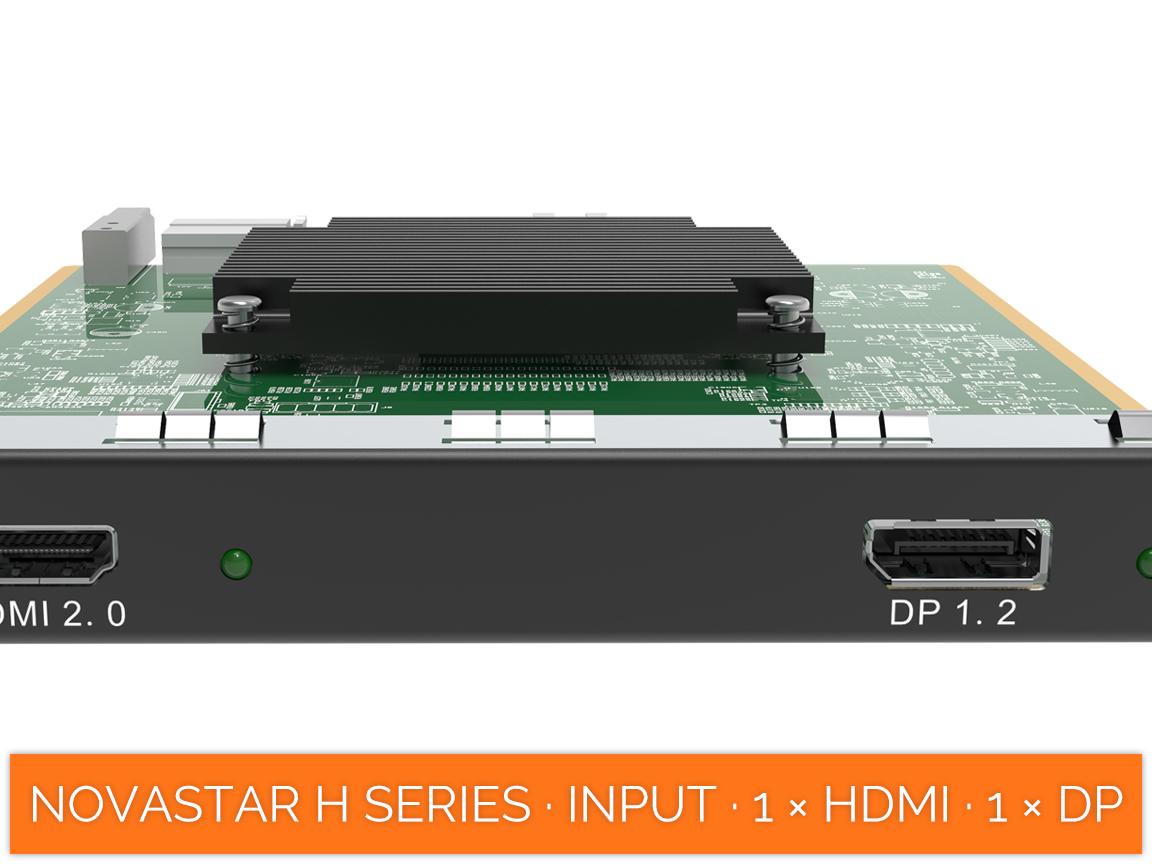

Input · (1) hdmi input · (1) dp input · hdmi 2.0 · dp 1.2 · maximum width · 8192 pixels · maximum height · 4095 pixels · backward compatible · hdmi 2.0 · dp 1.2		maximum · 30 cards $1,614 ⭗⭗⁽¹⁾	maximum · 15 cards $1,614 ⭗⭗⁽¹⁾	maximum · 10 cards $1,614 ⭗⭗⁽¹⁾	maximum · 4 cards $1,614 ⭗⭗⁽¹⁾

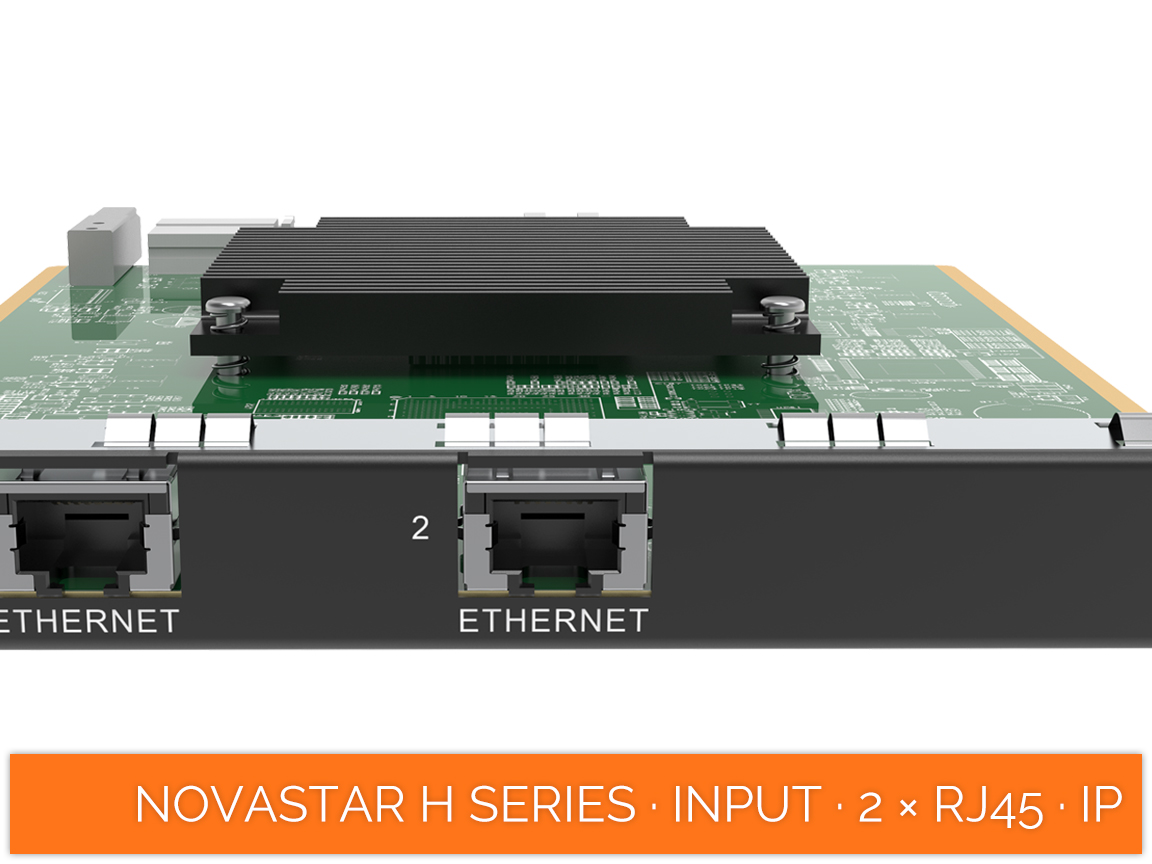

Input · (2) rj45 ip input · interlaced signal input · rtsp · onvif · gb28181 · h.264 · h.265 · dhcp compliant · rj45 · ip		maximum · 30 cards $1,424 ⭗⁽²⁾	maximum · 15 cards $1,424 ⭗⁽²⁾	maximum · 10 cards $1,424 ⭗⁽²⁾	maximum · 4 cards $1,424 ⭗⁽²⁾

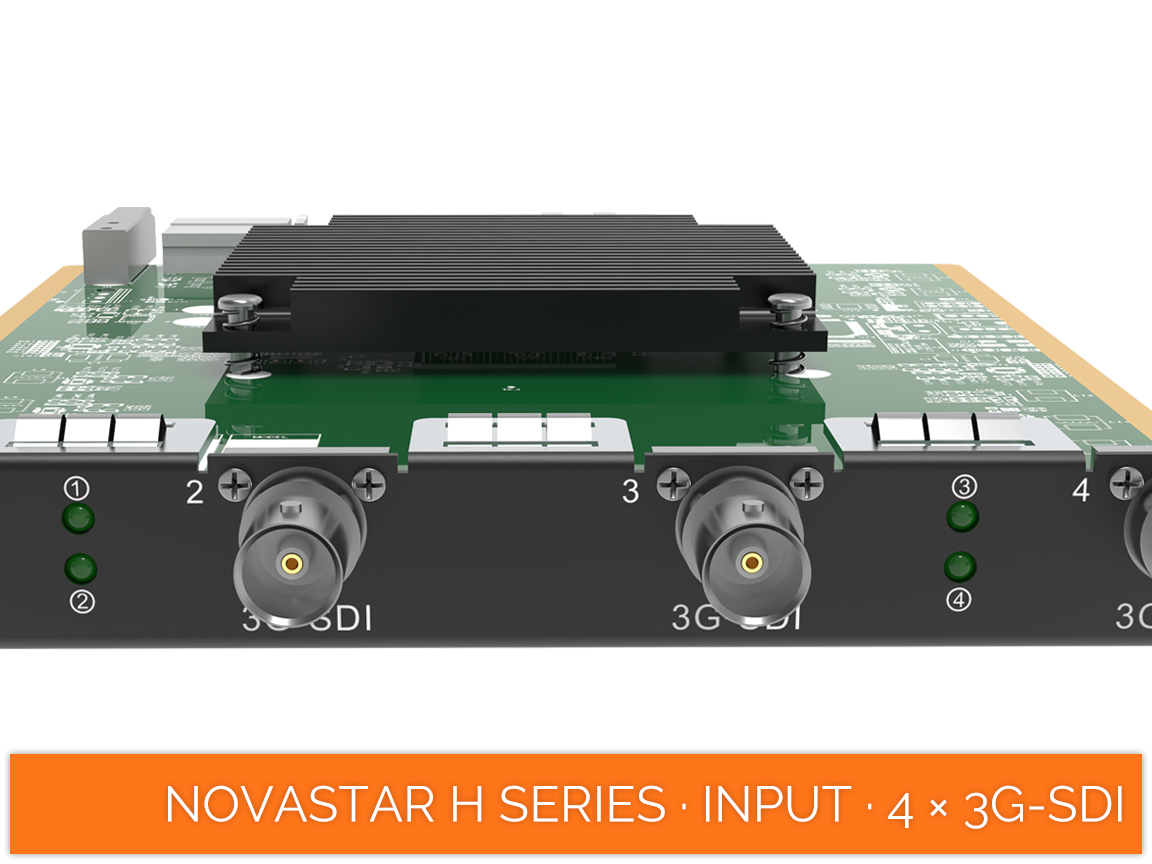

Input · (4) 3g sdi input · st-424 · st-292 · smpte 259 sd · backward compatible · 3g sdi		maximum · 30 cards $1,614 ⭗⁽⁴⁾	maximum · 15 cards $1,614 ⭗⁽⁴⁾	maximum · 10 cards $1,614 ⭗⁽⁴⁾	maximum · 4 cards $1,614 ⭗⁽⁴⁾

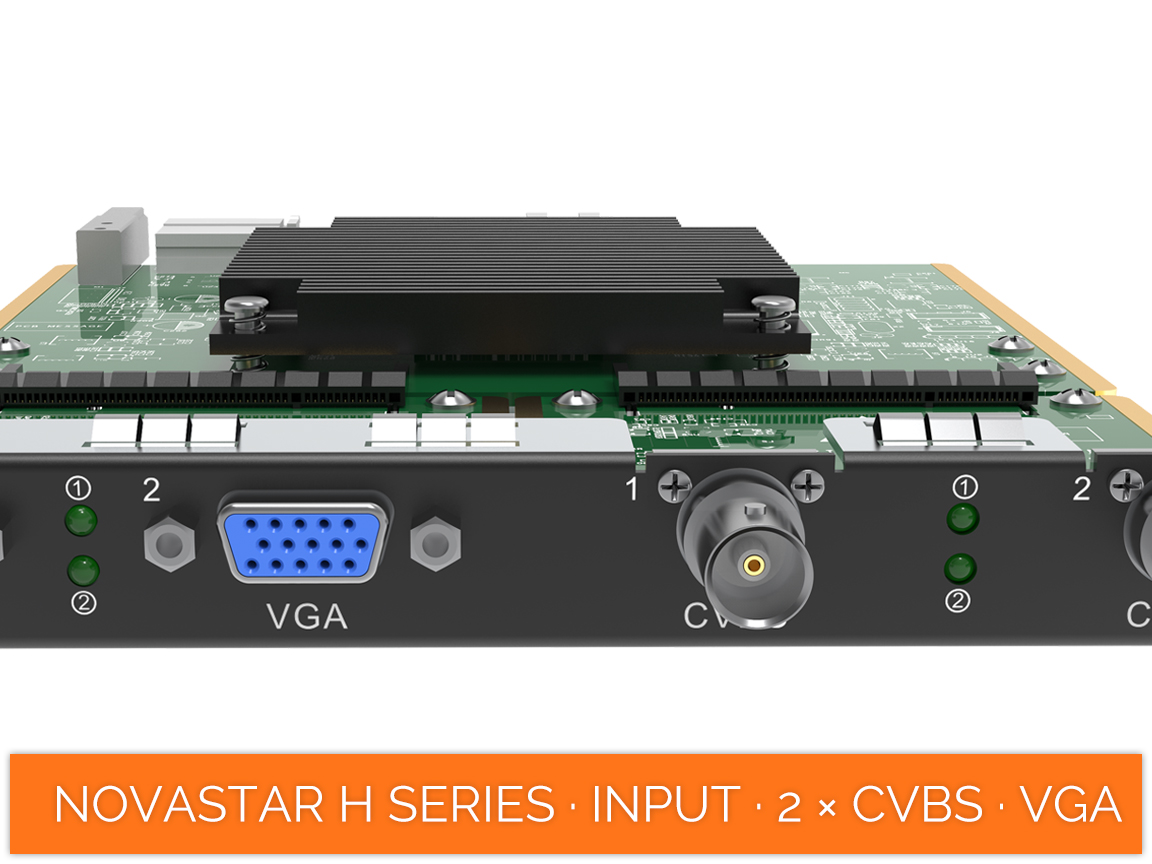

Input · (2) vga · (2) cvbs · pal · ntsc · cvbs · vga		maximum · 30 cards $854 ⭗⭗⁽²⁾	maximum · 15 cards $854 ⭗⭗⁽²⁾	maximum · 10 cards $854 ⭗⭗⁽²⁾	maximum · 4 cards $854 ⭗⭗⁽²⁾

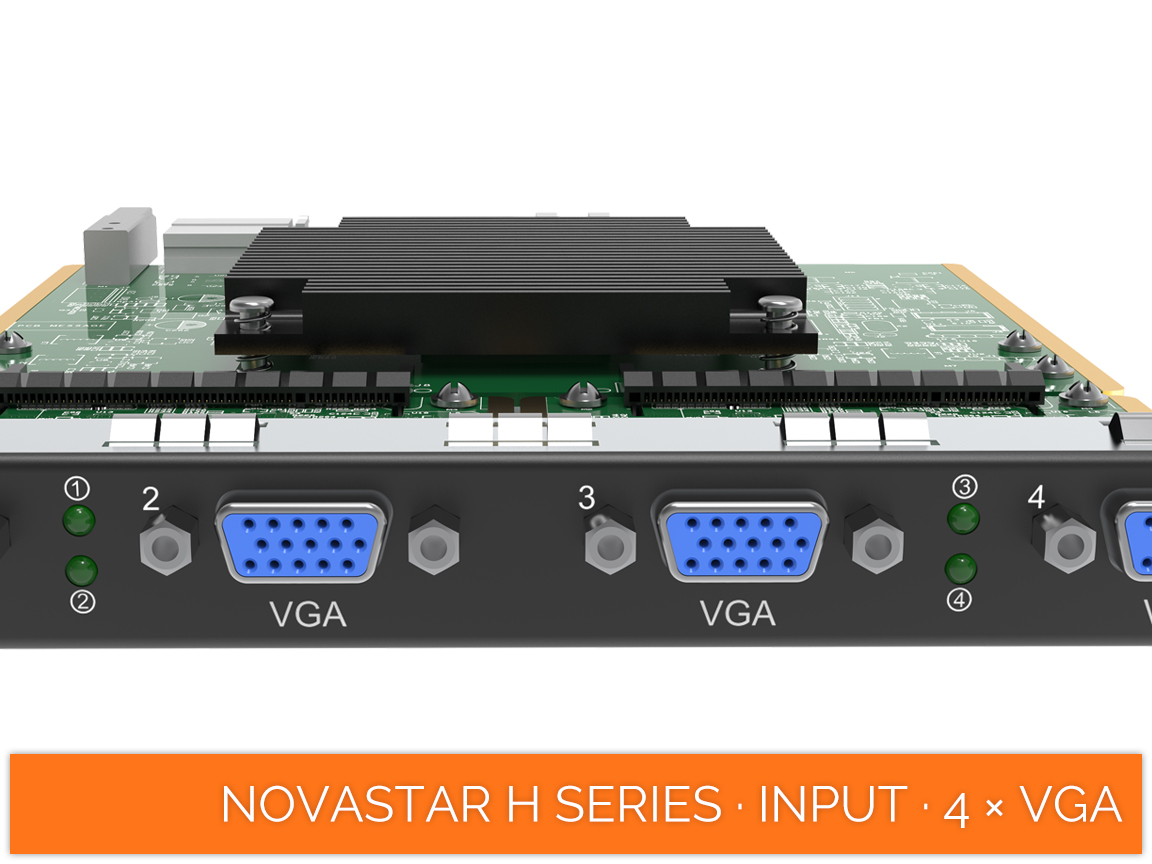

Input · (4) vga · vga		maximum · 30 cards $854 ⭗⁽⁴⁾	maximum · 15 cards $854 ⭗⁽⁴⁾	maximum · 10 cards $854 ⭗⁽⁴⁾	maximum · 4 cards $854 ⭗⁽⁴⁾

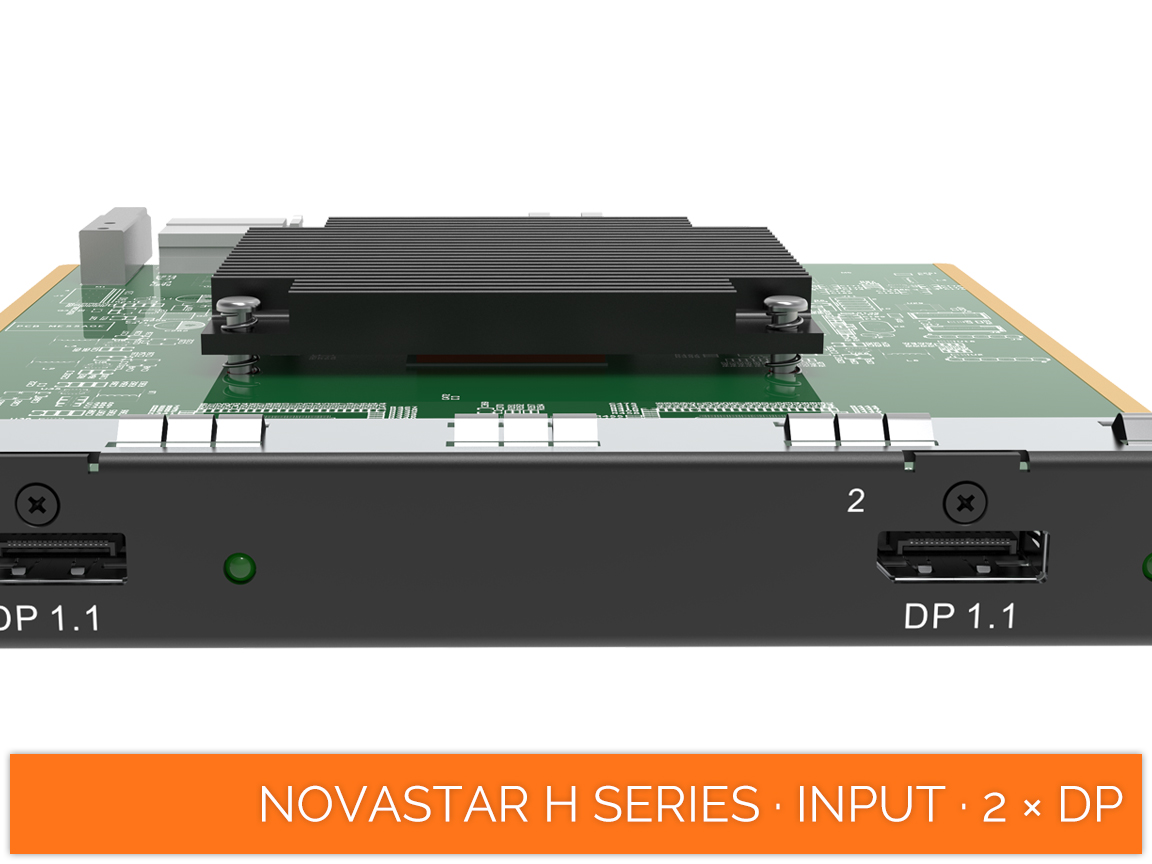

Input · (2) dp 1.1 · maximum width · 3840 pixels · maximum height · 4095 pixels · 8-bits · 10-bits · hdcp 1.3 compliant · dp 1.1		maximum · 30 cards $1,614 ⭗⁽²⁾	maximum · 15 cards $1,614 ⭗⁽²⁾	maximum · 10 cards $1,614 ⭗⁽²⁾	maximum · 4 cards $1,614 ⭗⁽²⁾

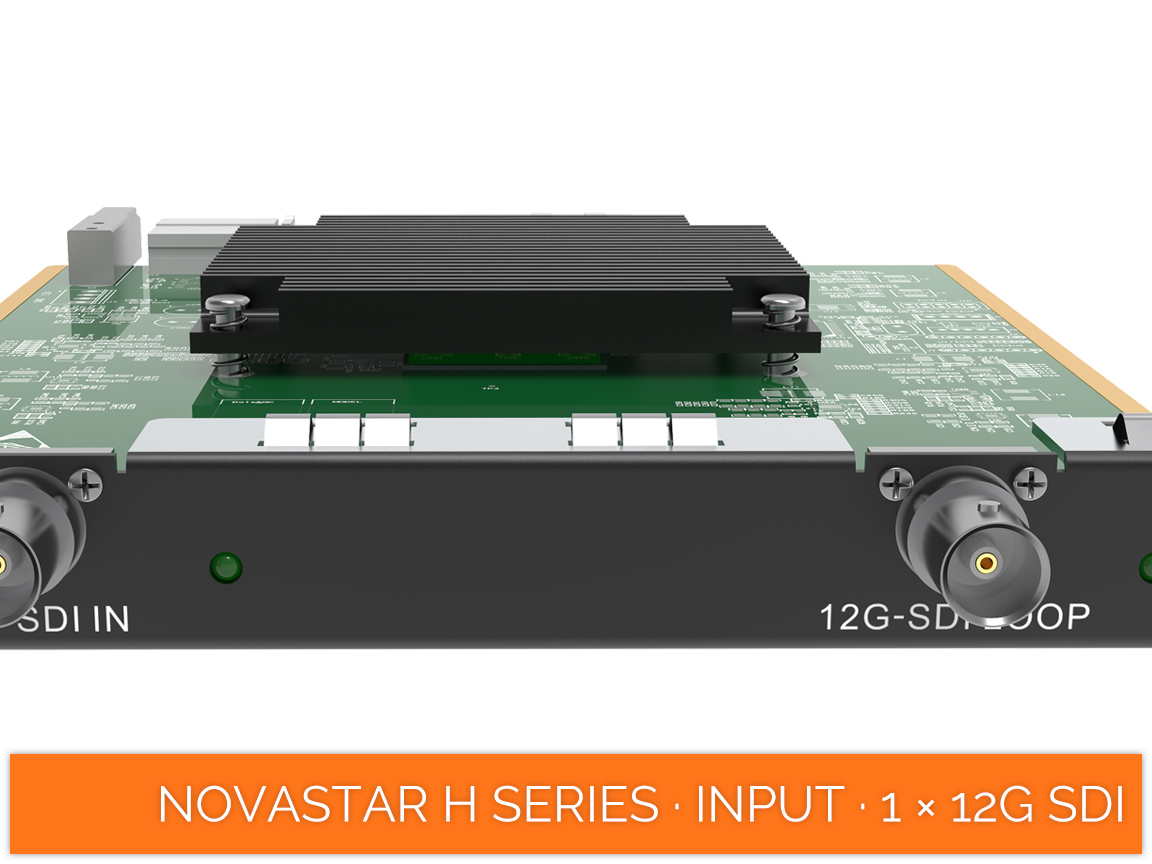

Input · (1) 12g sdi · (1) 12g sdi loop · maximum width · 4096 pixels · maximum height · 2160 pixels · backward compatible · 12g sdi		maximum · 30 cards $1,614 ⭗⁽²⁾	maximum · 15 cards $1,614 ⭗⁽²⁾	maximum · 10 cards $1,614 ⭗⁽²⁾	maximum · 4 cards $1,614 ⭗⁽²⁾
Input · (2) hdmi 2.0 · maximum width · 4096 pixels · maximum height · 2160 pixels · hdcp 2.2 compliant · backward compatible · hdmi 2.0		maximum · 30 cards $1,614 ⭗⁽²⁾	maximum · 15 cards $1,614 ⭗⁽²⁾	maximum · 10 cards $1,614 ⭗⁽²⁾	maximum · 4 cards $1,614 ⭗⁽²⁾
Input · (1) hdmi 2.0 · maximum width · 4096 pixels · maximum height · 2160 pixels · hdcp 2.2 compliant · backward compatible · hdmi 2.0		maximum · 30 cards $1,111 ⭗⁽¹⁾	maximum · 15 cards $1,111 ⭗⁽¹⁾	maximum · 10 cards $1,111 ⭗⁽¹⁾	maximum · 4 cards $1,111 ⭗⁽¹⁾

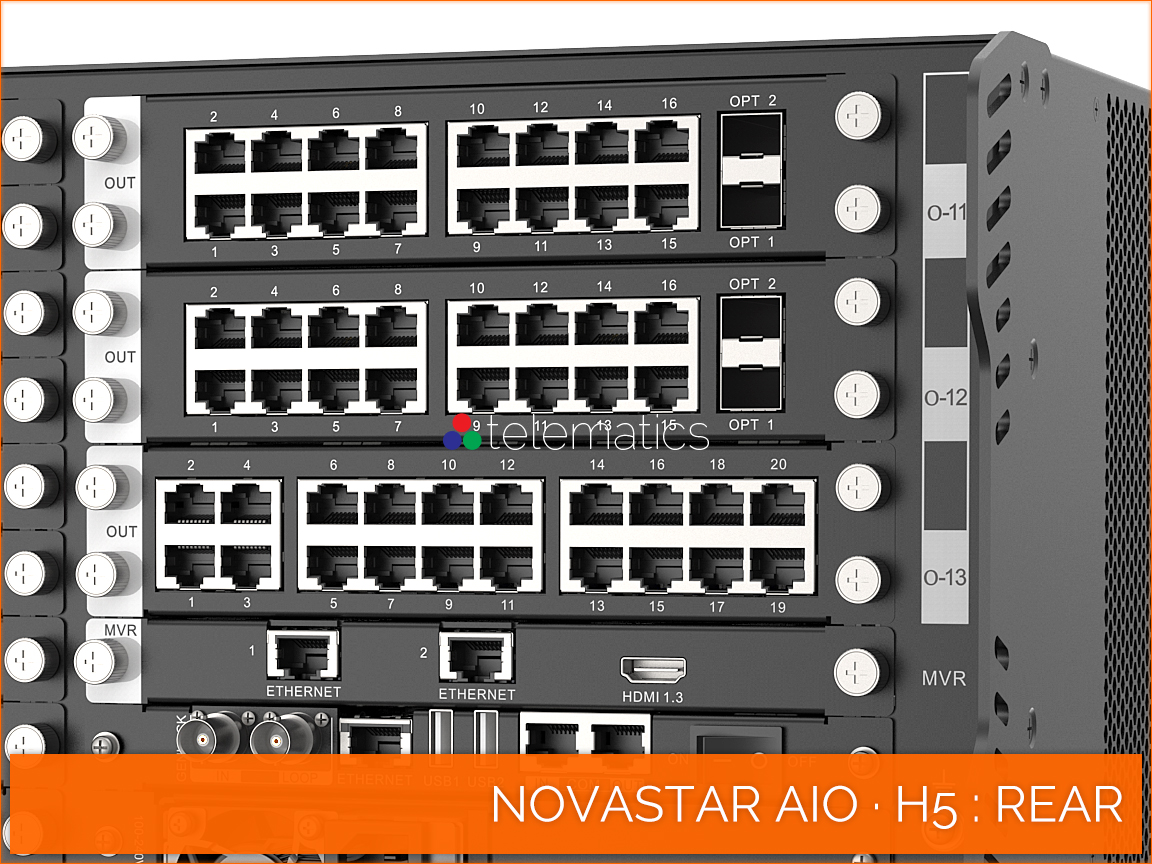

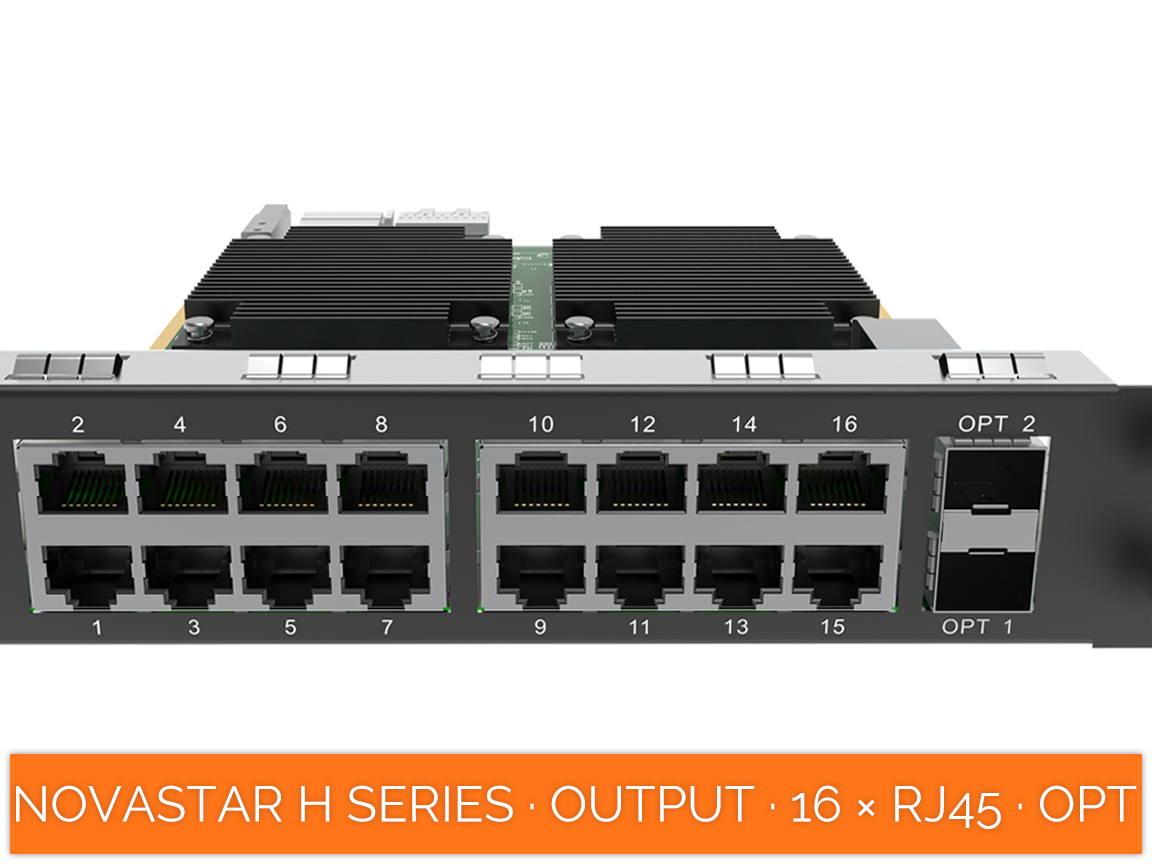

Output · (16) rj45 · (2) opt · 8-bit · port · 650,000 pixels · 10-bit · port · 320,000 pixels · smf · mmf · rj45 · opt		maximum · 30 cards $1,614 ⭗⁽¹⁶⁾	maximum · 15 cards $1,614 ⭗⁽¹⁶⁾	maximum · 10 cards $1,614 ⭗⁽¹⁶⁾	maximum · 4 cards $1,699 ⭗⁽¹⁶⁾

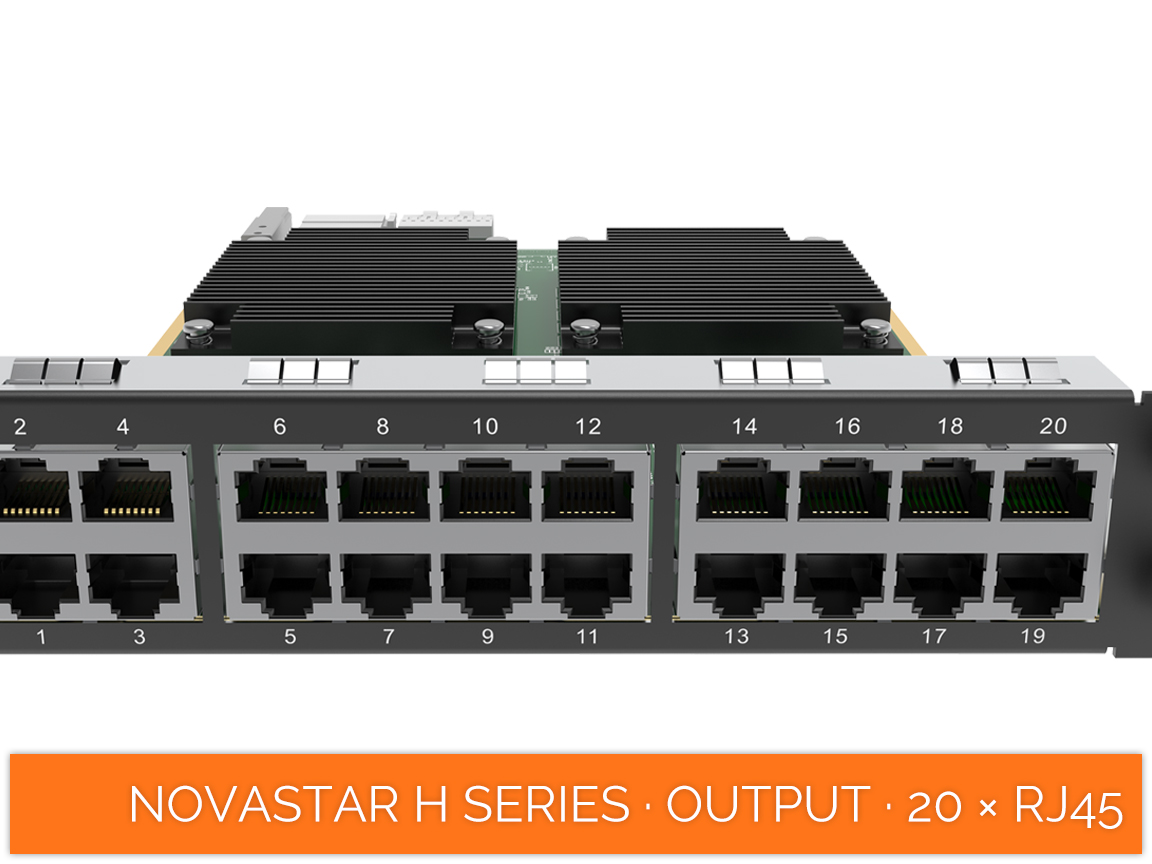

Output · (20) rj45 · 2 slots · maximum width · 10,752pixels · maximum height · 10,752pixels · 8-bit · port · 650,000 pixels · 10-bit · port · 320,000 pixels · rj45		maximum · 30 cards $1,671 ⭗⁽²⁰⁾	maximum · 15 cards $1,671 ⭗⁽²⁰⁾	maximum · 10 cards $1,671 ⭗⁽²⁰⁾	maximum · 4 cards $1,671 ⭗⁽²⁰⁾

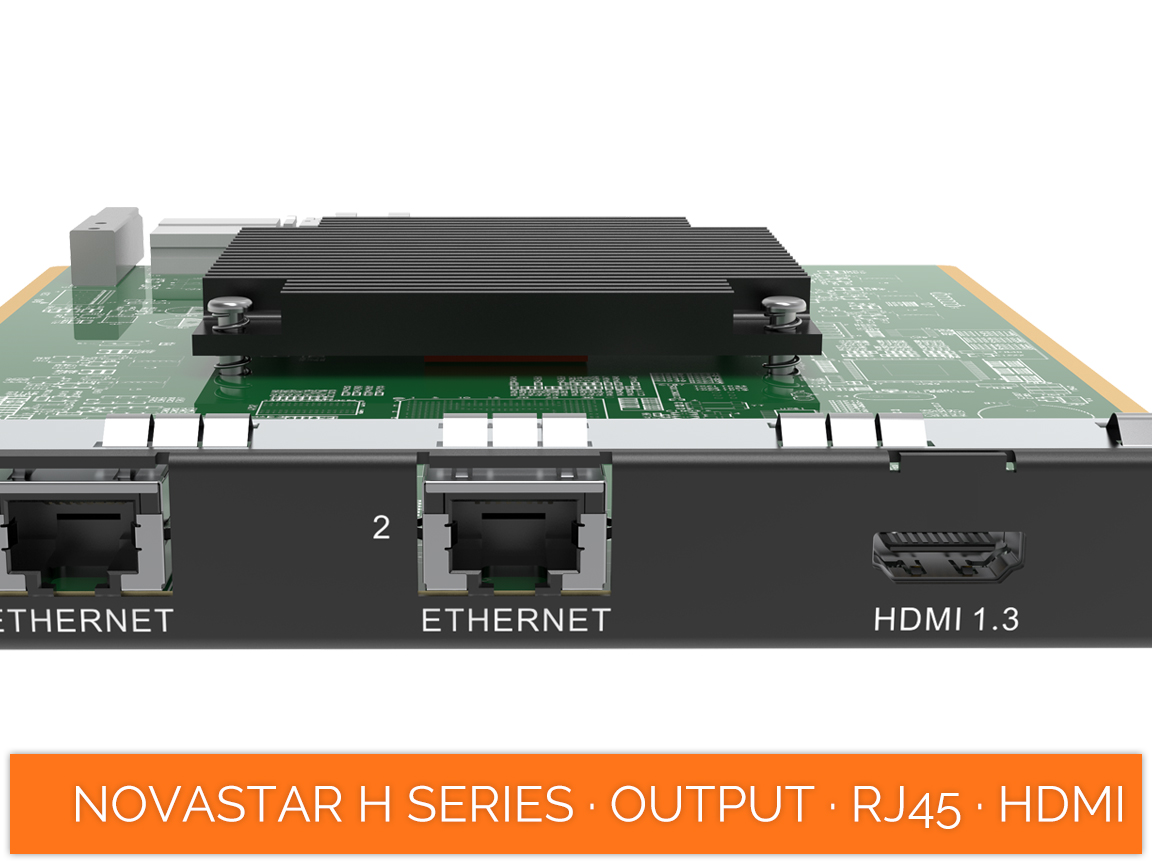

Output · (2) rj45 · (1) hdmi 1.3 · network connection · external monitor · rj45 · hdmi		maximum · 30 cards $1,187 ⭗⁽²⁾	maximum · 15 cards $1,187 ⭗⁽²⁾	maximum · 10 cards $1,187 ⭗⁽²⁾	maximum · 4 cards $1,187 ⭗⁽²⁾

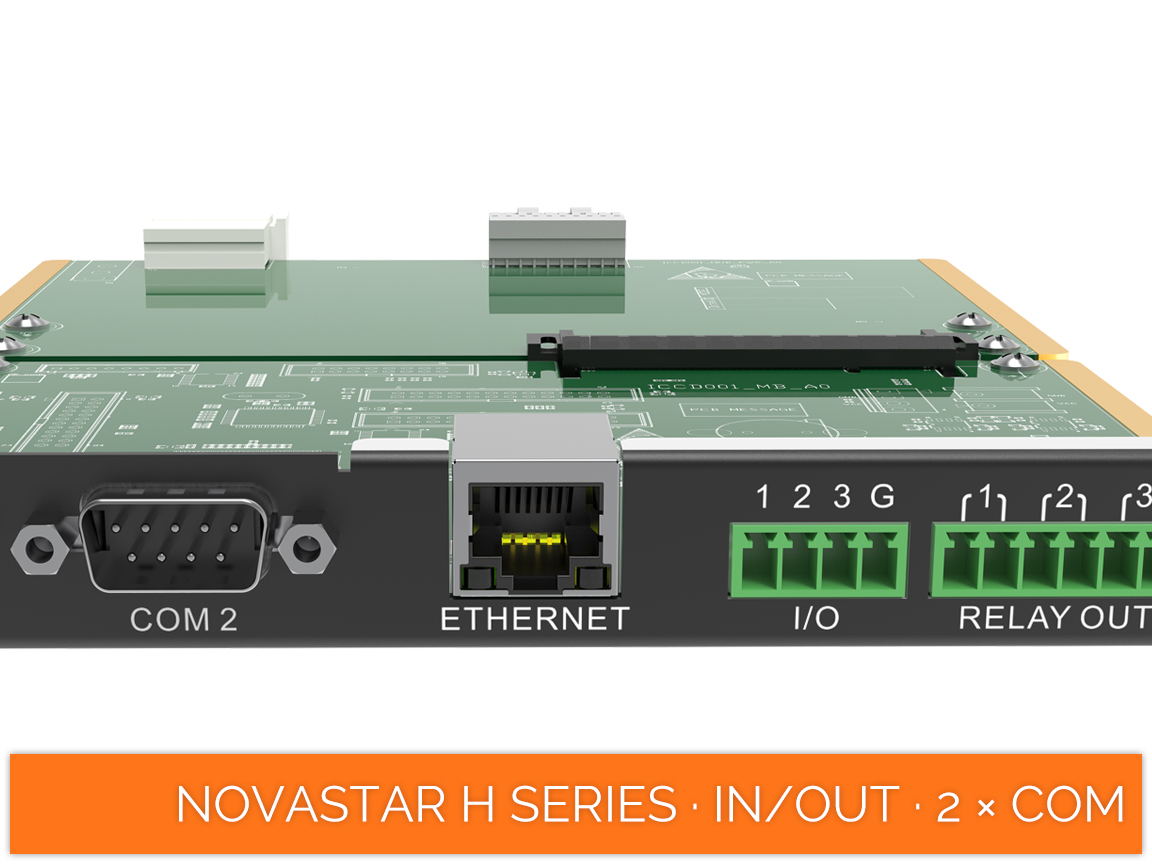

Input/Output · (2) com · rs422 · rs485· rs232 · (1) ethernet · (3) i/o · (3) relay out · (3) ir out · com		maximum · 30 cards $854 ⭗⁽²⁾	maximum · 15 cards $854 ⭗⁽²⁾	maximum · 10 cards $1854 ⭗⁽²⁾	maximum · 4 cards $854 ⭗⁽²⁾

PDF · 3 of 4


Fine Print
Warranty · factory standard	NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Conditions · authorized dealers		Factory warranty is only provided on products sold by NovaStar Authorized Dealers.

Certifications · etl · fcc	Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price	NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.

The Sales Pitch · NovaStar AIO · H Series

So here's the deal...

Do not mind anything that anyone tells you about anyone else. Judge everyone and everything for yourself. ~ Henry James

About Telematics Canada

Telematics Canada is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture premium direct-view LED displays for most every commercial and creative application, and the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses who select and install their own systems with the assistance of local tradesmen and engineers.

About NovaStar

NovaStar is the worldwide leader in control systems for direct-view LED systems, both synchronous and asynchronous, plus high-performance calibration solutions and cost-free VNNOX + CARE cloud-based media publishing, scheduling and display monitoring.

The Beijing Olympic Games, Tienanmen Celebration for the 60th Anniversary on National Day,Shanghai World Expo, Guangzhou Asian Games, Xi'an International Horticultural Expo, Games for University Students and other large-scale events all relied on control systems are provided by Nova.

Through constant innovation, NovaStar now holds more than 20 proprietary intellectual property rights in LED display control, cloud computing and other fields.

NovaStar has been awarded the Xi'an Award for Science and Technology and the Shaanxi Award for Science and Technology.

Our Clients

For more than 23 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Amazing Showcase · NovaStar AIO · H Series

A picture is worth a thousand clicks.

Very little is needed to make a happy life; it is all within yourself, in your way of thinking. ~ Marcus Aurelius

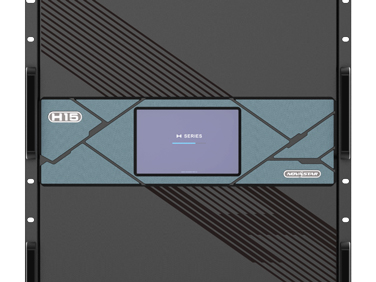

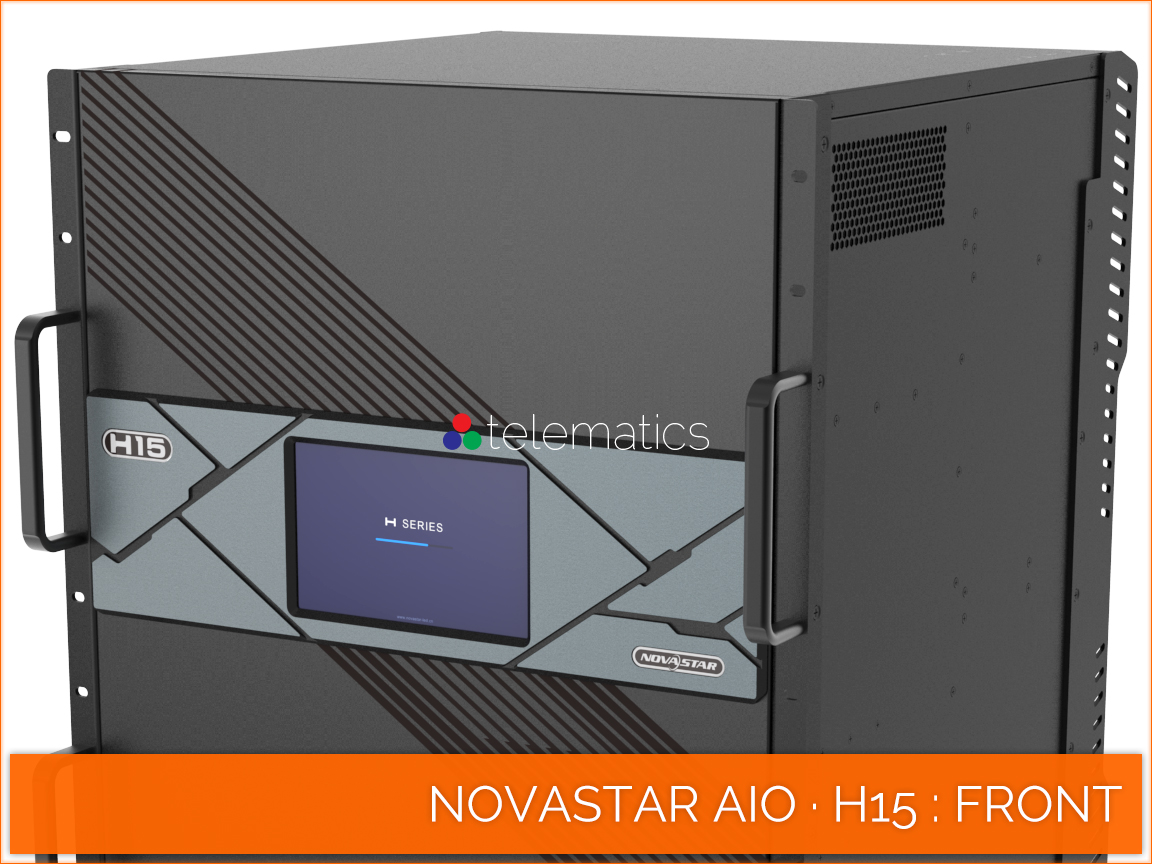

Photo Library · AIO · H15 · 3 of 9
NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Front NovaStar AIO · H15 all in one sending controller video wall splicer · scaler calibration · brightness · chroma novalct · viplex 3 year NovaStar factory warranty · support only when purchased from authorized distributors priced from $ 6,146/unit H15 Rear

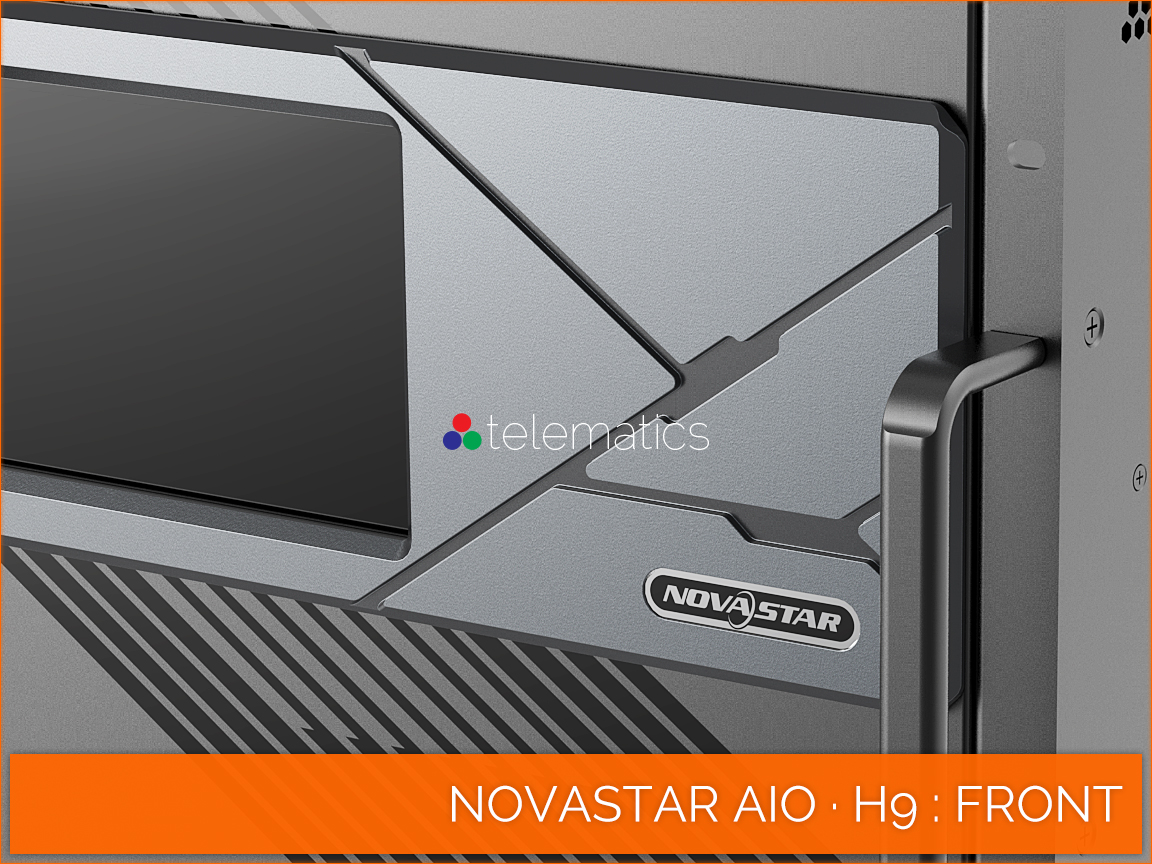

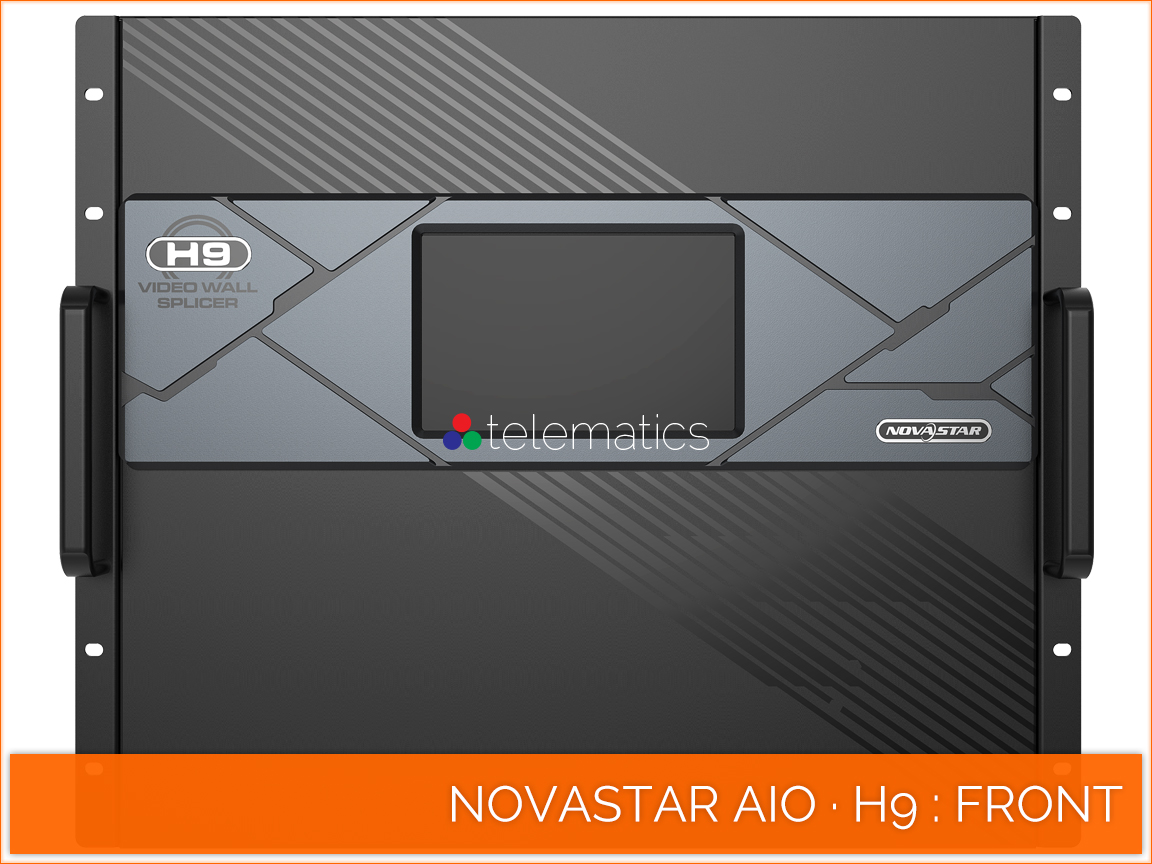

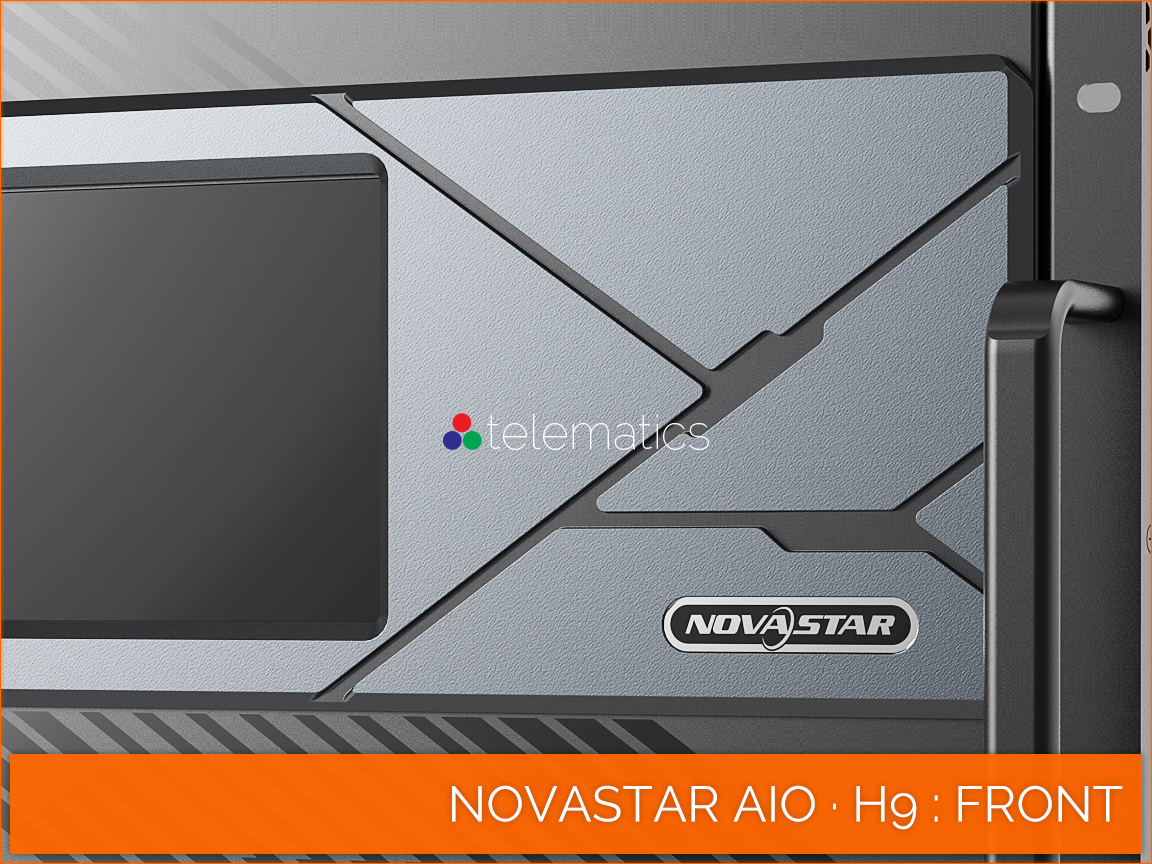

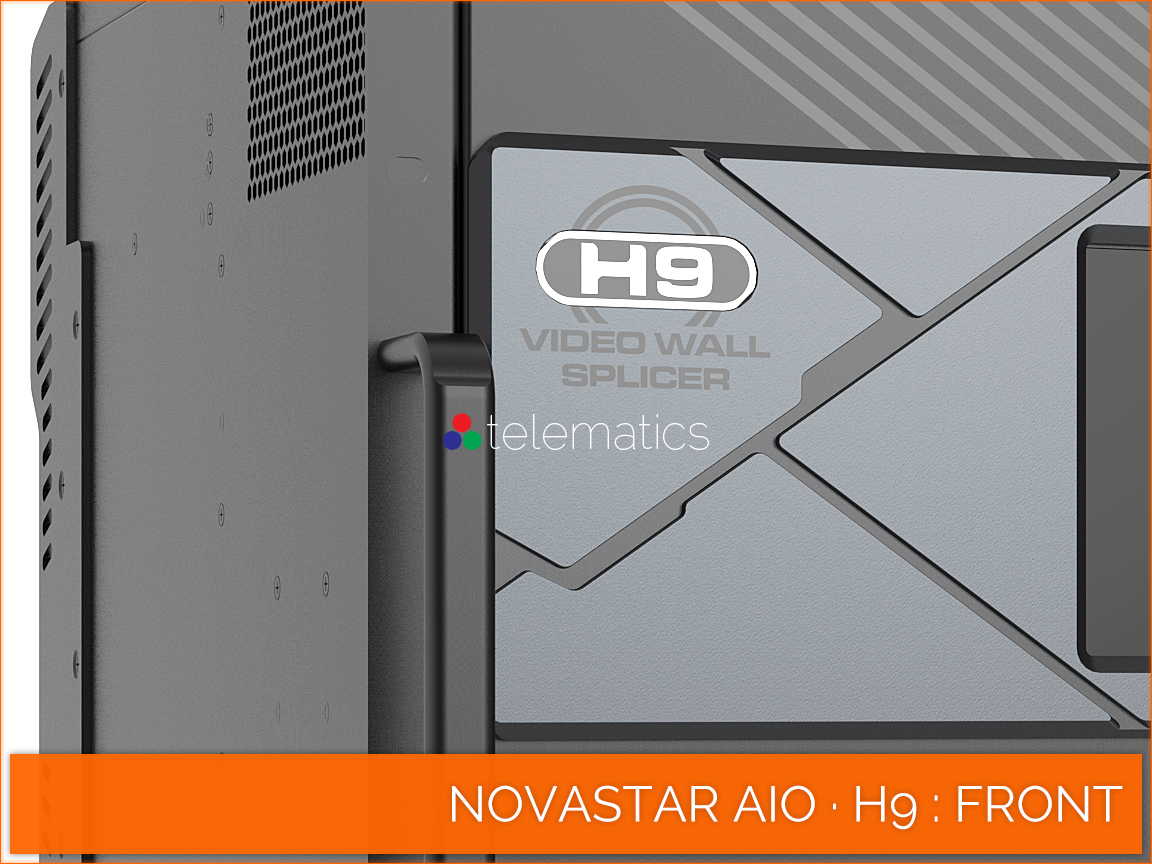

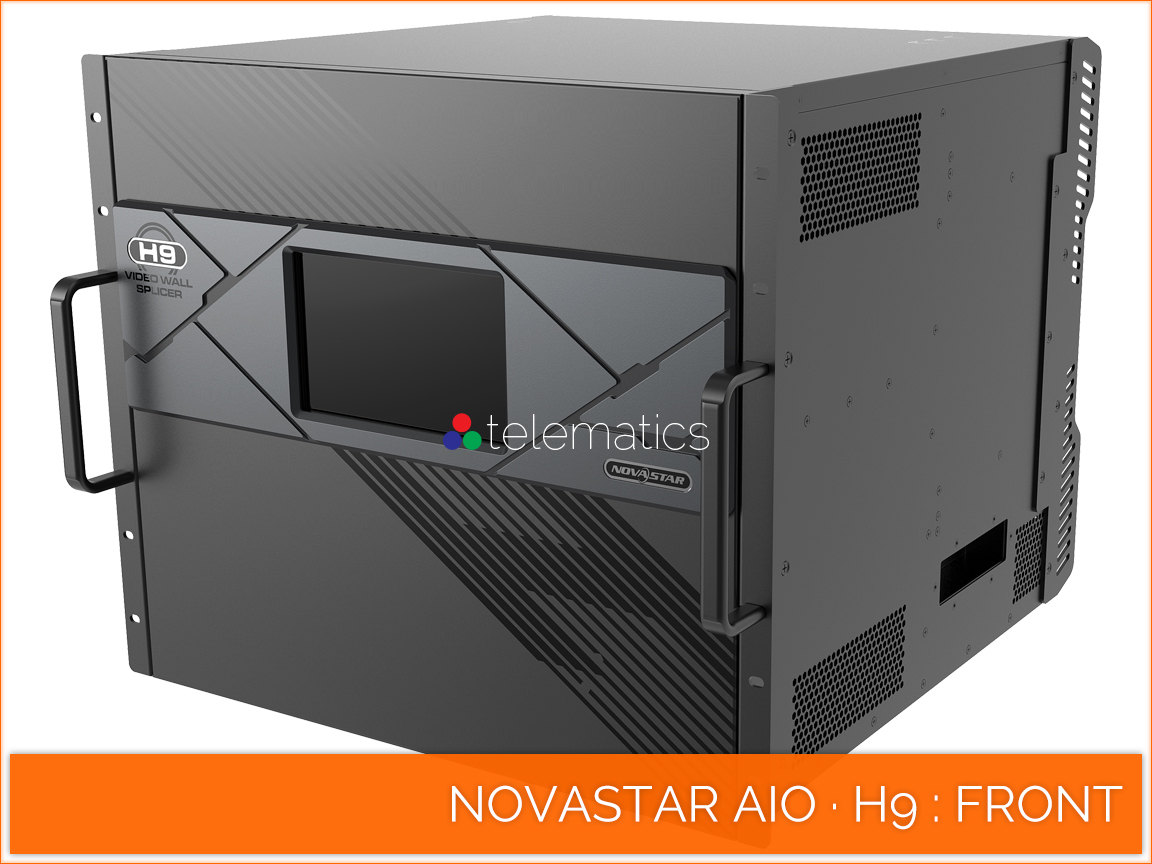

Photo Library · AIO · H9 · 3 of 12
