The Art Of Control · NovaStar AIO · VX

The only true wisdom is in knowing you know nothing. ~ Socrates

NovaStar AIO · VX · direct view LED display · all in one sending controller · novalct · viplex · review · price · cost — NovaStar AIO · VX

all in one sending controller

calibration · brightness · chroma

scaler · novalct · viplex

3 year NovaStar factory warranty · support

only when purchased from authorized distributors

priced from $ 1,994/unit

VX1000 Front

NovaStar AIO · VX

Or how to splurge on deluxe hardware in the most responsible manner possible.

Pixels

Pixel loading begins at a modest 2,300,000 for a quotidian display, climbs to an impressive 6,500,000 for something more sensational, and then blasts off to reach a staggering 10,400,000 pixels, which means you are good to go for a 4K × 2K primary layer and a pair of 2K × 1K layers.

Dimensions

All NovaStar VX models measure 482.6 millimeters wide to fit a standard 19" rack. Each is either 2U or 3U tall which corresponds to a multiple of 44.45 millimeters. And if you don't happen to have a rack on hand, no worries as they are equally comfortable set up on your desk.

Viewing

Custom scale your content to fit your display. Select up to 3 independent layers of content. Enable amazing 3D display effects. Create an image mosaic from up to 4 devices. Support for decimal frame rates. And 3G-SDI and HDMI 2.0 and SL-DVI. Save your settings with up to 10 presets.

Performance

Support for up to 10,240 pixels and 8,192 pixels on the X and Y axis. Up to 10 Gigabit Ethernet ports. Up to 2 optical fibre inputs and outputs. HDMI 1.3 for monitor output. Source and display color adjustment. Low latency function. Powerful video processing. Leaps tall buildings.

Power

Rated power consumption runs from 25 to 70 watts and 1.5 to 2.1 amps. Variable voltage is 100V ~ 240V and input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables may include Cat5e and USB, and DVI and HDMI. Quietly running at 38 to 45 dB.

Installation

NovaLCT and V-Can facilitates display screen configuration, field operations and control, plus layer management, Ethernet port backup settings, preset management and firmware. V-Can is a smart control platform for controlling VX all-in-one controllers on Windows and OSX.

Specifications · NovaStar AIO · VX

Always remember that you are absolutely unique. Just like everyone else. ~ Margaret Mead

Series ^{· usd per unit}		VX1000 ^1g	VX600 ^1g	VX400 ^1g	·	·	·

VX · color management · 10/8-bit · 1 gb per second bandwidth · low latency · full grayscale cost : unit · all in one controller	$ 1,994	$ 1,709	$ 1,215

Options · custom case · full panel access · cable storage cost : unit · hard case	$ 100	$ 100	$ 100

NovaLCT · legacy software · windows · intuitive · efficient cost : zero · led configuration tool	download windows	download windows	download windows

VNNOX Media · edit · schedule · remote publishing · detailed logs cost : zero · content	apply for account zero cost	apply for account zero cost	apply for account zero cost
VNNOX Care · condition monitoring · operation history · cloud backup cost : zero · monitoring	apply for account zero cost	apply for account zero cost	apply for account zero cost

Pixels
Loading · 8-bit · capacity	maximum6,597,220	maximum3,958,332	maximum2,638,888

Resolution · maximum resolution · 60Hz	width × height3,840 × 1,080	width × height1,920 × 1,080	width × height1,920 × 1,080
Resolution · maximum input width · maximum input height · input	width · height8,192 · 8,192	width · height8,192 · 7,680	width · height8,192 · 7,680
Resolution · maximum output width · maximum output height · output	width · height10,240 · 8,192	width · height10,240 · 8,192	width · height10,240 · 8,192

Bit Depth · 16,777,216 colors · 256³ · rgb · 2⁸	256 levels of grey8	256 levels of grey8	256 levels of grey8

Port Output Load · frame rate · number of ports · pixel capacity · bit depth · 8-bit	1g · port · 60hz659,722	1g · port · 60hz659,722	1g · port · 60hz659,722

Interface

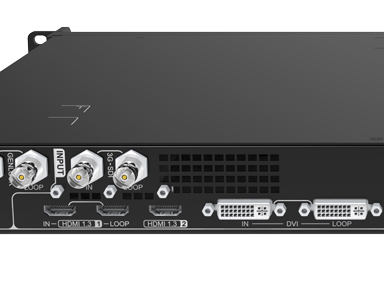

Inputs · hd multimedia interface · 1.4 · 1.3 · hdmi	hdmi 1.4 × 1 · hdmi 1.4 in · loop ✓	hdmi 1.3 × 1 · hdmi 1.3 in · loop ✓	hdmi 1.3 × 1 · hdmi 1.3 in · loop ✓
Inputs · serial digital interface · 3g-sdi · sdi	3g-sdi × 1 in · loop ✓	3g-sdi × 1 in · loop ✓	3g-sdi × 1 in · loop ✓
Inputs · digital visual interface · hdcp 1.4 compliant · dvi	dvi✓	dvi✓	dvi✓

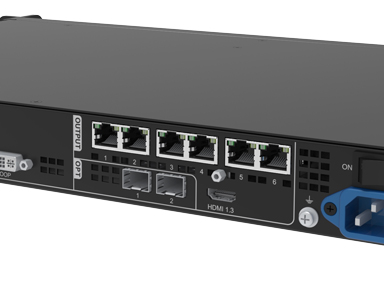

Outputs · ethernet ports · 1 gigabit per second · ethernet	1 gbps ethernet ports × 10✓	1 gbps ethernet ports × 6✓	1 gbps ethernet ports × 4✓
Outputs · hd multimedia interface · 1.3 · monitor output · hdmi	hdmi 1.3 × 1✓	hdmi 1.3 × 1✓	hdmi 1.3 × 1✓
Outputs · optical ports · 10 gigabits per second · optical	10 gbps optical ports × 2✓	10 gbps optical ports × 2✓	10 gbps optical ports × 2✓

Control · gigabit ethernet control · ethernet	ethernet port × 1✓	ethernet port × 1✓	ethernet port × 1✓
Control · genlock ports · bi-level · tri-level · accept sync signal · loop sync signal · genlock	genlock in · loop✓	genlock in · loop✓	~
Control · type b · control pc · type a · output cascade · usb	usb type a · b✓	usb type a · b✓	usb type a · b✓


PDF · 3 of 9


Fine Print
Warranty · factory standard	NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Conditions · authorized dealers		Factory warranty is only provided on products sold by NovaStar Authorized Dealers.

Certifications · etl · fcc	Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price	NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.

The Sales Pitch · NovaStar AIO · VX

So here's the deal...

Do not mind anything that anyone tells you about anyone else. Judge everyone and everything for yourself. ~ Henry James

About Telematics Canada

Telematics Canada is a federally-incorporated company based in Vancouver since 2000. Our global partners manufacture premium direct-view LED displays for most every commercial and creative application, and the intuitive systems that control them. We also distribute the world's most advanced touch skins to turn any glass surface into a massive touch screen.

Our high-volume relationship with our manufacturers and low corporate profile allows us to provide aggressive pricing and personalized service to a world-wide network of principals and project managers in the audio-video and digital signage industry. We also sell directly to businesses who select and install their own systems with the assistance of local tradesmen and engineers.

About NovaStar

NovaStar is the worldwide leader in control systems for direct-view LED systems, both synchronous and asynchronous, plus high-performance calibration solutions and cost-free VNNOX + CARE cloud-based media publishing, scheduling and display monitoring.

The Beijing Olympic Games, Tienanmen Celebration for the 60th Anniversary on National Day,Shanghai World Expo, Guangzhou Asian Games, Xi'an International Horticultural Expo, Games for University Students and other large-scale events all relied on control systems are provided by Nova.

Through constant innovation, NovaStar now holds more than 20 proprietary intellectual property rights in LED display control, cloud computing and other fields.

NovaStar has been awarded the Xi'an Award for Science and Technology and the Shaanxi Award for Science and Technology.

Our Clients

For more than 23 years we have developed business relationships with thousands of people from every corner of the world.

Many are AV Professionals and Consultants who need to source premium equipment for their clients or their own rental inventory for the entertainment industry. Others are Architects and Designers looking for solutions to create fantastic high-resolution LED displays spanning a wall of an office or the facade of a building. And some are end-users prepared to take on the challenge of setting up their own digital displays for their storefronts.

In each case, we provide our customers with the answers they need and endeavour to offer solutions that are affordable, effective and reliable.

And we always keep their secrets to ourselves.

Our Amazing Showcase · NovaStar AIO · VX

A picture is worth a thousand clicks.

Very little is needed to make a happy life; it is all within yourself, in your way of thinking. ~ Marcus Aurelius

Photo Library · AIO · VX1000 · 3 of 18
