NovaStar COEX · CX80 Pro · direct view LED display · all in one controller · vision management platform · review · price · cost — NovaStar COEX · CX

all in one controller

calibration · brightness · chroma

vision management platform

priced from $ 20,549/unit

CX80 Pro Front

NovaStar COEX · CX40 Pro · direct view LED display · all in one controller · vision management platform · review · price · cost — NovaStar COEX · CX

all in one controller

calibration · brightness · chroma

vision management platform

priced from $ 6,849/unit

CX40 Pro Front

NovaStar COEX · CX

7680 × 4320 + 5g + VMP + everything you need = your next XR studio.

Pixels

CX80 Pro loads 32,768 horizontal or vertical pixels, for a total of up to 35,389,440 red, green and blue lamps. Vision Management Platform hands you control using the LCD interface to set input sources, resolution and frame rates, and adjust colors, latency, and bit depth.

Dimensions

The NovaStar CX80 Pro measures 482.6 millimeters wide and 528.0 millimeters deep which just means it nicely fits a standard 19" rack. Or you could option it up with a robust flight case that provides easy access to controls and cables, and keeps it safe and secure in transit and onsite.

Viewing

Enable less than one millisecond of latency. Generate unique calibration coefficients for each grayscale for unprecedented uniformity and image quality. Calibrate the brightness and chroma of each pixel. Support for standard frame rates or adjust for custom settings to just 0.01 Hz.

Performance

Support for 8 or 10 or 12-bits of color depth and up to 240 Hz frame rates. 40G optical fibre output ports. 16 Gigabit Ethernet ports. HDMI 2.0 and 2.1 ports and four 12G-SDI and one DisplayPort 1.4 and a pair of Bi-Level and Tri-Level supporting Genlock signal connectors. Whew.

Power

Rated power consumption maxes out at 170 watts and 1.5 amps and the variable voltage is 100V ~ 240V and the input power frequency is 50Hz ~ 60Hz. Power cords may include USA, Europe and UK. Cables to get set up include Cat5e and HDMI. Quietly running at just above silent.

Installation

NovaStar's CX80 Pro connects to your LED display through up to 16 Gigabit Ethernet ports. NovaStar's next generation control system Vision Management Platform runs on Windows or OSX. Cascade control of multiple CX80 Pro controllers with the built-in network switch.

Specifications · NovaStar COEX · CX

God gave us the gift of life; it is up to us to give ourselves the gift of living well. ~ Voltaire

Series ^{· usd per unit}		CX80 Pro · 5G	CX40 Pro · 5G	·	·	·	·

CX · image scaling · 12/10/8-bit · 5 gb per second ethernet · 14ch color correction · full grayscale · 3d lut cost : unit · controller	$ 20,549	$ 6,849

Options · input card #1 · hdmi 2.1 · dp 1.4 · 12g-sdi × 4 @ 60hz cost : unit · input card 1	$ 4,319	~
Options · input card #2 · hdmi 2.1 · dp 1.4 · 12g-sdi × 4 @ 30hz cost : unit · input card 2	$ 3,349	~
Options · input card #3 · hdmi 2.0 × 4 · 12g-sdi × 4 cost : unit · input card 3	$ 2,849	~

Options · custom case · full panel access · cable storage cost : unit · hard case	$ 300	$ 300

VMP · next generation software · windows · osx · intuitive · efficient · energy saving cost : zero · vision management platform	download windows · osx	download windows · osx

VNNOX Media · edit · schedule · remote publishing · detailed logs cost : zero · content	apply for account zero cost	apply for account zero cost
VNNOX Care · condition monitoring · operation history · cloud backup cost : zero · monitoring	apply for account zero cost	apply for account zero cost

Pixels
Loading · 12/10/8-bit · capacity	maximum35,389,440	maximum8,847,360

Resolution · maximum resolution · 60Hz	width × height7,680 × 4,320	width × height4,096 × 2,160
Resolution · maximum input width · maximum input height · input	width · height8,192 · 8,192	width · height8,192 · 8,192
Resolution · maximum output width · maximum output height · output	width · height16,384 · 16,384	width · height16,384 · 16,384

Bit Depth · 68,719,476,736 colors · 4096³ · 1,073,741,824 colors · 1024³ · 16,777,216 colors · 256³ · rgb · 2¹² · 2¹⁰ · 2⁸	4096 levels of grey 1024 levels of grey 256 levels of grey12 · 10 · 8	4096 levels of grey 1024 levels of grey 256 levels of grey12 · 10 · 8

Port Output Load · frame rate · number of ports · pixel capacity · bit depth · 12-bit	output per port · 60hz1,728,000	output per port · 60hz1,728,000
Port Output Load · frame rate · number of ports · pixel capacity · bit depth · 10-bit	output per port · 60hz2,073,000	output per port · 60hz2,073,000
Port Output Load · frame rate · number of ports · pixel capacity · bit depth · 8-bit	output per port · 60hz2,592,000	output per port · 60hz2,592,000

Interface

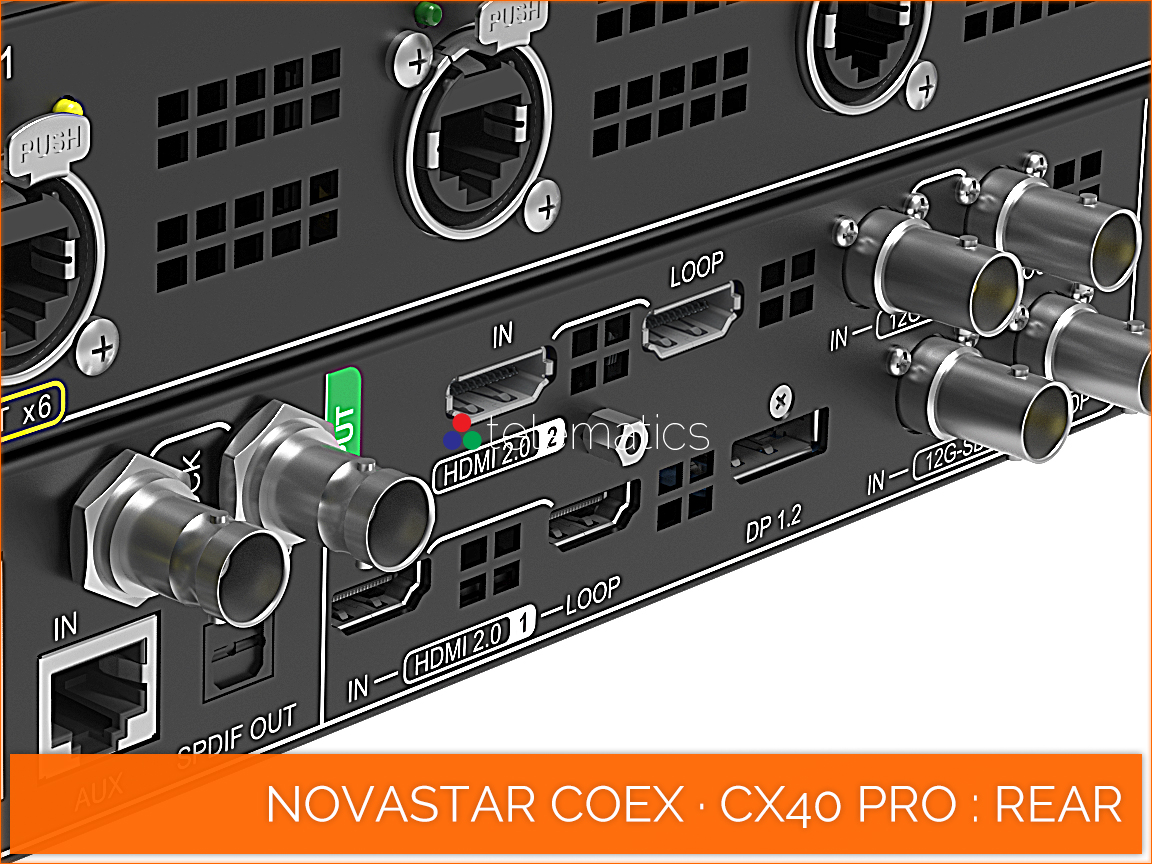

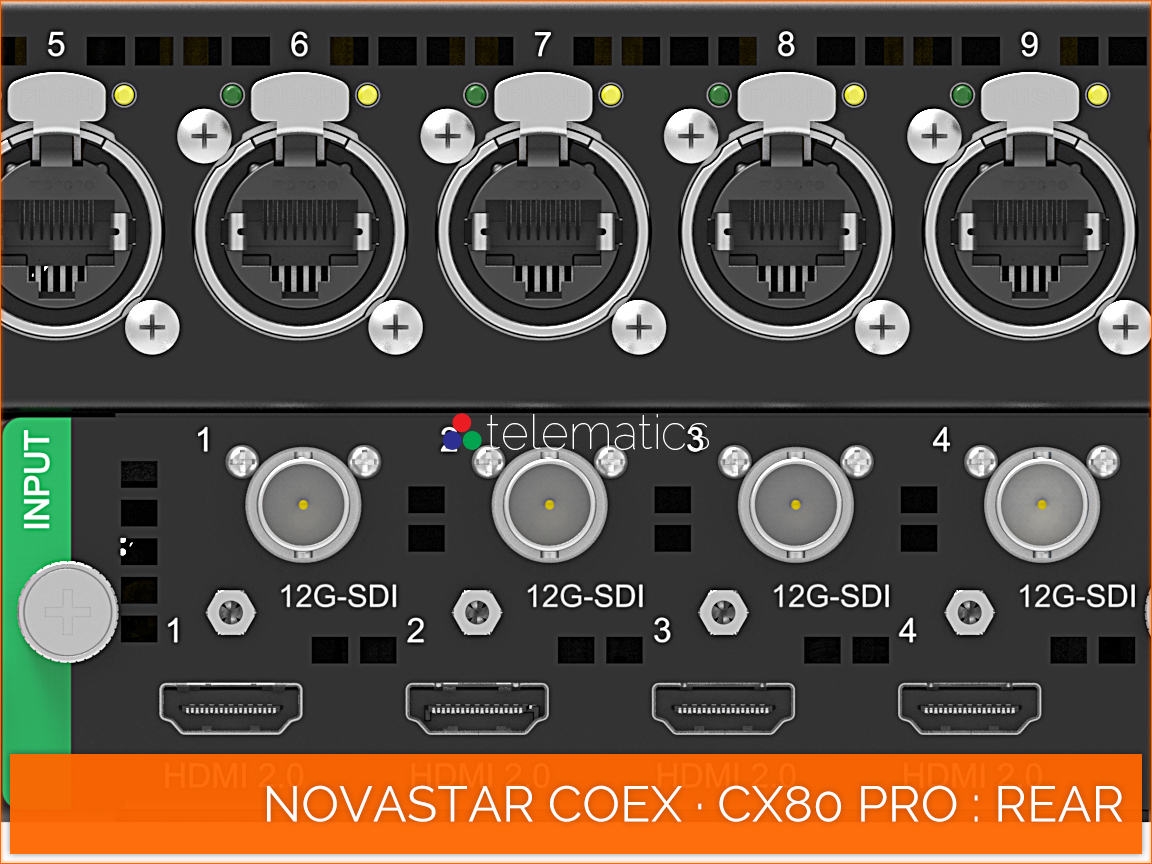

Inputs · hd multimedia interface · hdmi	hdmi 2.1 × 1 · hdmi 2.0 × 4✓	hdmi 2.0 in · loop✓
Inputs · 12g-sdi · 12g-sdi	12g-sdi × 4✓	12g-sdi in · loop✓
Inputs · display port · dp	dp 1.4✓	dp 1.2✓

Outputs · ethernet 5gb/ps · ethernet 5gb/ps	ethernet ports × 16✓	ethernet ports × 6✓
Outputs · qsfp+ optical 40gb/ps · capacity equal to 8 × 5gb/ps · optical 40gb/ps	optical ports × 2✓	optical ports × 1✓
Outputs · s/p digital interface · digital audio · s/pdif	reserved✓	reserved✓
Outputs · gigabit ethernet control · tcp/ip protocol · star topology · ethernet	ethernet ports × 2✓	ethernet ports × 2✓
Outputs · bi-level · tri-level · accept sync signal · loop sync signal · genlock	genlock in · loop✓	genlock in · loop✓


PDF · 3 of 4


Fine Print
Warranty · factory standard	NovaStar provides a comprehensive warranty on all components for 3 years from shipping.

Conditions · authorized dealers		Factory warranty is only provided on products sold by NovaStar Authorized Dealers.

Certifications · etl · fcc	Certifications may vary across regions. Confirm that all domestic requirements are met prior to placing an order.

Specifications · price	NovaStar and Telematics reserves the right to change any specifications or pricing without prior notice.
